Libec SVF-7 Pro Viewfinder

Name: Libec SVF-7 Pro Viewfinder
Brand: Libec
SKU: SVF-7PRO
Price: 4090.00 EUR
Availability: InStock

MPN: SVF-7PRO

Price: €4,090.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

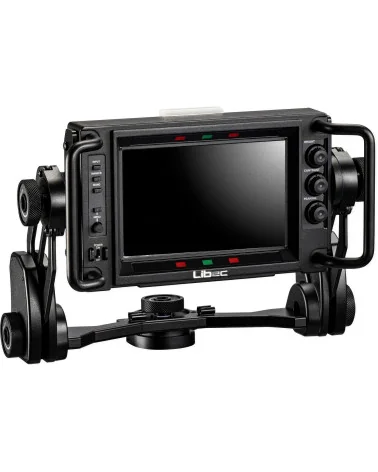

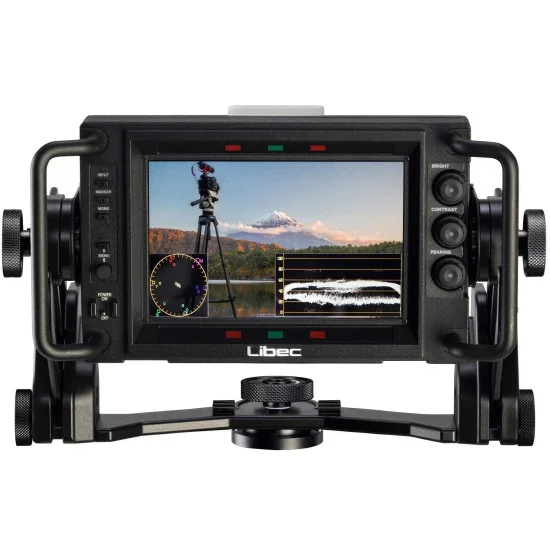

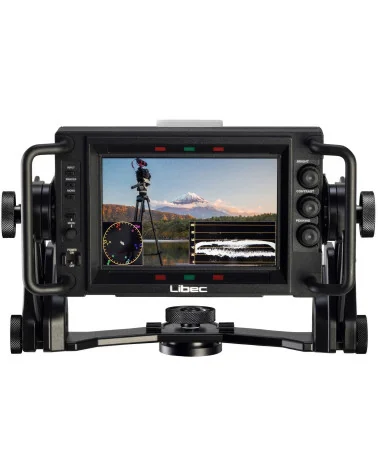

Libec SVF-7 Pro is a 7-inch Full HD studio camera viewfinder for broadcast and multi-camera production, where the operator needs a stable image, direct signal routing and clear tally visibility. It uses a TFT-LCD panel with 1920 × 1080 resolution, 350 cd/m² brightness, a 170° viewing angle and 16.7 million colors, so framing and focus remain readable even when the operator is not positioned exactly in front of the screen.

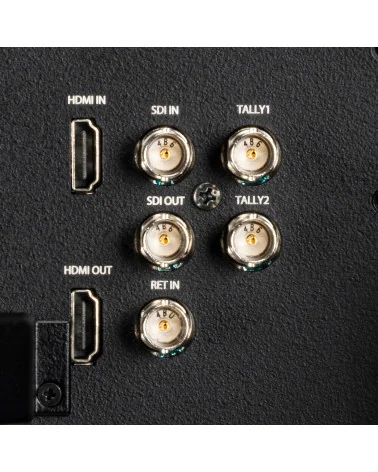

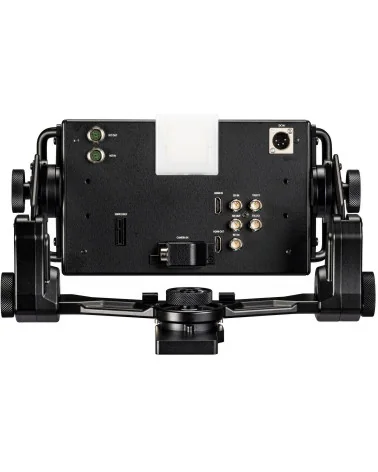

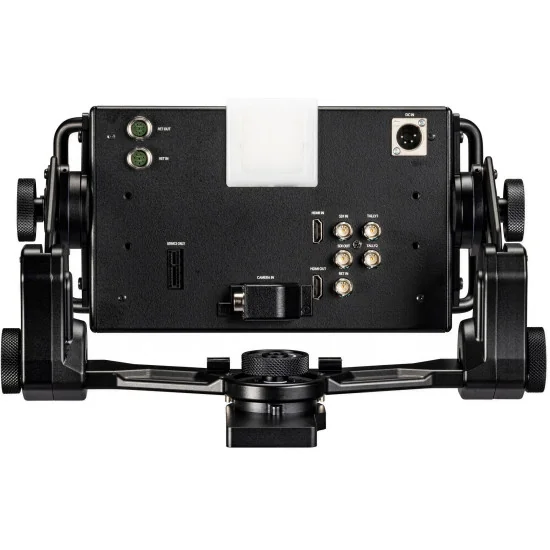

For integration in a studio, flypack or OB setup, the unit provides 3G-SDI input/output, a dedicated SDI return input, HDMI input/output and a 20-pin camera connection for analog HD component signals (YPbPr / RGB). Libec also lists automatic recognition of supported formats, including 1080p, 1080i, 1080PsF and 720p frame-rate variants. This is practical in television studios, streaming control rooms and live event systems where one viewfinder may be reassigned between main, backup and rehearsal camera positions without repeated signal setup.

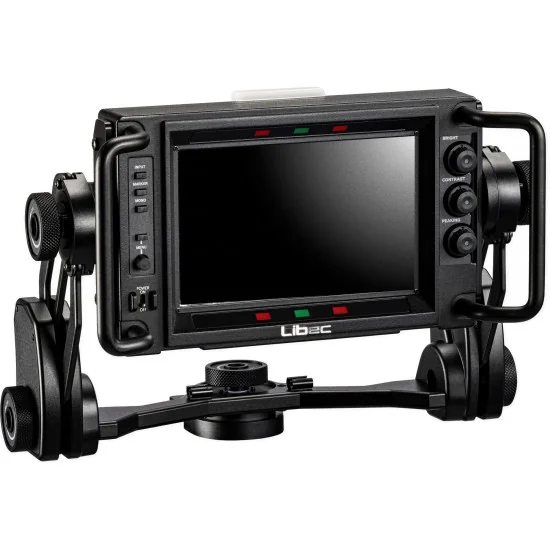

The SVF-7 Pro viewfinder includes front and rear tally indicators with adjustable brightness, plus direct controls for brightness, contrast and peaking. In on-air production, that combination helps operators react faster to program/preview status and keep edge detail visible under strong lighting. Manufacturer and reseller materials also reference waveform, vectorscope and marker functions, which support exposure checks, framing guides and aspect confirmation during studio setup, talk shows, sports coverage, house of worship streaming and corporate live production.

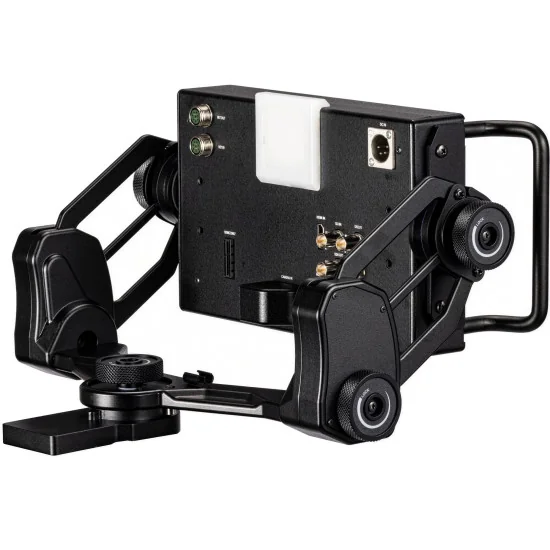

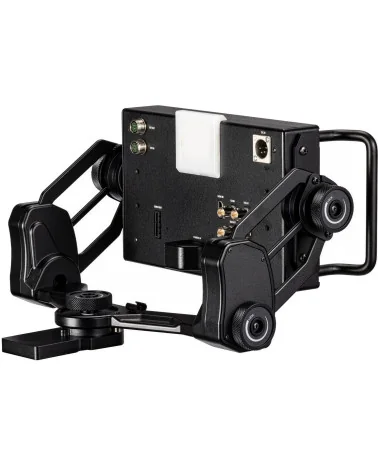

Libec specifies a magnesium-alloy body and large grip handles for frequent angle changes, and the specification sheet shows bracket adjustment for tilt and horizontal positioning. The camera cable and shoe attachment are not included, so the correct CA-7S, CA-7I or CA-7H kit is selected to match the camera system. Libec SVF-7 Pro is a dedicated broadcast viewfinder monitor for TV stations, production companies, streaming studios and rental teams that need repeatable studio camera operation and clean signal connectivity.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Full HD 7-inch Monitor
This Japan made high-quality viewfinder with a 1920 x 1080 Full HD TFT LCD (Thin-Film-Transistor Liquid Crystal Display) panel enables users to clearly view footage detail with a high brightness & contrast ratio, achieving vivid and excellent color gradation.

170 Degree View Angle
170 degree wide view angle offers clear images without a color and contrast shift at any angle.

Multi-connectivity

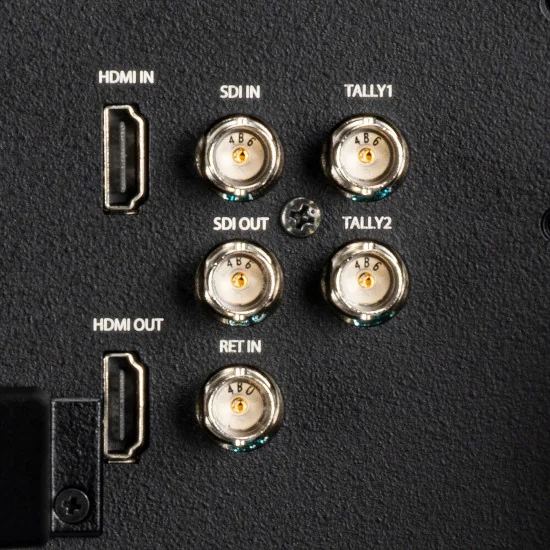

Libec Viewfinder provides multi-connectivity with 3G-SDI, HDMI, Analog HD component and a lot more terminals. In addition, it allows return input and through output.

Compatible with Different Types of Video Input Signals
Compatible with various frame rates and interlace/progressive input signals. Input signals are automatically recognized without adjusting settings.

A Variety of Measure Functions
A waveform monitor, vector scope and other scopes can be easily displayed to monitor live footage. The professional scopes allow to precisely adjust overexposure/underexposure, white balance and more on site.

A Variety of Marker displays

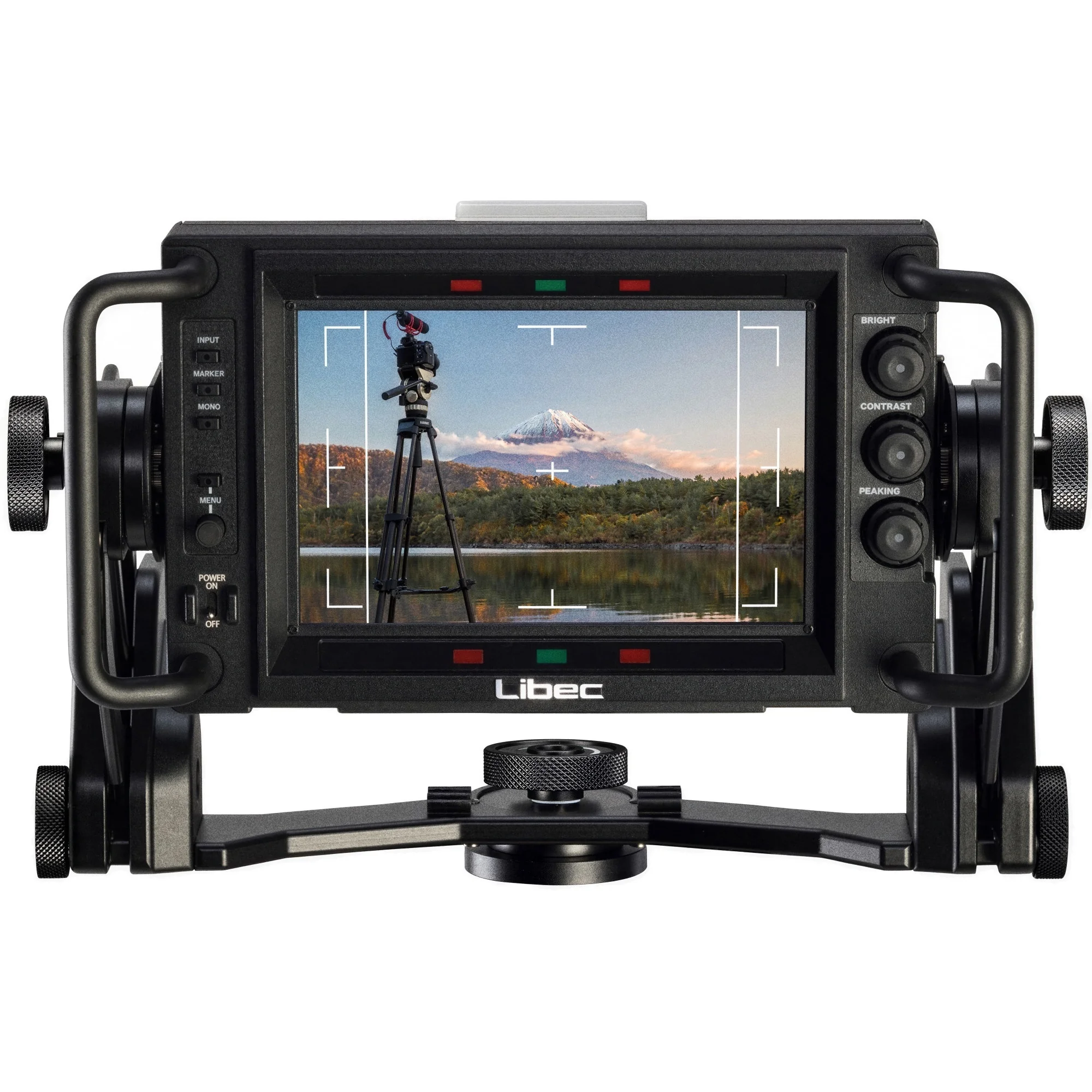

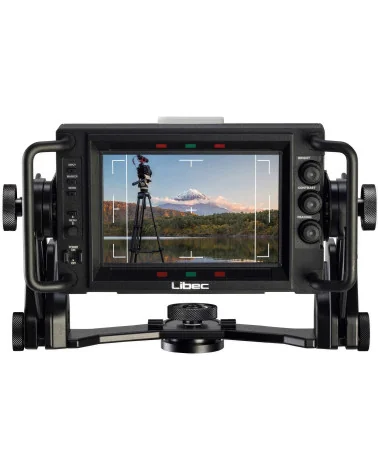

The center marker, the aspect marker, the safety zone marker and flexible area markers are all available. The markers help users frame the perfect video shot.

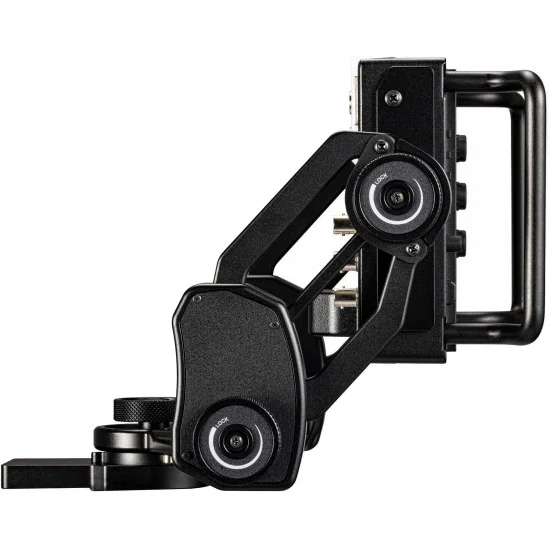

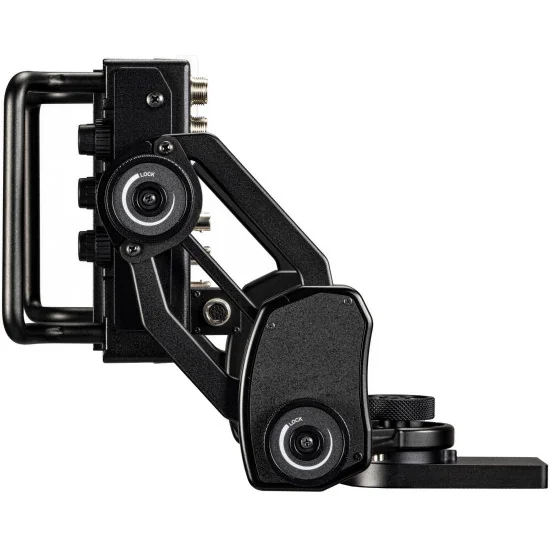

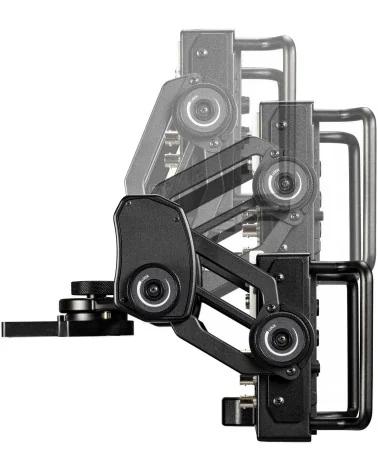

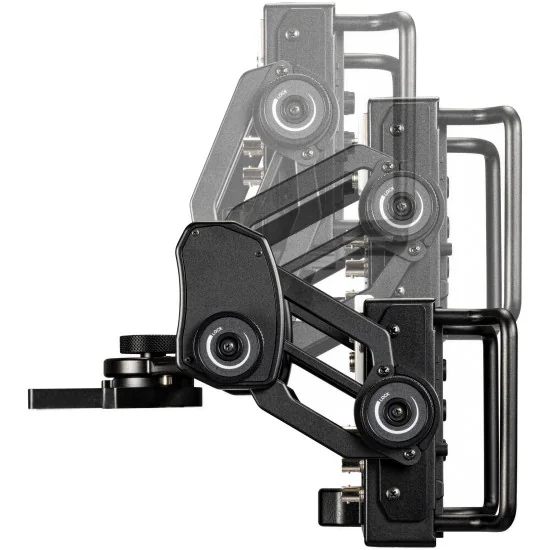

Large Grip Handles and Variable Tension Pivot Points
The large left and right grip handles make positioning the viewfinder and adjusting its angle, a piece of cake, even while cameras are on air.

Tally Indicators
The Viewfinder comes with three tally indicators, two sets for the Front Tally (Green and Red), and one for the Rear Tally (Red). The brightness is adjustable for better viewing.

Specifications
Panel: 7-inch color TFT transmissive LCD
Picture resolution: 1920 x 1080
Brightness: 350cd/m²
Viewing angle: 170°(H) / 170°(V)
Color reproduction: 16.7M colors
Display area: 151(H) x 85(V)mm / 5.94(H) x 3.35(V)"
SDI input: BNC x 1
SDI output: BNC x 1
SDI returninput: BNC x 1
HDMI input: HDMI x 1
HDMI output: HDMI x 1
CAMERA input: 20-pin x 1, Analog HD component (Y / PB / PR or G / B / R)
TALLY in: TALLY1: BNC x 1, Green (2V- 4V) / Red (4.1V- 5V) / OFF (0V- 2V), TALLY2: BNC x 1, Red (ON / Short to GND) / OFF (Open)
TALLY indicator: Front tally x 2 sets, Green / Red Brightness adjustable in MENU, Rear tally x 1, Red Brightness adjustable in MENU
Weight: 1.2kg / 2.65lb (without accessories)
Size: 232 x 146 x 47mm / 9.13 x 5.75 x 1.85" (excluding protrusions)
Power consumption: 12W
Operating temperature: 0°C to +40°C / +32°F to +104°F
Operating humidity: 30% to 85%
Storage temperature: -10°C to +45°C / +14°F to +113°F
Storage humidity: 0% to 90%
Video input signal: 1080p (59.94 / 50 / 29.97 / 25 / 24 / 23.98), 1080i (59.94 / 50), 1080PsF (29.97 / 25 / 24 / 23.98), 720p (59.94 / 50)

*Connection cable and shoe attachment for cameras not included, please be sure to purchase either the CA-7S, the CA-7I, or the CA-7H.
**Input signals that are not list in "Video input signals" may not be supported.
