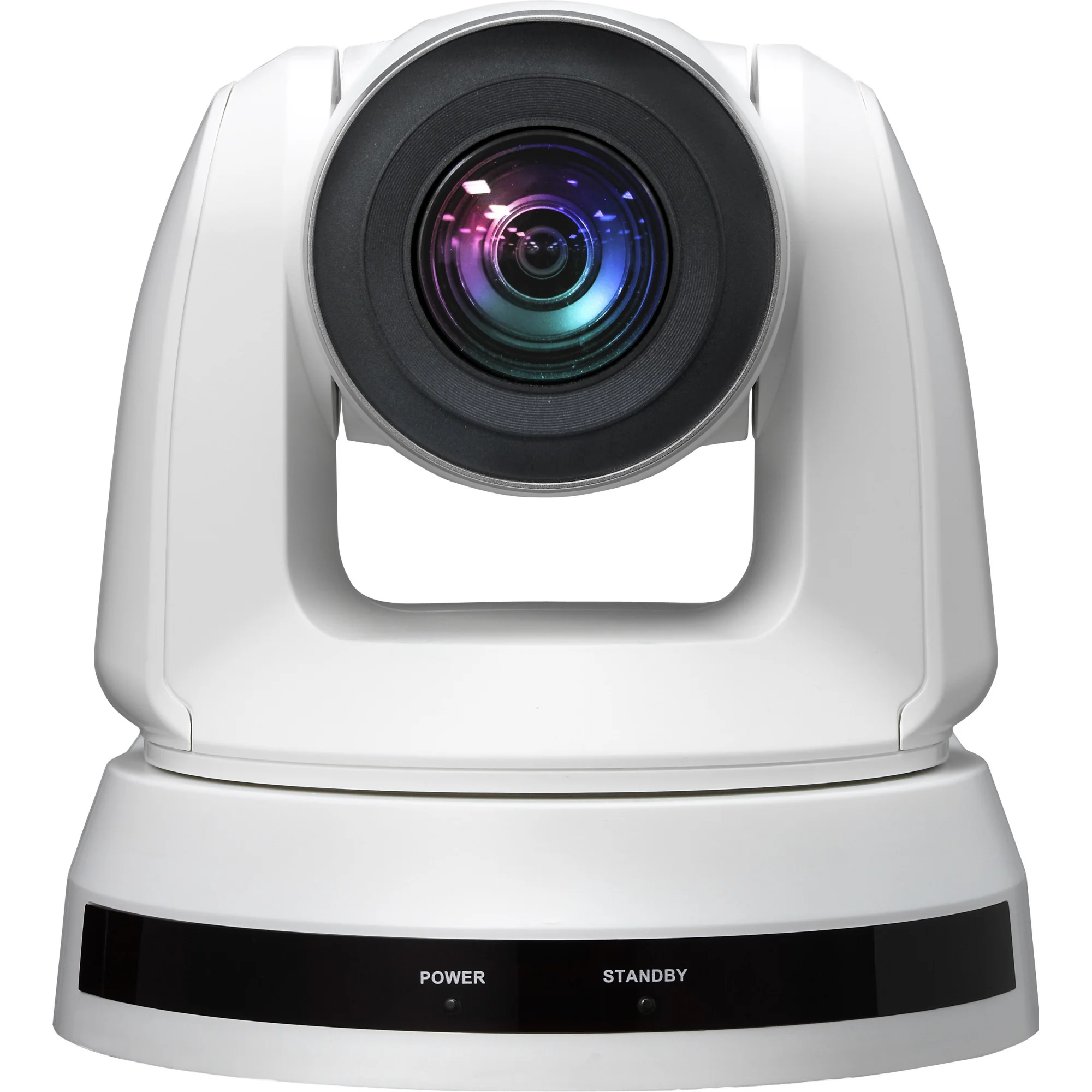

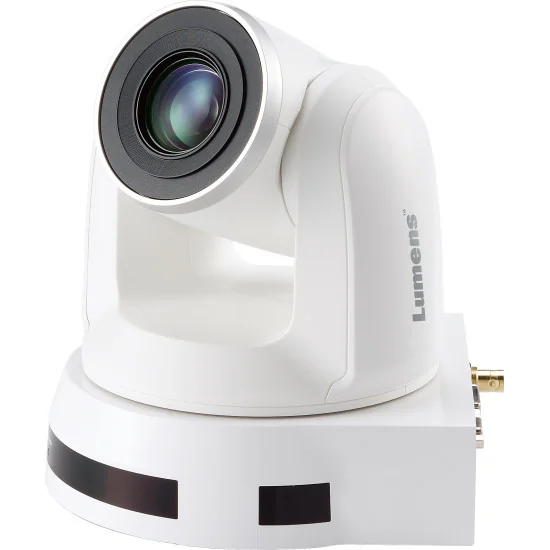

Lumens VC-A51PN White PTZ Camera

Name: Lumens VC-A51PN White PTZ Camera
Brand: Lumens
SKU: VC-A51PN-W
Price: 2000.00 EUR
Availability: InStock

MPN: VC-A51PN-W

Price: €2,000.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

For directors who need a camera that can stay on a speaker, a presenter or a stage cue without adding another operator position, the Lumens VC-A51PN White brings a precise Full HD PTZ head into a networked production rack. Its 1/2.8-inch 2.16 MP Sony CMOS sensor records 1080p at 60fps, while the 20x optical zoom and 57° horizontal view let an operator frame wide room shots, medium interview angles and close lectern details from the same installed position.

The camera provides parallel NDI|HX, HDMI and 3G-SDI feeds, so it can send video to a hardware switcher, a confidence monitor and an IP production system at the same time. Over Ethernet, it supports RTSP, RTMP, RTMPS, MPEG-TS and SRT alongside H.264/MJPEG streaming, giving teams practical routes for internal distribution, live platforms, remote contribution and backup paths. PoE+ power keeps ceiling, wall and truss installations cleaner, with one network cable handling both power and data where the infrastructure supports IEEE 802.3at.

Image control is not just a menu note here. WDR, 3D noise reduction, auto/manual exposure, gain and white balance help the camera hold usable pictures in rooms with LED walls, mixed daylight or dim audience zones. Smart AF and manual focus are available for production staff who need to lock a shot during a panel, esports desk, training session or corporate stream. Embedded audio can travel via Ethernet, SDI or HDMI, with line/mic input and AAC/G.711 encoding for cleaner integration with existing AV systems.

For multi-camera operation, the PTZ section is equally important: ±170° pan, +90° to -30° tilt, movement up to 300°/s and 128 preset positions support repeatable show cues without re-framing by hand. Control options cover RS-232, RS-422, Ethernet, VISCA, VISCA IP, PELCO-D, ONVIF and NDI tools, while tally, image flip, IR receiver, IR pass-through and remote control make the Lumens VC-A51PN White a practical choice for studios, conference halls, lecture capture rooms and event spaces managed by technical teams.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

FHD NDI®|HX PTZ Camera 1080p 60fps PTZ camera with 20x optical zoom, NDI, HDMI and 3G-SDI.
- Professional Sony image sensor
- Simultaneous NDI®|HX, HDMI, and 3G-SDI video output
- Supports 1080p at 60fps
- Versatile 20x optical zoom

Live and Remote Production
Featuring HDMI and 3G-SDI outputs, the VC-A51PN can seamlessly fit into almost any AV, broadcast, or IP workflow. Utilizing NDI®|HX, the VC-A51PN enables video production and distribution over standard Ethernet networks. With NDI NDI®|HX, VC-A51PN can instantly join the live production environment and bridge the remote film crews.

Versatile Network Distribution
The VC-A51PN produces a high quality, low latency NDI®|HX video stream. It also supports multiple streaming protocols including RTSP, RTMP, RTMPS, and SRT for distribution across networks and transmission to remote audiences. No additional hardware and software are required to stream directly to live streaming platforms such as YouTube and Facebook Live.

Excellent Low-Light Performance
The VC-A51PN features a high sensitivity 1/2.8" 2.16 MP Sony CMOS sensor. Thanks to its superb WDR (wide dynamic range), 3D noise reduction, advanced auto-focus, and auto-white balance algorithms, the camera produces crisp and clear video even in dimly lit environments.

Fast, Smooth & Quiet PTZ Movement
The VC-A51PN's robotic mechanism allows the camera to pan -170° to +170° and tilt from -30° to +90° in a rapid, smooth and quiet movement at up to 300° a second. The operator can use a hardware controller or NDI Tools to remotely control the speed and direction of motion for professional results.

Specification:
Sensor: 1/2.8" 2.16MP CMOS
Video Format: 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 , 1080i: 60 / 59.94 / 50 , 720p: 60 / 59.94 / 50
Video Output (HD) Interface: 3G-SDI / HDMI / Ethernet
Optical Zoom: 20x
Viewing Angle: 57° (H) 32.1° (V) 65.4° (D)
Aperture: F1.6~F3.8
Focal Length: 5.33mm~110mm
Shutter Speed: 1/1 ~ 1/10,000 sec
Minimum Object Distance: 1.5m (Wide/Tele)
Video S/N Ratio: > 50dB
Minimum Illumination: 1.0 lux (F1.6, 50IRE, 30fps)
Focus System: Auto / Manual / Smart AF
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
Tally Light: Yes
Panning Angle: +170° ~ -170°
Panning Speed: 300°/sec
Tilting Angle: +90° ~ -30°
Tilting Speed: 300°/sec
Preset Positions: 128
HDMI / 3G-SDI: 1080p60
IP Stream: (NDI|HX Stream) 1080p 60fps, 640x30 30fps , (IP Stream) H.264 1080p 60fps , H.264 / MJPEG D1 30fps
IP Compression: H.264 / MJPEG
IP Protocol: NDI|HX / RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE: PoE+ (IEEE802.3at)
Audio Input: Line In / MIC In
Audio Output: Ethernet / SDI / HDMI
Audio Compression Format: G.711

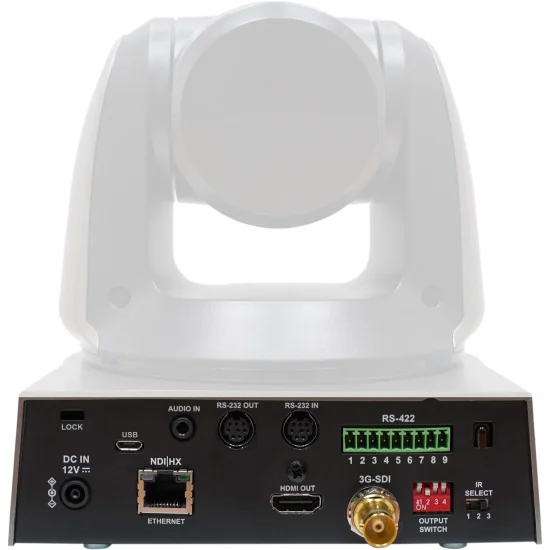

Interface: RS-232 / RS-422 / Ethernet
Protocol: NDI / VISCA / VISCAIP / PELCO D / ONVIF
IR Pass-through: Yes
IR Receiver: Yes
IR Remote Control: Yes
DC In: 12V +/- 20%
Power Consumption: PoE: 18.5W , DC In: 17W
Weight: 4.4 lbs (2 kg)
Dimensions (W x H x D): 6.9" x 7.3" x 7.3" , (174 x 186 x 187 mm)

Reference VC-A51PN-W

Data sheet

Video Output: HDMI
NDI
RJ-45 (IP)
SDI
Audio Input: Mini Jack 3.5mm
Audio Output: HDMI Embedded
NDI Embedded
RJ-45
SDI Embedded
Max Output Resolution: 1080p 50/60 fps
Control protocol for PTZ cameras: NDI
ONVIF
PELCO-D
RS-232
RS-485
VISCA
VISCA IP
Network Connection: Ethernet
Sensor Size: 1/2.8"
Optical Zoom: 20x
PoE Technology: Yes
Auto-Tracking: No
Tally Light: Yes
