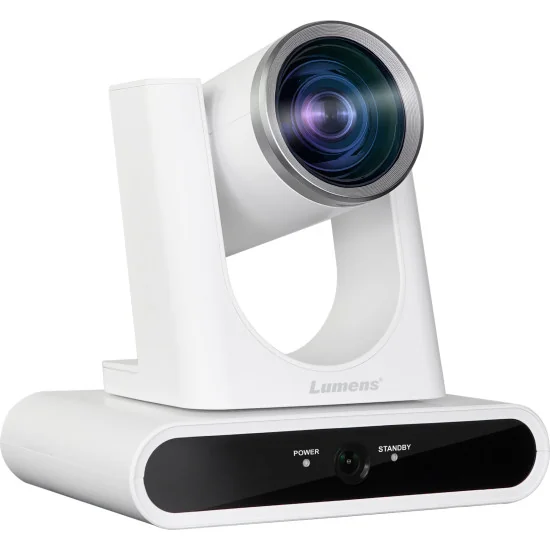

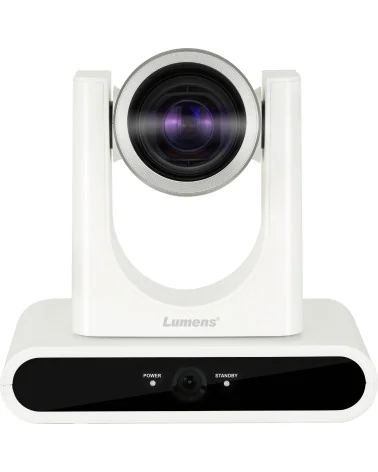

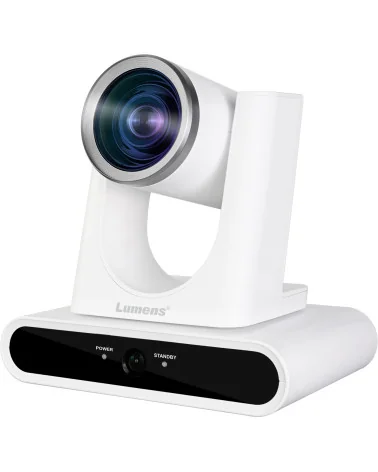

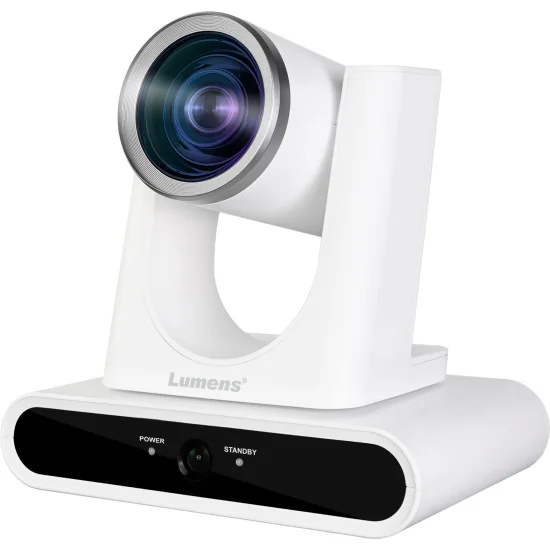

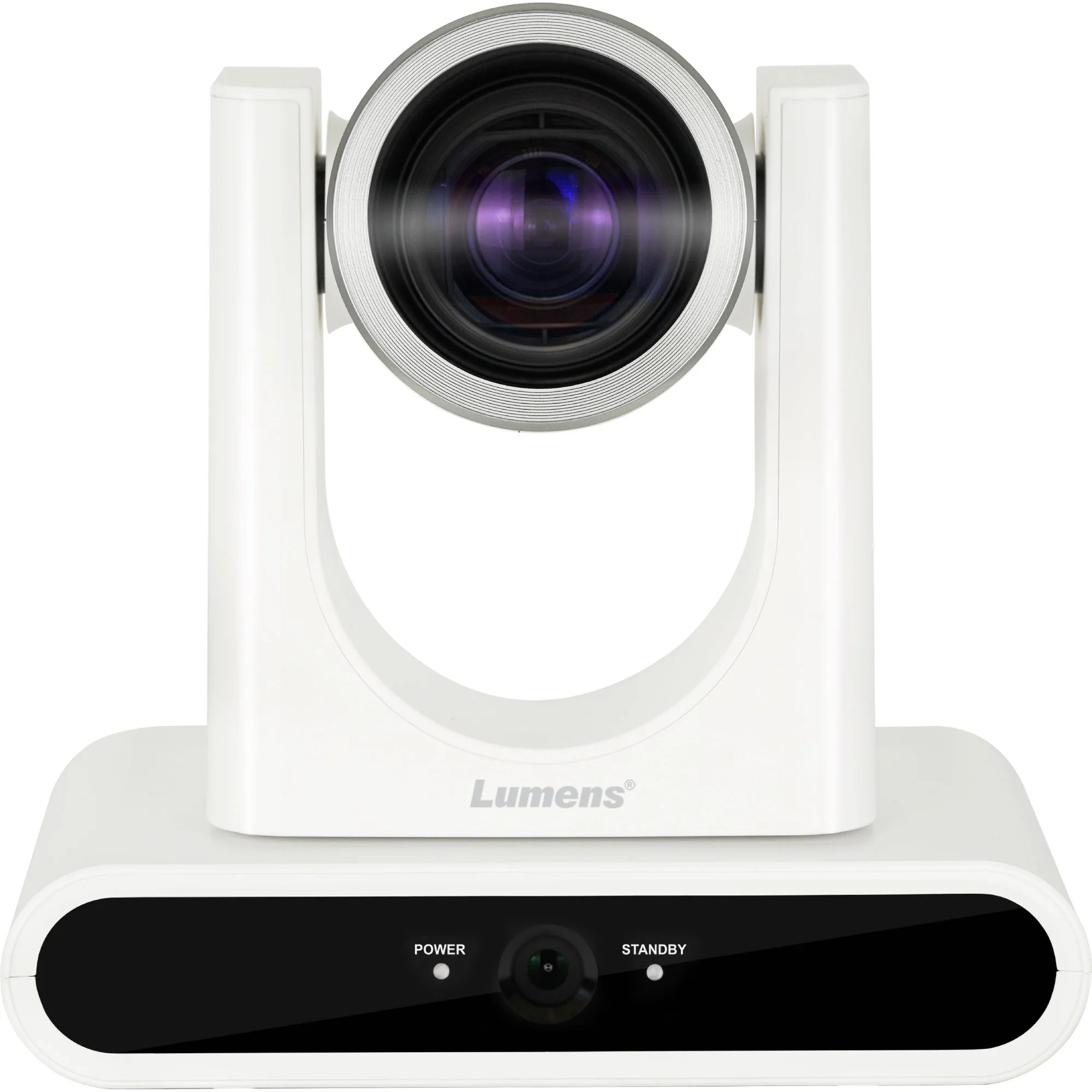

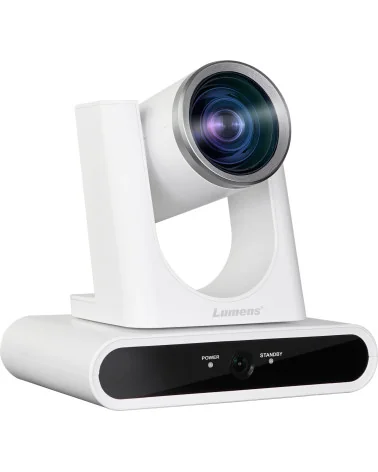

Lumens VC-TR30 White Auto-Tracking PTZ Camera

Lumens VC-TR30 White Auto-Tracking PTZ Camera

Name: Lumens VC-TR30 White Auto-Tracking PTZ Camera
Brand: Lumens
SKU: VC-TR30-W
Price: 1349.00 EUR
Availability: InStock

MPN: VC-TR30-W

Price: €1,349.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

Capturing a clean shot the instant a speaker stands up — without a camera operator in the room — is exactly what the Lumens VC-TR30 White sets out to do. This dual-lens PTZ camera pairs a tight 12x optical zoom head with a separate panoramic camera that watches the whole space at a 111° horizontal angle, so the system always knows where people are before it decides how to frame them. For meeting rooms, lecture theatres and compact studios, that second wide eye is what keeps tracking smooth instead of jumpy.

The intelligence sits in the AI auto-tracking with human detection, offered across three modes — Everywhere, Stage and Partition — alongside two auto-framing behaviours that recompose the picture as a presenter moves or as participants join. Raise both hands and the camera switches its subject through gesture control, or pick a person manually from the web interface when a producer wants the final say. The 12x lens opens to f/1.6 and holds usable detail down to 1 lux, with wide dynamic range and 3D noise reduction steadying footage under mixed corporate lighting.

Connectivity is where the VC-TR30 earns its place in a busy rack. HDMI, IP and USB 3.0 outputs run at the same time, so a single unit can feed a room display, push 1080p60 to an encoder and act as a UVC source for Zoom or Teams without re-cabling. Streaming covers RTSP, RTMP, RTMPS and SRT over H.264, while VISCA and ONVIF control slot the camera neatly into the AV systems most facilities already run. A single PoE cable carries power, video and control together, which trims installation time on multi-room rollouts and cuts the recurring labour cost of every move or service visit.

With 256 presets, ±170° panning, upright or inverted mounting and a five-year manufacturer warranty behind it, the Lumens VC-TR30 reads as a dependable fixture for hybrid boardrooms, training spaces, courtrooms and live-streamed events — hardware a production house can specify once and trust to keep running.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

AI Auto-Tracking Camera

AI-Powered Tracking with Human Detection
3 Tracking modes and 2 Framing modes
HDMI, Ethernet and USB simultaneous output
1080P 60fps with 12x Optical Zoom
Mount upright or inverted

Automatic Production
VC-TR30 is perfect for use in meeting rooms and presentations because of its intelligent auto-tracking and auto-framing modes. Both enable hands-off video capture, with the camera following a presenter or framing the shot around delegates present in the meeting room.

Flexible Lens
The 12x zoom lens has a 72.5° horizontal field of view at its widest setting, facilitating its use in small video studios, meeting spaces or presentation stages. It works in partnership with the high sensitivity sensor to deliver excellent video quality in all lighting conditions.

Gesture Control Tracking Method
The VC-TR30 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.

Single Cable Installation
The VC-TR30's Ethernet connection is multi-purpose. Connected to a PoE-enabled switch, the network cable can transport video, power and control signals. This makes installation extremely quick and cost-effective.

Specs.
PTZ Camera Sensor: 1 / 2.8" 2.16MP CMOS
PTZ Camera Video Format:
1080p60
1080p50
1080p30
1080p25
720p60
720p50
Video Output (HD) Interface: HDMI / Ethernet / USB 3.0
Optical Zoom: 12x
Digital Zoom: 12x
PTZ Camera Horizontal Viewing Angle: 72.5°
PTZ Camera Vertical Viewing Angle: 40.8°
Diagonal Viewing Angle: 83.2°
PTZ Camera Aperture: F1.6 ~ F2.8
PTZ Camera Focal Length: f = 3.9mm ~ 46.8mm
Shutter Speed: 1 / 25 ~ 1 / 10,000 sec
Minimum Object Distance: Wide = 1000mm , Tele = 1500mm
Video S / N Ratio: > 50dB
Minimum Illumination: 1 lux (F1.6, 50IRE, 30fps)
Focus System: Auto, manual
Gain Control: Auto, manual
White Balance: Auto, manual
Exposure Control: Auto, manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
Auto Tracking: Everywhere / Stage / Partition
Auto Framing: Everywhere / Partition
Gesture Control: Yes
Panoramic Camera Sensor: 1 / 2.8" 2MP CMOS
Panoramic Camera Video Format: 720p30
Panoramic Camera Horizontal Viewing Angle: 111°
Panoramic Camera Vertical Viewing Angle: 62°
Panoramic Camera Aperture: F2.4
Panoramic Camera Focal Length: 3.1mm
Panning Angle: +170 ~ -170°
Panning Speed: 0.2 ~ 120° / sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 0.2 ~ 80° / sec
Preset Positions: 256
IP Stream:
PTZ Camera: Main: 1080p60 , Second: 720p30
Panoramic Camera: 720p30
IP Compression: H.264
USB Output: 1080p30
USB Compression: MJPEG
IP Protocol: HTTP / RTSP / RTMP / RTMPS / SRT
PoE: Yes (IEEE802.3af)
Audio Input: Line In / MIC In
Audio Output: Ethernet / USB 3.0 / HDMI
Audio Compression Format: AAC / PCM

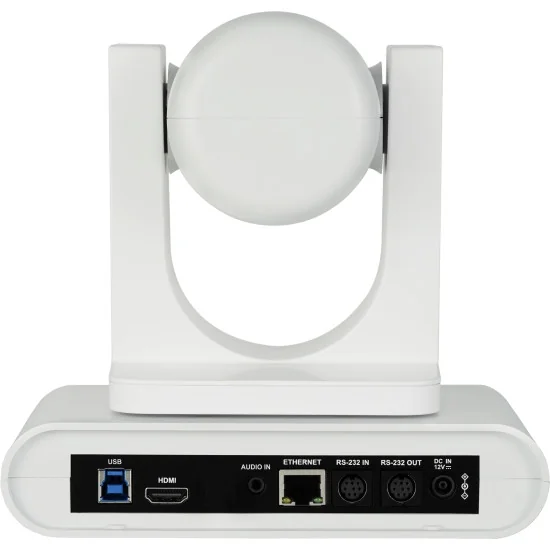

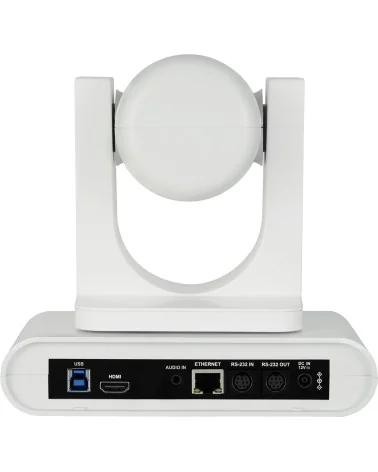

Interface: RS-232 / Ethernet / USB 3.0
Protocol: VISCA / ONVIF
UVC: 1.1
UAC: Yes
DC In: 12V + / - 20%
Power consumption: PoE: 11W , DC In: 10W
Weight: 1.5 kg
Dimension: 190 ×185 ×138 mm
