Auto framing keeps a group composed instead of chasing a single face. Should the presenter walk off, a target-loss preset swings the head back to a safe wide rather than leaving it on an empty curtain. Presets 150 and 151 switch tracking on and off, so a control system or a single hardware button hands the camera from manual to automatic. For a one-person crew streaming a training day, that behaves like an extra operator.

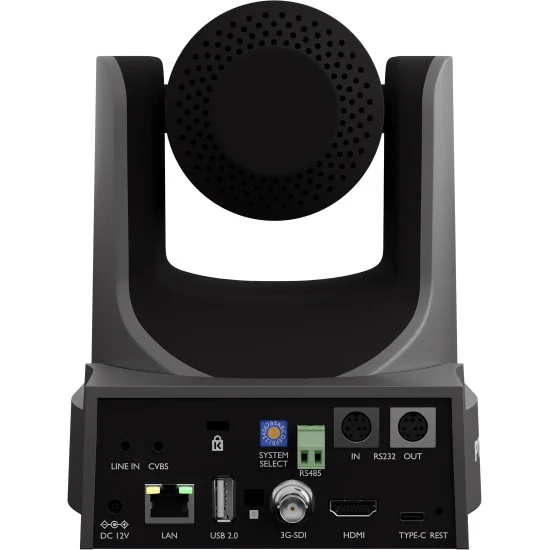

Physical outputs cover nearly any control room. A 3G-SDI BNC to SMPTE 424M or the HDMI port feeds a hardware switcher. A hex-numbered selector (0 to F) on the rear panel sets resolution and frame rate for the next power-up, so a format change on site needs a small screwdriver rather than a browser. USB-C 3.0 presents the camera as a UVC device to Zoom, Teams or OBS with no capture card in between.

Over gigabit Ethernet the encoder produces two simultaneous streams in H.264, H.265 or MJPEG. SRT carries contribution feeds over open internet links to a remote gallery, RTMP and RTMPS send the programme directly to YouTube, Vimeo or any CDN ingest point, while RTSP is the pull option for on-site recorders and VMS software. Current firmware runs native NDI on the NDI 6.3 SDK with no licence key, and an NDI|HX3 profile can be enabled for switching in vMix, TriCaster or OBS. Transport is selectable between reliable UDP, TCP, UDP and multicast, which helps on venue networks where IT sets the rules. Plug the desk's line feed into the 3.5 mm input and the camera embeds it in its video outputs and streams; a matching line-level jack returns audio for monitoring.

Control is just as open. VISCA over IP on TCP 5678 or UDP 1259, Sony VISCA over IP, ONVIF and an HTTP API sit beside RS-232 (30 m, daisy-chained) and RS-485 (as far as 1,200 m on a multi-drop bus), with VISCA, Pelco-D and Pelco-P on both serial ports. Two newer HTTP calls answer the questions automation scripts care about (has the preset move finished, is the head still travelling), so a cut happens only once the shot has settled. All 255 presets return to within 0.1°, pan reaches 100°/s and tilt 69.9°/s, and a single Image Presets toggle chooses between recalling position plus picture settings or position alone. Beyond switcher integration, the SuperJoy and PT-JOY-G4 controllers, MIDI mapping in the web interface, the free Camera Management Platform for colour matching across several heads, and Hive for browser control from another city all address the same camera.

On site, one cable does most of the work. Power arrives on the same Ethernet line as video and control: any 802.3af PoE switch port will do over Cat5e or Cat6 runs up to 100 m, and a 12 V adapter covers rooms without PoE. The camera stands upright, sits on a wall bracket or is suspended upside down from a ceiling, and the image orientation corrects itself. A Kensington slot, a privacy mode (lens swung away, outputs dark), a tally lamp, IR receivers front and rear, and NDAA compliance help with sign-off in universities, courtrooms and public tenders. One honest field note: the cooling fan can be heard in a silent room, so keep it a couple of metres clear of a lectern microphone. It works between −10 and 40 °C and belongs indoors.

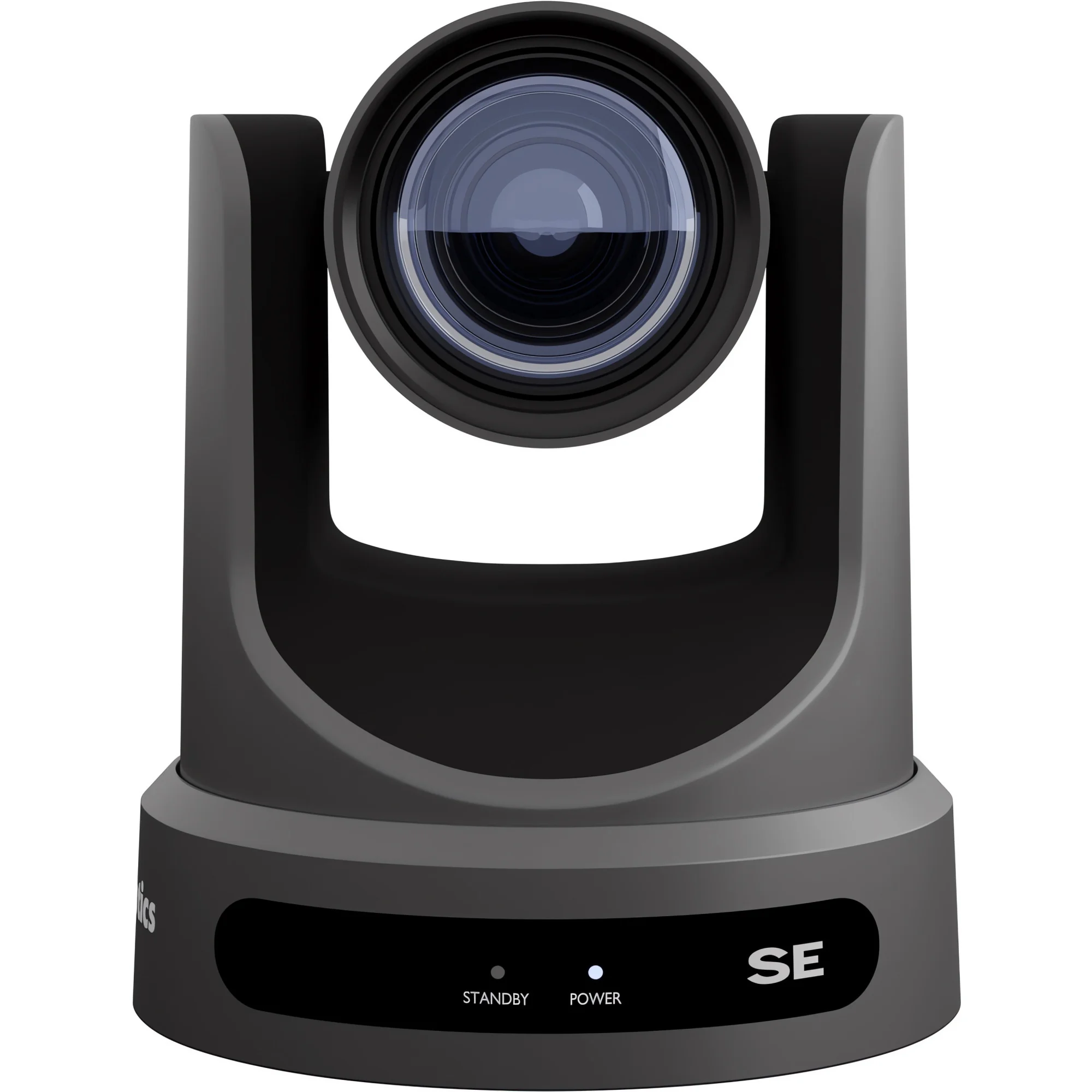

The grey finish disappears against black-box studios, dark ceilings and lighting trusses where a white body would catch the eye. Because the 20x and 30x versions share the same firmware line, presets, API calls and tracking behaviour stay consistent if a deeper hall later needs a longer lens. Before you order several units, our technical team can check SDI, NDI and control compatibility against the switcher you already run.
