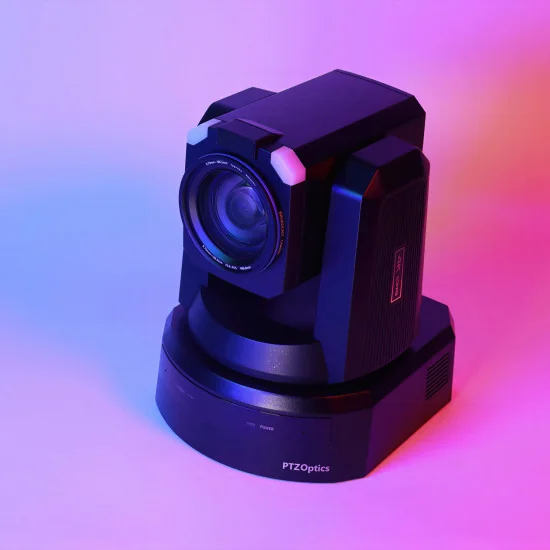

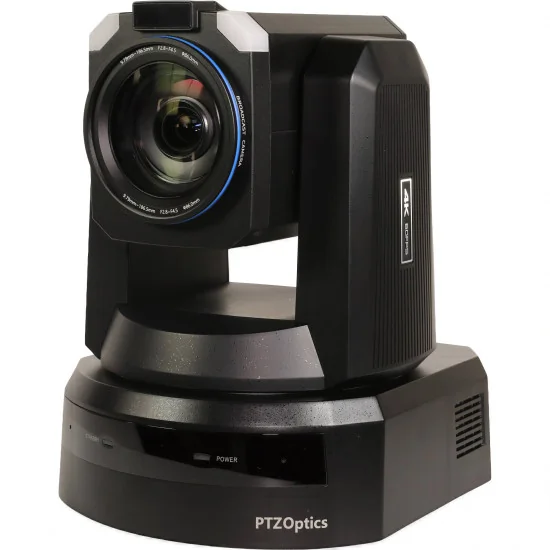

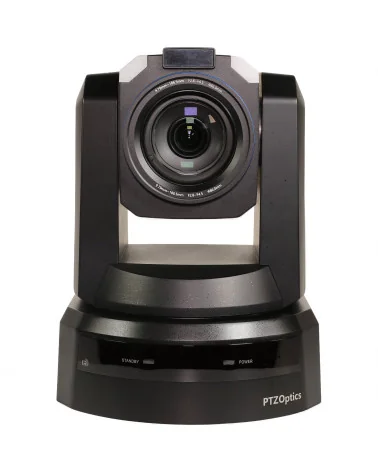

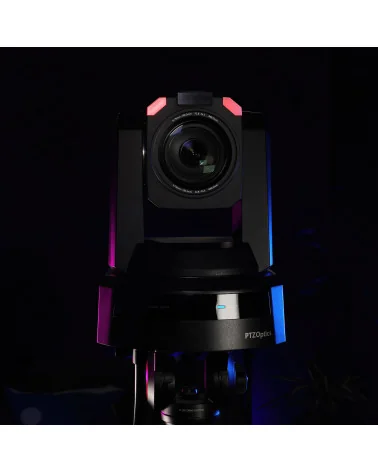

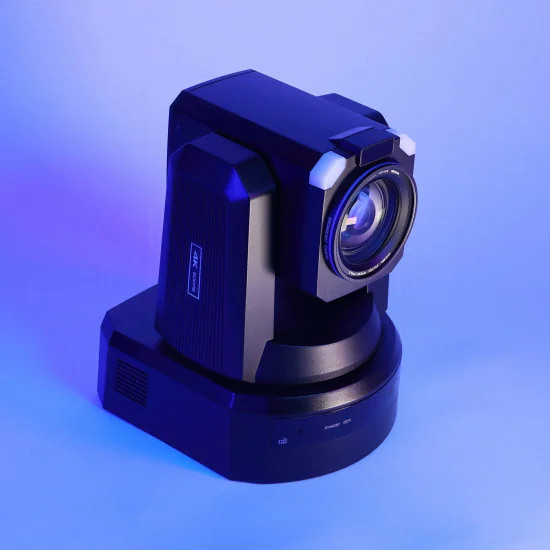

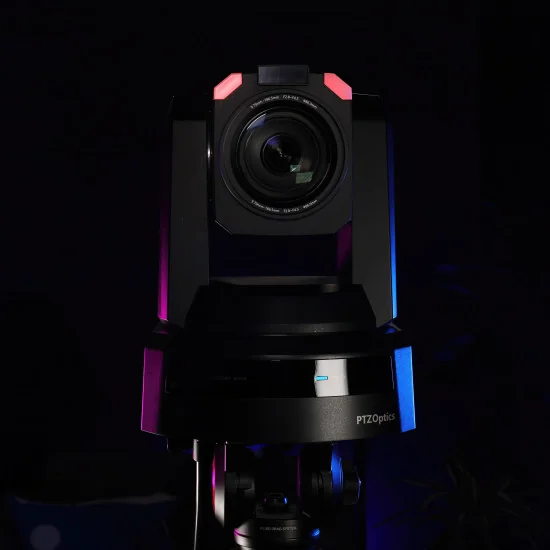

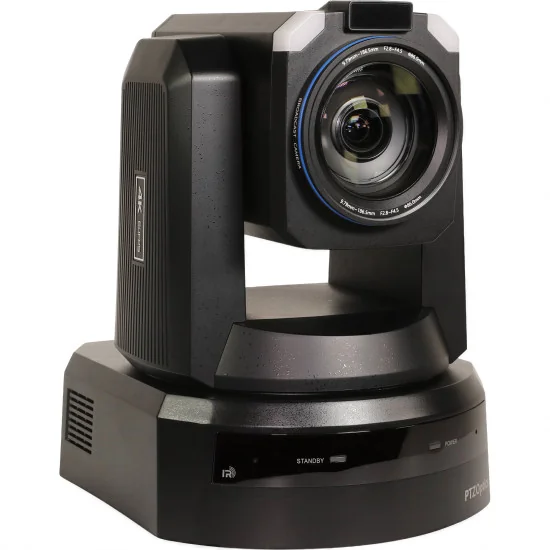

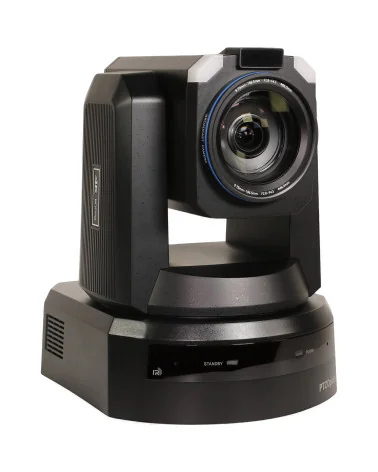

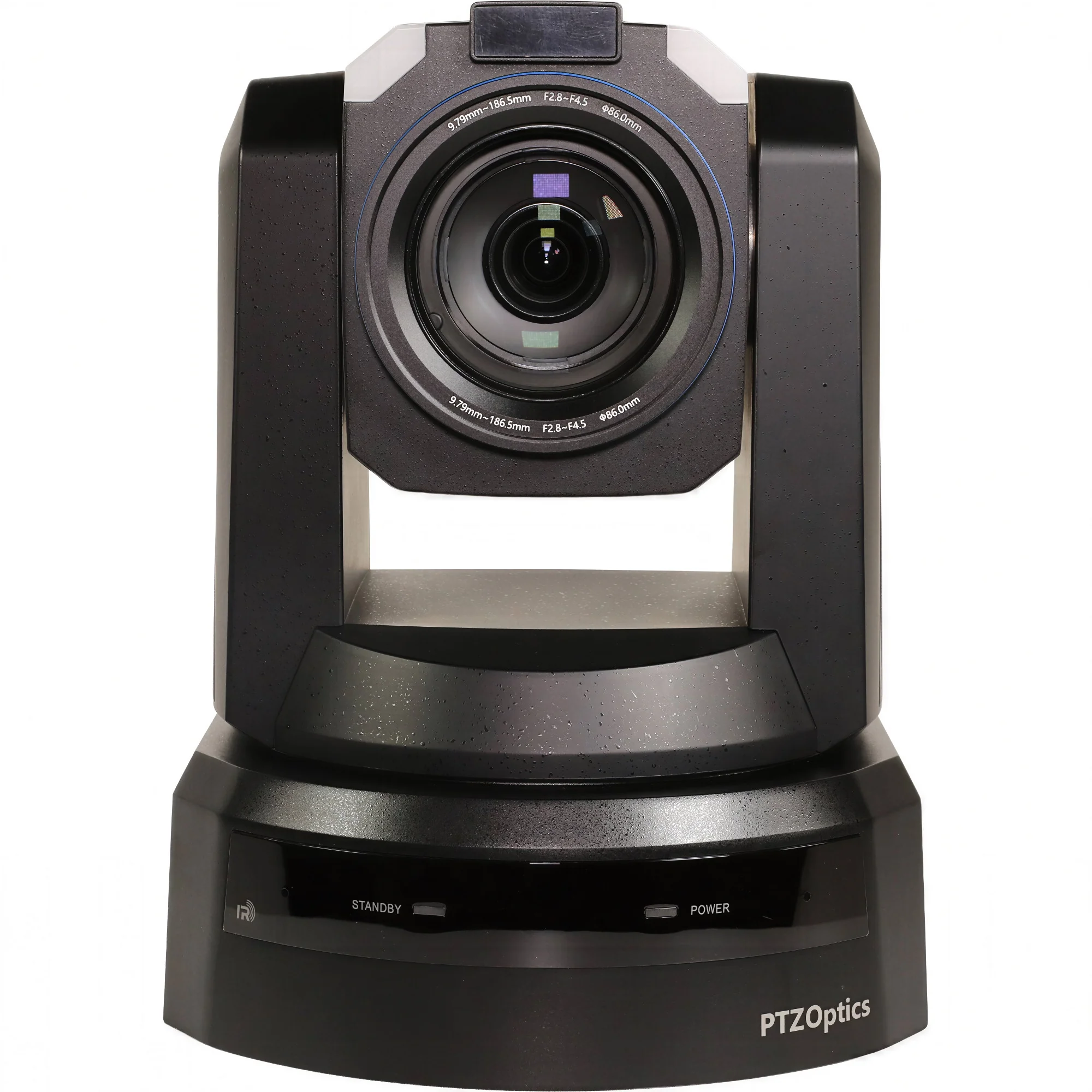

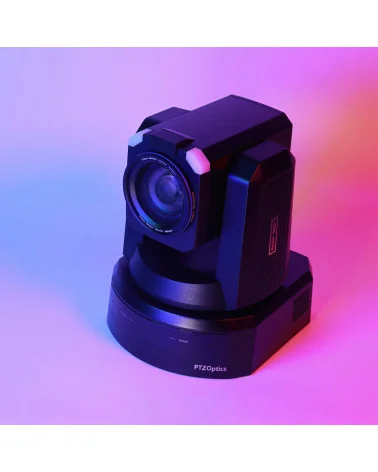

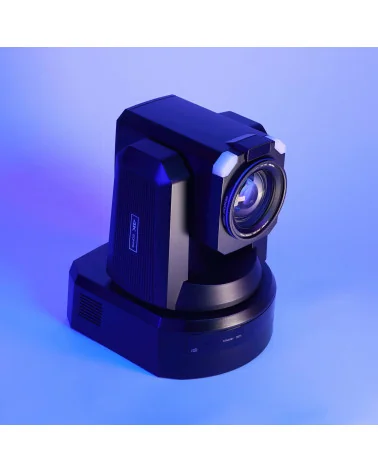

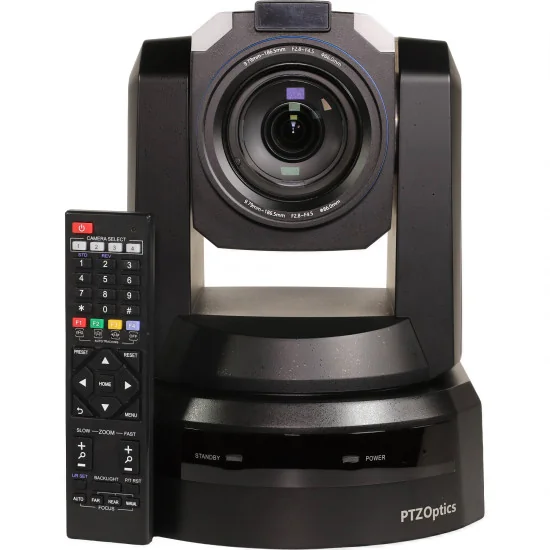

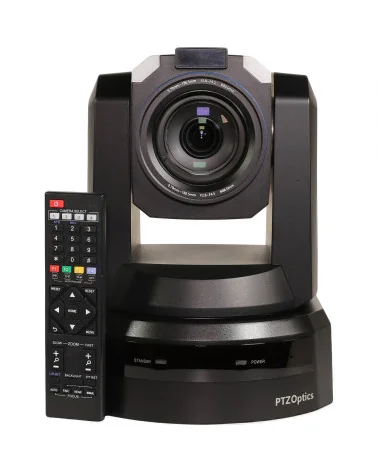

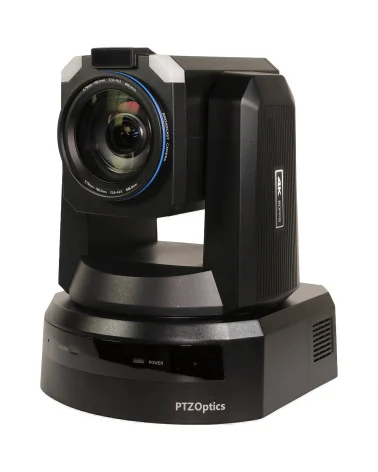

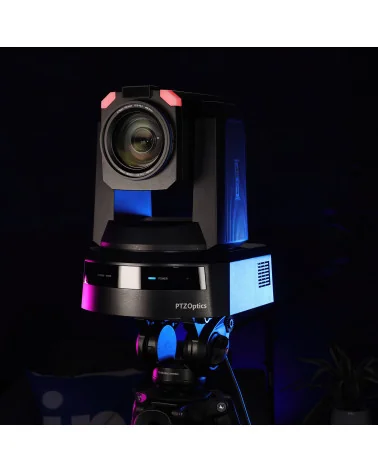

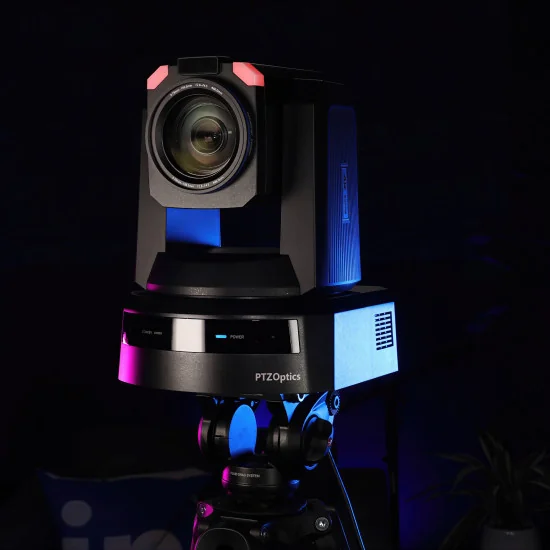

PTZOptics Rise 4K PTZ Camera

    PT20X-RISE-4K-BK
    Price: €6,999.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

    Bring camera feeds onto a common timing reference with the PTZOptics Rise 4K broadcast PTZ camera. Its genlock input synchronises frame capture for live multicamera switching; the separate timecode input supplies shared timestamps for editing.

    A 50 MP Sony CMOS sensor in the 1.0-type format captures UHD at up to 60 fps. The 20x optical zoom lets a crew cover stage overviews and tight speaker shots from a fixed camera position. Focal length runs from 9.79 to 186.5 mm, with maximum aperture varying from f/2.8 to f/4.5. Phase-detection autofocus responds to changing subject distance; optical image stabilisation counters vibration. The internal ND filter offers 1/4, 1/16 and 1/64 settings, so exposure can be adjusted without changing shutter speed or aperture.

    Included Horizon Web puts PTZ movement, AI auto-tracking, auto-framing and image adjustment in a browser on the local network. Pan and tilt speeds span 0.004–180°/s, from slow camera moves to rapid repositioning. Waveform, vectorscope and RGB parade displays support exposure and colour matching across cameras. With 255 preset positions, recurring interview angles or lectern shots can be recalled during a programme. Tally indicators show camera status to people on set. FreeD sends camera tracking data to compatible virtual set and AR systems.

    12G-SDI and HDMI 2.0 output up to 4K60, with 3G-SDI for HD equipment and USB 3.0 for computer connection. For IP production, NDI HX3, SRT, RTSP and RTMP(S) provide network delivery options, with H.264/H.265 encoding. The SFP+ port carries 12G-SDI over fibre with compatible optical modules, useful for long cable runs between camera and control room. Two XLR inputs with selectable 48 V phantom power accept microphones or line sources; microSD recording keeps footage at the camera. PoE++ (IEEE 802.3bt) carries power over the Ethernet connection, with 12 V DC available for local powering.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    Rise delivers cinematic, broadcast-grade 4K imaging, advanced automation and professional connectivity in an entirely new PTZOptics platform. With a large 1-inch sensor, precision autofocus, intelligent subject tracking and Horizon control standard, Rise is built for broadcast studios, live events, sports and high-end professional productions.

    Rise brings broadcast-grade imaging, professional connectivity and intelligent camera control together in an entirely new PTZOptics platform. Its large 1-inch sensor captures exceptional detail and color in 4K at 60 fps, while 20X optical zoom and phase-detection autofocus deliver precise, reliable coverage across studios and large production environments. With 12G-SDI, NDI®, genlock, timecode and Horizon control included standard, Rise integrates seamlessly into modern broadcast and IP production workflows. It is designed for broadcasters, sports productions, live events, studios and organizations ready to elevate their video quality and production capabilities.

    Key Features
    1-inch, 50MP sensor with video resolutions up to 4K at 60 fps
    20X optical zoom with fast phase-detection autofocus
    12G-SDI, 3G-SDI, HDMI and native NDI® connectivity
    Genlock, timecode and Horizon Web UI control included standard

    Exceptional Broadcast-Quality Imaging
    Capture vivid color, outstanding detail and improved low-light performance with a large 1-inch sensor designed for demanding professional productions.

    Precision Coverage at Any Distance
    Frame wide scenes, close-ups and everything in between with powerful 20X optical zoom and responsive phase-detection autofocus that keeps subjects sharp.

    Built for Professional Workflows
    Integrate Rise into established broadcast, baseband and IP environments with 12G-SDI, 3G-SDI, HDMI, NDI®, genlock and timecode connectivity.

    Intelligent Control Made Simple
    Horizon comes standard, providing intuitive camera control, advanced image adjustment and intelligent automation through a streamlined browser-based interface.

    Video Formats
    Resolutions & Frame Rates HDMI / 12G-SDI4KP60, 4KP59.94, 4KP50, 4KP30, 4KP29.97, 4KP25, 4KP24, 4KP23.98, 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080P24, 1080P23.98, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
    Resolutions & Frame Rates 3G-SDI1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080P24, 1080P23.98, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
    Imaging System
    Sensor1 inch, CMOS, Progressive Scan, Effective Pixels: 50 million
    Lens20x, f9.79mm to 186.5mm, F2.8 to F4.5
    Digital Zoom16x
    Horizontal FoV70° to 4.1°
    Vertical FoV41.9° to 2.3°
    Minimum Illumination0.5Lux @ (F2.8, AGC ON)
    Shutter1/30s to 1/10000s
    ND (Neutral Density) FilterBuilt-in (OFF, 1/4, 1/16, 1/64)
    Image stabilizationOIS (Optical Image Stabilization)
    OIS (Optical Image Stabilization) Operating Range3Hz to 8Hz
    White BalanceAuto, Manual, Indoor, Outdoor, One Push, VAR
    Digital Noise Reduction3D Digital Noise Reduction
    SNR≥55dB
    Supported FeaturesBacklight Compensation
    Horizontal Flip & Vertical Flip
    Image Freeze
    Pan, Tilt, and Presets
    Pan range±172°
    Tilt range-30° to +120°
    Pan Speed0.004°/S to 180°/S
    Tilt Speed0.004°/S to 180°/S
    Preset Positions Number255
    Preset Position Accuracy0.1°
    USB Specifications
    Support Operating SystemWindows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
    Color Space/CompressionYUY2 / H.264 / MJPEG / H.265
    Video FormatYUY2: Max 1080P@30fps
    H.264 AVC: Max 2160P@60fps
    H.265 HEVC: Max 2160P@60fps
    MJPEG: Max 2160P@60fps
    UVC (USB Video Communication Protocol)UVC 1.1, Supports USB Embedded Audio
    Network Video and Audio
    Video CompressionH.265/H.264/MJPEG
    Video StreamFirst stream, Second stream
    First Stream Resolution3840x2160, 1920x1080, 1280x720, 1024x576 etc.
    Second Stream Resolution720x576, 720x480, 320x240 etc.
    Bit Rate32kbps to 102400kbps
    Bit Rate ControlVariable bit rate, Fixed bit rate
    FrequencyP50: 1fps to 50fps
    P60: 1fps to 60fps
    Audio CompressionAAC
    Audio Bit Rate96Kbps, 128Kbps
    Protocols
    Control ProtocolsHTTP(S), ONVIF, VISCA/Pelco-D/Pelco-P
    Video ProtocolsNDI HX3, SRT, RTSP, RTMP(S)
    OtherFreeD

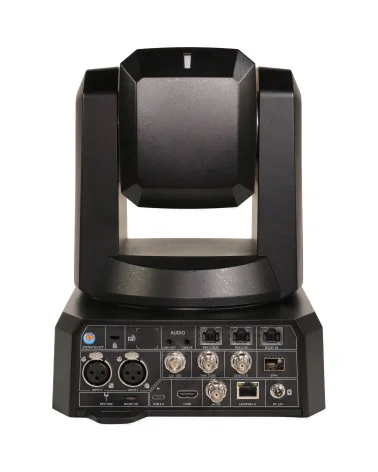

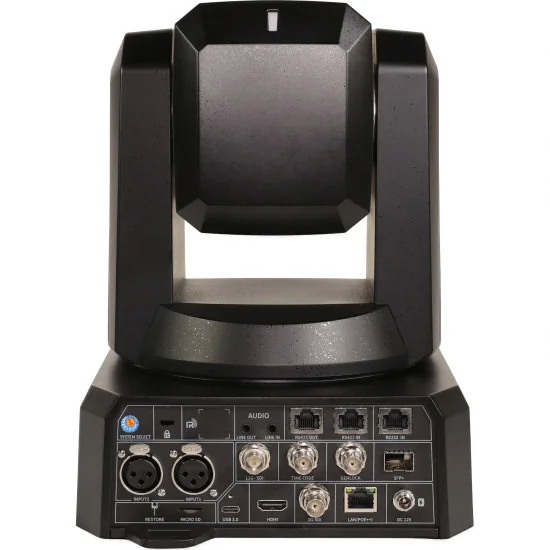

    Video and Synchronization I/O
    Video Outputs1x HDMI: 2.0
    1x 12G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE2082 standard
    1x 3G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 424M standard
    Genlock1x BNC type，1.0Vp-p，75Ω，input only
    Timecode1x BNC type，75Ω，input only
    Network, USB, and Storage I/O
    Network1x RJ45: 10M/100M/1000M adaptive Ethernet
    USB1x USB3.0, Type-C
    SD Card1 channel MicroSD
    Audio I/O
    Audio1x Line In, 3.5mm Audio Interface
    1x Line Out, 3.5mm Audio Interface
    2x XLR Inputs (Optional 48V Phantom Power)
    Serial Control I/O
    Control Options1x RS232 In: RJ45, VISCA/Pelco-D/Pelco-P protocol
    1x RS485/422: RJ45, VISCA/Pelco-D/Pelco-Protocol
    1x RS422 out: RJ45, VISCA/Pelco-D/Pelco-Protocol
    Power
    PowerJEITA type（DC IN 12V）
    Power Over EthernetPoE++（IEEE 802.3bt）
    Input Current5A（maximum）
    General Specifications
    InstallationNormal and Inverted
    Tally Light3x (Bi-color, Red and Green)
    Environmental and Physical Specifications
    Working Temperature0°C to 40°C
    Storage Temperature-40°C to 60°C
    Dimension205mm x 237mm x 272mm (8.07" × 9.33" × 10.71")
    Net weight4.8KG (10.58 lbs)
    Certifications
    CertificationsCE-EMC
    CE-LVD
    FCC
    REACH
    RoHS
    UKCA
    NDI HX3 (Pending Certification)
    PT20X-RISE-4K-BK

    Data sheet

    Video Output
    HDMI
    NDI
    RJ-45 (IP)
    SDI
    SFP+
    USB
    Audio Input
    Mini Jack 3.5mm
    XLR
    Audio Output
    Fiber Optic Embedded
    HDMI Embedded
    Mini Jack 3.5mm
    NDI Embedded
    RJ-45
    SDI Embedded
    USB
    Max Output Resolution
    4K UltraHD (3840 x 2160) 50/60 fps
    Control protocol for PTZ cameras
    NDI
    ONVIF
    PELCO-D
    PELCO-P
    RS-422
    VISCA
    VISCA IP
    Network Connection
    Ethernet
    Sensor Size
    1"
    Optical Zoom
    20x
    PoE Technology
    Yes
    Auto-Tracking
    Yes
    Tally Light
    Yes
    Timecode
    Yes
    Genlock
    Yes

    Specific References

    ean13
    840170501347
    mpn
    PT20X-RISE-4K-BK

    Contact us

    optional

    Reviews

    Write your review

    Write your review

    PTZOptics Rise 4K PTZ Camera

    Bring camera feeds onto a common timing reference with the PTZOptics Rise 4K broadcast PTZ camera. Its genlock input synchronises frame capture for live multicamera switching; the separate timecode input supplies shared timestamps for editing.

    A 50 MP Sony CMOS sensor in the 1.0-type format captures UHD at up to 60 fps. The 20x optical zoom lets a crew cover stage overviews and tight speaker shots from a fixed camera position. Focal length runs from 9.79 to 186.5 mm, with maximum aperture varying from f/2.8 to f/4.5. Phase-detection autofocus responds to changing subject distance; optical image stabilisation counters vibration. The internal ND filter offers 1/4, 1/16 and 1/64 settings, so exposure can be adjusted without changing shutter speed or aperture.

    Included Horizon Web puts PTZ movement, AI auto-tracking, auto-framing and image adjustment in a browser on the local network. Pan and tilt speeds span 0.004–180°/s, from slow camera moves to rapid repositioning. Waveform, vectorscope and RGB parade displays support exposure and colour matching across cameras. With 255 preset positions, recurring interview angles or lectern shots can be recalled during a programme. Tally indicators show camera status to people on set. FreeD sends camera tracking data to compatible virtual set and AR systems.

    12G-SDI and HDMI 2.0 output up to 4K60, with 3G-SDI for HD equipment and USB 3.0 for computer connection. For IP production, NDI HX3, SRT, RTSP and RTMP(S) provide network delivery options, with H.264/H.265 encoding. The SFP+ port carries 12G-SDI over fibre with compatible optical modules, useful for long cable runs between camera and control room. Two XLR inputs with selectable 48 V phantom power accept microphones or line sources; microSD recording keeps footage at the camera. PoE++ (IEEE 802.3bt) carries power over the Ethernet connection, with 12 V DC available for local powering.
