SmallHD Indie 7 RED RCP2 Kit Monitor

Name: SmallHD Indie 7 RED RCP2 Kit Monitor
Brand: SmallHD
SKU: SHD-16-0712-R2
Price: 1849.00 EUR
Availability: InStock

MPN: SHD-16-0712-R2

Price: €1,849.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

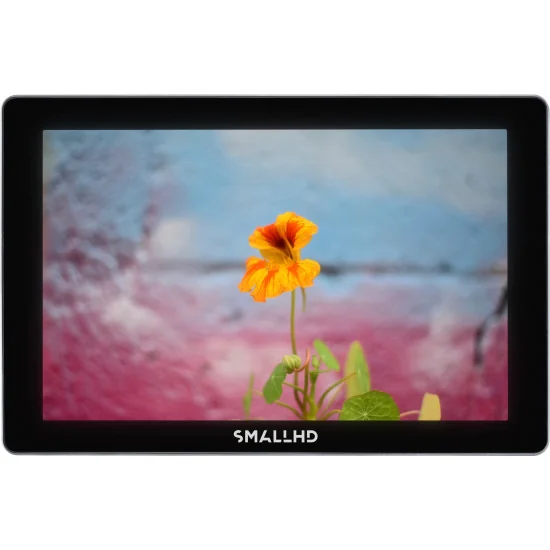

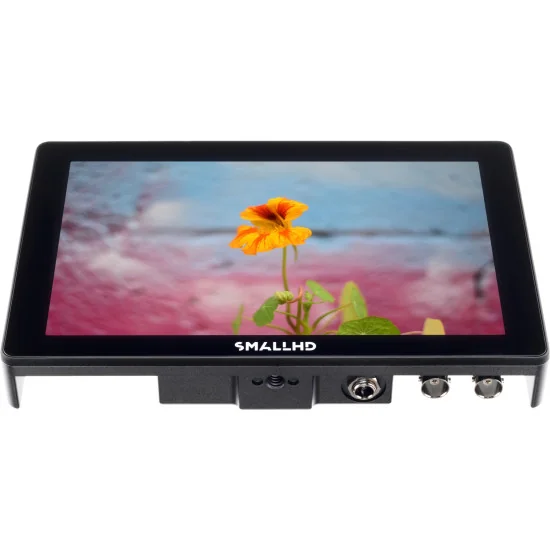

SmallHD Indie 7 RED RCP2 Kit delivers uncompromising monitoring for crews who refuse compromises. Its 7.02-inch IPS touchscreen packs a dense 1920 × 1200 panel, 1000 nits of daylight output, 323 ppi detail and 10-bit processing inside a 1000:1-contrast aluminium shell—letting focus pullers judge exposure in full sun without a hood.

Dual full-size HDMI 2.0 and 3G-SDI ports accept signals up to UHD 4K30 or 1080p60 and cross-convert downstream, while embedded 8-channel audio is metered on-screen and routed to a 3.5 mm jack. An SD slot ingests 33-point LUTs, and the micro-USB port handles firmware and accessory control.

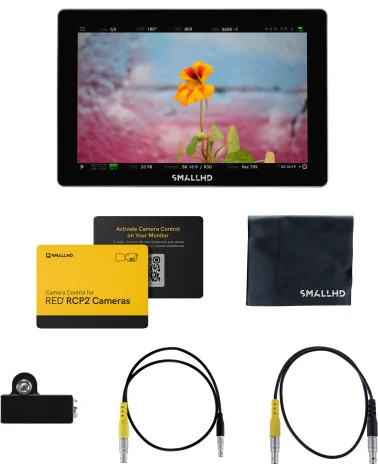

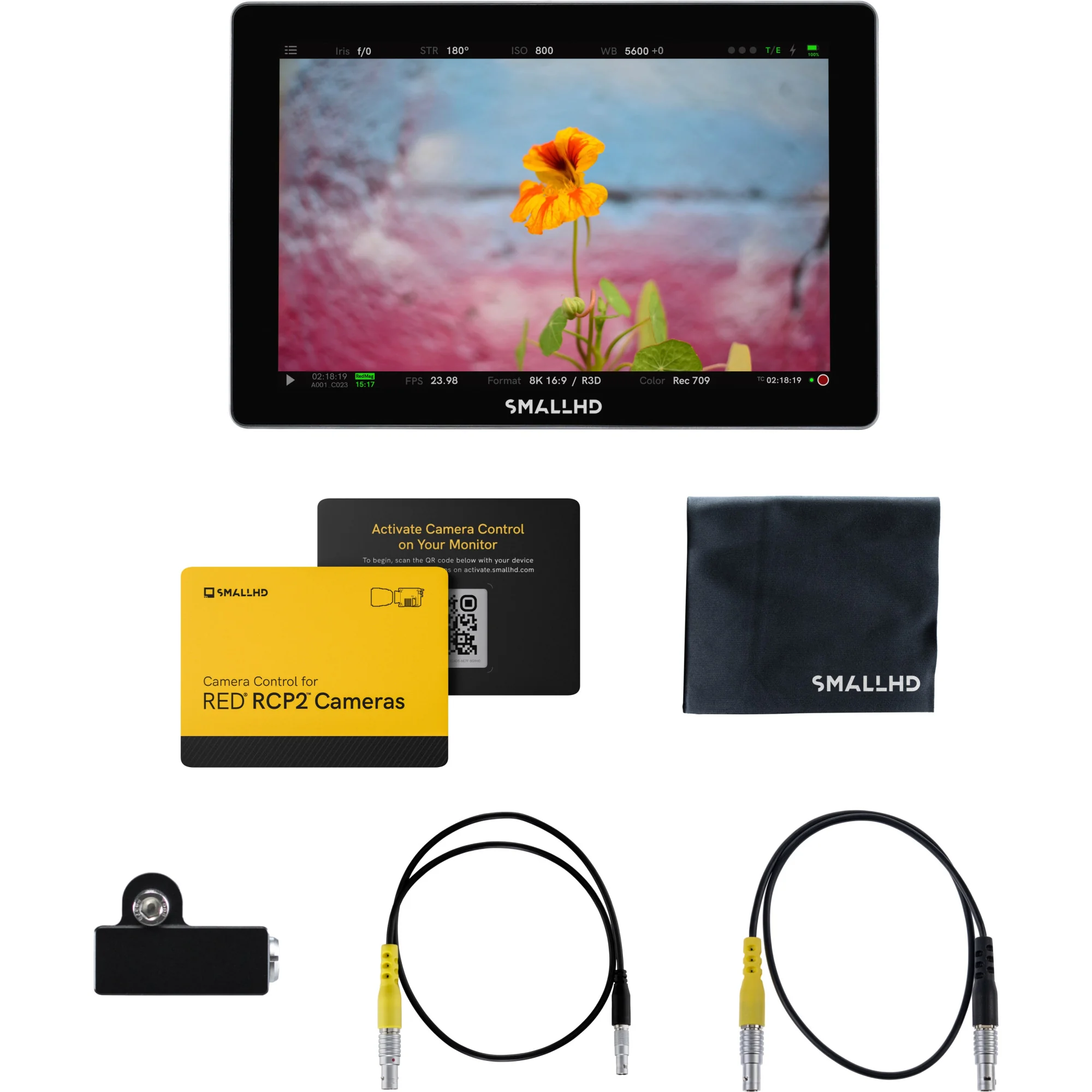

The kit’s licence unlocks native RED RCP2 control of KOMODO, KOMODO-X and DSMC3 / V-RAPTOR cameras via the supplied EXT-to-USB cable—start/stop, white-balance, shutter, ISO and metadata adjust instantly from the capacitive interface. PageOS 5 overlays—waveform, vectorscope, EL Zone, horizon, Teradek RT lens data—can live beside camera menus for a truly unified workflow.

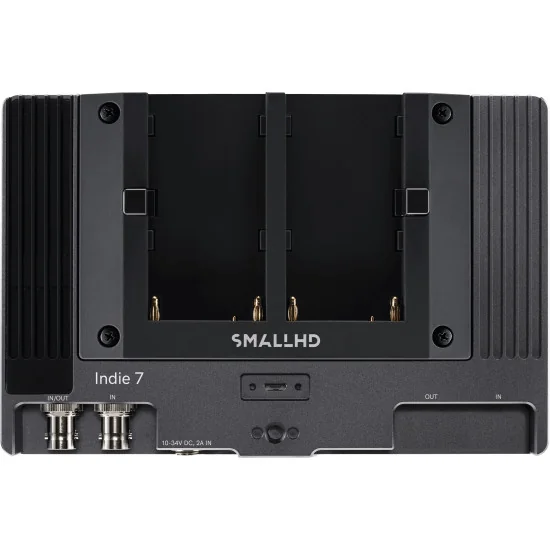

Power comes from a hot-swappable L-Series plate or 10–34 V barrel; at only 17.3 W the monitor sips energy on 14-hour days. Four ¼-20 threads, 737 g weight and –1 °C to 38 °C operating range complete a kit engineered for run-and-gun, live multicam and studio builds where reliability, colour precision and robust camera integration are non-negotiable.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Indie 7
Lightweight. Streamlined. Essential.
Complete creative control on an independent budget. Indie 7 gives you access to the smartest monitoring toolset in the industry so you can focus on the creative elements of filmmaking.

Work smarter, not harder. Indie 7 provides creative professionals with access to the smartest monitoring toolset in the industry. Built around a lightweight, anodized aluminum chassis. Indie 7 is designed specifically to withstand heavy run-n-gun production use.

PageOS
Next-Gen Tools, Customizable Workflow, Premium UX
Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and more.

LOOK-AROUND CAMERA CONTROL
A Camera Interface on Every Page
View and adjust crucial camera-control functions and PageOS tools at the same time on Smart 7 Series Monitors with a camera-control interface anchored to every page.

TERADEK RT OVERLAYS
Lens Control Overlays
View critical lens, focus, iris, and zoom data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.

EL ZONE
Light Metering Evolved
Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

HORIZON INDICATOR
Keep Your Frame on the Level
A built-in digital bubble-level overlay you can apply to the image to precisely gauge camera rotation.

SPECS

Environmental
Item Weight (oz): 18.9
Package Weight (oz): 26
Height (in): 4.67
Width (in): 1.32
Length/Depth (in): 7.09
Compliance: FCC, IC, CE, RoHS
Operating Temperature: 30F to 100F
Storage Temperature: 0F to 120F
Mount Points: Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction: Anodized aluminum chassis

Display
Panel Type: IPS LCD Touchscreen
Diagonal Size: 7.02
Resolution: 1920x1200
Pixel Density: 323
Active Area: 5.95 x 3.72
Max Brightness: 1000 Nits
Contrast: 1000:1
Color Depth: 10-bit Processing (8-bit panel)
Viewing Angle: 160
Backlight Type: LED
Adjustable Backlight: Yes
Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal
3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal
3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type
SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Power In: Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
USB: 1x USB 2.0 Micro-B receptacle

Controls
Primary: Touch Screen
Record Capture: Image Capture Tool

Power
Connector: Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Consumption: 17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
Battery Plate Included: L-Series standard (V Mount or Gold Mount optional accessories)
Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
Battery Types: L-Series, (Optional V Mount, Gold Mount)
Overload Protection: DC input: Reverse polarity
Battery Chemistry: Li-ion
Battery Charging Time: Monitor does not support the charging of batterie

Software
Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import: via SD Card or USB Storage Device
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI & SDI up to 8 channel
