Name: SmallHD Ultra 7 Bolt 6 RX 750 V-Mount Kit Monitor
Brand: SmallHD
SKU: SHD-16-0728-VM
Price: 4190.00 EUR
Availability: InStock

MPN: SHD-16-0728-VM

Price: €4,190.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

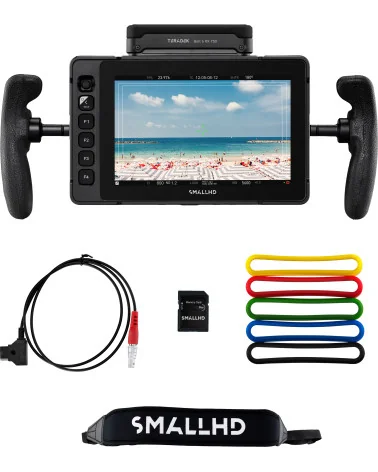

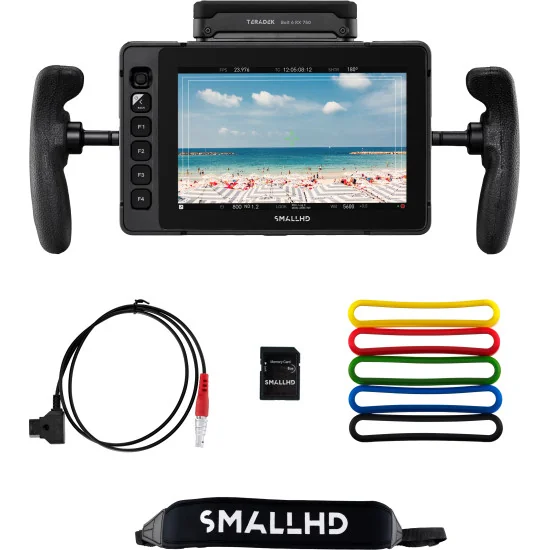

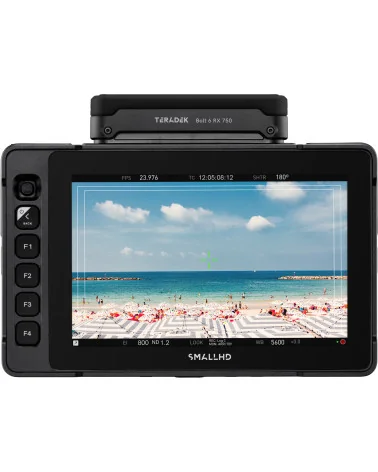

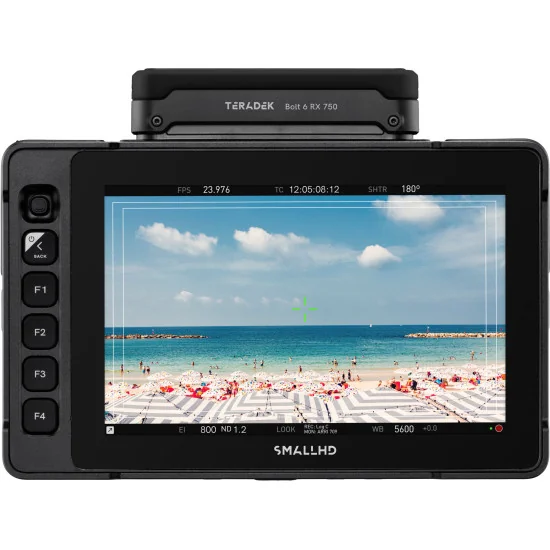

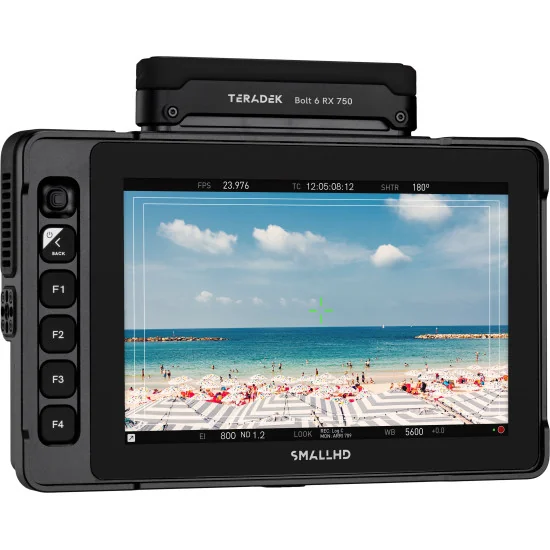

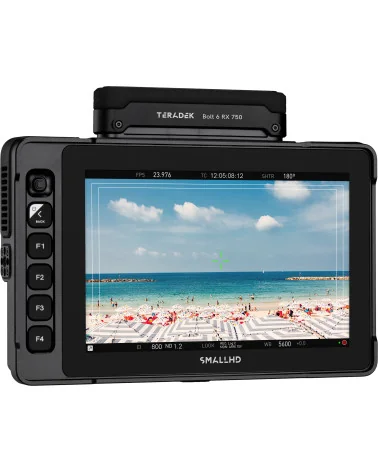

SmallHD Ultra 7 Bolt 6 RX 750 V-Mount Kit is a purpose-built on-camera monitor/receiver for demanding broadcast crews. Its 7.02-inch IPS LCD renders 1920 × 1200 native with quantum-dot edge lighting that outputs 2300 nits, allowing critical focus and exposure in direct sun. A 10-bit 4:2:2 pipeline, 95 % DCI-P3 gamut and 1000:1 contrast deliver faithful colour, while 6G-SDI plus full-size HDMI I/O handle and loop DCI 4K 30p, with bidirectional cross-conversion.

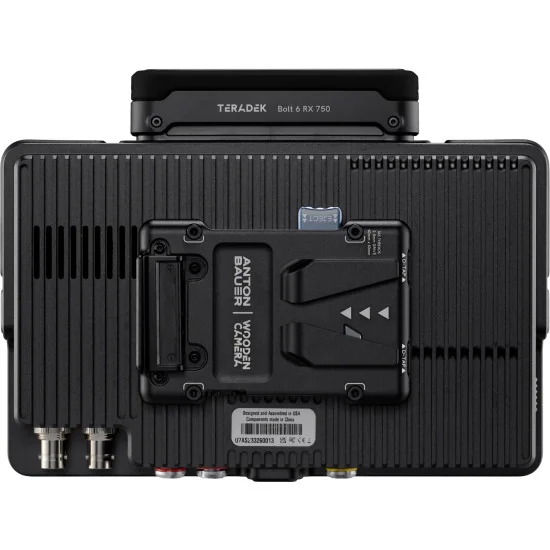

Inside the aluminium body sits a zero-delay Teradek Bolt 6 RX 750 module receiving encrypted 6 GHz video up to 228 m / 750 ft away, compatible with Bolt 6 or 4K transmitters and supporting up to six units in parallel… It moves 10-bit, 4K30 true HDR signals with latency below 1 ms, preserving lip-sync on live multicam stages. An internal V-antenna keeps the build snag-free, and power comes via the integrated V-Mount plate or 2-pin DC (10–34 V) for streamlined gimbal, drone or steadicam setups.

Engineered for field abuse, Ultra 7 is sealed to IP54, operates 0–40 °C and features shock-absorbing bumpers. Dedicated buttons, joystick and encoder give glove-friendly control alongside the responsive touchscreen. PageOS 5 provides EL Zone stop-based false-colour, luma/RGB waveform, vectorscope, dual zebras, pinch-zoom to 8×, 33-point LUT import with downstream output, Teradek RT lens overlays and two-feed Multi-View (firmware). Ethernet and 5-pin USB ports unlock optional ARRI, Sony VENICE and RED camera control licences, placing key camera parameters on monitoring page.

Weighing just 900 g with four locking ¼-20s, the kit suits handheld, vehicle and studio rigs alike. For directors, DITs and vision engineers who refuse compromises, SmallHD Ultra 7 merges flagship luminance, robust wireless reception and a monitoring toolbox in one rugged package.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Ultra 7
Ultra Smart. Ultra Bright. Ultra Durable.
Designed to withstand the extremes of any production environment, Ultra 7 has the processing power of our 4K Production monitors, customizable function buttons, and shock absorbing bumpers.

Rugged, powerful, and feature-rich, the Ultra 7 offers 2300nits of brightness, 6G-SDI that allow you to ingest 4K signal, a 2-Pin power passthrough for cleaner builds, an Ethernet port for camera control, plus a joystick and tactile physical buttons for control in any conditions. Utilize all your favorite PageOS tools, functions, and settings pages on a fully-loaded 7-inch touchscreen monitor.

Ultra 7 is adaptable to all situations and conditions, including V-Mount Battery Plate for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE Camera Control, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable sold separately).

We brought together SmallHD’s Ultra 7 monitor with Teradek’s wireless transmission technology. Ultra 7 Bolt 6 TX integrates a Bolt 6 Transmitter directly inside an Ultra 7 monitor, allowing you to wirelessly send the image from your camera with the new internal V-Antenna.

QD-LED Edge-Lit LCD Panel Technology
SmallHD LEDs for Ultra 7 panels have the highest tolerance for color uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light through a quantum-dot film, ensuring the purest color accuracy on our panels. The result is an extremely bright monitor with excellent image fidelity.

Rain, Sun or Snow Built to Withstand the Harshest Production Environments
With an IP54 rating and ultra-durable water, dirt, heat, cold, and drop-resistant chassis, Ultra 7 was designed to withstand all the rigors and elements that professional filmmakers endure.

Fully Sealed
All electronic components are sealed with caps to protect against dust and water.

Impact Resistant
Able to withstand most drops, tumbles, and impacts with shock-absorbing bumpers.

Thermal Management
Ultra 7 can operate at freezing as well as scorching temperatures (0º-40ºC).

Strength & Durability
Strong, durable chassis with raised edges to protect the screen.

Water Resistant
Water resistant with protection against damp scenarios.

The Folding Magnetic Sunhood
The reimagined Ultra 7 sunhood connects to the monitor in seconds using a powerful magnetic array. This means no tools for installation or removal. When closed, the sunhood also provides total protection of the panel.

PageOS
Next-Gen Tools, Customizable Workflow, Premium UX

Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and more.

LOOK-AROUND CAMERA CONTROL
A Camera Interface on Every Page
View and adjust crucial camera-control functions and PageOS tools at the same time on Smart 7 Series Monitors with a camera-control interface anchored to every page.

TERADEK RT OVERLAYS
Lens Control Overlays
View critical lens, focus, iris, and zoom data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.

EL ZONE
Light Metering Evolved
Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

CUSTOM FUNCTION BUTTONS
A Tactile Complement to Touchscreen UI
Easily accessible physical buttons give you full control of the monitor, even when you’re wearing gloves. Assign workflow shortcuts for software tools, switch inputs, adjust display brightness, and more.

MULTI-VIEW
Handheld Multi-View
We’ve added the powerful Multi-View* tools from our 4K Production Monitors to Ultra 7. View two camera feeds and use multiple tools pages all on screen at the same time side-by-side.
*Coming Soon

SPECS

Environmental
IP Rating: IP 54
Item Weight (oz): 32
Height (in): 1.36
Width (in): 5.12
Length/Depth (in): 8.23

Display
Panel Type: IPS LCD
Diagonal Size: 7.02"
Resolution: 1920x1200
Max Brightness: 2300nits
Contrast: 1000:1
Color Depth: 10-bit Processing (8-bit panel)
Backlight Type: LED Edgelit
Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal
3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52

HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52

Output Signal
3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52

HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51

Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Data I/O
SDI: 1x BNC 6G input and 1x BNC 6G input/output
HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet: RJ45

Power
Connector: 2-Pin Locking Connector
Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 10V minimum to 34V max
Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
Battery Types: Optional V Mount, Gold Mount Micro Battery Plates
Overload Protection: DC input: Reverse polarity

Software
Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI → SDI & SDI → HDMI (Coming Soon)
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
LUTS - 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed
Custom LUTS - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out (Coming Soon). Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device
Color Pipe - Unique Calibrations may be saved to each Color Pipe - Accurate color processing
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI & SDI up to 8 channel
Multi-View: 2 camera feeds simultaneously
