SWEDX Lamina 50" White SWL-50K8-A1 | Digital Signage Totem Kiosk, 4K, HDMI, USB

Name: SWEDX Lamina 50" White SWL-50K8-A1 | Digital Signage Totem Kiosk, 4K, HDMI, USB
Brand: SWEDX
SKU: SWL-50K8-A1
Price: 1170.00 EUR
Availability: InStock

MPN: SWL-50K8-A1

Price: €1,170.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

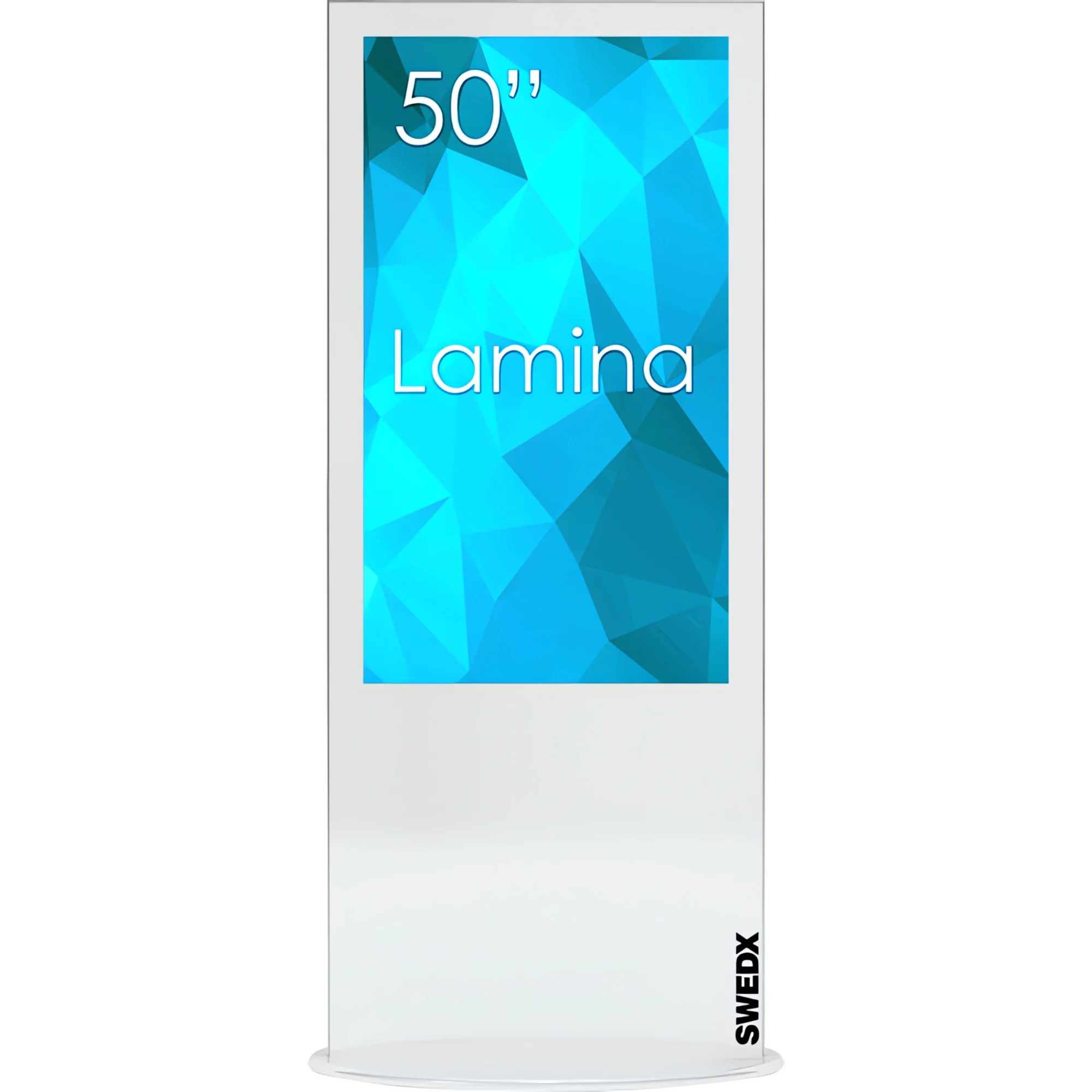

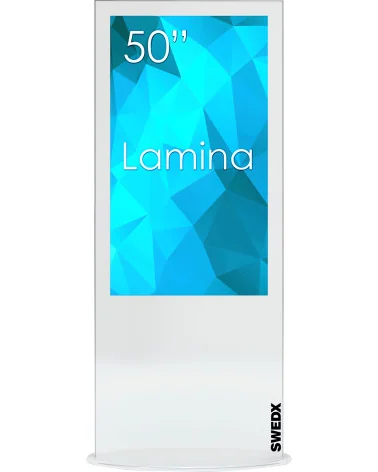

The SWEDX Lamina 50” White SWL-50K8-A1 is a freestanding digital signage totem featuring a 50-inch 4K Ultra HD display with a resolution of 3840 x 2160 pixels. Equipped with three HDMI 2.0 inputs supporting 4K content at 60Hz, it ensures seamless playback of Ultra HD videos, images, and animations. The display offers a brightness of 350 cd/m² and a contrast ratio of 4000:1, delivering clear and vibrant visuals. Its anti-glare coating minimizes reflections, enhancing visibility in various lighting conditions. The unit includes two USB 2.0 ports for media playback and features an automatic on/off timer and Smart HDMI functionality to optimize power consumption. A lockable rear door provides secure storage for additional equipment. Ideal for high-traffic areas such as retail spaces, museums, and public buildings, this non-touch digital signage solution combines advanced technology with user-friendly features.

UE Shipping

We ship all over the European Union for €20, free shipping on orders over €1,000.

B2B Shop

Our offer is aimed only to B to B Customers, all prices are exclusive of tax.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The SWEDX Lamina SWL-50K8-A1 presents itself as an independent 4K display unit. This sophisticated white advertising stand is designed with a 50-inch screen capable of 4K resolution. Notably, it features three HDMI 2.0 inputs that support the crisp and clear 4K resolution at a 60Hz refresh rate, perfect for displaying Ultra HD videos, photos, and animations. This model represents the pinnacle of current technical capabilities and is a non-touch variant. It is particularly suited for businesses looking to enhance their lobby areas, ideal for settings such as museums, retail spaces, and public buildings. Additionally, the SWEDX Lamina SWL-50K8-A1 can operate in a portrait setup, offering content playback in 4K resolution with a high brightness level of 350 cd/m².

With its ability to function continuously, operating 24/7, the display is perfectly tailored for locations like petrol stations that require non-stop service. The SWL-50K8-A1, being a freestanding 4K unit, is also well-suited for environments with high foot traffic such as hotels, restaurants, and retail areas.

In contrast to static billboards that display unchanged content for extended periods, the digital nature of the SWL-50K8-A1 allows for frequent content updates. This dynamic feature is particularly effective in maintaining interest among daily commuters and regular visitors, as the content can be refreshed regularly.

The advertising totem of the SWEDX Lamina SWL-50K8-A1 boasts an impressive resolution of 3840 x 2160 pixels, ensuring that advertising material is displayed in stunning UHD quality. The 4K resolution advantageously allows for the presentation of images in superior detail and clarity. Additionally, the quality of the images remains superior even at close distances, a feat that surpasses Full HD resolution capabilities. The display's brightness of 350 cd/m², coupled with a contrast ratio of 4000:1, guarantees an exceptional viewing experience. Its anti-glare coating ensures that the content is easily visible, even under bright lighting conditions, while minimizing reflections and glare.

For security and convenience, the rear of the unit includes a lockable door to safeguard equipment. This space is designed to accommodate various digital signage players, facilitating the effortless creation and automation of photo and video playlists. The SWL-50K8-A1 also features two USB ports, allowing for the connection of devices like mini PCs or Android boxes. Environmentally conscious, the unit includes an automatic on/off timer and Smart HDMI functionality, which optimizes power usage based on HDMI input. Additionally, the unit's internal media player allows for USB-driven media playback, offering users the ability to schedule and customize content displays, such as varying information for morning hours or weekends.

LCD DISPLAY
Model	SWL-50A1/A2
Panel Type	50" TFT UHD Panel
Display size	50"
Active Display area	1095,84 (H )x 616,41 (V)
Pixel Pitch	0,0951 (H) x 0,2854 (V)
Pixel Arrangment	RGB Vertical Stripe
Backlight	Edge-LED
Backlight rated hours	30000 (LED Decays to 50%)
Refresh rate	50/60Hz
Aspect Ratio	16:9
Response Time	Gray to Gray typical Avrage 9,5ms
Max. Resolution	3840 x R.G.B x 2160
HD Format	Quad Full HD 3840x2160 pixels
Output frame rate	QFHD 50/60 Hz
Contrast Ratio	4000:1
Brightness (cd/m2)	350d/m2
Display Color	1,07G corlars (8-bit +FRC)
Viewing Angle	H:178o V:178o VA Technology
Ultra wide viewing technology	Super VMA Technology
Display operation mode	Transmissive mode/Normaly black
Surface treatment	Anti-Glare coating (Haze 1%) Hardness 3H
Base Type	Removable
Accessories included	Base,Remote,AC-Cable, Screw
Remote Type	2,4 GHz
Remmote printed language	English
Remote Pairing	Reciver key + 2 remote keys (ok+8)
Display
High color saturation	NTSC 88%
Sound System	Stereo /Surround/ SRS TruSurround XT
AUDIO
Stereo system	Stereo
Audio Speaker	10W X2
CONNECTION
CVBS +Audio R/L Input	X 1
Analog VGA	X 1
PC Stereo Input	X 1
HDMI 1 ARC	X1
HDMI 2	X1
HDMI 3 MHL	X1
YCbCr/YPbPr Input	X1
Coaxial Out	X1
USB 1	X1
USB 2	X1
On/OFF key	X1
Remote Pair Key	X1
Touch Screen USB	No
Touch Screen
USB Connection	-
Touch screen 6point	-
Touch screen 10 point	-
Touch Type	-
Protective glas	-
Signal Mode
CVBS +Audio R/L Input	Pal/Secam/NTSC 1Vp-p@75ohm 500mVrms
Analog VGA	H:30-75KHz V:56-75Hz 0,7Vp-p@75ohm Max 1920x1080@60Hz
PC Stereo Input	500mVrms
HDMI	HDMI2,0/1,4b /HDCP 2,2/1,4 MHL 3,0/2,1 Compatible
YCbCr/YPbPr Input:	Y:1Vp-p@75ohm, PbPr: 0,7Vp-p@75ohm 500mVrms 480I/P, 576I/P, 720P,1080I/P
USB 1	2.0
USB 2	2.0
POWER
Valtage/Frequency	AC Input 100~240V,50/60Hz
Power Consumpiton	Max 50 Watt
Stand by Power consumption	<0.5W
Power Code	TBD
Power code mark	TBD
FEATURES
Full HD Compitable	480i/576i,480p/576p,720p/1080i /1080P 2160i/2160P
HDMI Input	480P,576P,720P,1080I,1080P /2160I /2160P
HDMI 4k @50Hz / 60Hz	Yes in All inputs
3D Digital Comb Filter	Yes
3D Digital Noise Reduction	Yes
Sleep timer	Yes
Advanced Timer	Yes
Power on/off timer	Yes
Smart HDMI	Yes
Color temperature control	Yes
Picture Status Memory	Yes
Multi display mode	Optional
USB Media player	Yes
USB play list	Yes
USB Auto play mode Video	Yes
USB Auto play mode Photo	Yes
USB Simple mode	Yes
USB Play list mode	Yes
De-Interlace	3D motion adaptive video
OSD Language	English, Swedish, Japan, German, Italy ,France, Chinese
DIMENSION
Dimension with base	w 813x h 1820x d 450 mm
Dimension w/t base	w 747x h 1802x d 66 mm
Thikness upper part	41,50 mm
Packing Size	L 1940 x W 900 x H 160 mm
Gross wieght	57KG
Net wieght	43,5KG
Other packing	Flight Case avalible (Optional)
Operating Condtion
Temperature	Normal Condtion 20± 15°C
Humidity	Normal Condtion 55± 20%
Operating Ambient Temp.	0°C - 50°C
Storage Temp.	Min -20°C / Max +60°C
Display Pattern	continually changing pattern (Not staionary)
Color
Front Standard	Glossy Black Code A2/ Glossy white Code A1
Back Standard	Black Code A2/ White Code A1
Edge Standard	Chrome
Other colors	Open request

Reference SWL-50K8-A1

Data sheet

Video Input: Component
Composite CVBS
HDMI
USB
VGA
Screen Size: 50"
Display Brightness: 350 nits
Aspect Ratio: 16:9
Screen Resolution: 3840x2160
Refresh Rate: 60Hz
Screen Type: LCD TFT
Backlight: Edge-LED
Backlight Rated Hours: 30000
Touch Screen: No
Viewing Angle: 178/178
Built-in Speaker: Yes
USB Media Player: Yes
Supported OS: Android
Linux
Mac OS
Windows 8
Windows 10
Windows 2000
Windows Vista
Windows XP
