Teradek Bolt 6 XT 1500 TX/RX Deluxe Set V-Mount delivers zero-delay wireless monitoring on the opened 6 GHz spectrum with backward operation on 5 GHz. The 12G-SDI and HDMI 2.0 interfaces carry DCI/UHD 4K60 10-bit 4:2:2 HDR, embedded audio and ancillary data. Line-of-sight reach is 1500 ft / 457 m, sustained by V and H antennas, adaptive 20/40 MHz channel modes and secure AES-256 with RSA-1024 pairing for set-safe links.
Bolt 6 XT communicates with Bolt 6 units on 6 GHz and with Bolt 4K on 5 GHz, letting crews mix ecosystems without re-rigging. Latency stays under 0.001 s, while Long Range Mode keeps signal integrity in congested venues. The SDI Eye Pattern Tool assists cable checks, and 4K60 ingest/output means full-fidelity hand-off to recorders, switchers and on-set HDR monitors.
Rigging and power are straightforward: both TX and RX integrate V-Mount plates and accept 2-pin LEMO DC (6–28 V) or D-Tap from camera batteries. Typical draw is 20 W (TX) and 18 W (RX). Multicast to six receivers, while Bluetooth access to Bolt Manager and the mobile app exposes a spectrum analyzer, manual channel selection, pairing and remote configuration. DFS/non-DFS operation across 5/6 GHz supports EU deployments.
Compact aluminium housings (TX 132×91×27 mm, 344 g; RX 138×112×27 mm, 430 g) withstand daily location work at 0–40 °C. This Deluxe kit ships with the Antenna Array, XL case, power and SDI cabling, and a universal monitor arm, ready for trucks, studios and mobile cinema carts. For teams that need deterministic performance, spectrum flexibility and end-to-end 4K HDR integrity, Bolt 6 XT 1500 is the reference wireless video system. TX provides 12G-SDI in/loop and HDMI 2.0; RX outputs 12G-SDI + HDMI. 2-ch 48 kHz LPCM audio

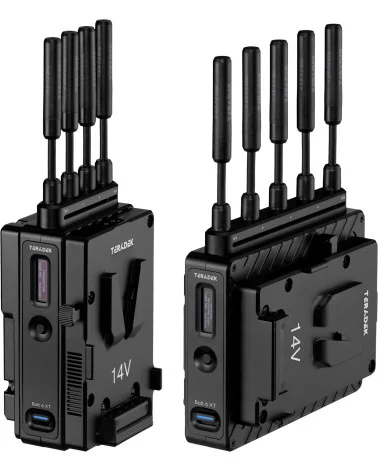

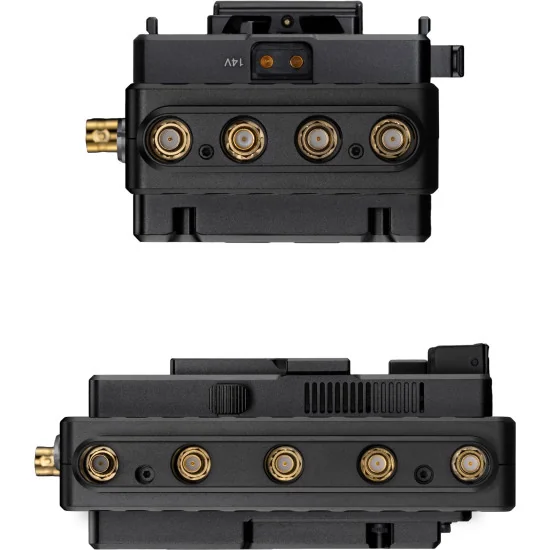

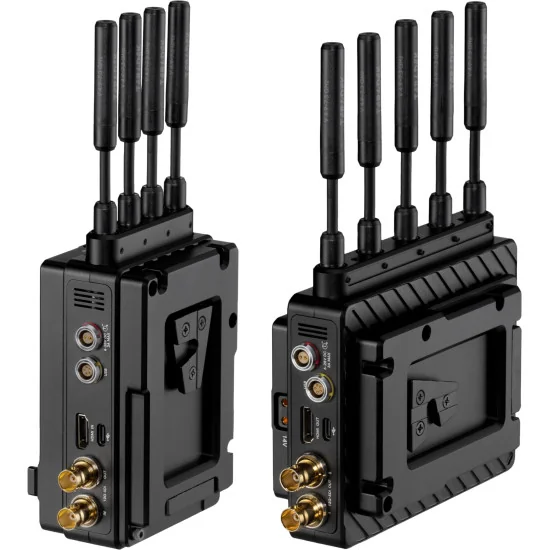

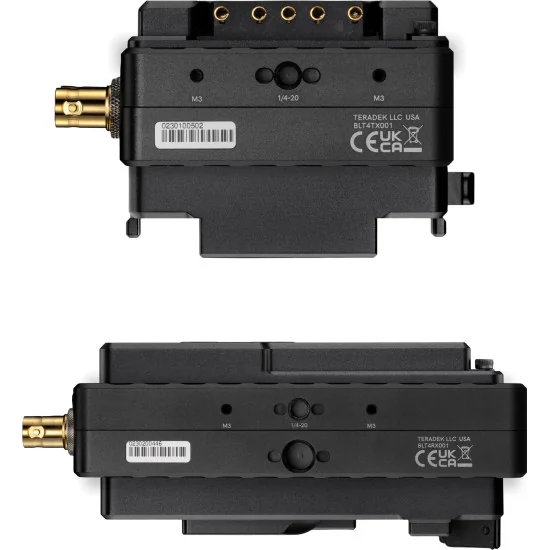

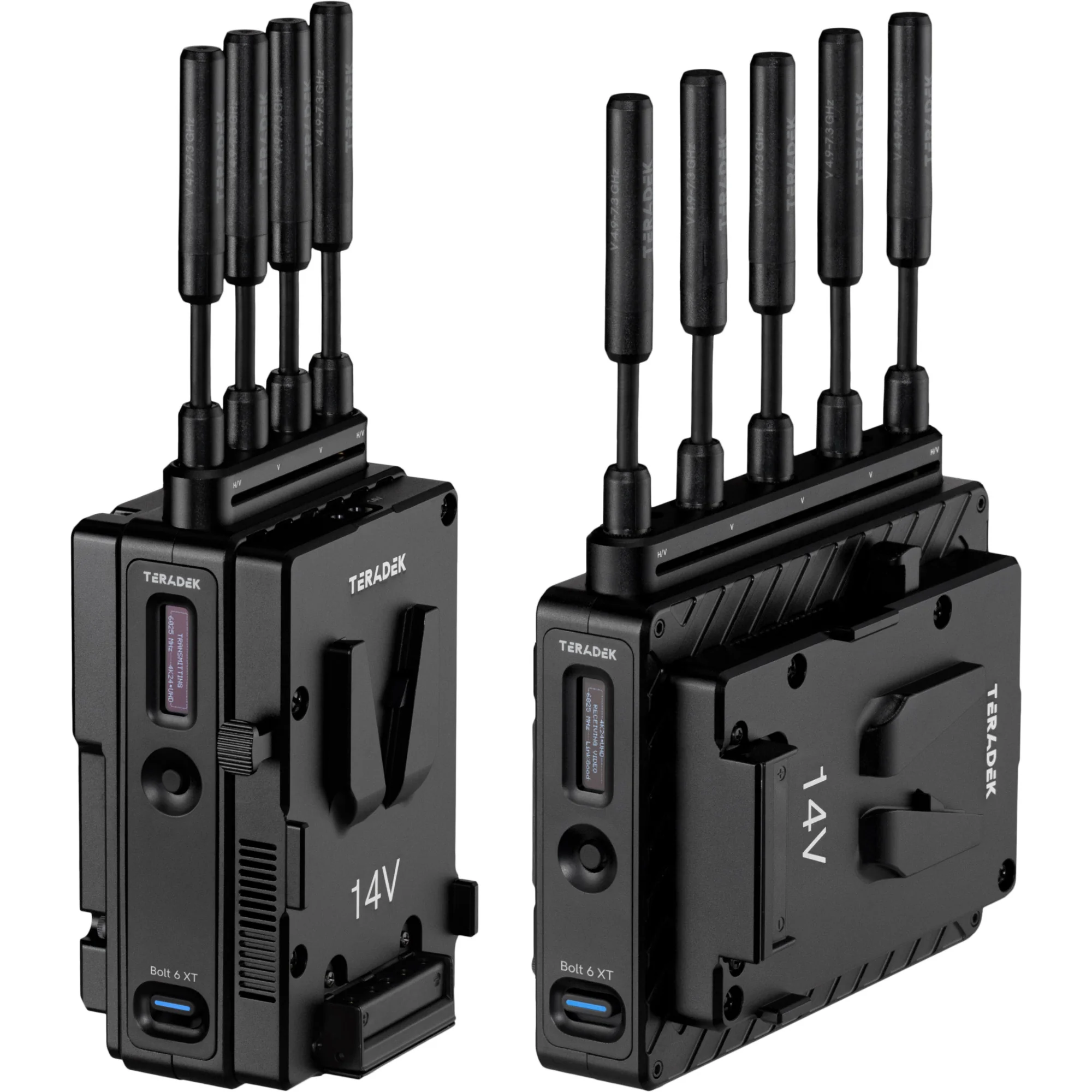

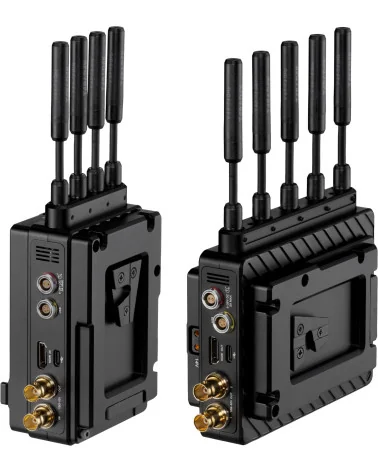

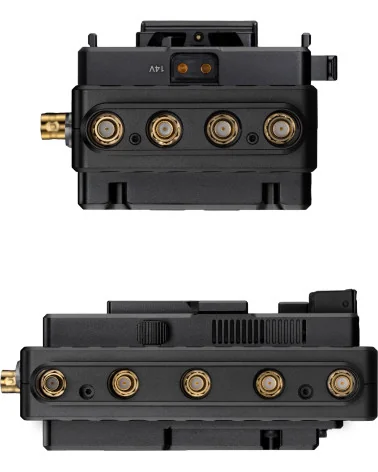

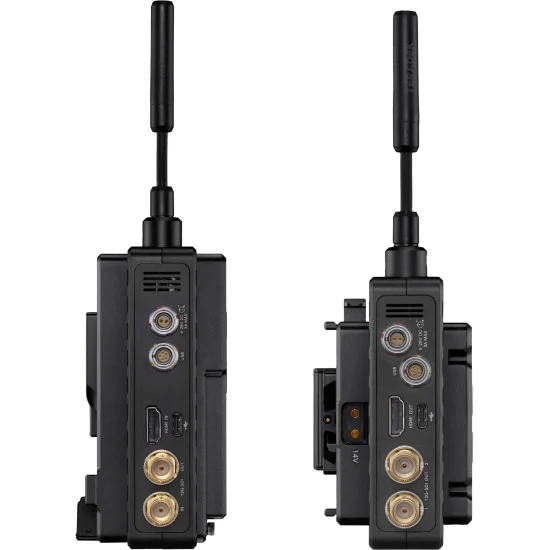

Teradek Bolt 6 XT 1500 TX/RX Deluxe Set V-Mount Wireless Video System
TE-10-2310-V
Price: €10,990.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Teradek Bolt 6 XT 1500 TX/RX Deluxe Set V-Mount delivers zero-delay wireless monitoring on the opened 6 GHz spectrum with backward operation on 5 GHz. The 12G-SDI and HDMI 2.0 interfaces carry DCI/UHD 4K60 10-bit 4:2:2 HDR, embedded audio and ancillary data. Line-of-sight reach is 1500 ft / 457 m, sustained by V and H antennas, adaptive 20/40 MHz channel modes and secure AES-256 with RSA-1024 pairing for set-safe links.
Bolt 6 XT communicates with Bolt 6 units on 6 GHz and with Bolt 4K on 5 GHz, letting crews mix ecosystems without re-rigging. Latency stays under 0.001 s, while Long Range Mode keeps signal integrity in congested venues. The SDI Eye Pattern Tool assists cable checks, and 4K60 ingest/output means full-fidelity hand-off to recorders, switchers and on-set HDR monitors.
Rigging and power are straightforward: both TX and RX integrate V-Mount plates and accept 2-pin LEMO DC (6–28 V) or D-Tap from camera batteries. Typical draw is 20 W (TX) and 18 W (RX). Multicast to six receivers, while Bluetooth access to Bolt Manager and the mobile app exposes a spectrum analyzer, manual channel selection, pairing and remote configuration. DFS/non-DFS operation across 5/6 GHz supports EU deployments.
Compact aluminium housings (TX 132×91×27 mm, 344 g; RX 138×112×27 mm, 430 g) withstand daily location work at 0–40 °C. This Deluxe kit ships with the Antenna Array, XL case, power and SDI cabling, and a universal monitor arm, ready for trucks, studios and mobile cinema carts. For teams that need deterministic performance, spectrum flexibility and end-to-end 4K HDR integrity, Bolt 6 XT 1500 is the reference wireless video system. TX provides 12G-SDI in/loop and HDMI 2.0; RX outputs 12G-SDI + HDMI. 2-ch 48 kHz LPCM audio
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Technical Specs
Bolt 6 XT 1500 12G-SDI/HDMI Wireless RX V-Mount
Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx: <0.001sec
Output Video Scaling: Yes, Framerate and Resolution Scaling
Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Color Correction: 17x17x17 3D LUT (supports 10-bit color)
Audio Compression: 48kHz 24-bit PCM
Dimensions: 112 x 139 x 27 mm
Weight: 430g (15.2 Oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Usb Interface Functionality: Upgrade via USB-C 5pin Locking Connector CCU
Bluetooth: 2.4 GHz
Antennas: 5 External 2 dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 21 dbm EIRP
Range: Up to 1500 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: V mount battery plate
Battery Runtime: 18 Watts
Operating Temperature: 0-40℃
Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)
Bolt 6 XT 1500 12G-SDI/HDMI Wireless TX V-Mount
Video Inputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx: <0.001sec
Input Cross Conversion: Yes, HDMI to SDI
Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Color Correction: None
Audio Compression: 48kHz 24-bit PCM
Dimensions: 132 x 91 x 27 mm
Weight: 344g (12.1 Oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and M3 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Usb Interface Functionality: Upgrade via USB-C 5pin Locking Connector CCU
Bluetooth: 2.4 GHz
Antennas: 4 External 2dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 23 dbm EIRP
Range: Up to 1500 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: V-Mount battery plate
Battery Runtime: 20 Watts
Operating Temperature: 0-40℃
Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)
In the Box
1 x Bolt 6 XT 1500 TX V-Mount
1 x Bolt 6 XT 1500 RX V-Mount
1 x Antenna Array
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
1 x Hex L key 2.5mm size 3-5/8"" length
2 x 2pin Conn. to PowerTap - 18in/46cm Cable
1 x 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2 x SDI 12G BNC to BNC 18in/46cm Cable
1 x Teradek Case XL - Bolt XT/4RX and Array Antenna
1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
1 x Wooden Camera - Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5"")
1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable
TE-10-2310-V
1 Item
Data sheet
- Video Input
- HDMI
SDI - Video Output
- HDMI
SDI - Audio Input
- HDMI Embedded
SDI Embedded - Audio Output
- HDMI Embedded
SDI Embedded - Max Output Resolution
- 4K (4096 x 2160) 50/60 fps
- Power
- DC
V-Mount - Transmission Range
- 440m
- Latency
- 0.001s
- Configuration
- TX + RX
Specific References
- ean13
- 818264027196
- mpn
- 10-2310-V
