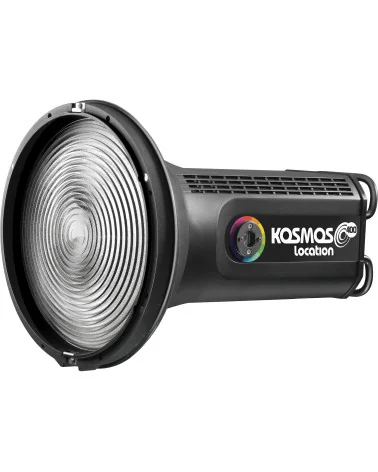

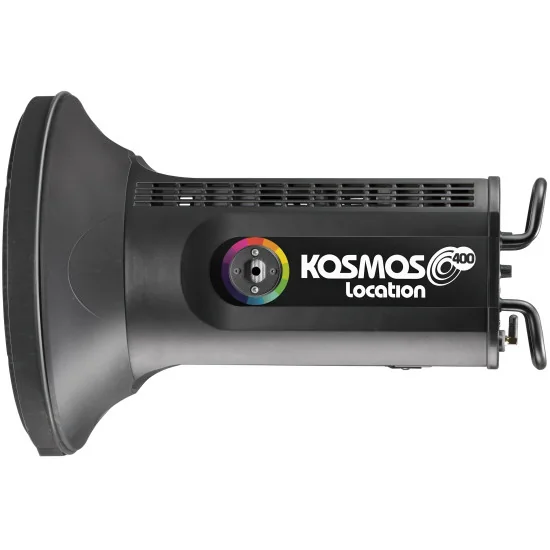

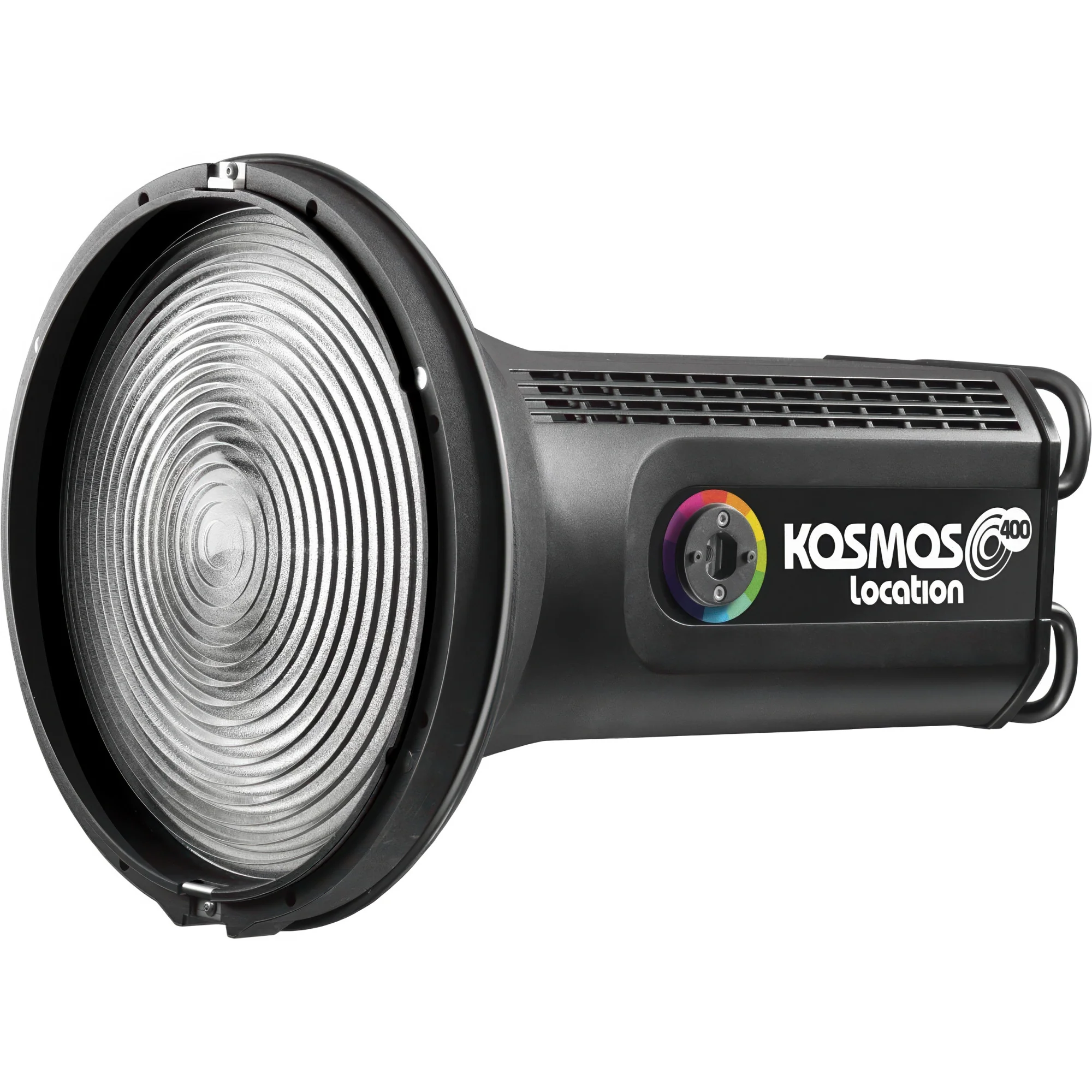

VELVET Kosmos 400 Color Location delivers a compact 400 W RGBWW COB LED Fresnel package with the handling of a traditional lens head and the speed of remote beam control. The true 300 mm borosilicate Fresnel lens keeps shadows clean and the field even, while the motorized zoom shifts from a tight 13° spot to a wide 56° flood for keys, backlights, kickers or textured pools on set.
The 35 mm VELVET ceramic light engine mixes R+G+B+W+CW to cover both accurate whites and saturated colour. White tuning spans 2,500–10,000 K with continuous green/magenta trim for matching broadcast cameras, practicals or LED volumes. Control modes include CCT, HSI, CCT+RGB, Gel and Effects, with zoom available in every mode and smooth 0–100% dimming plus selectable dimming curves. Colour fidelity is production-grade, with TLCI quoted up to 98 depending on CCT.
For punch at distance, photometrics reach 19,200 lux at 3 m (5,600 K, 13°) and 13,000 lux at 3 m (3,200 K, 13°); in flood, output remains usable at 4,500 lux at 3 m (50°). The driver is engineered for camera work with flicker-free performance beyond 12,000 fps, and the LED system is rated L70 beyond 50,000 hours for long service intervals.
Integration is straightforward: wired DMX/RDM via 5-pin XLR and wireless control via Wi-Fi Art-Net sCAN, Bluetooth and VELVET GOYA app workflows (with CRMX options available on many Location packages). Power runs from 90–264 V AC through PowerCon TRUE1 in/out for daisy-chaining, or 26–48 V DC via XLR-3, with PFC and full output on battery carts; dual V-Lock or Gold-mount plates are commonly used for around one hour at full power with two 200 Wh batteries. IP30 protection, operation from -20°C to +45°C, and passive liquid cooling in a sealed 3D chamber with a silent fan keep acoustics controlled for dialogue and streaming sets. The DC input expects 26–48 V; below 26 V the head shuts down and above 50 V risks damage, so high-draw packs (≥10 A continuous) are recommended.
VELVET Kosmos 400 Color Location delivers a compact 400 W RGBWW COB LED Fresnel package with the handling of a traditional lens head and the speed of remote beam control. The true 300 mm borosilicate Fresnel lens keeps shadows clean and the field even, while the motorized zoom shifts from a tight 13° spot to a wide 56° flood for keys, backlights, kickers or textured pools on set.
The 35 mm VELVET ceramic light engine mixes R+G+B+W+CW to cover both accurate whites and saturated colour. White tuning spans 2,500–10,000 K with continuous green/magenta trim for matching broadcast cameras, practicals or LED volumes. Control modes include CCT, HSI, CCT+RGB, Gel and Effects, with zoom available in every mode and smooth 0–100% dimming plus selectable dimming curves. Colour fidelity is production-grade, with TLCI quoted up to 98 depending on CCT.
For punch at distance, photometrics reach 19,200 lux at 3 m (5,600 K, 13°) and 13,000 lux at 3 m (3,200 K, 13°); in flood, output remains usable at 4,500 lux at 3 m (50°). The driver is engineered for camera work with flicker-free performance beyond 12,000 fps, and the LED system is rated L70 beyond 50,000 hours for long service intervals.
Integration is straightforward: wired DMX/RDM via 5-pin XLR and wireless control via Wi-Fi Art-Net sCAN, Bluetooth and VELVET GOYA app workflows (with CRMX options available on many Location packages). Power runs from 90–264 V AC through PowerCon TRUE1 in/out for daisy-chaining, or 26–48 V DC via XLR-3, with PFC and full output on battery carts; dual V-Lock or Gold-mount plates are commonly used for around one hour at full power with two 200 Wh batteries. IP30 protection, operation from -20°C to +45°C, and passive liquid cooling in a sealed 3D chamber with a silent fan keep acoustics controlled for dialogue and streaming sets. The DC input expects 26–48 V; below 26 V the head shuts down and above 50 V risks damage, so high-draw packs (≥10 A continuous) are recommended.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
AC and DC powered full color Fresnel LED with motorized zoom and wireless control
Color tunable 5 LED fresnel light. Red, Green, Royal Blue, Blue, Warm White, Cold White. Motorized zoom from 13º to 56º. Remote control of beam angle. True borosilicate fresnel lens. High color reproduction TLCI (96). 2500 to 10.000K Lightweight, low-carbon aluminum body. DMXRDM, LumenRadio CRMX, Wi-fi Artnet, Bluetooth. Silent operation (4 fan modes, including FAN OFF). Robust and lightweight, low-carbon footprint aluminum body. High efficiency means 100% light output even with batteries. V-Lock, B-mount and Gold mount available.
Included
1x VK400CNY VELVET Kosmos 400 Color Location
Bracket and other accessories are available separately.
SPECIFICATIONS
OPTICAL SYSTEM: Motorized ZOOM Fresnel
LIGHT ENGINE: 35mm full color spectrum R+G+B+W+CW VELVET ceramic COB LED
COLOUR TEMPERATURE: Continously adjustable from 2500K to 10000K (100K increments)
GREEN MAGENTA: Continuously adjustable from Full green to Full minusgreen
CONTROL COLOR MODES: CTT, HSI, CTT+RGB, Gels and Effects with ZOOM in every Mode, NOTE: base Kelvin white light can be set combined with any color
LIGHT INTENSITY: Smooth 0 to 100%, three selectable dimming curves
LOCAL CONTROL: 2x rotary knobs and full-color touchscreen display

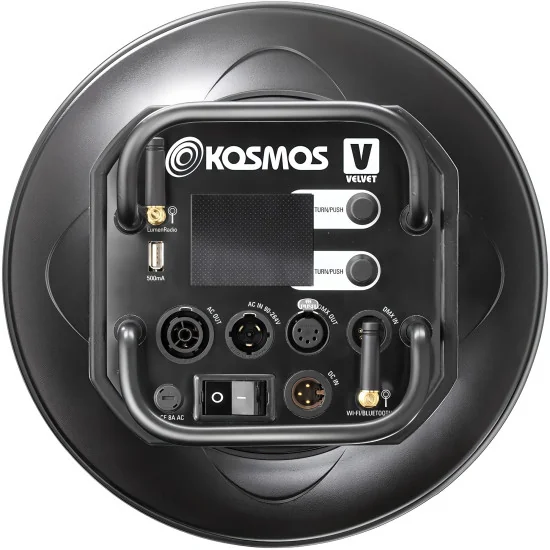

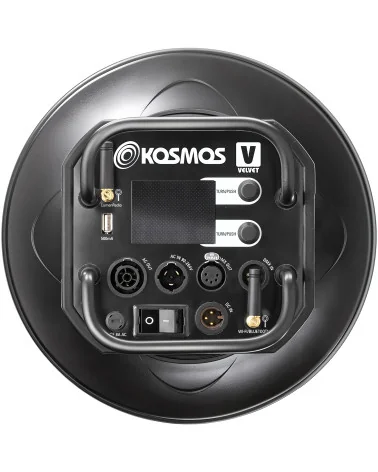

WIRE CONTROL: DMX-RDM with XLR-5 in & through connectors, Ethernet Art-Net with RJ-45 connector
WIRELESS CONTROL: LumenRadio CRMX built-in, Wi-Fi Art-Net sCAN and Bluetooth, Android and iOS using VELVET Goya free charge app
TLCI INDEX: 95 at 3200K and 97 at 5600K
PHOTOMETRICS:
50º - 3200K 13º - 3200K
2660 lux / 247 fc at 3 m / 9.8 feet 11115 lux / 1033 fc at 3 m / 9.8 feet
750 lux / 70 fc at 6 m / 20 feet 2820 lux / 262 fc at 6 m / 20 feet
50º - 5600K 13º - 5600K
4000 lux / 372 fc at 3 m / 9.8 feet 16500 lux / 1533 fc at 3 m / 9.8 feet
1050 lux / 97 fc at 6 m / 20 feet 4265 lux / 396 fc at 6 m / 20 feet
BEAM ANGLE: 13° in spot, 56° in flood. Motorized zoom with stepper motor
DIMENSIONS: 320x320x499mm / 12.6”x12.6”x19.6” (fixture) — 320x533x499mm / 12.6”x21”x19.6” (fixture+yoke)
WEIGHT: 9.3 kg/ 20.5 lbs (fixture), 9.8 kg/ 22.6 lbs (fixture + yoke)
POWER DRAW: 400W
AC POWER SUPPLY: 90-264V AC 50/60Hz PowerCon TRUE1 In & Out
DC POWER SUPPLY: 26-48V DC XLR-3 IN connector
LED RATED LIFE: (L70) exceeds 50,000 hours
POWER CONNECTION: Neutrik PowerCon TRUE1 TOP In & Out connectors
OUTPUT FREQUENCY: 12,000 fps
OPERATION TEMPERATURE: From -20ºC to +45ºC
COOLING: Passive liquid cooling system into sealed 3D chamber with silent fan
PROTECTION: IP30, indoor or outdoor protected use
CONSTRUCTION & FINISH Fixture and yoke made of die-cast aluminum
