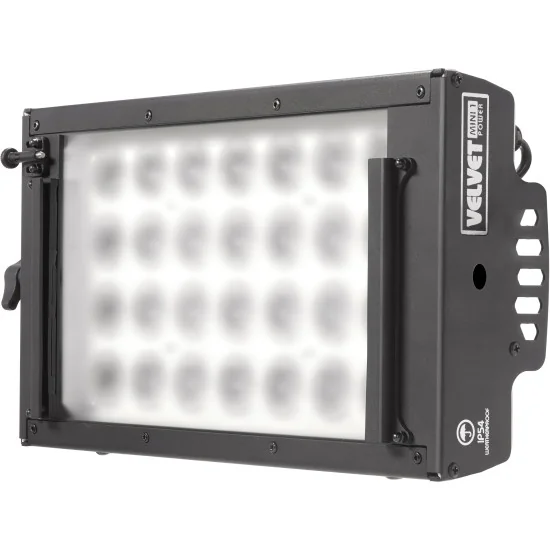

VELVET Mini Power 1 DMX IP54 V-Mount Bi-Color LED Panel (No Yoke)

The VELVET Mini Power 1 DMX IP54 is a compact half-1×1 bi-color LED panel for crews that need a punchy long-throw key, backlight or hard fill from a lightweight fixture. Its concentrated 35° beam and output around 5100 lux at 1 m and 650 lux at 3 m provide enough intensity to cut through daylight on location, pick faces out of LED walls or carry the key light in small galleries, news sets and streaming studios where rigging space is limited.

A 50 W LED engine with a variable white range from 2700K to 6500K in 100 K steps maintains CRI/TLCI 96 for consistent skin tones across multi-camera broadcast, corporate and live streaming environments. The fixture delivers flicker-free output up to 2000 fps, supporting high-speed capture for sports inserts, promos and tabletop, while 0–100% dimming remains smooth without visible stepping. Passive convection cooling keeps operation completely silent, which is critical on drama stages, talk shows and corporate webcast stages located close to microphones.

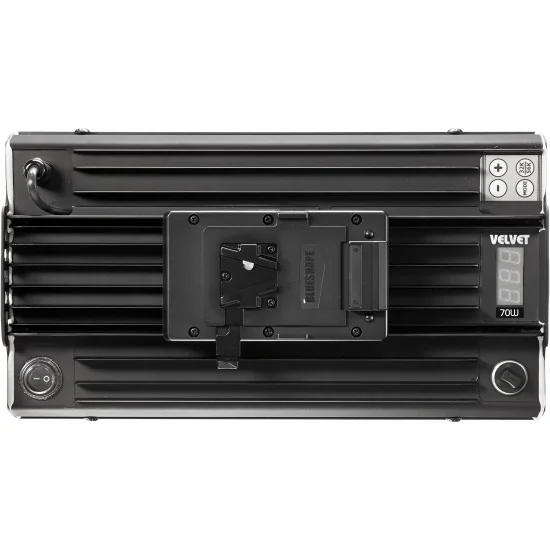

For control, the unit combines local access via shock-resistant buttons and a clear numeric display with full DMX/RDM control over 5-pin XLR in/out for integration into studio lighting networks, OB vans and theatre-style grids. An integrated V-mount battery plate and wide 12–35 V DC input streamline mobile operation on stands, dollies and compact interview rigs, while an external universal AC adapter covers 90–264 V mains in fixed installations. The rain-resistant IP54 housing, built from sealed aluminum, resists dust and water spray so the same panel can work on outdoor live stages, sports mixed zones or wet city exteriors without additional weather covers.

In daily production the VELVET Mini Power 1 DMX IP54 operates as a compact punch light in interview kits, a controllable backlight in small TV studios, a narrow-beam source for lighting talent through windows or from roof edges, and a robust utility unit for ENG trucks and flypacks. A full ecosystem of front accessories – snap-on diffusers, grids and barn doors – extends shaping options, allowing gaffers and vision engineers to align this panel with existing soft sources and Fresnels while keeping colorimetry and network control consistent across the rig.
