YoloLiv YoloBox Video Mixer, Streamer

Name: YoloLiv YoloBox Video Mixer, Streamer
Brand: YoloLiv
SKU: YoloBox
Price: 499.00 EUR
Availability: InStock

MPN: YoloBox

Price: €499.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

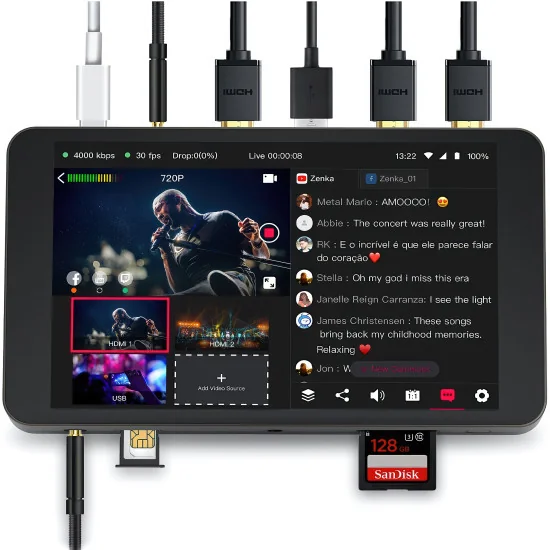

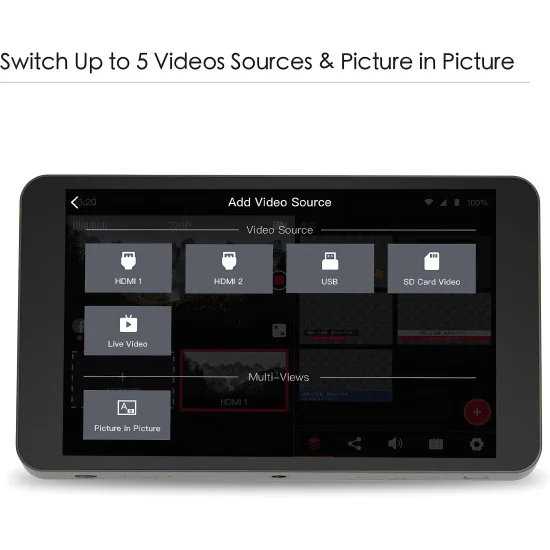

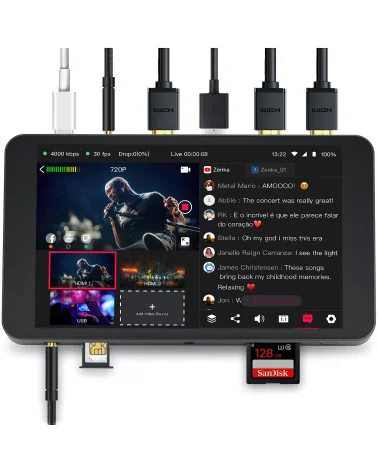

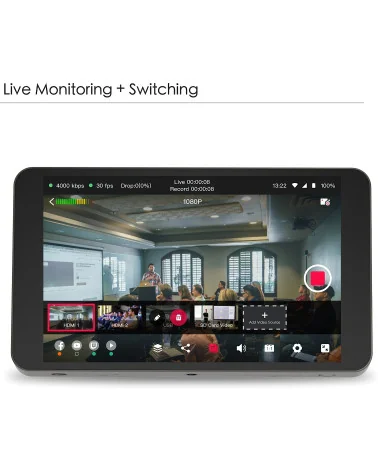

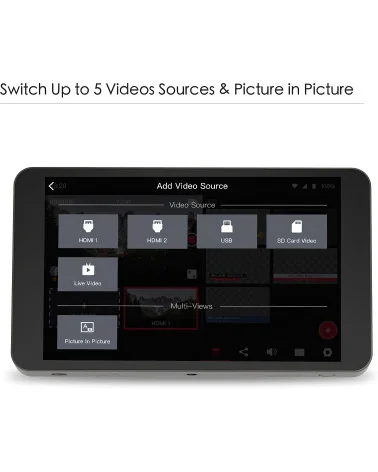

YoloLiv YoloBox is a compact live streaming encoder, video switcher, monitor and recorder for crews that need a fast multicamera setup without a laptop. The 7-inch touchscreen gives direct control over sources, program output and overlays on the unit itself, which is practical for mobile productions, small TV crews and one-operator streaming jobs. Supports up to 5 video inputs in the platform logic (including physical inputs and local/web sources), with physical connectivity centered on 2x HDMI input, USB, RJ45 Ethernet and a 3.5 mm audio input, plus headphone monitoring. It is a solid fit for interview sets, conference stages, house of worship streaming and sports commentary positions.

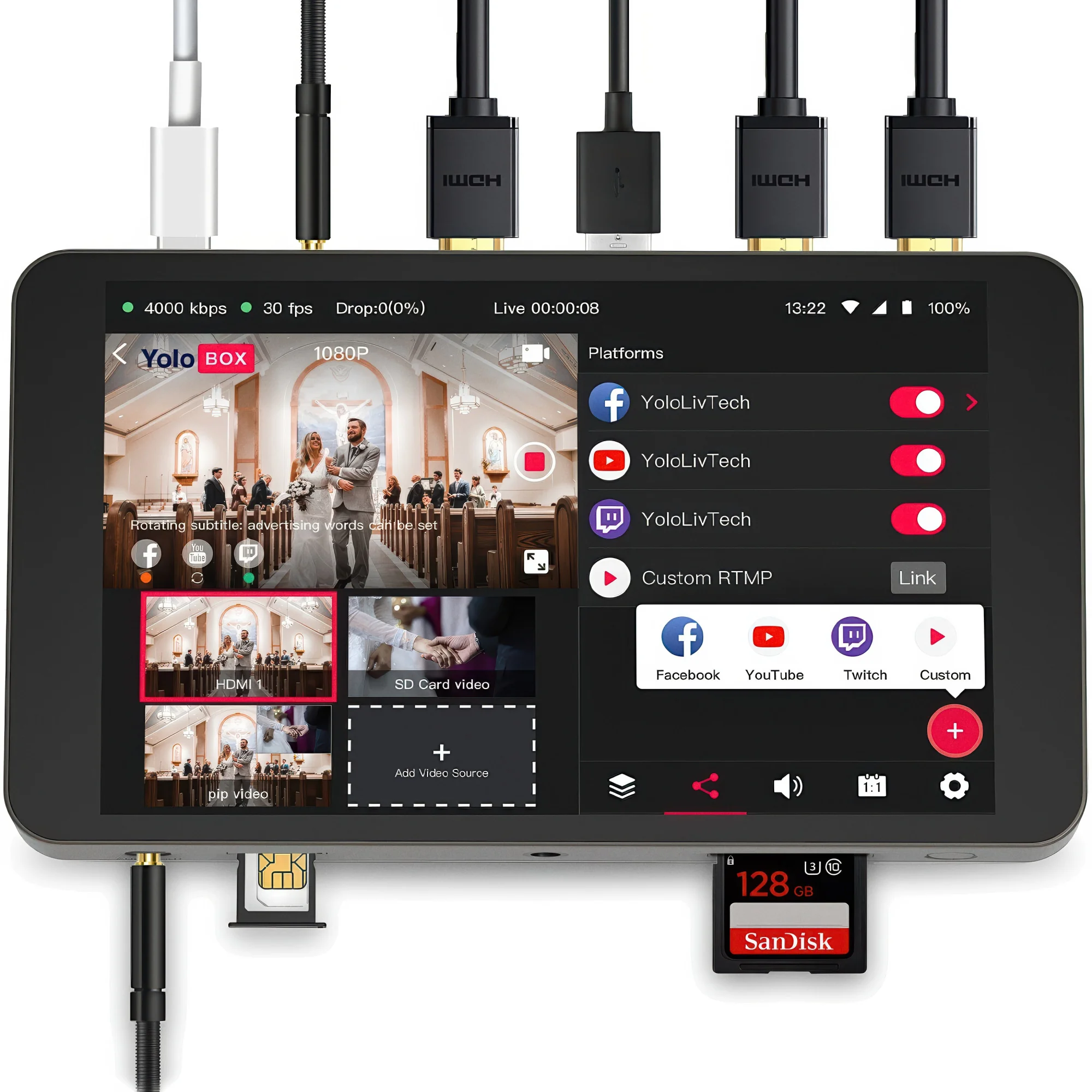

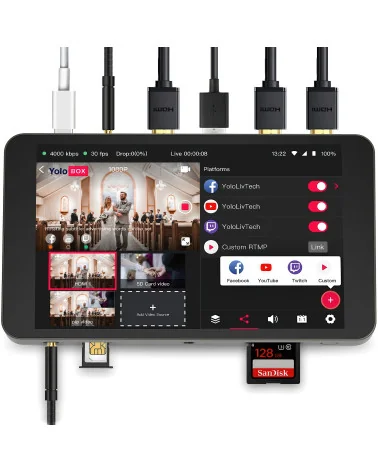

For signal handling, YoloBox accepts 720p and 1080i/p video input and can broadcast in 480p, 720p or 1080p using H.264 video with AAC audio. Recording is stored as MP4 directly to an SD card (up to 128 GB, FAT32), with local recording up to 1080p60. This combination is useful when a production team needs a clean program file immediately after a livestream for rapid social reposting, client approval, or archive delivery. Native platform support includes YouTube, Facebook and Twitch, and custom RTMP endpoints can be added for CDN or studio ingest routing.

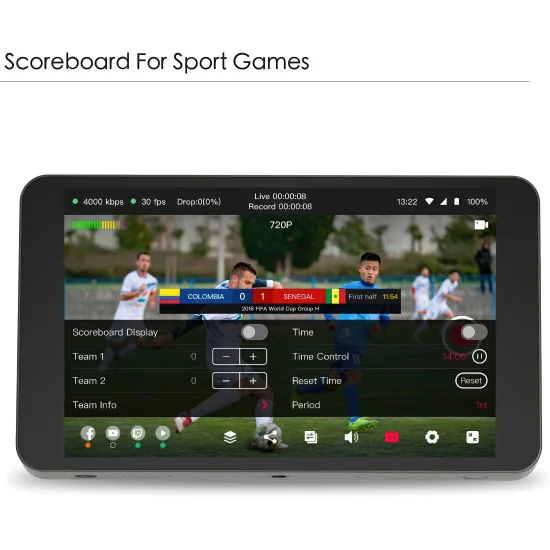

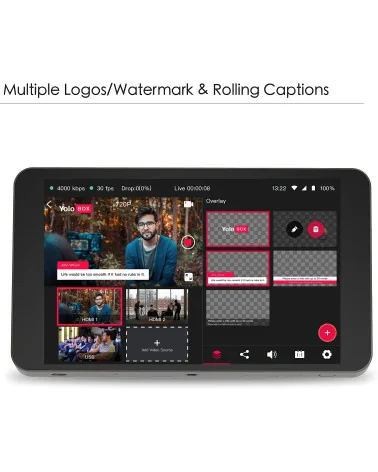

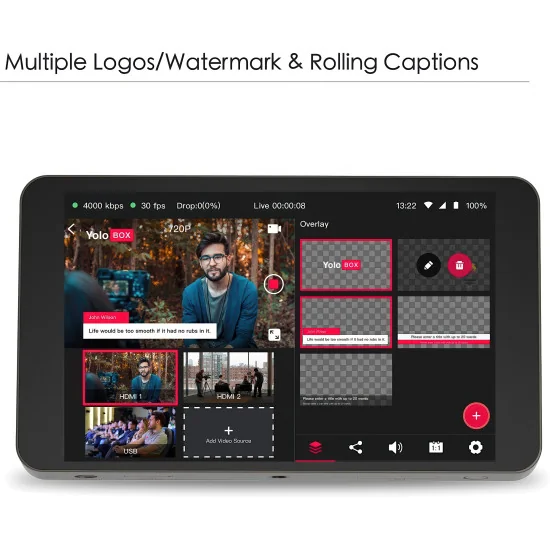

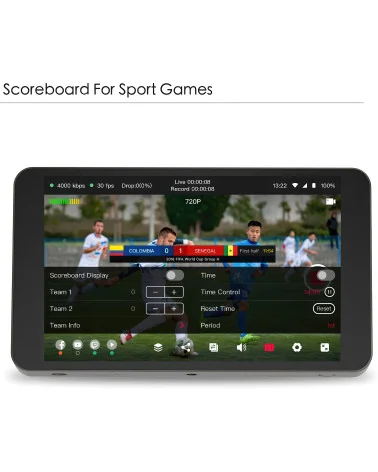

Network options are built for field work: Wi-Fi 2.4/5 GHz, wired Ethernet, or 4G LTE via SIM card, with regional band support listed by YoloLiv. YoloBox also supports simultaneous multi-destination streaming (up to 3 streams), which is useful for sending one production feed to a public platform, a private client page and an internal monitoring destination at the same time. Operators can add production elements such as PiP layouts, logos, lower-thirds, comment overlays, scoreboard graphics and even local PDF/media sources, making it relevant for webinars, live auctions, training sessions and match streaming where on-screen information matters as much as the camera feed. The unit runs on an internal battery and charges via USB-C (Quick Charge 3.0), which helps during short outdoor productions and venue changeovers.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

YoloBox Portable Multi-Camera Live Streaming Encoder, Switcher, Monitor, Recorder
The YoloLiv YoloBox supports input resolutions of 720p and 1080i/p, and streams at your choice of 540p, 720p, and 1080p using the H.264 codec. You can stream to YouTube via custom RTMP settings. Stream via Wifi, Ethernet or 4G Cellular network 4G (4G LTE connection requires SIM card and data plan). The YoloBox features an HDMI out, which allows you to display your stream locally on an HDMI device. It also has a line-level audio input, and a discrete headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128GB in size, using the built-in SD card slot.

KEY FEATURES
Touchscreen Control Streaming Encoder
>Simultaneous Cross-Platform Streaming
Encoder, Monitor, Switcher, and Recorder
2 x HDMI, 1 x USB In; 1 x HDMI Out
1 x HDMI Confidence Monitor Out
Stream via Ethernet, Wi-Fi, LTE 4G
Supports 1080p and 720p Resolutions
H.264 Streaming Format
Connect to e.g. YouTube Live, Facebook Live, Vimeo and Custom RTMP
Records Internally to SD Card

SPECIFICATIONS YOLOLIV YOLOBOX STREAMING ENCODER

IP Encoding/Decoding
IP Video: H.264: 960 x 540 to 1920 x 1080 Encoding
IP Audio: AAC-LC: Encoding
Transport Protocols: RTMP
Simultaneous Streams: 3 Streams
Compatible Services: Facebook Live, Twitch, YouTube Live

Wireless
Wi-Fi: 2.4/5 GHz

Cellular
SIM Card Slots: 1 x Mini SIM
4G LTE: LTE: 2, 4, 5, 7, 12, 13, 17, 25, 26, 41 Bands

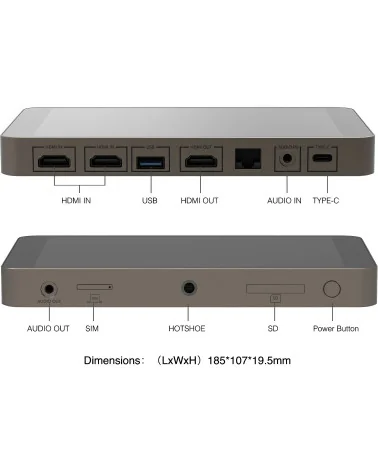

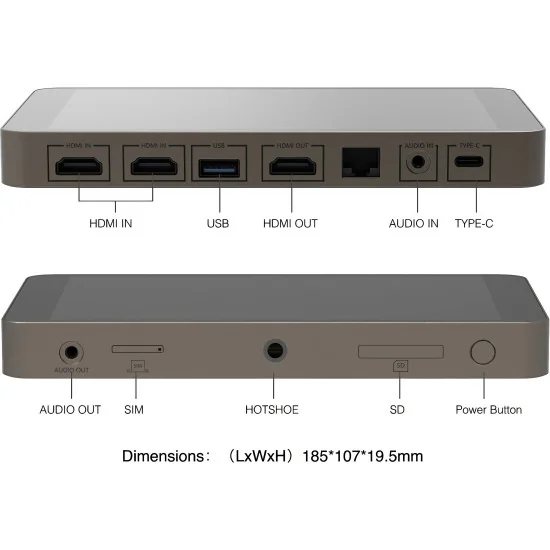

Interfaces
Video Connectors: 2 x HDMI Input
1 x HDMI Output
Audio Connectors: 1 x 1/8″ / 3.5 mm Line-in
1 x 1/8″ / 3.5 mm Line-in
Other I/O: 1 x RJ45 Input/Output

Internal Recording
Recording Media: 1 x SD (Unspecified Type)
Recording Modes: 1920 x 1080p up to 60 fps

Power
Built-In Battery: 5700 mAh
Power Connector: 1 x USB Type-C Input

Environmental
Operating Temperature: 5 to 40°C
Storage Temperature: -10 to 40°C

General
Display: LCD
Dimensions: 185 x 107 x 19.5 mm
Weight: 480 g
