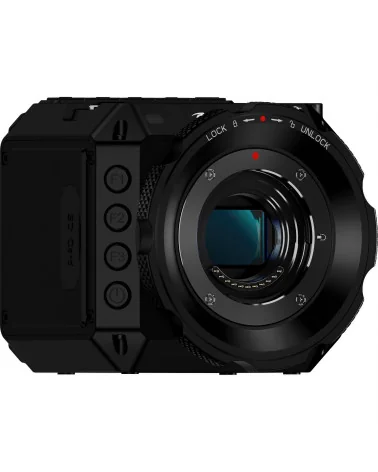

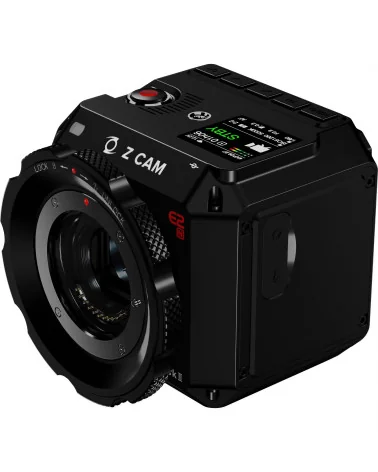

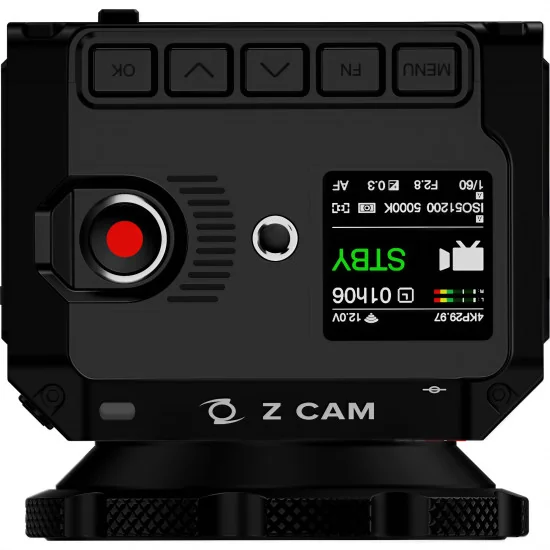

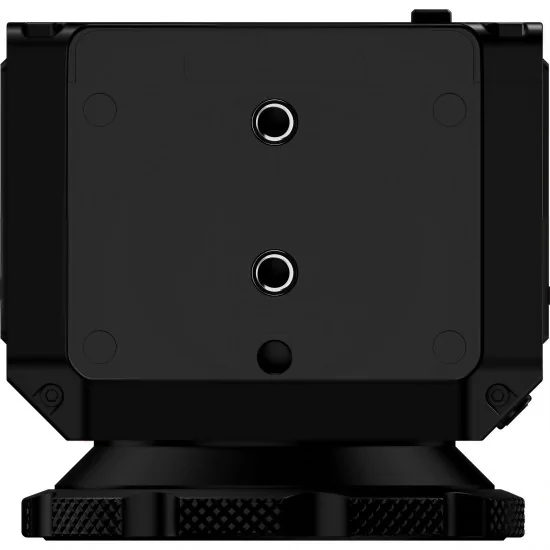

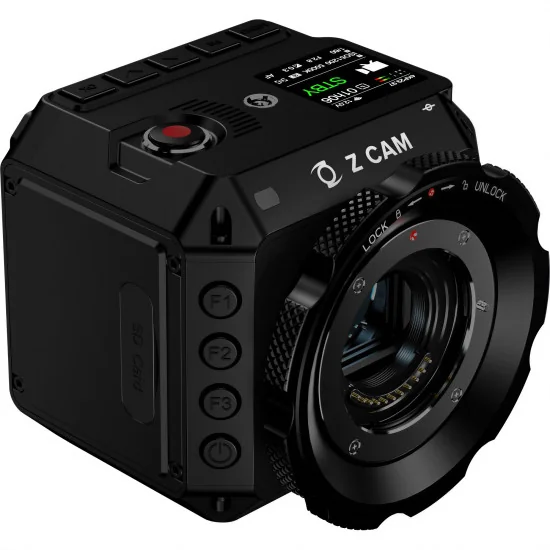

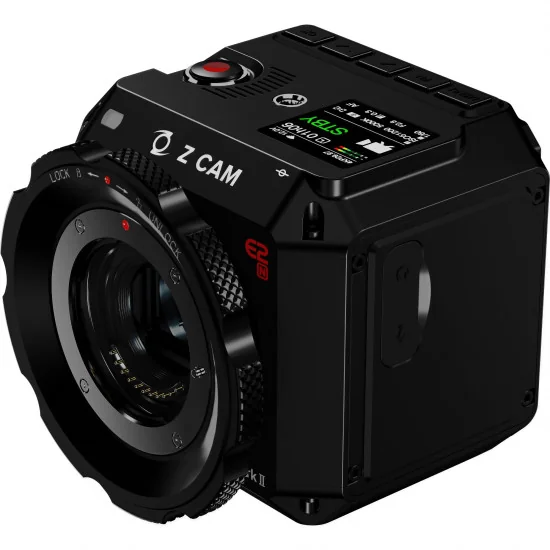

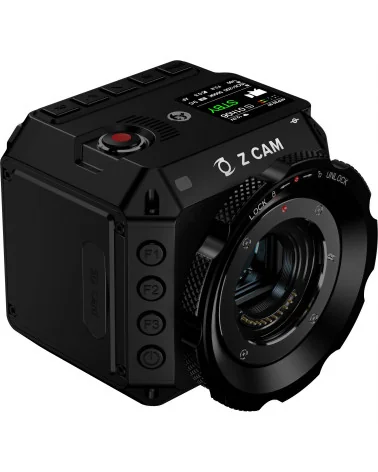

Z-CAM E2N Mark II NDI 4K Cinema
ZCE2NM2N
Price: €1,295.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
One Gigabit Ethernet cable is enough for the Z-CAM E2N Mark II to feed a production network, draw its power via PoE+ and return tally to the operator. The camera carries NDI|HX3 certification: 4K travels as H.265 at a fraction of the bandwidth Full NDI would need, latency stays low, and picture quality holds up on a vision mixer's multiview. An SSP stream can leave the housing at the same time, so a recording server can run alongside the live switch.
Behind the Micro Four Thirds mount with active lock sits a 4/3" CMOS sensor: 10.71 effective megapixels, dual native ISO at 500 and 2500, and 11.5 stops of dynamic range. Streams and recordings run in 4K at up to 60 fps with 10-bit colour — the first-generation E2N stayed at 8-bit. For replays the camera records 1080p at up to 240 fps and still streams 120; a 3696×2772 mode uses the sensor's full 4:3 height for anamorphic lenses. Twelve-axis colour correction keeps skin tones consistent across a multicamera rig, and image profiles from Rec.709 to Concert absorb saturated stage lighting.
Recording to SDXC cards in MOV or MP4 gives each stream a local safety copy. Timecode accepts manual input, continuous autofocus watches unmanned positions, and the built-in stereo microphone plus 3.5 mm in/out cover ambient and line audio. HDMI 2.0 outputs 4K60 to a monitor or switcher, USB 3.0 Type-C serves configuration, and 802.11ac Wi-Fi on an external antenna reaches positions no cable ever will. White balance runs from 2300 to 7500 K; during moves between sets, LP-E6 series batteries keep the camera alive.
Conference venues, esports stages, corporate studios and OB trucks share the same arithmetic: no capture cards, one cable per camera position, minutes from flightcase to first frame.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
NDI® | HX3
NDI | HX3 is a new version of the NDI protocol that further optimizes the balance between video transmission quality and bandwidth, and achieves visually lossless video transmission with less latency and better quality by using a fraction of the bandwidth of Full NDI.
With NDI | HX3, Z CAM E2N* gives users full control over streaming production,
with the perfect balance of quality and efficiency, no compromise.
* Z CAM E2N also supports NDI HX
12-Axis Color Correction
Precisely controls image saturation and hue, achieving consistent color matching across multiple cameras, optimized skin tones, and cinematic color expression.
PoE+
Note: AC/DC Adapters, LP-E6 batteries & Ethernet cables are not included in the standard package
Technical Specifications
Camera
Camera model: Z CAM E2N Mark II : E1531
Sensor Type: 4/3" CMOS sensor
Effective Pixels: 10.71 mega pixels
Dynamic Range: 11.5 Stops

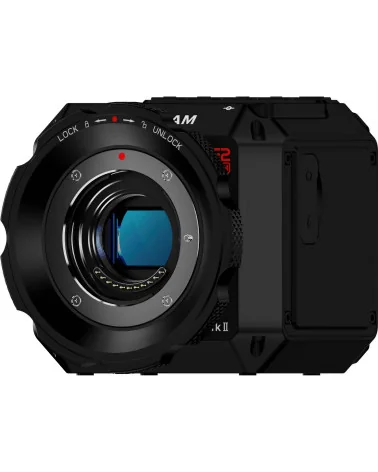

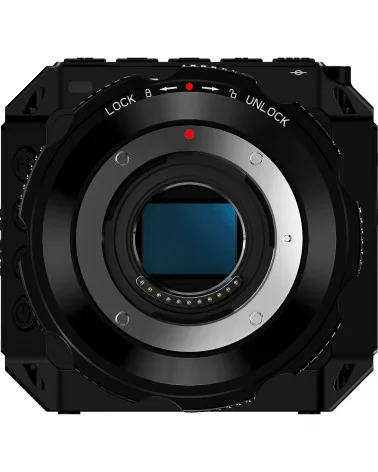

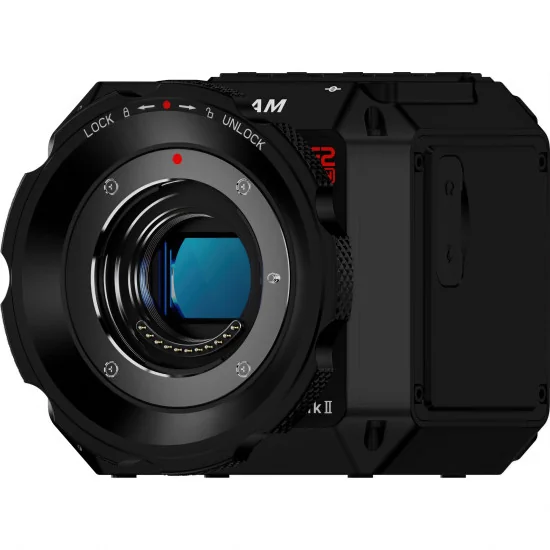

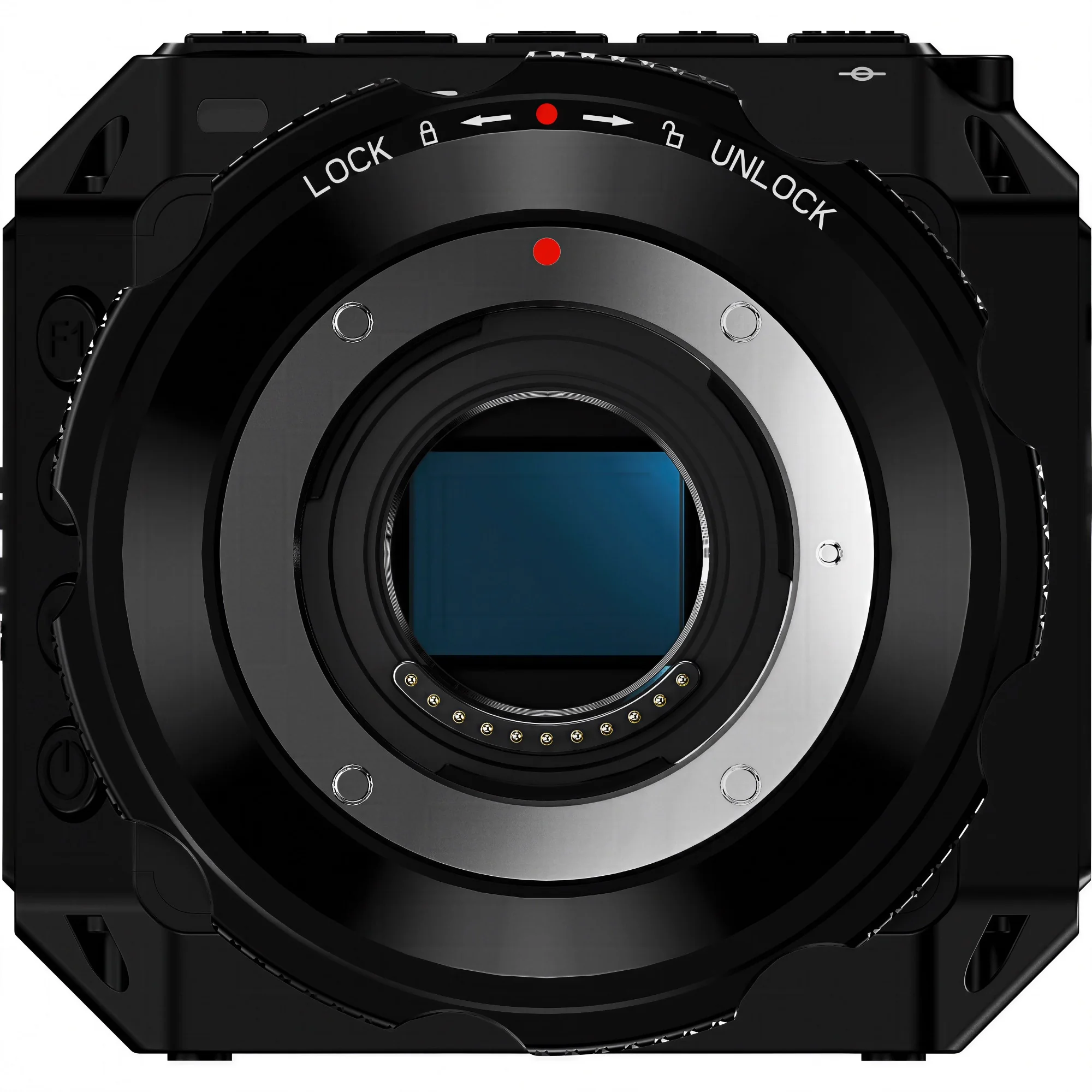

Lens Mount: Micro Four Thirds (with Active Lock)
Microphone: Built-in Stereo Microphone
Recording
Recording Resolution: 4K, 3696x2772, 1080p
Recording Frame Rate:
4K @ 23.98 / 24 / 25 / 29.97 / 50 / 59.94fps
3696x2772 @ 23.98 / 24 / 25 / 29.97fps
1080p @ 23.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120 / 240fps
Streaming Resolution: 4K, 3696x2772, 1080p
Streaming Frame Rate
23.98 / 24 / 25 / 29.97 / 50 / 59.94
23.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120
Color Bit-depth: 10-bit
Video Encoder: H.265 / H.264
Streaming Protocol: NDI_HX3, SSP
Audio Format: 16-bit 48 kHz
Audio Encoder: AAC / PCM (for MOV only)
File Format: MOV / MP4
Record Mode: Video / Time Lapse Video / Still Image Capture
Settings
ISO: Auto, Manual (500 ~ 102400), Native ISO: 500 / 2500
Shutter: Shutter Speed: Auto, Manual (1s ~ 1/10000s), Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance: Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode: MF / AF / CAF
Image Profile: Rec.709 / Concert / Vivi 0 / Vivi 1 / Vivi 2
Audio: Audio In / Out Level
Time Code: Current Time / Manual Input
Storage

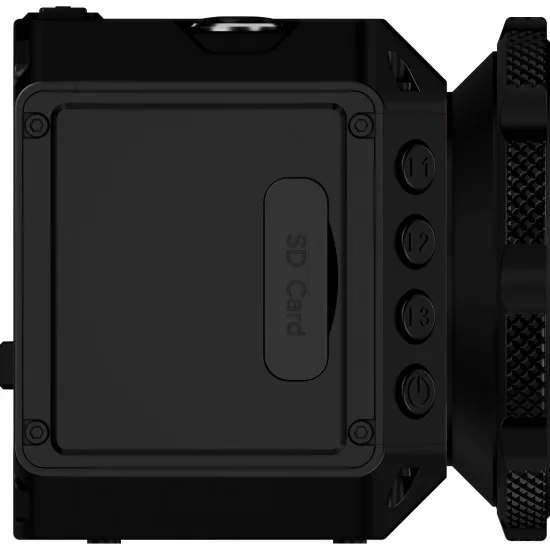

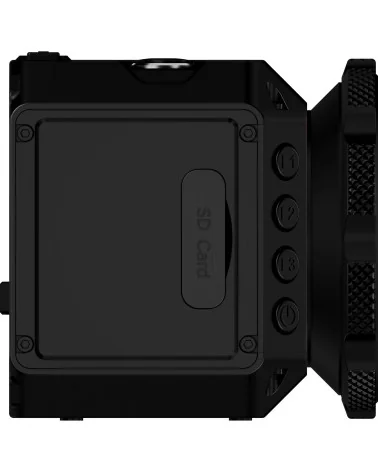

Recording Media: SDXC Class 10 SD card, recommend to use UHS-I Speed Class 3 (U3) type for 4K recording
File System: exFAT

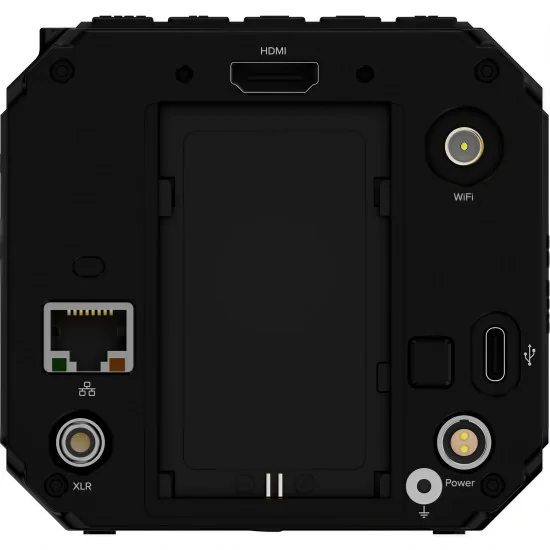

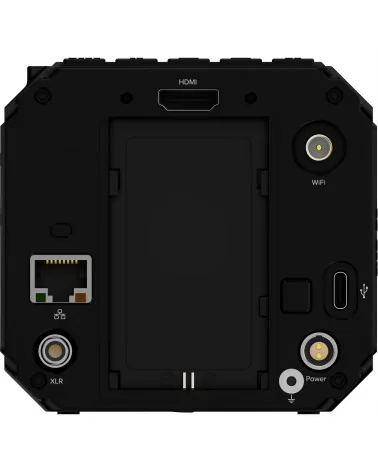

Connectivity
HDMI: HDMI 2.0 Type A, up to 4K 60fps
USB: USB 3.0 Type C

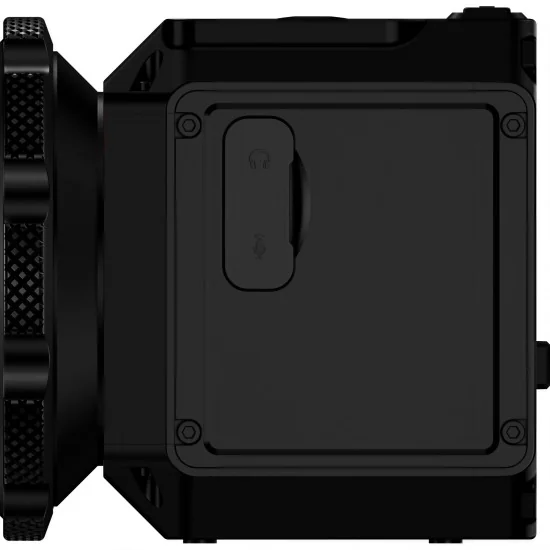

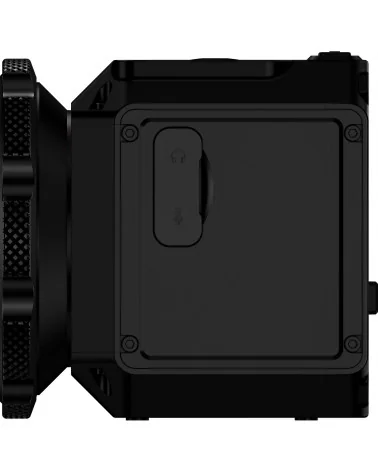

Audio-in: 3.5 mm stereo jack socket
Audio-out: 3.5 mm stereo jack socket
Wi-Fi: 5G band, 802.11ac, external antenna port
Ethernet: Gigabit Ethernet port
Power
Power Input: DC 12V 5A (2-pin LEMO socket), PoE+ (IEEE 802.3 at)
Battery: LP-E6 series compatible (Battery not included)
Physical
Weight: 660g (without lens)
Dimensions (HxWxL): 85.3 x 91 x 86mm (without lens)
Environment
Storage Temperature: -20 °C ~ 60 °C
Operation Temperature: 0 °C ~ 40 °C
ZCE2NM2N
2 Items
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP) - Audio Input
- LEMO 5-pin
Mini Jack 3.5mm - Audio Output
- HDMI Embedded
Mini Jack 3.5mm
NDI Embedded
RJ-45 - Max Output Resolution
- 4K UltraHD (3840 x 2160) 50/60 fps
- Streaming protocols
- NDI®|HX 3
SSP - Network Connection
- Ethernet
Wi-Fi - Sensor Size
- 4/3" (19.0x13.0mm)
- Lens mount
- MFT
- Internal ND filtres
- No
- Media type
- SDXC
- Battery Type
- Canon LP-E6
- Screen Type
- External
- Sensor Resolution
- 10.71MP
- Sensor Type
- CMOS
- Image Stabilization
- No
- ISO Sensitivity Range
- 500-102400
- Dynamic Range
- 11.5 stops
- Shutter Type
- Electronic Shutter
- Shutter Speed
- 1/10000s-1min
- Bit Depth
- 10-bit
- Viewfinder Type
- External
- Focus Mode
- AF
CAF
Manual - Internal Recording Modes
- H.264
H.265 - External Recording Modes
- H.264
H.265
NDI - Timecode
- Yes
- Genlock
- No
Specific References
- ean13
- 6970130770118
- mpn
- E1531
