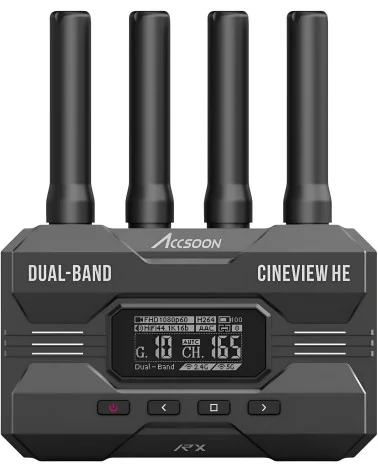

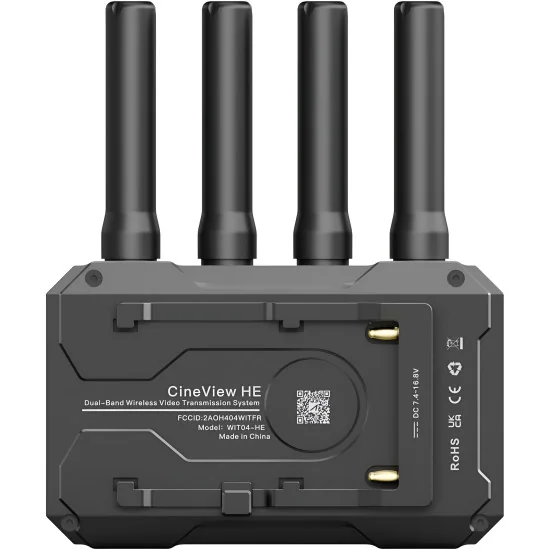

Accsoon CineView HE RX Wireless Video Receiver
ACC-WIT04-HE-RX
Price: €349.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
On a set where every department asks for “one more monitor”, Accsoon CineView HE RX is the receiver that adds another viewing point without re‑routing HDMI through the rig. It locks to a CineView HE transmitter over dual‑band 2.4 GHz + 5 GHz and keeps the image responsive: latency is under 0.06 s (camera delay excluded) with a stated line‑of‑sight reach up to 350 m when the RF environment is clean.

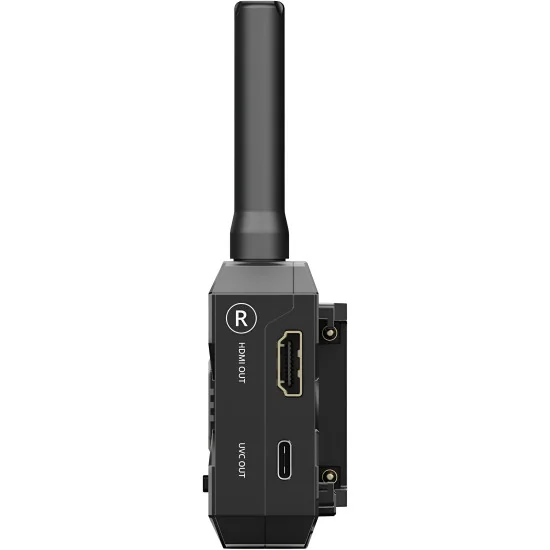

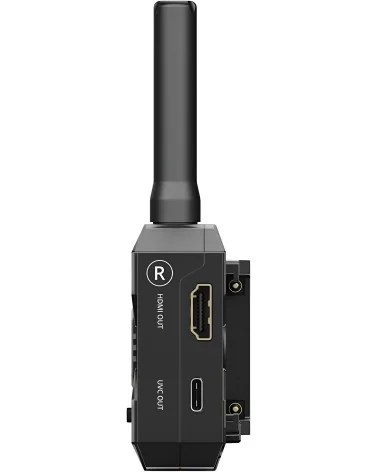

For picture monitoring, the unit provides HDMI output up to 1080p60, letting you feed a director screen, focus station, cart monitor or confidence display with the same framing and embedded audio coming from camera HDMI. When the brief turns into live delivery, the receiver’s USB‑C UVC output presents itself to a computer as a plug‑and‑play video source, so the camera feed can enter streaming encoders and meeting platforms that accept UVC—without adding a capture card or HDMI dongle.

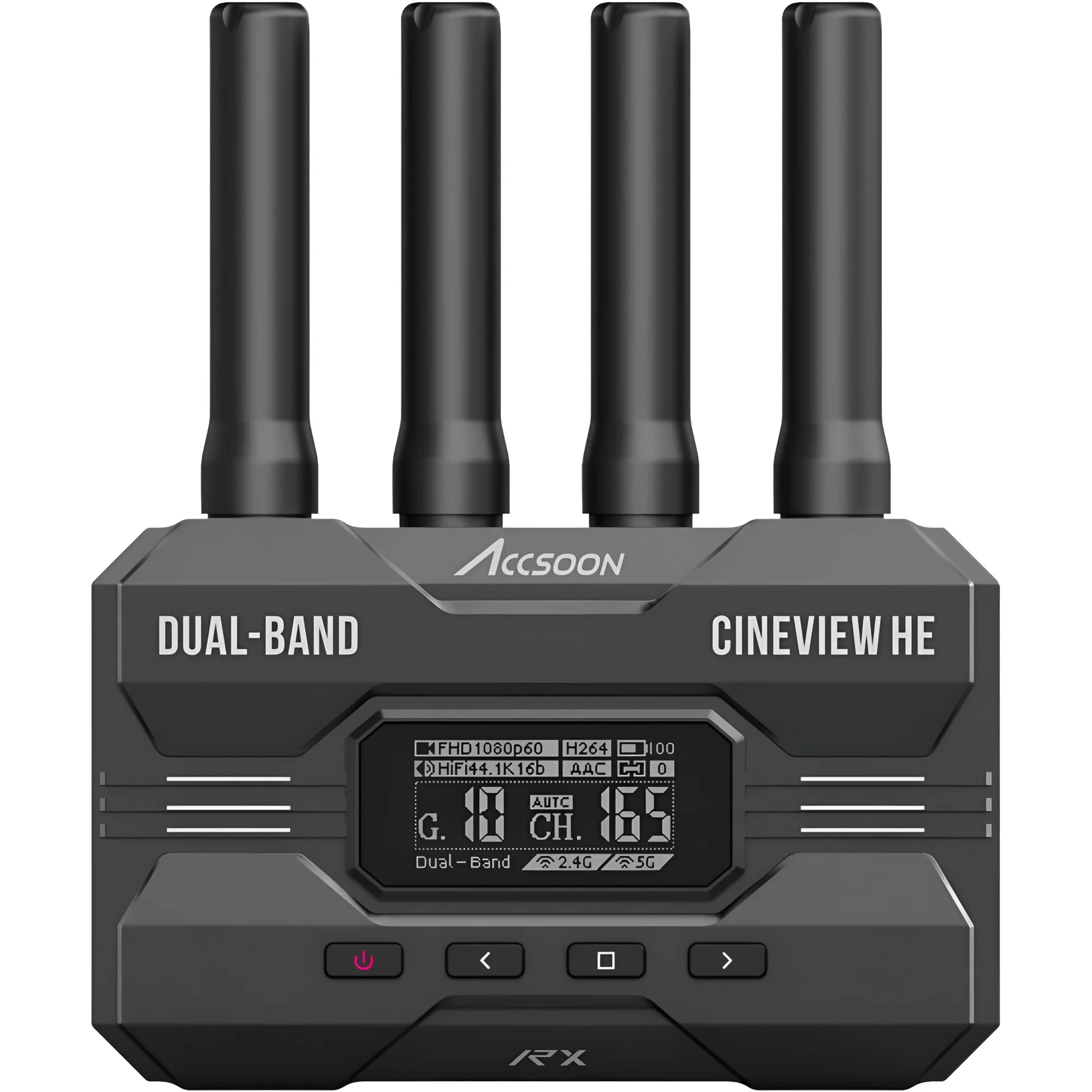

The front‑panel logic stays practical. A physical group selector on each TX/RX makes pairing deterministic: match groups and the link comes up automatically; set multiple receivers to the same group and one transmitter can feed up to four receiving devices (receivers and/or iOS/Android devices) in total. Auto channel selection can stay enabled to help in busy Wi‑Fi locations, while the 1.3″ OLED screen confirms group, channel, power state and connection at a glance. The housing runs without a fan, so it won’t add mechanical noise next to close‑miked dialogue.

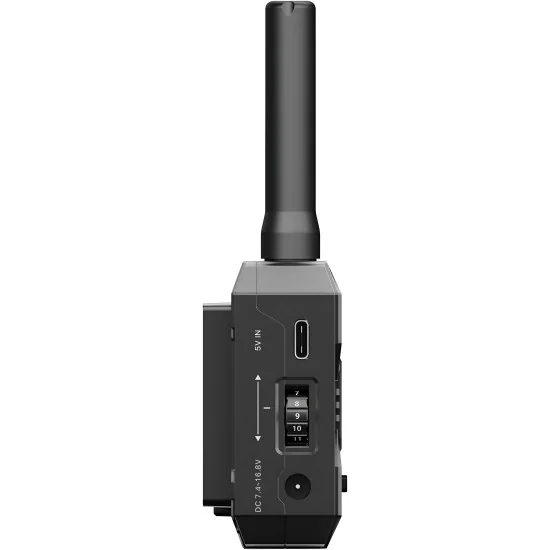

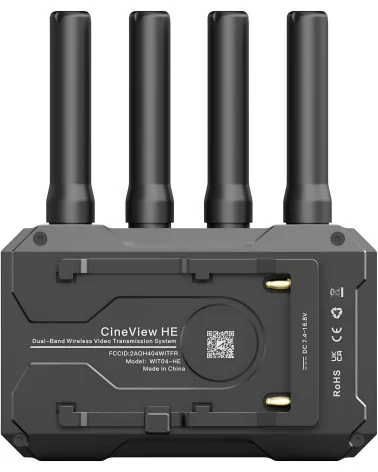

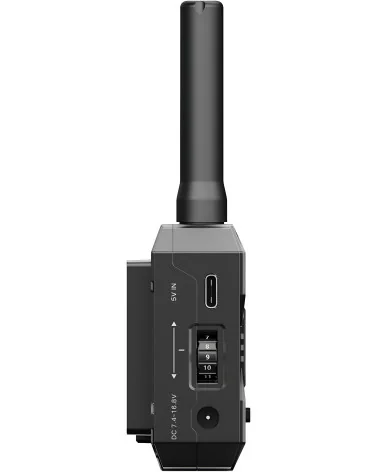

Powering matches common rigging habits: NP‑F (L‑series) batteries such as NP‑F550 / NP‑F750 / NP‑F970, 7.4–16.8 V DC, or 5 V over USB‑C. Typical consumption is around 4.2 W, keeping runtimes sensible on battery plates and letting the receiver ride on handheld cages, sliders, jib heads, gimbal carts or video‑village stands. Use it for multicam interviews, corporate livestreams, theatre and event coverage, or any set where extra screens reduce missed cues and retakes; the CineView HE ecosystem also supports mobile monitoring and firmware maintenance over Wi‑Fi when you need to keep units aligned.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
It transmits HD video and HQ audio to up to 4 devices (its receiver, mobile phone, iPad, and even MacBook with the newest M1 chip) through Accsoon’s uniquely patent Dual-Band (2.4GHz + 5GHz) transmission technology. And its brand new USB-C port on the receiver will provides creators, live streamers, and podcasters with much more power to display their work or life through live streaming.
2.4GHz+5GHz Dual-Band Transmission Technology - State-of-the-art Dual-Band transmission technology
Developed by Accsoon engineers, CineView HE is equipped with Dual-Band transmission technology to bring industry-leading stability to the wireless video transmission system. Dual-Band transmission technology means you never have to worry about video or audio drop or switch signal issues again.
Designed for demanding photographers, experience smooth and stable shooting, and incredible anti-interference technology to get unparalleled shooting results.
1200ft/350m, 0.06s Control what you see within long-range & ultra-low latency
CineView HE enables users to experience the stability of transmitting images and audio smoothly over long distance, even the size of a football pitch, with a latency of less than 0.06s.
HDMI In & Loop-out Connect in multiple ways
CineView HE’s transmitter features one HDMI in and one HDMI loop-out, which can be connected to the camera and monitor, respectively. What’s more, HDMI loop-out has been upgraded to zero-latency lossless output.
Brand-new Feature: USB Video Class (UVC) Simplify your live streaming
CineView HE has added a brand-new feature on the receiver: UVC out. From the receiver to the computer, you can use a USB-C cable (user-provided) to transfer the footage received by the receiver to any third-party streaming platform on your computer for live streaming, such as OBS and YouTube, etc. No additional video capture devices needed, the new UVC feature is all you require to live streaming, anywhere and anytime.
1 TRANSMITTER FOR 4 DEVICES, MIX & MATCH MAKE MULTI-SCREEN REAL-TIME MONITORING MAINSTREAM
With CineView HE, you can transmit video and audio to up to 4 receivers (standard receiver and mobile devices, mix and match), to keep the whole crew in the loop.
Wireless Remote Monitoring App Accsoon Go Monitor your shot effortlessly
The Accsoon Go offers a huge range of monitoring features that can enhance your shooting workflow. Enjoy high-end monitoring features allowing you to take control of your production at capture with Accsoon Go.
Live-streaming RTMP streaming & remote monitoring from anywhere
Split Screen (only for iPad)
Monitor, record (with LUT), edit or view the script
No Fan Design Low power consumption and noise-free
CineView HE has a very low power consumption, a single NP-F970 battery can last you 12 hours. CineView HE also has no fan inside, ensuring zero fan noise and a complaint-free sound environment.
Automatic Channel Selection For FHD video & high-quality audio transmission
At power on, CineView HE will automatically select the best channel for audio and video transmission. The Dual-Band transmission technology will further improve CineView HE’s anti-interference capability to ensure that the high-quality audio and FHD video can be transmitted with nearly undetectable latency via its reliable dual-band transmission signals.
Projects Receiver
HDMI Input Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps
HDMI Output Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps
DC Port 5.5mmx2.1mm, center positive
DC Voltage 7.4~16.8V
Audio 44.1KHz/48KHz 16bit/24bit PCM
Latency <0.06s (Camera latency not included)
OLED Display 1.3inch
Transmission Power 17~20dBm
Transmission Range 350m
Power Consumption 4.5Watt (Typical)
Operating Environment Temperature -10~40℃
Dimensions 105mmx66mmx32mm (Antennas not included)
Weight 200g (Antennas included)
ACC-WIT04-HE-RX
Data sheet
- Video Output
- HDMI
USB - Audio Output
- HDMI Embedded
USB - Max Output Resolution
- 1080p 50/60 fps
- Power
- DC
Sony NP-F
USB-C - Transmission Range
- 350m
- Latency
- ＜0.06s
- Configuration
- Receiver
Specific References
- ean13
- 664918771775
- mpn
- WIT04-HE-RX
