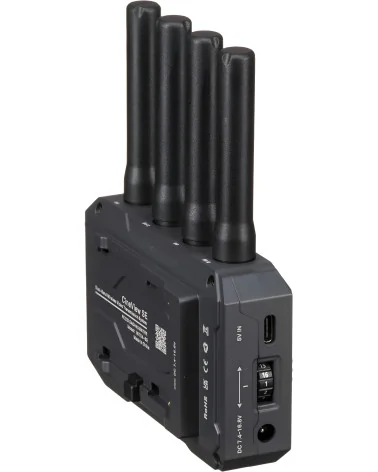

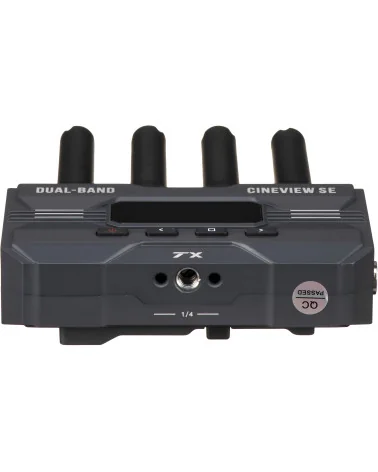

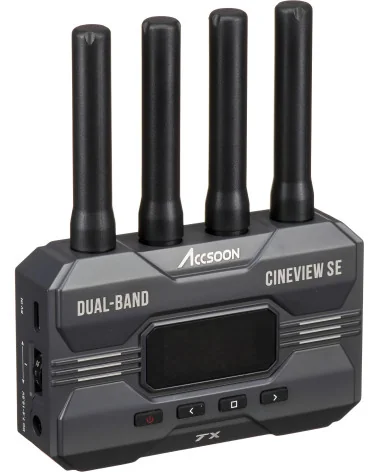

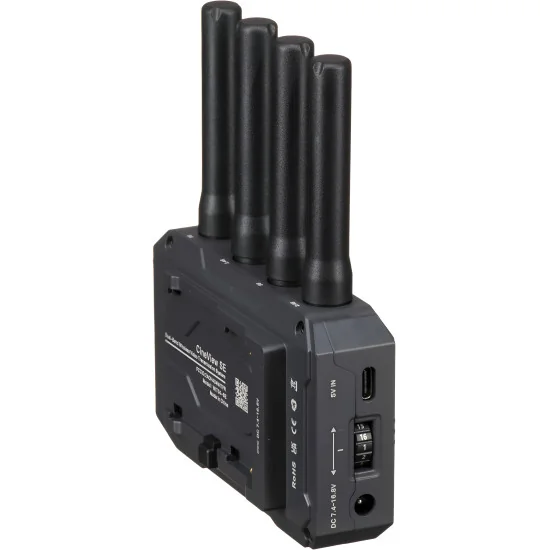

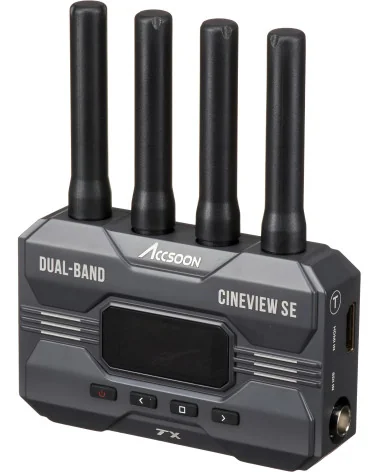

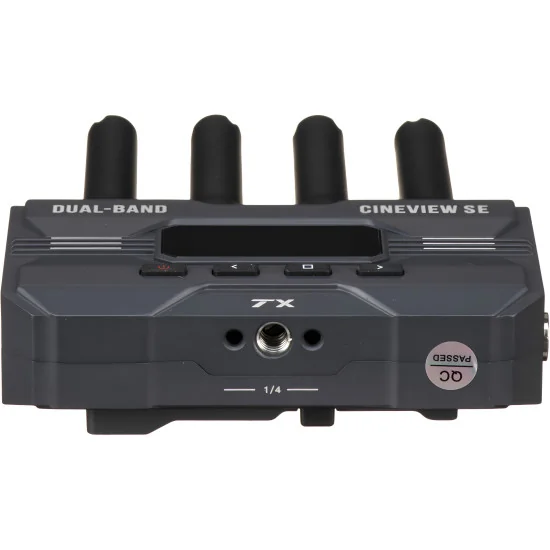

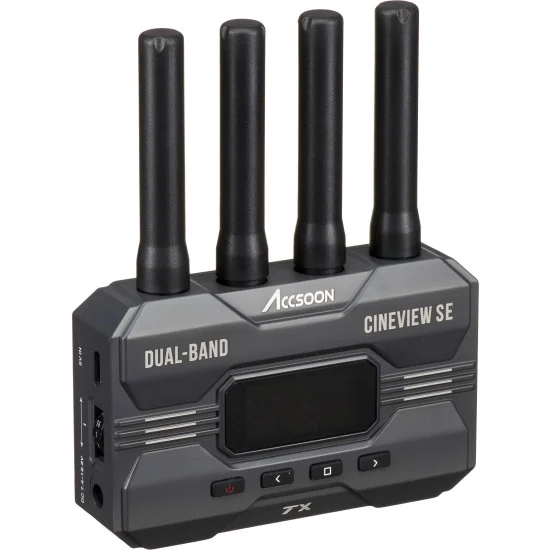

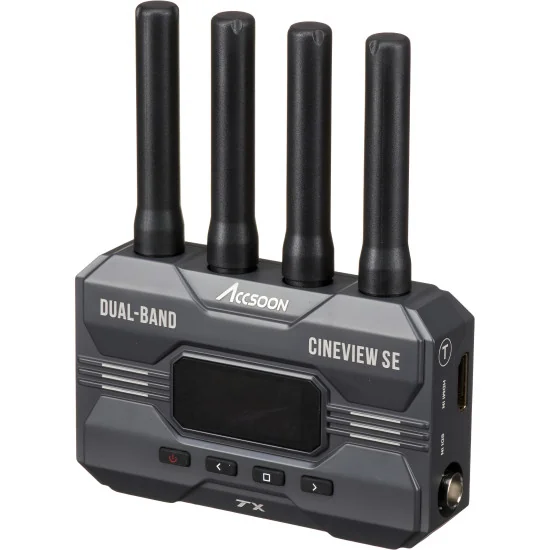

Accsoon CineView SE TX Wireless Video Transmitter
ACC-WIT04-SE-TX
Price: €379.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
On set, monitoring failure costs time faster than a lens swap. Accsoon CineView SE TX tackles that weak point with wireless video transmission for crews that need a clean picture away from camera position. The transmitter accepts HDMI and 3G-SDI input and sends up to 1080p60, which fits mirrorless cameras, cinema bodies, broadcast cameras, gimbals and compact studio rigs. With latency below 50 ms and line-of-sight range up to 350 m, the feed stays usable for focus checks, director monitoring and live production decisions.
The core advantage is Accsoon’s dual-band method. The SE TX sends duplicate image data over 2.4 GHz and 5 GHz at the same time, helping the receiving side recover a stable signal when interference appears. That matters in conference venues, churches, event halls, rental studios and documentary locations crowded with wireless traffic. One transmitter can feed up to four devices simultaneously, mixing a dedicated receiver with iPhone, iPad, Android phone or tablet monitoring through the Accsoon mobile app. For client viewing, script supervision, gimbal operation or a quick multi-person preview station, that saves space and removes extra cabling.
The mobile side is more than simple viewing. The app adds tools such as focus peaking, histogram, false color, LUT loading, Onion Skin Overlay and RTMP live streaming. This makes the Accsoon CineView SE TX relevant for interview setups, corporate video, multicam streaming, product filming, training content and fast approval on commercial sets. When framing has to match a previous take, overlay tools become genuinely useful, not decorative.
Powering is straightforward: use an NP-F battery, 7.4–16.8 V DC input or 5 V USB-C, depending on the rig. A 1.3-inch OLED screen gives clear status feedback for group, channel, battery and connection, and the fanless aluminum body keeps the unit quiet near microphones. For production companies, live crews and broadcast teams that need a dependable HD transmitter with SDI and HDMI compatibility, the SE TX covers the daily reality of set monitoring without adding unnecessary complexity.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Small in size, big on features. With new best in class latency at under 50ms, the CineView SE can transmit a video source via SDI & HDMI up to 1080p 60fps inputs/outputs. It transmits the signal on 2.4GHz+5GHz Dual-Band frequencies simultaneously for increased signal stability and sends video at an impressive maximum range of 1200ft line-of-sight.
CineView SE
Small in size, big on features. With new best in class latency at under 50ms, the CineView SE can transmit a video source via SDI & HDMI up to 1080p 60fps inputs/outputs. It transmits the signal on 2.4GHz+5GHz Dual-Band frequencies simultaneously for increased signal stability and sends video at an impressive maximum range of 1200ft line-of-sight.
Market proved wireless stability.
The CineView SE utilizes dual-band transmission technology, which allows it to stream video via 2.4GHz and 5GHz Wi-Fi at the same time. The receiver can then intelligently identify interference and combine the two streams to form the complete audio and video stream.
BREAKTHROUGH Superlow. Superfar.
The CineView SE is the most powerful model ever created for a faster, more responsive feel. Add to that a strong and powerful enough signal that can transmit up to 1200ft distance.
CONNECT Everything you need.

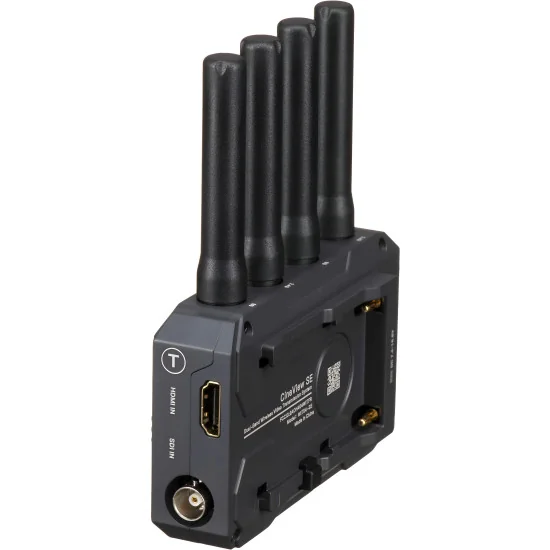

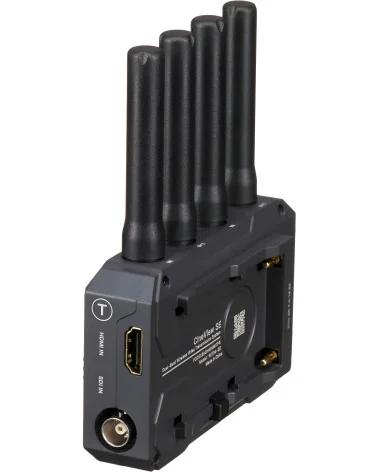

The TX and RX feature both HDMI and SDI connections that support 1080p video inputs at up to 60fps.
DESIGN Compact and lightweight. Easy to rig.

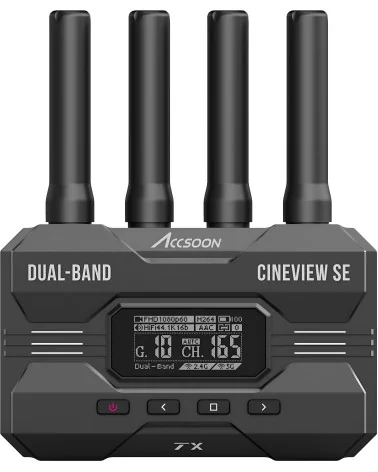

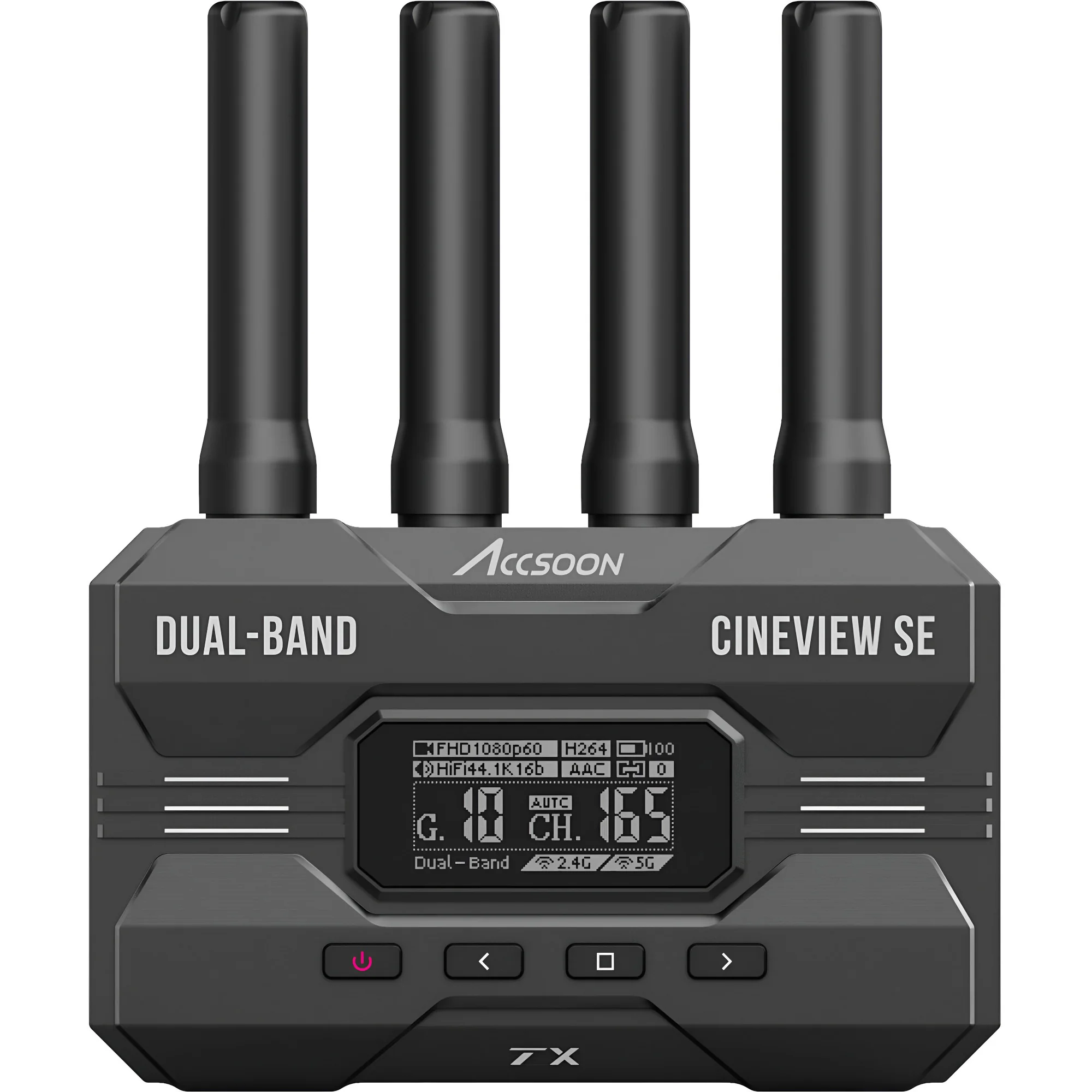

Rugged design with a 1.3-inch OLED display that fits in the palm of your hand. The solid aerospace-grade aluminum construction keeps the weight of the units down to a minimum.
PRO POWER Lower power draw for longer shootings.

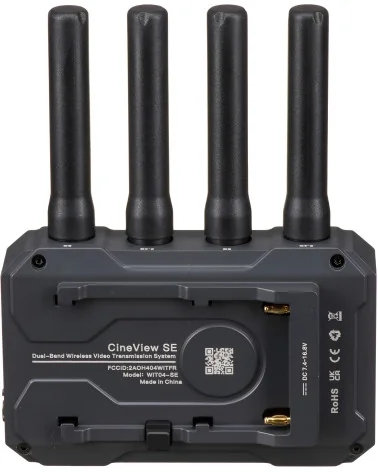

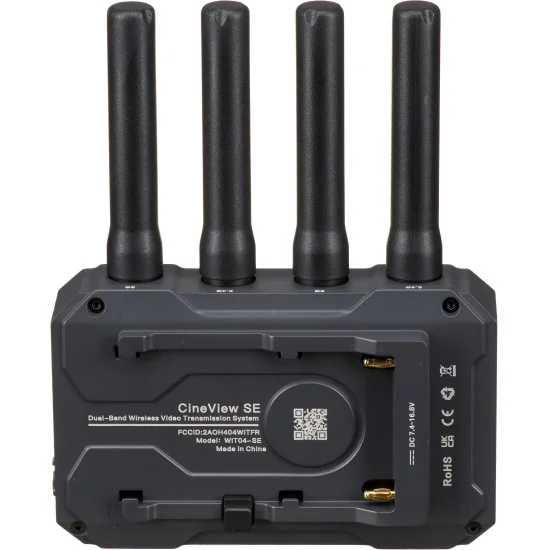

Choose between an NP-F style battery, a DC input port (7.4V~16.8V) as well as a USB-C power source (5V).
SILENT COOLING No noise at all
Seriously, you won’t hear any noise. And it’s very COOL.
VIEW Monitoring as you like
Enjoy monitoring on up to 4 different devices.
Dedicated Receiver Monitor
Android Phone, iOS iPad, IMac Macbook (M1)
SPECIFICATIONS
CineView SE Details
Projects Transmitter
Video Input SDI/HDMI
SDI Input Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
HDMI Input Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps
DC Port 5.5mmx2.1mm center positive
DC Voltage 7.4~16.8V
Audio 44.1KHz/48KHz 16bit/24bit PCM
Latency <0.05s (Camera latency not included)
OLED Display 1.3inch
Transmission Power 17~20dBm
Transmission Range 350m (No obstacles, no interference)
Power Consumption 4.5Watt (Typical)
Operating Environment Temperature -10~40℃
Dimensions 105mmx66mmx32mm (Antennas not included)
Weight 210g (Antennas not included)
ACC-WIT04-SE-TX
Data sheet
- Video Input
- HDMI
SDI - Audio Input
- HDMI Embedded
SDI Embedded - Max Output Resolution
- 1080p 50/60 fps
- Power
- DC
Sony NP-F
USB-C - Transmission Range
- 350m
- Latency
- ＜0.05s
- Configuration
- Transmitter
Specific References
- ean13
- 664918771782
- mpn
- WIT04-SE-TX
