ARRI SkyPanel X21 Soft & Hard Light Package Black (Bare Ends CE) LED Panel

ARRI SkyPanel X21 Soft & Hard Light Package Black (Bare Ends CE) LED Panel

Name: ARRI SkyPanel X21 Soft & Hard Light Package Black (Bare Ends CE) LED Panel
Brand: ARRI
SKU: L0.0050399
Price: 6400.00 EUR
Availability: InStock

MPN: L0.0050399

Price: €6,400.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

ARRI SkyPanel X21 Soft & Hard Light Package Black (Bare Ends CE) is the compact SkyPanel X format for crews who want one luminaire to cover native soft, refined hard and open-face bounce. The black housing keeps reflections subdued on glossy set pieces and LED stages, while the chassis and interface are sealed to IP66 for rain, spray and high humidity. A full-spectrum RGBACL engine spans 1,500–20,000 K and supports ARRI ALEXA sensor matching. Colour quality reaches CRI 99 with TLCI 93 typical in High CRI VariFan mode.

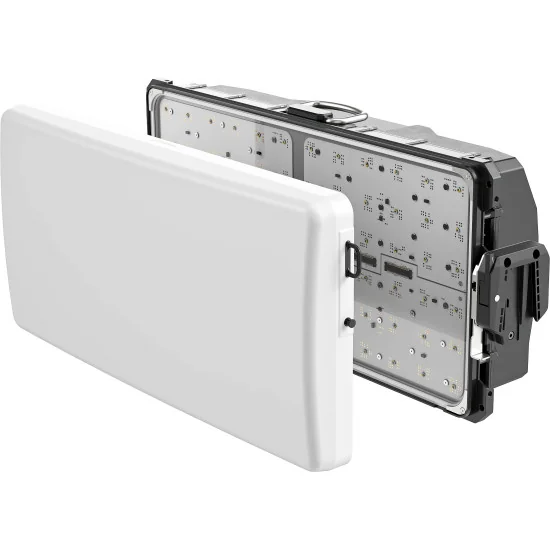

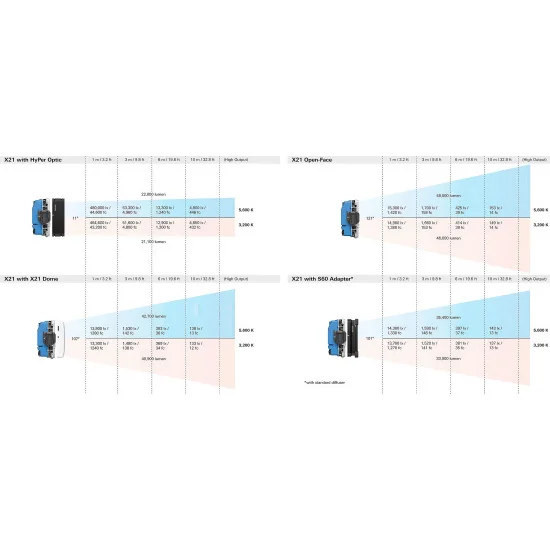

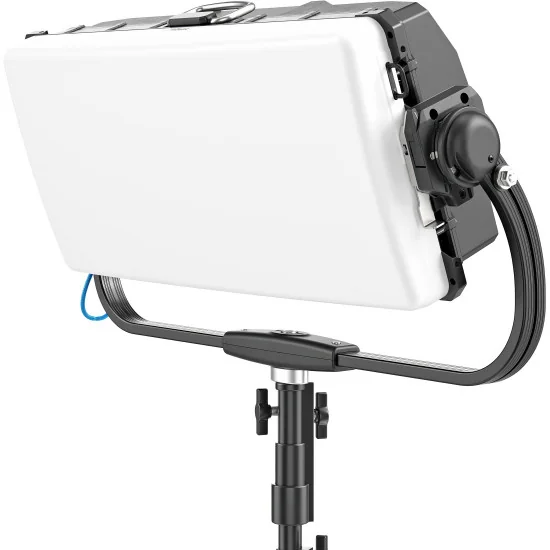

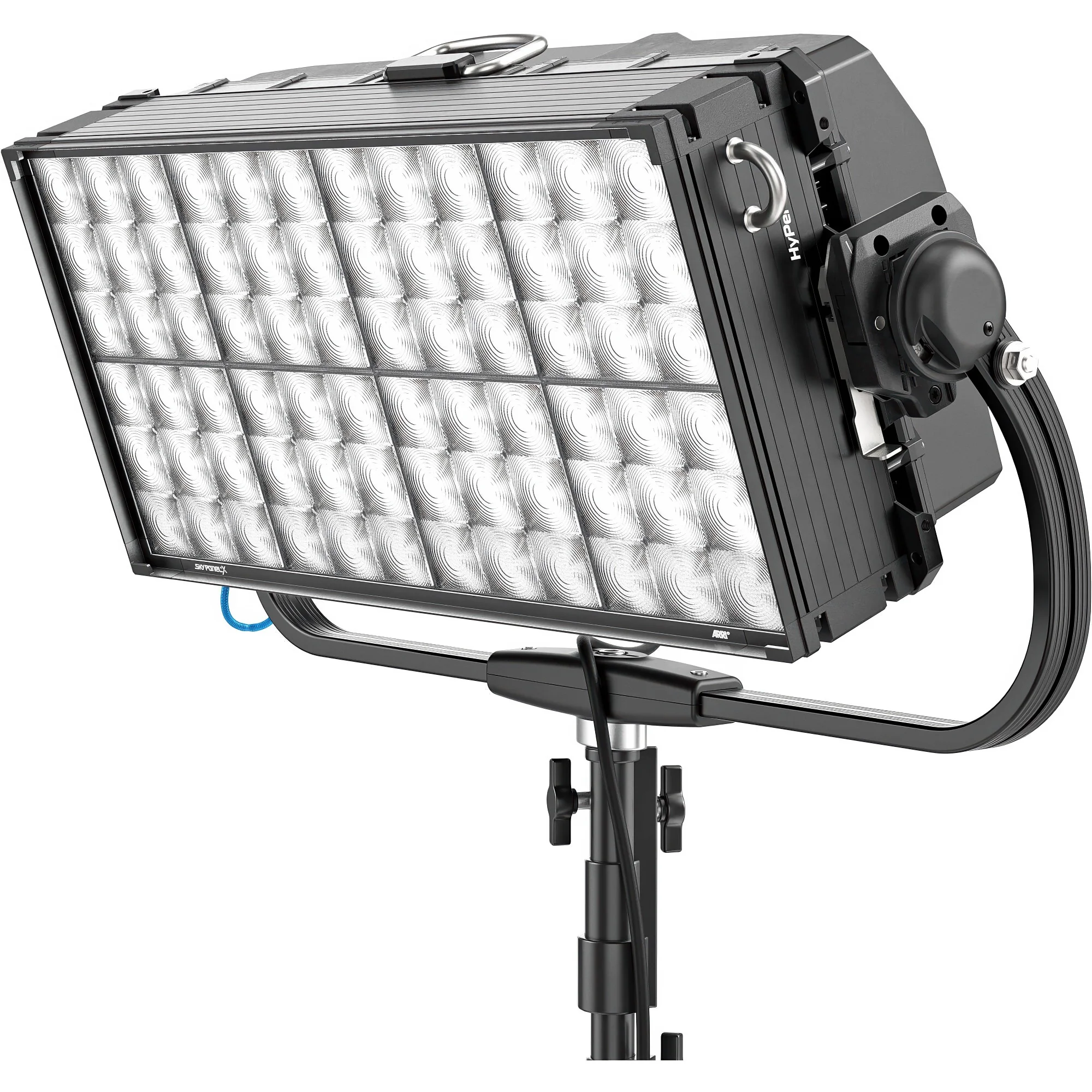

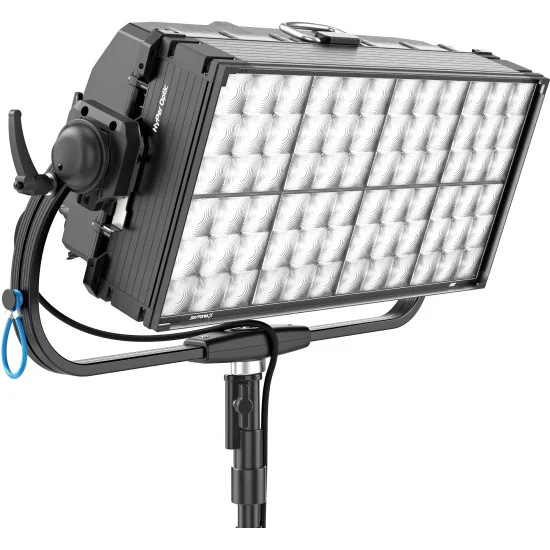

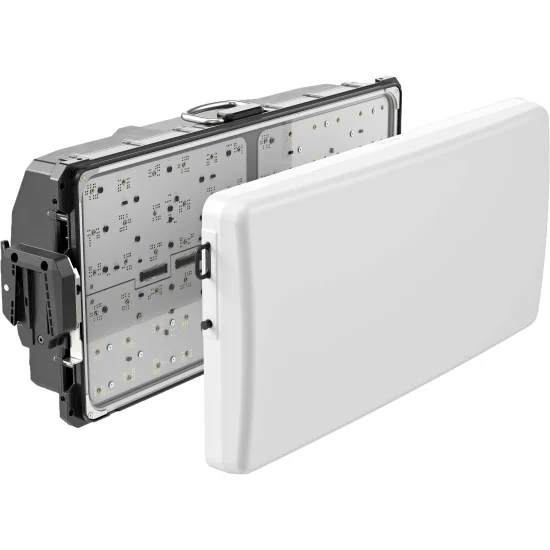

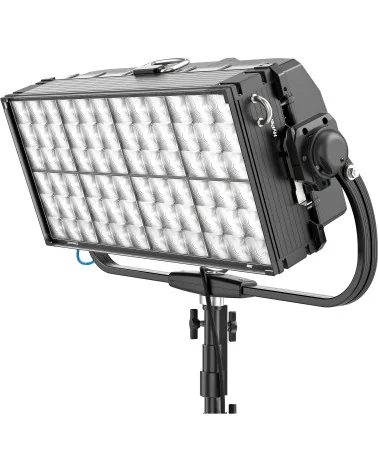

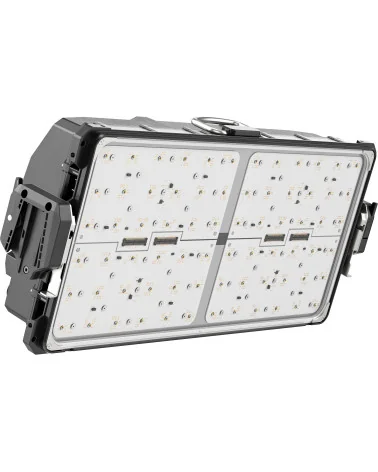

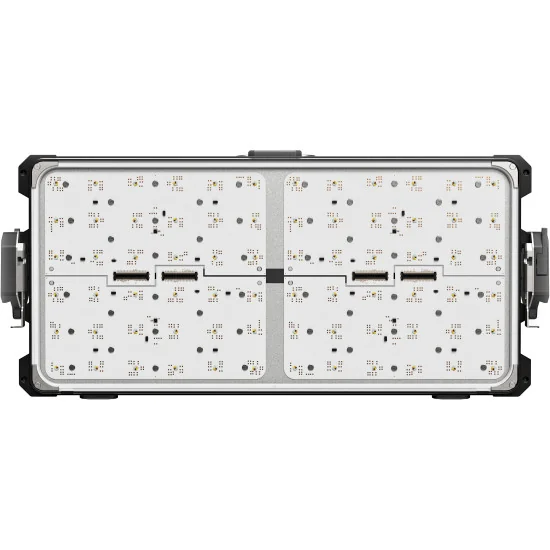

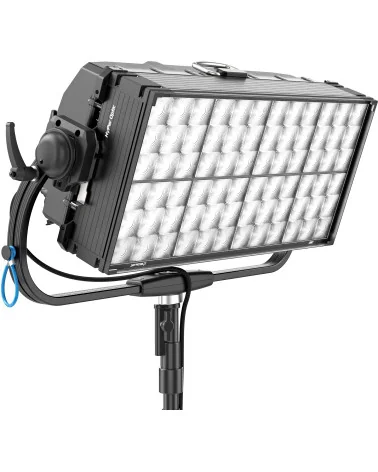

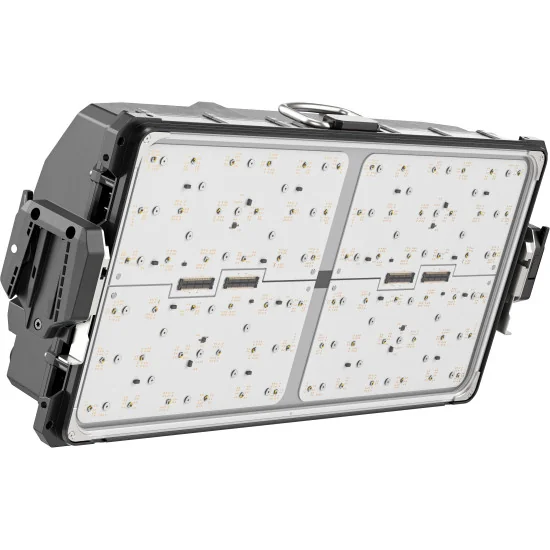

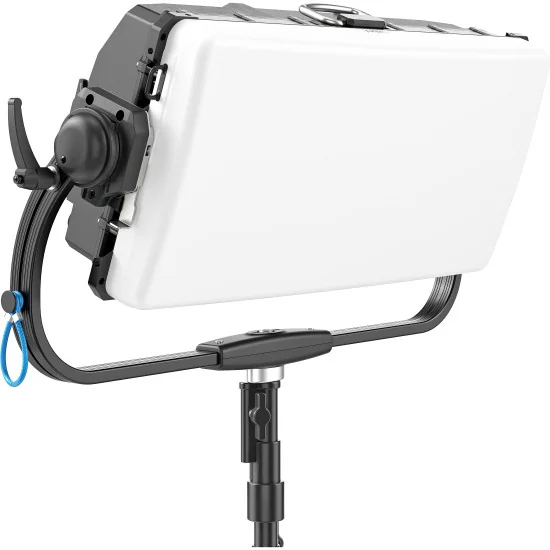

Maximum draw is 800 W from the integrated PSU, driving 4 light engines and up to 8 sealed pixel zones. With the included X21 HyPer Optic, output reaches 4,800 lx at 10 m at 5,600 K and a rounded hard beam (native angle approx. 11°) that holds through windows, haze and long throws. Fit the X21 Dome for approx. 107° soft coverage; remove front optics for native open-face (approx. 121°) with up to 51,809 lm for bounce into ultrabounce, muslin or ceilings.

Networking matches professional infrastructures: DMX-512A with RDM, plus Ethernet Art-Net 4 and sACN, with PTP/NTP timing support for consistent cueing. Wireless control is built in via CRMX (Classic/CRMX2), W-DMX, BLE and Bluetooth 5.0. The removable ALL-WEATHER Control Panel running LiOS3 gives direct access to CCT, HSI, gels, source matching and effects, with flicker-free, high-resolution dimming down to black. Pixel tools include 15 Pixel Macros and 15 effects.

This CE kit includes a 3 m powerCON TRUE1 TOP mains lead terminated in bare ends (16 A), simplifying tie-in to company switches, custom distro and permanent wiring. TRUE1 TOP power in/through and EtherCON-compatible RJ45 ports streamline daisy-chaining, and a 48 V DC input supports battery carts. Use it as a hard rim/backlight for multicam streaming, a window push on drama stages, a soft key for interviews, or weather-ready exterior fill with mapped pixel cues.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Available in three size configurations (X21, X22, and X23), the modular SkyPanel X offers native soft and native hard light technology, setting a new bar not only in terms of dimming and color science, but also in output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per unit; dynamic CCT range of 1,500 K – 20,000 K; six-color full-spectrum color engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to established workflows.

Main Features
- LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
- IP66 all-weather professional lighting solution
- Excelling in color rendition, dimming, and beam quality
- Dynamic CCT range of 1,500 K - 20,000 K
- RGBACL full-spectrum color engine
- Up to 24 pixels (8 for X21, 16 for X22, 24 for X23)
- Integrated PSU and built-in wireless control

PACKAGES: L0.0050399 X21 Soft & Hard Light Package black (Bare Ends CE)
1x L1.0048488 SkyPanel X black incl. X21 Dome
1x L2.0048580 X21 HyPer Optic
1x L2.0048844 ALL-WEATHER Control Panel
1x L2.0048577 X21 Manual Yoke incl. Spigot
1x L2.0005974 Mains cable, 3 m, powerCON TRUE1 TOP Bare Ends / CE (16 A)

Technical data
Power: 800 W
Format size: 2:1 (horizontal)
Light engines: 4
Pixel zones: 8 max.
Max. output (lux): 4,800 Lux @ 10 m, 5,600 K (native hard)
Max. output (lumen): 51,809 Lumen (native open-face)
Included items: 1x X21 Dome

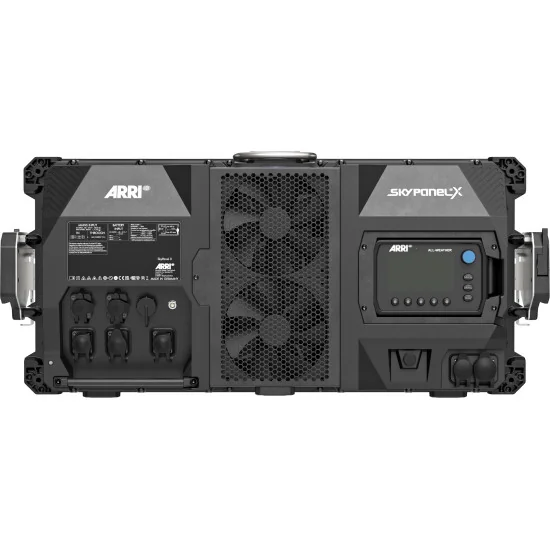

Connectors:
- 2x AC (In and Through), max. 20 A, TRUE1 TOP
- 1x DC (In) 48 V for battery use
- 2x DMX (In and Out), XLR-5pin
- 2x LAN / Ethernet, RJ45, EtherCON compatible
- 1x USB type C
- 1x LEMO for ALL-WEATHER Control Panel
Rigging System:
- Manual Yoke, bent, Quick-Release, 28 mm spigot
- P.O. Yoke, Quick-Release, 28 mm spigot
- Twin Quick-Lock bracket for multi-unit setups
Dimensions:
Fixture only: 738 x 339 x 154 mm / 29.1 x 13.3 x 6.1 in
with MAN yoke: 875 x 588 x 170 mm / 34.4 x 23.2 x 6.7 in
with P.O. yoke: 842 x 622 x 155 mm / 33.2 x 24.5 x 6.1 in
Weight:
Fixture only: approx. 15 kg / 33 lbs
with MAN yoke: approx. 18 kg / 39.7 lbs
with P.O. yoke: approx. 18,5 kg / 40.8 lbs
AC voltage: 100 - 240 V~, 50/60Hz
PSU: Integrated
LED engine: Full Spectrum, 6-color RGBACL LED
Native quality: Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face
CCT range: 1,500 K - 20,000 K
CRI: 90 min. / 99 max. (High CRI VariFan mode)
TLCI: 93 typical (High CRI VariFan mode)
Camera sensor matching: Yes, via ARRI ALEXA Mode
Dimming performance: Flicker free, High-res low end dimming
Native beam angle: 11º (hard), 107° (soft), 121º (open-face)
Diffuser options: X21 Dome, Beam Enhancer filter, S60-C diffusers
Accessory compatibility: All SkyPanel S60-C front accessories via S60 Adapter
Type of display: Removable ALL-WEATHER Control Panel with LiOS3
Operational modes: Standard (low noise), High Output, High CRI VariFan, ARRI ALEXA
Color modes: CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching
DMX presets: Yes, via ALL-WEATHER Control Panel, RDM and DMX-512A
Legacy DMX modes: Compatible with S60-C mode 1 and 6
Multi-array setup: Yes (up to 3 units in just one single DMX profile)
IP-rating: IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity)
Cooling system: Passive + Active cooling system with double heat sink
Integrated wired control: DMX-512A, RDM, Art-Net 4, sACN LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)
Integrated wireless control: CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0
Daisy-chain modularity: Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data)
Pre-programmed effects: 15 Pixel Macros, 15 effects
Warranty: 3 years
Ambient temperature: -20°C to +40ºC / -4°F to +104°F (during operation)
Certifications: CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, KC, TRA, ETA, ENACOM, RCM, R-NZ, NBRC, NTC, IFT, PSE
