The VELVET Mini 1 IP54 is a compact half-size 1×1 bi-color LED panel delivering a panoramic, naturally wrapped soft source for professional video, broadcast and streaming workflows. Its calibrated array of selected-bin LEDs and integrated diffuser produce a uniform 100° beam with CRI/TLCI 96–98, allowing precise reproduction of skin tones, costume color and set design under mixed lighting on drama stages, ENG sets or corporate studios with low ceilings.
The panel offers continuously variable 2700K–6500K CCT in 100 K steps and flicker-free dimming from 0–100%, maintaining constant color across the range for multi-camera shooting up to 2000 fps. A dedicated quick-access key instantly recalls 3200K and 5600K for fast matching to tungsten or daylight units. Local control is handled through impact-resistant keys and a clear digital display.
Thanks to its IP54 rating, the VELVET Mini 1 IP54 LED panel operates reliably in dusty interiors, humid locations and light rain, making it suitable for outdoor interviews, reality shows, live events or sports tunnel coverage. Fanless passive cooling keeps operation completely silent on drama sets and during close-miked broadcast talk shows. The 50 W engine supports full output from either 90–264 VAC via the Smart AC adapter or from a V-Mount or Gold Mount battery, providing a flexible package for mobile crews and compact studio grids.
The lightweight black anodized aluminum housing accepts an optional yoke with junior/baby receiver, side 1/4" mounting threads and double baby pin for horizontal or vertical positioning. A full ecosystem of VELVET light modifiers – including removable barndoors, SnapBag softbox, SnapGrid and transport cases – enables fast adaptation from broad key to controlled fill on news sets, virtual production volumes or live streaming studios, while the long LED life (>50,000 h L70) secures predictable performance across intensive rental and television schedules.
The VELVET Mini 1 IP54 is a compact half-size 1×1 bi-color LED panel delivering a panoramic, naturally wrapped soft source for professional video, broadcast and streaming workflows. Its calibrated array of selected-bin LEDs and integrated diffuser produce a uniform 100° beam with CRI/TLCI 96–98, allowing precise reproduction of skin tones, costume color and set design under mixed lighting on drama stages, ENG sets or corporate studios with low ceilings.
The panel offers continuously variable 2700K–6500K CCT in 100 K steps and flicker-free dimming from 0–100%, maintaining constant color across the range for multi-camera shooting up to 2000 fps. A dedicated quick-access key instantly recalls 3200K and 5600K for fast matching to tungsten or daylight units. Local control is handled through impact-resistant keys and a clear digital display.
Thanks to its IP54 rating, the VELVET Mini 1 IP54 LED panel operates reliably in dusty interiors, humid locations and light rain, making it suitable for outdoor interviews, reality shows, live events or sports tunnel coverage. Fanless passive cooling keeps operation completely silent on drama sets and during close-miked broadcast talk shows. The 50 W engine supports full output from either 90–264 VAC via the Smart AC adapter or from a V-Mount or Gold Mount battery, providing a flexible package for mobile crews and compact studio grids.
The lightweight black anodized aluminum housing accepts an optional yoke with junior/baby receiver, side 1/4" mounting threads and double baby pin for horizontal or vertical positioning. A full ecosystem of VELVET light modifiers – including removable barndoors, SnapBag softbox, SnapGrid and transport cases – enables fast adaptation from broad key to controlled fill on news sets, virtual production volumes or live streaming studios, while the long LED life (>50,000 h L70) secures predictable performance across intensive rental and television schedules.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
1x1/2 foot bicolor weatherproof compact panoramic soft light LED panel
Natural soft light panel for low ceilings. Rainproof IP54. High TLCI & CRI (96). Precise color temperature adjustment from 2700K to 6500K. Perfect skin tones and real colors. Lightweight, low-carbon aluminum body. Totally silent fanless operation. High efficiency means 100% light output even with batteries.
SPECIFICATIONS
COLOUR TEMPERATURE: Adjustable from 2700K a 6500K (100K increments)
LIGHT INTENSITY: Dimmable 0 to 100 (smooth and flicker-free)

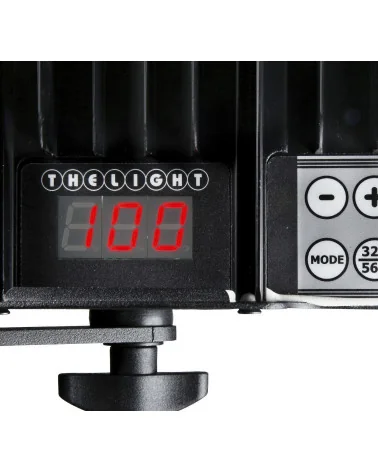

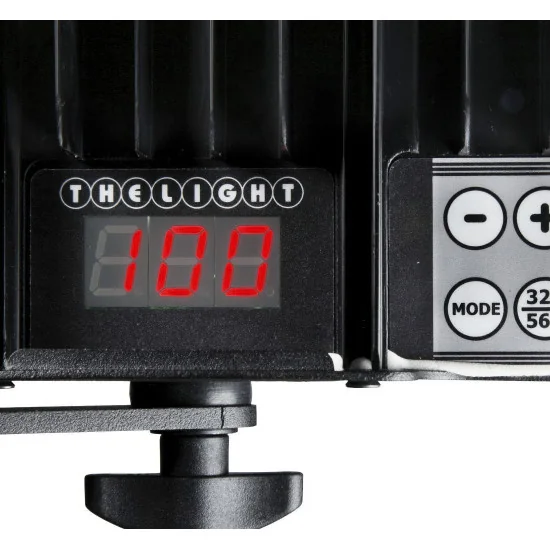

LOCAL CONTROL: Shock proof buttons and display
TLCI INDEX: 97 at 3200K and 98 at 5600K
PHOTOMETRICS: 1200 lux / 111 fc at 1m / 3 feet , 170 lux / 16 fc at 3m / 10 feet
BEAM ANGLE: 100º
DIMENSIONS: 345 x 190 x 90 mm / 13,6”x7,5”x3,5” (panel)
WEIGHT: 1,9 kgs / 4,2 lbs (panel)
POWER DRAW: 50W (0.45A at 110 VAC — 0.22A at 220 VAC)
POWER SUPPLY: Vlock or Gold battery mount, 90-264 VAC 50/60Hz through Smart AC adapter
LED RATED LIFE: More than 50.000 hours L70 , More than 35.000 hours L80
OUTPUT FREQUENCY: 2000 fps
OPERATION TEMPERATURE: From -20ºC to +40ºC
COOLING: No-noise, fan-free passive cooling
PROTECTION: IP54 rainproof, indoor or outdoor use
VELVET LED TECHNOLOGY: Selected BIN LED + optic diffuser + CPU software control
RIGGING OPTIONS: (optional) Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, four sliding threads ¼” for riggings located on panel sides, double baby pin for diagonal or vertical position using the standard yoke

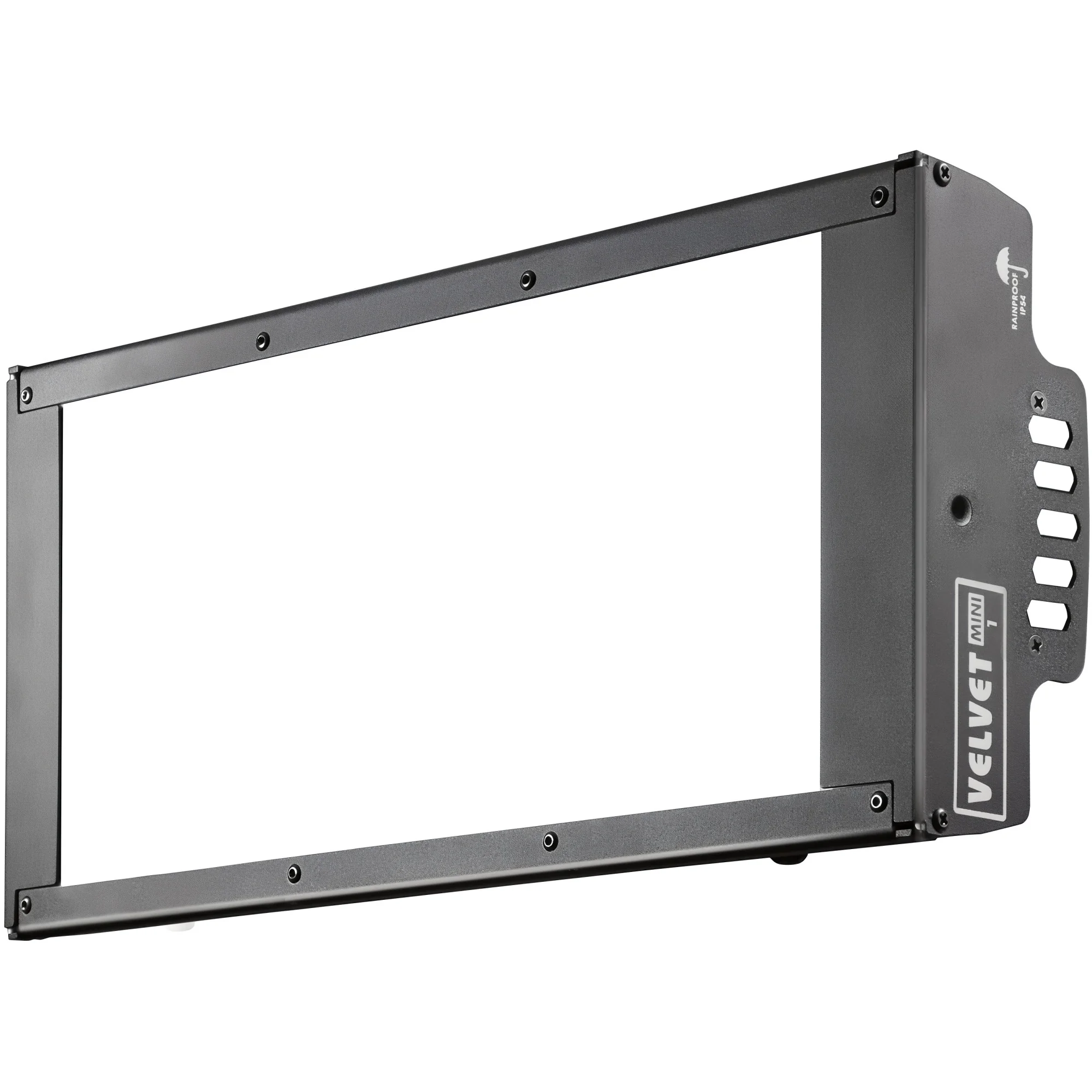

QUICK MOUNTING ACCESSORIES: foldable Snapgrid, removable barn doors, cordura case, hard case
CONSTRUCTION & FINISH: Black anodized extruded aluminum and black powder coated sheet aluminum
Data sheet
Specific References
