ARRI SkyPanel X22 Soft & Hard Light Package (Schuko) LED Panel

ARRI SkyPanel X22 Soft & Hard Light Package (Schuko) LED Panel

Name: ARRI SkyPanel X22 Soft & Hard Light Package (Schuko) LED Panel
Brand: ARRI
SKU: L0.0049826
Price: 12900.00 EUR
Availability: InStock

MPN: L0.0049826

Price: €12,900.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

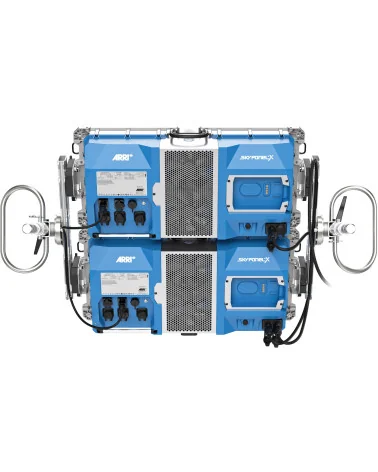

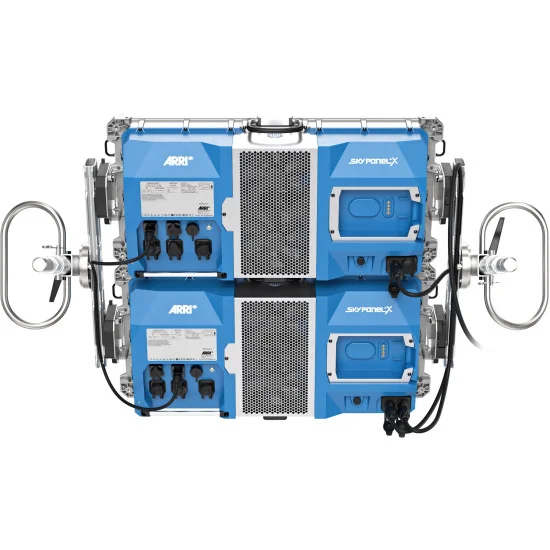

ARRI SkyPanel X22 Soft & Hard Light Package (Schuko) assembles two SkyPanel X lampheads into a square 2:2 modular array that can switch between native soft, native hard and open-face operation. The six-color RGBACL engine covers 1,500–20,000 K and offers sensor-matching tools such as ARRI ALEXA Mode for consistent reproduction when balancing daylight, tungsten practicals and LED volumes. With an IP66 rating, the fixture and its removable interface remain usable in rain, spray and high-humidity locations.

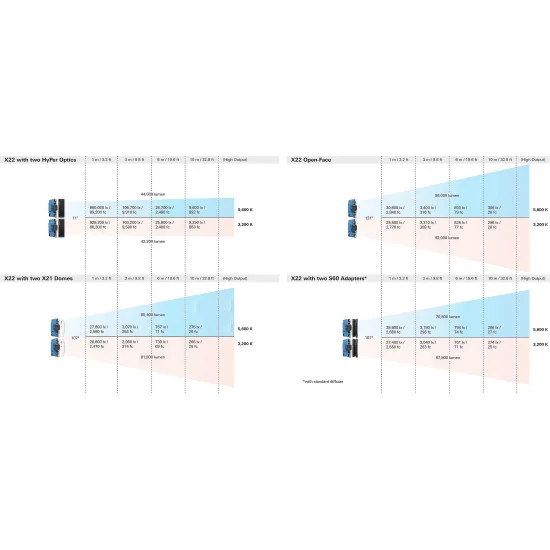

In X22 format the system draws up to 1,600 W with 8 light engines and up to 16 pixel zones for zoned cues, mapped patterns and controlled highlights. Output reaches 9,600 lx at 10 m (5,600 K) in native hard mode; native open-face emission delivers up to 103,618 lm for bounce into ultrabounce, overhead ambience or large frames. Beam angles stay predictable: around 11° with HyPer Optics, about 107° with X21 Domes, and roughly 121° in open-face.

Connectivity targets professional lighting networks: DMX-512A with RDM, plus Art-Net 4 and sACN over EtherCON-compatible RJ45, with PTP/NTP timing support. Wireless control is built in via CRMX (Classic/CRMX2), W-DMX, BLE and Bluetooth 5.0. The removable ALL-WEATHER Control Panel (LiOS3) provides fast on-set navigation across CCT, HSI, gel, source matching and effects, with high-resolution flicker-free dimming down to black, including modes prioritising output or colour fidelity. TRUE1 TOP power in/through and 48 V DC input support stage power or battery operation.

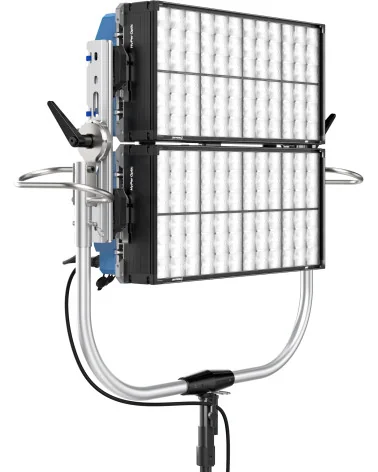

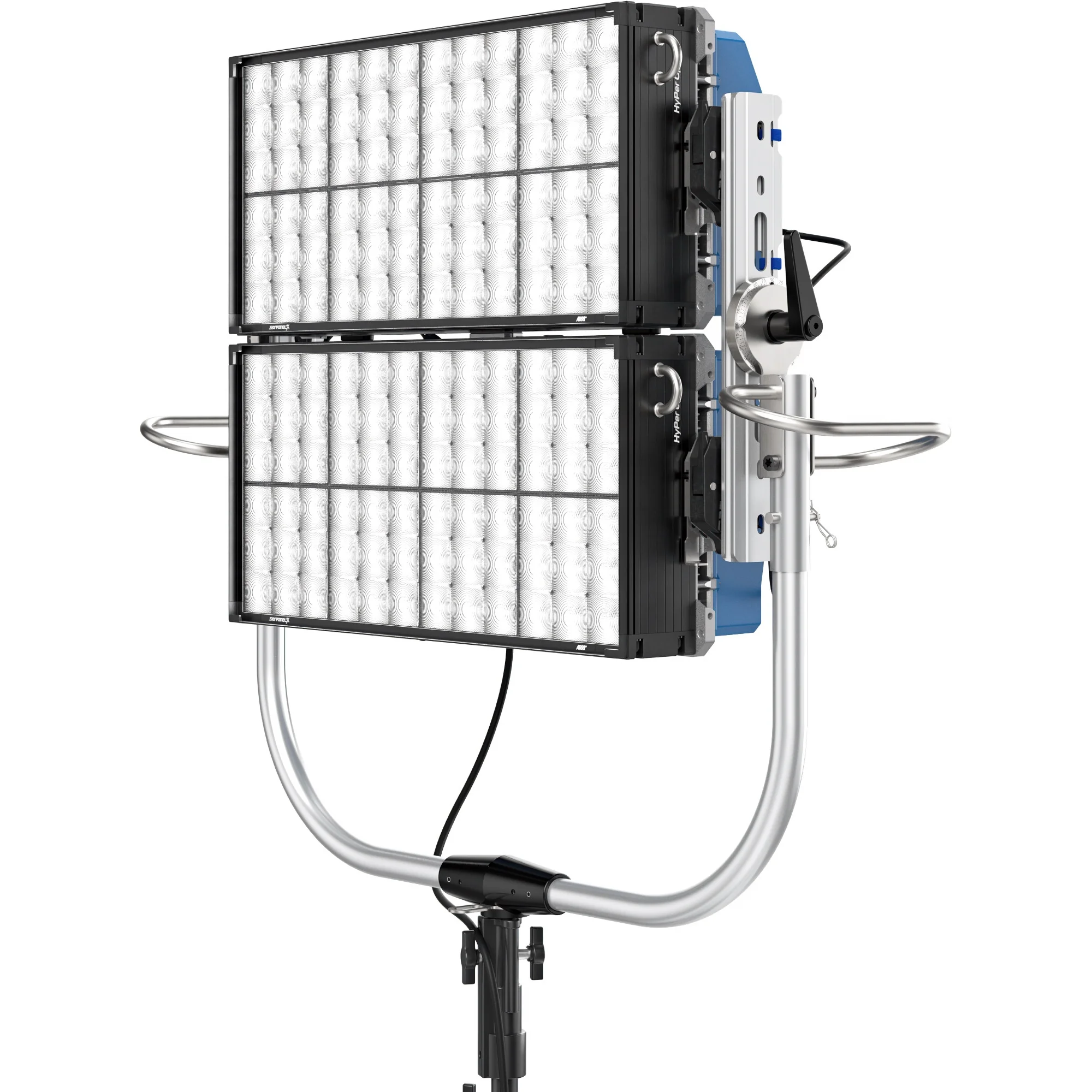

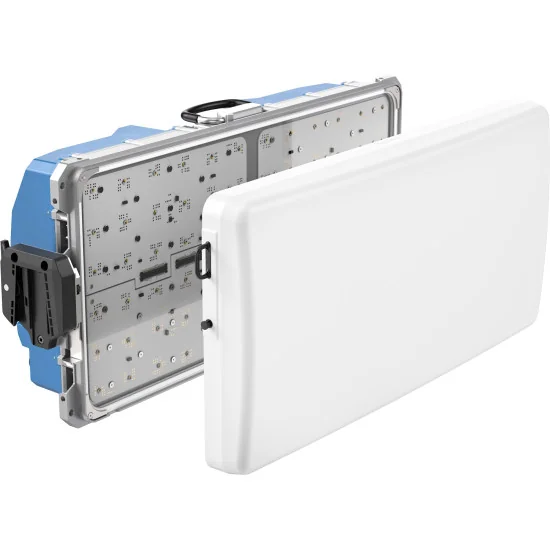

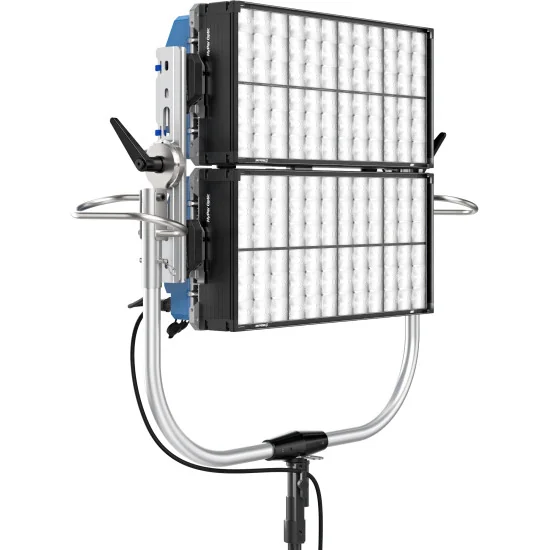

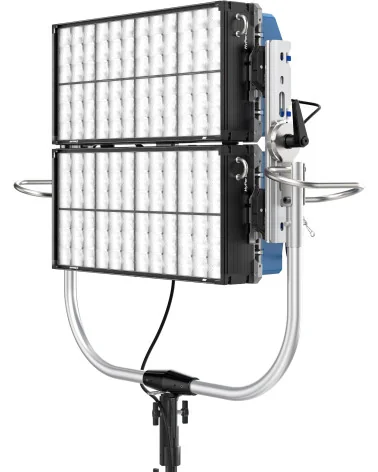

The kit ships with two heads supplied with domes, two HyPer Optics, an X22 Modular Frame with integrated power/data daisy-chain and an X Modular Yoke with 28 mm spigot, plus a Schuko mains lead. On set it fits as a long-throw key for broadcast stages, a controllable hard backlight through windows, a soft wall for multicam streaming, or a weather-proof exterior source where one rig must cover soft, hard and bounce workflows.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Available in three size configurations (X21, X22, and X23), the modular SkyPanel X offers native soft and native hard light technology, setting a new bar not only in terms of dimming and color science, but also in output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per unit; dynamic CCT range of 1,500 K – 20,000 K; six-color full-spectrum color engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to established workflows.

Main Features
- LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
- IP66 all-weather professional lighting solution
- Excelling in color rendition, dimming, and beam quality
- Dynamic CCT range of 1,500 K - 20,000 K
- RGBACL full-spectrum color engine
- Up to 24 pixels (8 for X21, 16 for X22, 24 for X23)
- Integrated PSU and built-in wireless control

PACKAGES: L0.0049826 X22 Soft & Hard Light Package (Schuko)
2x L1.0048487 SkyPanel X, incl. X21 Dome
2x L2.0048580 X21 HyPer Optic
1x L2.0048844 ALL-WEATHER Control Panel
1x L2.0049573 X Modular Yoke, incl. Spigot
1x L2.0049577 X22 Modular Frame, incl. Daisy Chain Cabling Ethernet & Power
1x L2.0007516

Technical data
Power: 1,600 W
Format size: 2:2 (square)
Light engines: 8
Pixel zones: 16 max.
Max. output (lux): 9,600 Lux @ 10 m, 5,600 K (native hard)
Max. output (lumen): 103,618 Lumen (native open-face)
Included items: 2x X21 Dome
Connectors:
- 4x AC (In and Through), max. 20 A, TRUE1 TOP
- 2x DC (In) 48 V for battery use
- 4x DMX (In and Out), XLR-5pin
- 4x LAN / Ethernet, RJ45, EtherCON compatible
- 2x USB type C
- 2x LEMO for ALL-WEATHER Control Panel
Rigging System:
- X Modular frames for X22, Quick-Release
- X Modular System for X22 & X23, Quick-Release, 28 mm spigot
- Twin Quick-Lock bracket for multi-unit setups
Dimensions:
Fixture only: 738 x 668 x 154 mm / 29.1 x 26.2 x 6.1 in
with MAN yoke: 1128 x 1089 x 290 mm / 44.4 x 42.9 x 11.4 in
with P.O. yoke: n.a.
Weight:
Fixture only: approx. 30 kg / 66.1 lbs
with MAN yoke: approx. 38 kg / 83.8 lbs
with P.O. yoke: n.a.
AC voltage: 100 - 240 V~, 50/60Hz
PSU: Integrated
LED engine: Full Spectrum, 6-color RGBACL LED
Native quality: Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face
CCT range: 1,500 K - 20,000 K
CRI: 90 min. / 99 max. (High CRI VariFan mode)
TLCI: 93 typical (High CRI VariFan mode)
Camera sensor matching: Yes, via ARRI ALEXA Mode
Dimming performance: Flicker free, High-res low end dimming
Native beam angle: 11º (hard), 107° (soft), 121º (open-face)
Diffuser options: X21 Dome, Beam Enhancer filter, S60-C diffusers
Accessory compatibility: All SkyPanel S60-C front accessories via S60 Adapter
Type of display: Removable ALL-WEATHER Control Panel with LiOS3
Operational modes: Standard (low noise), High Output, High CRI VariFan, ARRI ALEXA
Color modes: CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching
DMX presets: Yes, via ALL-WEATHER Control Panel, RDM and DMX-512A
Legacy DMX modes: Compatible with S60-C mode 1 and 6
Multi-array setup: Yes (up to 3 units in just one single DMX profile)
IP-rating: IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity)
Cooling system: Passive + Active cooling system with double heat sink
Integrated wired control: DMX-512A, RDM, Art-Net 4, sACN LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)
Integrated wireless control: CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0
Daisy-chain modularity: Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data)
Pre-programmed effects: 15 Pixel Macros, 15 effects
Warranty: 3 years
Ambient temperature: -20°C to +40ºC / -4°F to +104°F (during operation)
Certifications: CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, KC, TRA, ETA, ENACOM, RCM, R-NZ, NBRC, NTC, IFT, PSE
