A lecturer leaves the lectern, a keynote speaker crosses the stage or a trainer turns toward a display: the Atomos A-Eye HD-20X Full HD PTZ camera retains the shot without an operator at every position. Its 1/2.8-inch CMOS sensor has 2.07 million effective pixels and outputs Full HD 1080p at up to 60 fps. The F1.8–2.8 lens supplies 20x optical reach, backed by 16x digital zoom, so one mounting point can cover a room view and a speaker close-up. Sensitivity rated at 0.5 lux, backlight compensation and 2D/3D noise reduction help preserve faces and presentation detail under mixed venue lighting.
AI subject tracking follows a moving presenter while the PTZ mechanism pans through ±170° and tilts from −30° to +90°. Movement speed can be set from 1.7° to 100°/s for pan and up to 69.9°/s for tilt, balancing deliberate on-air moves with quick reframing between contributors. Up to 255 presets, with 0.1° positional accuracy, give repeatable lectern, panel, whiteboard and audience angles. A tally indicator supplies the on-camera cue needed in a switched multi-camera production.
Video can leave the camera through HDMI, 3G-SDI, USB/UVC or Ethernet. The included NDI|HX3 licence places it on compatible IP production networks, while SRT, RTSP, RTMP/RTMPS, ONVIF and multicast cover contribution, direct streaming and system integration. H.264 and H.265 encoding, two network streams and CBR/VBR control let an engineer match delivery to available bandwidth. PoE+ 802.3at carries network, control and power over one cable; 12 V DC remains available for installations using separate power. USB handles UVC video, audio and PTZ control, but is not a media-recording port.
Control is available over IP, USB, RS-232 and RS-485, with VISCA and Pelco protocols supporting controller-led operation in established AV systems. Built-in dual microphones provide a reference feed, while 3.5 mm line input and output connect an external mixer or room-audio system; network audio uses AAC. This combination suits corporate studios, hybrid meetings, lecture capture, product demonstrations, training rooms and live events where reliable HD capture, optical reach and lean staffing meet the delivery brief.

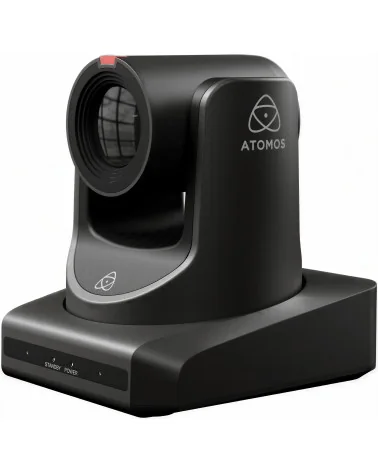

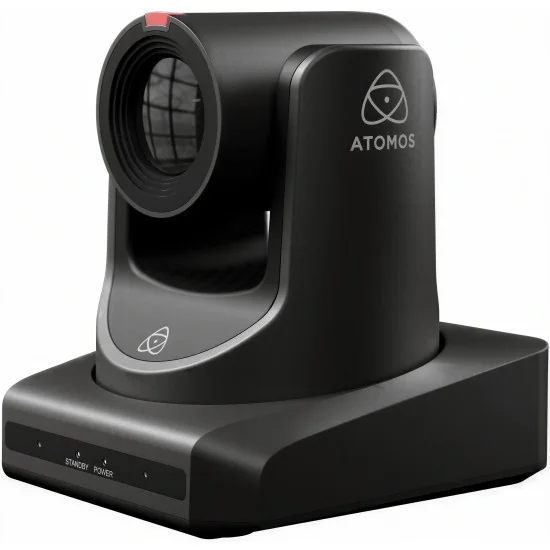

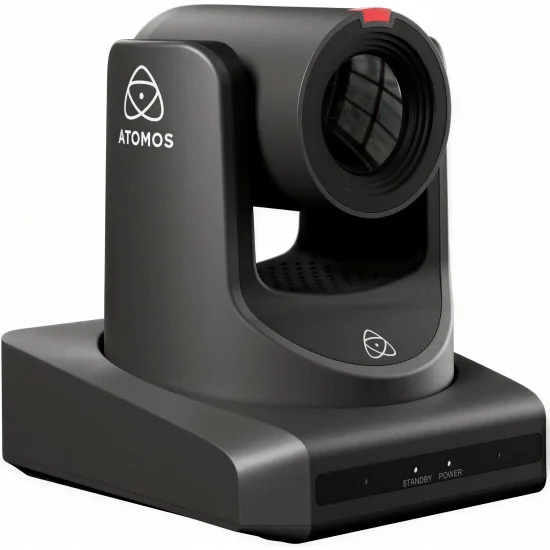

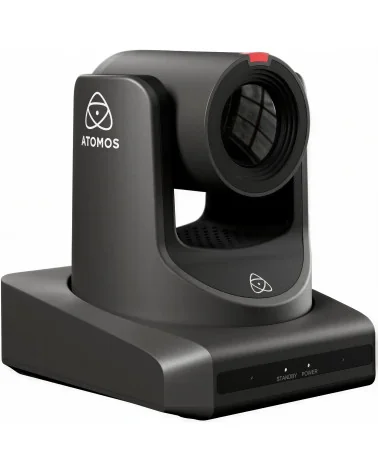

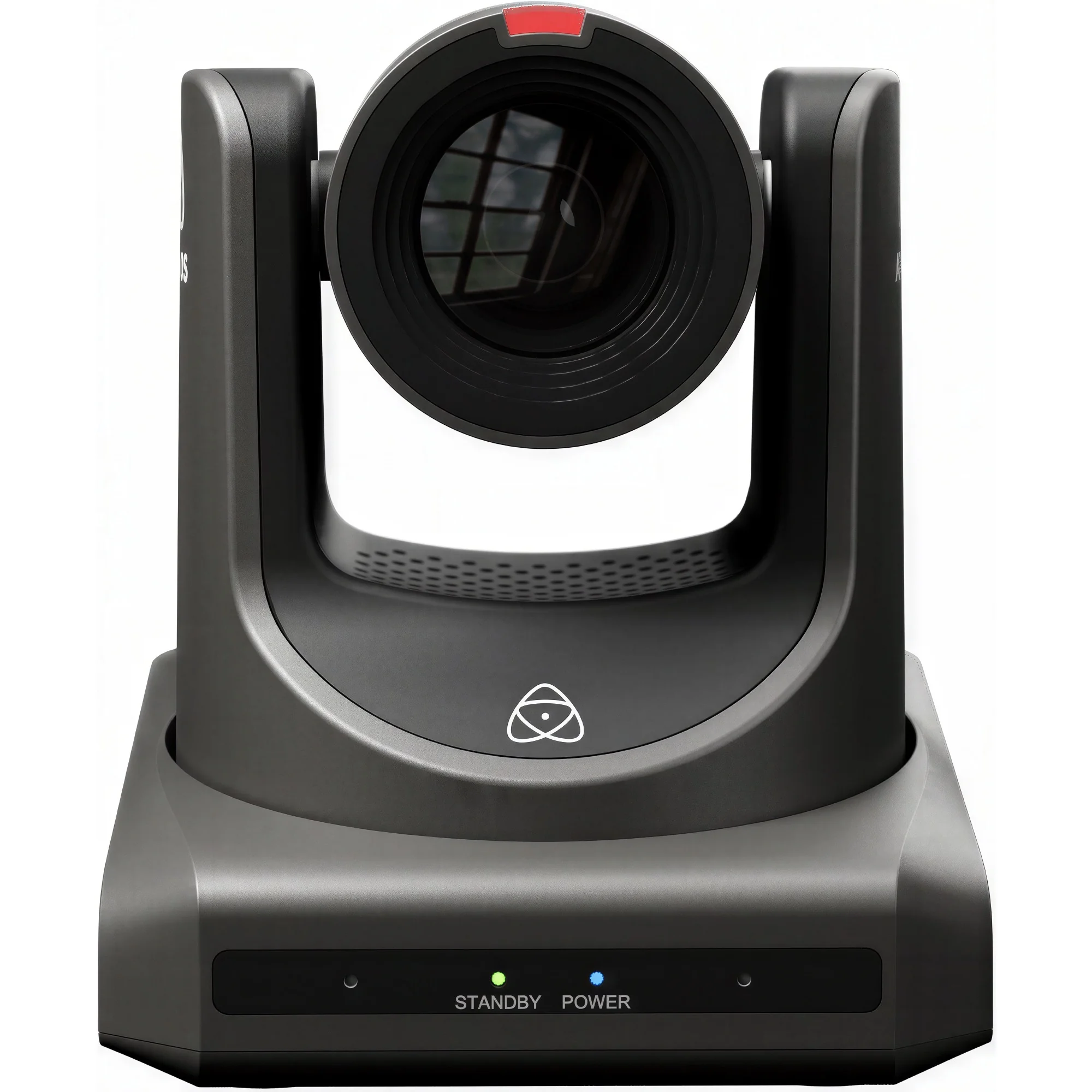

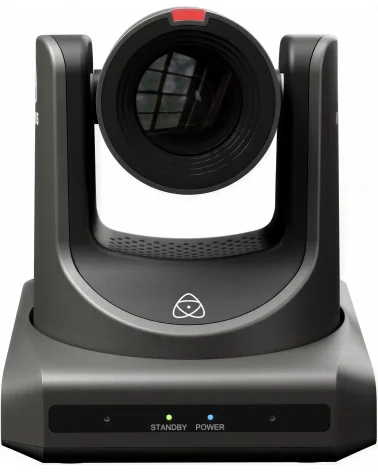

Atomos A-Eye HD-20X PTZ Camera
ATOMAEHD20
Price: €1,390.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
A lecturer leaves the lectern, a keynote speaker crosses the stage or a trainer turns toward a display: the Atomos A-Eye HD-20X Full HD PTZ camera retains the shot without an operator at every position. Its 1/2.8-inch CMOS sensor has 2.07 million effective pixels and outputs Full HD 1080p at up to 60 fps. The F1.8–2.8 lens supplies 20x optical reach, backed by 16x digital zoom, so one mounting point can cover a room view and a speaker close-up. Sensitivity rated at 0.5 lux, backlight compensation and 2D/3D noise reduction help preserve faces and presentation detail under mixed venue lighting.
AI subject tracking follows a moving presenter while the PTZ mechanism pans through ±170° and tilts from −30° to +90°. Movement speed can be set from 1.7° to 100°/s for pan and up to 69.9°/s for tilt, balancing deliberate on-air moves with quick reframing between contributors. Up to 255 presets, with 0.1° positional accuracy, give repeatable lectern, panel, whiteboard and audience angles. A tally indicator supplies the on-camera cue needed in a switched multi-camera production.
Video can leave the camera through HDMI, 3G-SDI, USB/UVC or Ethernet. The included NDI|HX3 licence places it on compatible IP production networks, while SRT, RTSP, RTMP/RTMPS, ONVIF and multicast cover contribution, direct streaming and system integration. H.264 and H.265 encoding, two network streams and CBR/VBR control let an engineer match delivery to available bandwidth. PoE+ 802.3at carries network, control and power over one cable; 12 V DC remains available for installations using separate power. USB handles UVC video, audio and PTZ control, but is not a media-recording port.
Control is available over IP, USB, RS-232 and RS-485, with VISCA and Pelco protocols supporting controller-led operation in established AV systems. Built-in dual microphones provide a reference feed, while 3.5 mm line input and output connect an external mixer or room-audio system; network audio uses AAC. This combination suits corporate studios, hybrid meetings, lecture capture, product demonstrations, training rooms and live events where reliable HD capture, optical reach and lean staffing meet the delivery brief.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Atomos A-Eye HD 20X PTZ Camera
Powerful HD production. Precision in motion.
The Atomos A-Eye HD 20X PTZ Camera brings professional pan-tilt-zoom performance to live productions, corporate broadcasts, education, and streaming setups. Designed for seamless integration into multi-camera environments, it delivers sharp Full HD video with smooth robotic control and flexible connectivity.
Key Features
1/2.8-inch HD CMOS sensor
20x optical zoom
2.07M effective pixels
AI-powered tracking
HDMI, 3G-SDI, and IP streaming via RTMP, RTSP, NDI|HX
PoE+ support for simplified power and network connectivity
Smooth, quiet PTZ operation
Supports RS-232, RS-422, and IP control protocols
Preset recall and remote camera operation
Compatible with A-Eye Control Remote and third-party controllers
±170° pan and -30° to +90° tilt range
For education, houses of worship, and budget-friendly production
Full HD Video with 20x Optical Zoom
Capture crystal-clear 1080p60 video using a precision 1/2.8 CMOS sensor and advanced image processing. With 20x optical zoom and low-light sensitivity, the A-Eye HD 20X is ideal for wide shots, close-ups, and everything in between—even in variable lighting conditions.
Smooth, Quiet PTZ Movement
The camera’s responsive pan, tilt, and zoom motors ensure fluid, near-silent movement that’s perfect for live broadcast environments. Whether controlled via joystick, software, or remote presets, A-Eye delivers consistent framing without distracting mechanical noise.
Flexible IP and Streaming Connectivity
Stream directly via RTMP, RTSP, or NDI|HX* over Ethernet, or connect via HDMI and 3G-SDI for traditional AV workflows. Integrated PoE+ simplifies setup by delivering both power and network over a single cable—ideal for permanent installations or rapid deployment.
*NDI|HX license activation may be required
Camera Control and Presets
Control A-Eye HD 20X using the optional A-Eye Control Remote, supported joystick controllers, or software via RS-232, RS-422, or IP protocols. Store and recall preset positions for fast scene switching in live production scenarios.
Built for Production Versatility

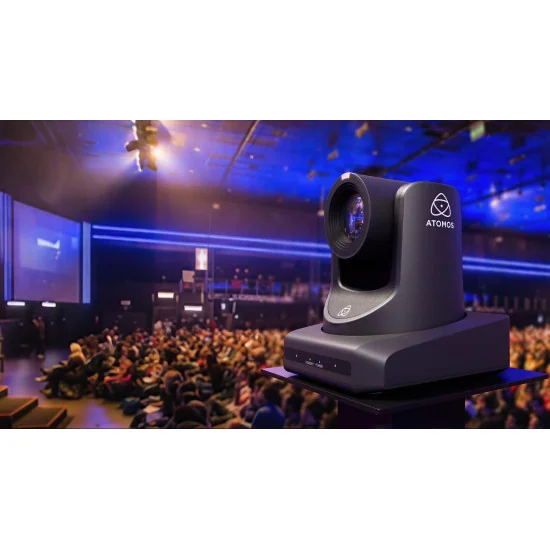

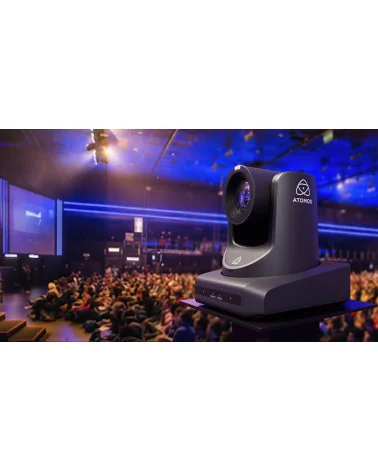

From houses of worship to corporate studios, event spaces to classrooms, the A-Eye HD 20X is ready to deliver professional-grade results in any production environment. The compact design and wall-mount compatibility make it easy to integrate into new or existing setups.
Who is it for?
The A-Eye HD 20X is ideal for broadcast teams, educators, livestream producers, and corporate AV departments looking for a dependable HD PTZ solution. Whether in a multi-cam setup or as a standalone camera, it provides pro-level control, image quality, and flexibility.
Specifications
| Physical | |
|---|---|
| Dimensions (W x H x D mm) | 139.2mm x 176.5mm x 165.8mm |
| Weight | About 1.5Kg |
| Environmental | |
| Ambient operating temperature | Up to 40 degrees Celsius |
| Construction | |
| Body | ABS |
| Power | |
| Input voltage | DC 12V/PoE+ (802.3at) |
| Operating power | Max 15W |
| Power on indicator | Yes |
| Video | |
| Sensor | 1/2.8 inch, CMOS |
| Effective pixels | 2.07M |
| Lens | 20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
| Scanning mode | Progressive |
| Resolutions supported | 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50 |
| Color system / compression | YUY2/MJPEG/H.264 |
| Video format | YUY2: max to 1080P@5fps, H.264 AVC: max to 1080P@30fps |
| Digital zoom | 16x |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| Image flip | Supported |
| Image freeze | Supported |
| White balance | Auto, VAR, Manual, One Push, Indoor, Outdoor |
| Backlight compensation | Support |
| Digital noise reduction | 2D & 3D Digital Noise Reduction |
| SNR | ≥55dB |
| Mechanical | |
| Horizontal FOV | 60.7° ~ 3.36° |
| Vertical FOV | 34.1° ~ 1.89° |
| Pan angle | ±170° |
| Tilt angle | -30° ~ +90° |
| Pan speed | 1.7° ~ 100°/s |
| Tilt speed | 1.7° ~ 69.9°/s |
| Preset position | 255 |
| Preset accuracy | 0.1° |
| USB | |
| Operating system | Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS |
| USB audio | Supported |
| USB video protocol | UVC 1.1/UVC 1.5 |
| USB PTZ control | Supported |
| Network | |
| Video compression | H.264/H.265 |
| Video stream | First Stream, Second Stream |
| First stream resolution | 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 |
| Second stream resolution | 1280x720, 1024x576, 720x480, 640x360, 480x272, 320x240, 320x180 |
| Video bit rate | 32Kbps ~ 20480Kbps |
| Bit rate control | CBR, VBR |
| Frame rate | 1fps ~ 60fps |
| Audio compression | AAC |
| Audio bit rate | 96Kbps, 128Kbps, 256Kbps |
| Protocols | NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
| Audio | |
| Microphone | Built-in dual microphone, 100Hz to 16KHz frequency response |
| Audio input | Line In |
| Audio output | Line Out, HDMI, USB |

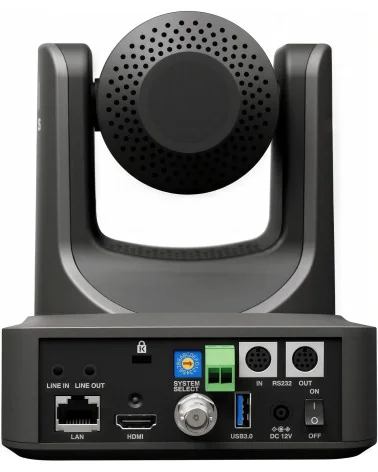

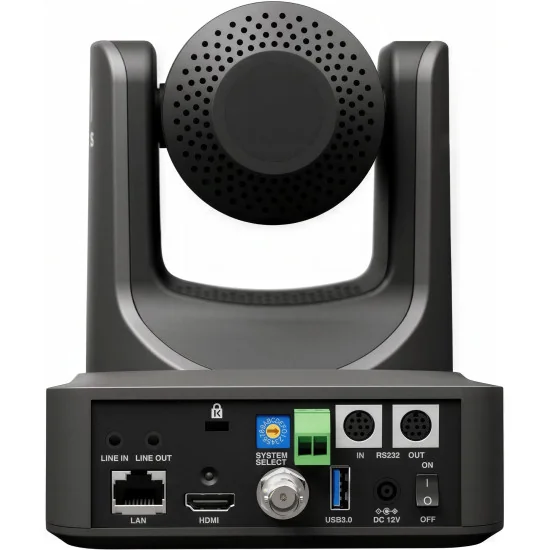

| Input/Output Interfaces | |
| Line In | 3.5mm audio interface |
| Line Out | 3.5mm audio interface |
| RS-485 | 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 IN | 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 OUT | 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only |
| Network | 10M/100M Adaptive Ethernet Port |
| USB | USB 2.0: Type A |
| SDI | 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard |
| HDMI | HDMI version 1.3 |
| Power jack | JEITA type (DC IN 12V) |
| Tally indicator | Yes |
| Box Contents | |
| Box Contents | A-Eye HD-20X PTZ camera, RS-232 serial cable (2m), USB 3.0 A-A cable (1.5m), lens cover, remote controller, accessory tray, wall mount rack, screw pack, power adaptor with 4 plugs, Quick Start Guide |
ATOMAEHD20
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP)
SDI
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
Mini Jack 3.5mm
NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 1080p 50/60 fps
- Control protocol for PTZ cameras
- NDI
PELCO-D
PELCO-P
UVC
VISCA
VISCA IP - Network Connection
- Ethernet
- Sensor Size
- 1/2.8"
- Optical Zoom
- 20x
- PoE Technology
- Yes
- Auto-Tracking
- Yes
- Tally Light
- Yes
Specific References
- ean13
- 814164023238
- mpn
- ATOMAEHD20
