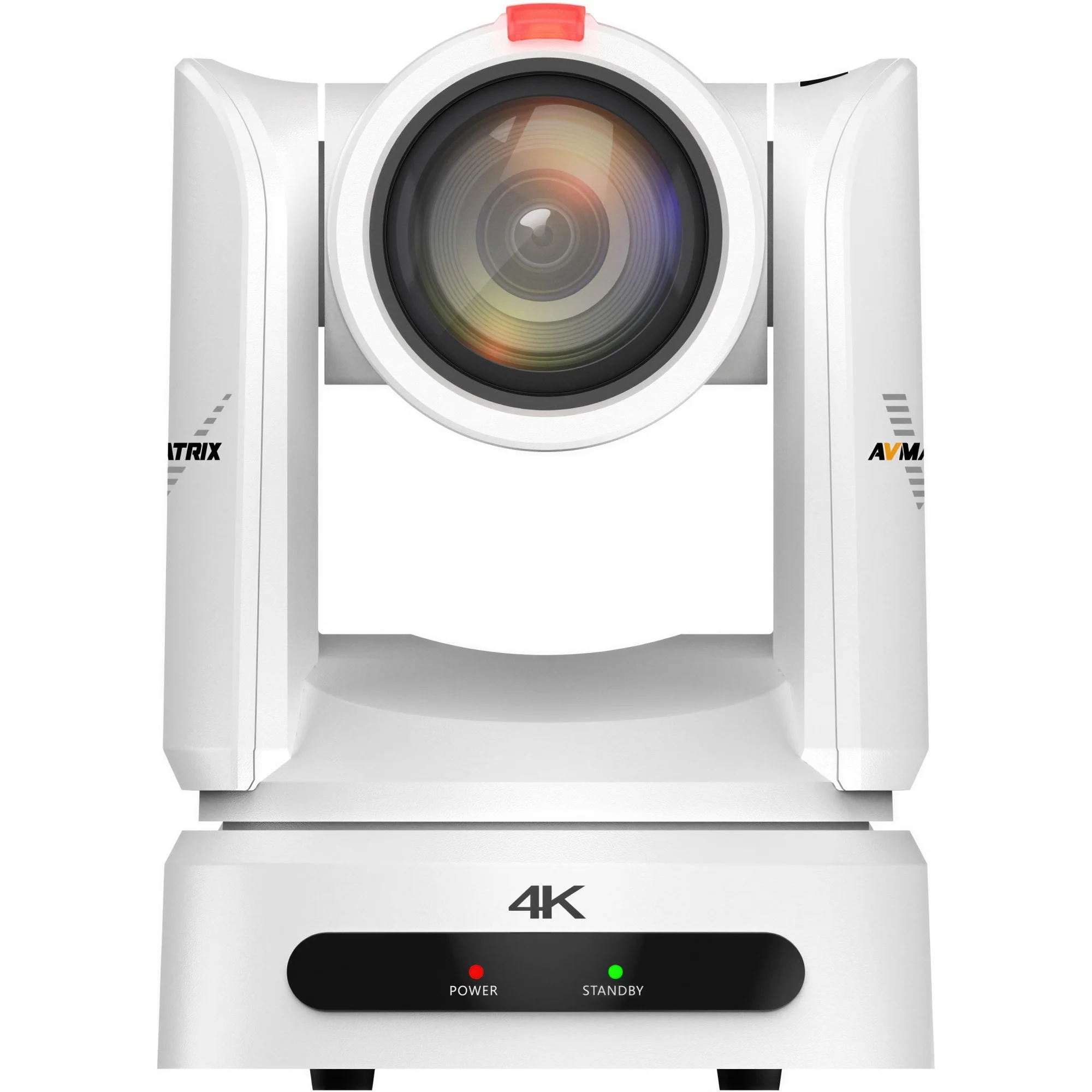

Broadcast teams running multi-camera productions gain a remote head that matches the optical quality of shoulder cameras at a fraction of the footprint. The AVMATRIX EAGLE P20-12G-NDI-W pairs a Sony 1/1.8" CMOS imager with 8.3 effective megapixels and a native UHD 4K 60p pipeline, capturing 3840×2160 footage with the colour depth and tonal separation expected in live news sets, houses of worship, corporate studios and e-sports stages. The 20x optical block sweeps from a 59.2° wide horizontal field down to a tight 3.6° telephoto, extended by 12x digital zoom for distant subject pickup in auditoriums or stadium infield coverage.
Signal distribution is where this 4K PTZ camera distinguishes itself: two simultaneous 12G-SDI outputs feed master control and backup recording at once, while HDMI 2.0 addresses on-set monitoring and USB 3.0 handles UVC capture into OBS, vMix or Wirecast without an external bridge. Over a single Gigabit LAN cable the camera carries NDI|HX3 compliant with the NDI 5.0 standard, SRT for contribution across public networks, and RTMP/RTMPS plus RTSP for direct push to CDNs, social platforms and on-prem recorders. ONVIF interoperability lets integrators drop the head into existing VMS-based installations.
Optics open to F1.61 at the wide end, with 2D and 3D noise reduction holding clean shadows down to 0.05 lux — a meaningful margin for dimly lit podcast studios, theatre captures and houses of worship. A U-shaped motor with high-precision stepping drivers moves the head silently, while image-freeze during preset recall prevents visible pan-tilt sweeps on programme output. Up to 255 presets are storable over IP, with 10 accessible from the bundled IR remote. A dual-colour red/green tally with adjustable brightness communicates programme and preview states to on-camera talent.
Operators drive the EAGLE P20-12G-NDI-W through VISCA, VISCA over IP, PELCO-P/D and RS-232/RS-422 serial links, while the FreeD protocol streams tracking metadata straight into AR and virtual-set engines — no external encoders required. The white chassis blends into bright studio cycloramas, concert hall ceilings and corporate boardrooms where black hardware draws the eye.
Broadcast teams running multi-camera productions gain a remote head that matches the optical quality of shoulder cameras at a fraction of the footprint. The AVMATRIX EAGLE P20-12G-NDI-W pairs a Sony 1/1.8" CMOS imager with 8.3 effective megapixels and a native UHD 4K 60p pipeline, capturing 3840×2160 footage with the colour depth and tonal separation expected in live news sets, houses of worship, corporate studios and e-sports stages. The 20x optical block sweeps from a 59.2° wide horizontal field down to a tight 3.6° telephoto, extended by 12x digital zoom for distant subject pickup in auditoriums or stadium infield coverage.
Signal distribution is where this 4K PTZ camera distinguishes itself: two simultaneous 12G-SDI outputs feed master control and backup recording at once, while HDMI 2.0 addresses on-set monitoring and USB 3.0 handles UVC capture into OBS, vMix or Wirecast without an external bridge. Over a single Gigabit LAN cable the camera carries NDI|HX3 compliant with the NDI 5.0 standard, SRT for contribution across public networks, and RTMP/RTMPS plus RTSP for direct push to CDNs, social platforms and on-prem recorders. ONVIF interoperability lets integrators drop the head into existing VMS-based installations.
Optics open to F1.61 at the wide end, with 2D and 3D noise reduction holding clean shadows down to 0.05 lux — a meaningful margin for dimly lit podcast studios, theatre captures and houses of worship. A U-shaped motor with high-precision stepping drivers moves the head silently, while image-freeze during preset recall prevents visible pan-tilt sweeps on programme output. Up to 255 presets are storable over IP, with 10 accessible from the bundled IR remote. A dual-colour red/green tally with adjustable brightness communicates programme and preview states to on-camera talent.
Operators drive the EAGLE P20-12G-NDI-W through VISCA, VISCA over IP, PELCO-P/D and RS-232/RS-422 serial links, while the FreeD protocol streams tracking metadata straight into AR and virtual-set engines — no external encoders required. The white chassis blends into bright studio cycloramas, concert hall ceilings and corporate boardrooms where black hardware draws the eye.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
EAGLE P20/P30 Series
EAGLE P20/P30 adopts a new ROBOTIC concept appearance & U Type design, more stable and more smoothly in Pan/Tilt move. It will provide users with Real 4K@60 ultra-high-definition video experience with More Really, More Colorful, More Clear.
Equipped with 1/1.8” New Generation Sony 4K High quality Sensor, with 20X/30X multiple Optical Zoom lenses, and abundant Video interface; Support USB3.0、HDMI2.0 and Dual 12G-SDI Video output, and it can support NDI/HX3, which can give User give users the option to join Ultra HD broadcast workflows or transmit low latency UHD video over IP networks; SRT & FreeD Protocol also will be help user in AR/VR filed. And Built-in VISCA/Visca Over IP/ PELCO P/D/ ONVIF communication Protocol to to seamlessly integrate system control applications,
It can be widely used in Broadcast studios, Education recording, Conferences AV, Telemedicine, Remote training, Court trial systems, Emergency command systems, and Sports & Events Streaming.
4K Ultra-High-Definition ultimate picture quality, More Really, More Colorful, More clear
EAGLE P20/P30 Adopt 8.3 Megapixels Sony high quality 4K CMOS sensor, can reach maximum 3840x2160 resolutions and output frame rate up to 60fp &59.94.
20/30X optical zoom lens to capture every detail of what you need
Equipped with a 1/1.8" new generation SONY sensor, a variety of optical zoom lenses such as 20x and 30x can be selected. with Fast zoom and focus capabilities to provide clear and smooth images for user.
Abundant Interface, Max support Dual 12G-SDI video synchronous Video output
Support HDMI 2.0 HD，2*12G-SDI and IP Streaming/NDI output, USB3.0 uncompressed UVC output, optional SDVoE uncompressed network output, and all HDMI, SDI, IP, USB, SDVoE interfaces can synchronous output 4K60 images, Especial UHD800 Dual SDI Video Output design.Multi-channel SDI signal output can be realized without SDI distributor.
Live VR/AR video production
EAGLE P20/P30 supports the FreeD protocol. This enables users to work with Virtual Reality and Augmented Reality sets without the need for additional sensors.
Support multiple communication ways in remote control
EAGLE P20/P30 Built-in Multiple Communication Protocol of VISCA/UDP/ONVIF/PELCO/P, PELCO D/UVC. it can support Communition Control by RS485/RS422/RS232/USB3.0/ IP interface.
More stable and More smoothly & Ultra-silent in Pan/Tilt move
Using high-precision stepping motor with "U" Type Structure design in our Ultra-unique silent Drive, More stable and More smoothly in Pan/Tilt move, Ultra-silent.
Supports the preset freeze function, scene switching
The camera supports the preset freeze function. Users can enable this function and use the preset function to realize free switching of scenes.
Max Support 255 Presets
The camera can setting & call Presets max to 255 presets. (The Remote controller max support 10 Presets), You can freely switch the image at will, even in complex scenes，Don't let you miss every important moment.
IP Streaming in your video production
Support ONVIF, RTSP, RTMP/s, NDI|HX3, SRT protocols, and can be expanded according to user needs.
Double Color Tally Light
The Tally light support 2 kinds of color Red & Green. and the brightness can be adjusted according to customize. Distributed in Front or Behind of Camera.
360° infrared remote control
Supports 360° infrared remote control, no matter what angle or position，the user can freely control the camera through Remote Controller.
Specifications
Model: EAGLE P20-12G
CMOS Sensor: 1/1.8” CMOS
Zoom: 20X
Effective Pixels: 8.3 Megapixels
Video Format: 2160P60/59.94, 2160P50, 2160P30/29.97, 2160P/25, 1080P60/59.94, 1080P50, 1080P30/29.97, 1080P25, 1080i60/59.94, 1080i50, 720P60/59.94, 720P50
Optical Zoom: 20x Optical Zoom, 12X Digital Zoom
Focal Length: f=7.1~141.3mm
HFOV: 3.6°(T) ~59.2°(W)
Iris: F1.61 ~ F5.19
Min Illumination: 0.05 lux (F1.61)
Digital Noise Reduction: 2D&3D Noise Reductio
White Balance: Manual/Auto/Indoor/outdoor/One Push//3000K/4000K/5000K/6500K/ATW
Focus mode: Manual/Auto/Z- Trigger
Iris mode: Manual/Auto
BLC: 1-8/OFF
Picture adjustment: Brightness, Hue, Saturation, Contrast, Sharpness

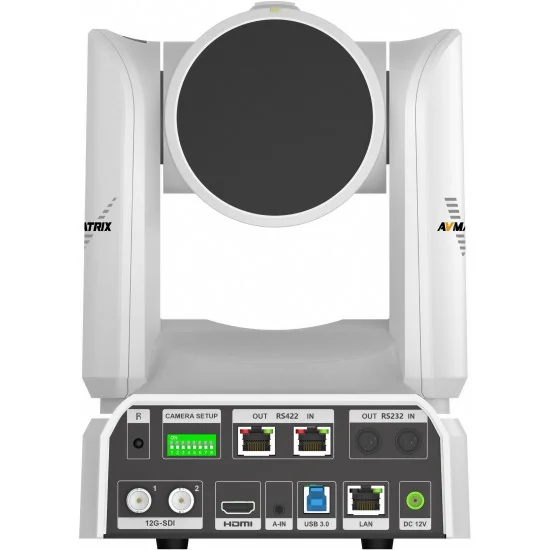

Video Output Interface: HDMI2.0, 12G-SDI*2, RJ45, USB3.0
Video Compression Format: H.264, H.265, MJPEG
Control interface: 1X RS232 IN, 1X RS232 Out, 1X RS422 IN, 1X RS422 Out , 1X RJ45
Control Protocol: VISCA /PELCO-D / PELCO-P, VISCA OVER IP, ONVIF, UVC（only for USB interface）
Baud Rate: 2400/4800/9600/19200/38400bps
Audio Input: Dual channel 3.5mm line input
Audio Compression: ACC, G711A, G711U
Network Interface: 1000M Internet Access(10/100BASE-TX)
Network Protocol: RTSP, RTMP, ONVIF, SRT, GB28181, VPN
NDI Protocol: NDI|HX3
Power Interface: DC-038 Outlet(DC12V)
Pan Rotation Anglee: -175°~+175°
Tilt Rotation Angle: -30°~+90°
Horizontal rotation speed range: 0.1~100°/s
Vertical rotation speed range: 0.1-80°/s
Presets: Max Support 255 Presets
Power Adapter: AC100V~AC240V Input, DC12V/2A Output
Input Voltage: DV12V
Power Consumption: 15W(MAX)
Storage Environment: -10°C ~ +60°C / 20% ~ 95%
Working Environment: -10°C ~ +50°C / 20% ~ 80%
