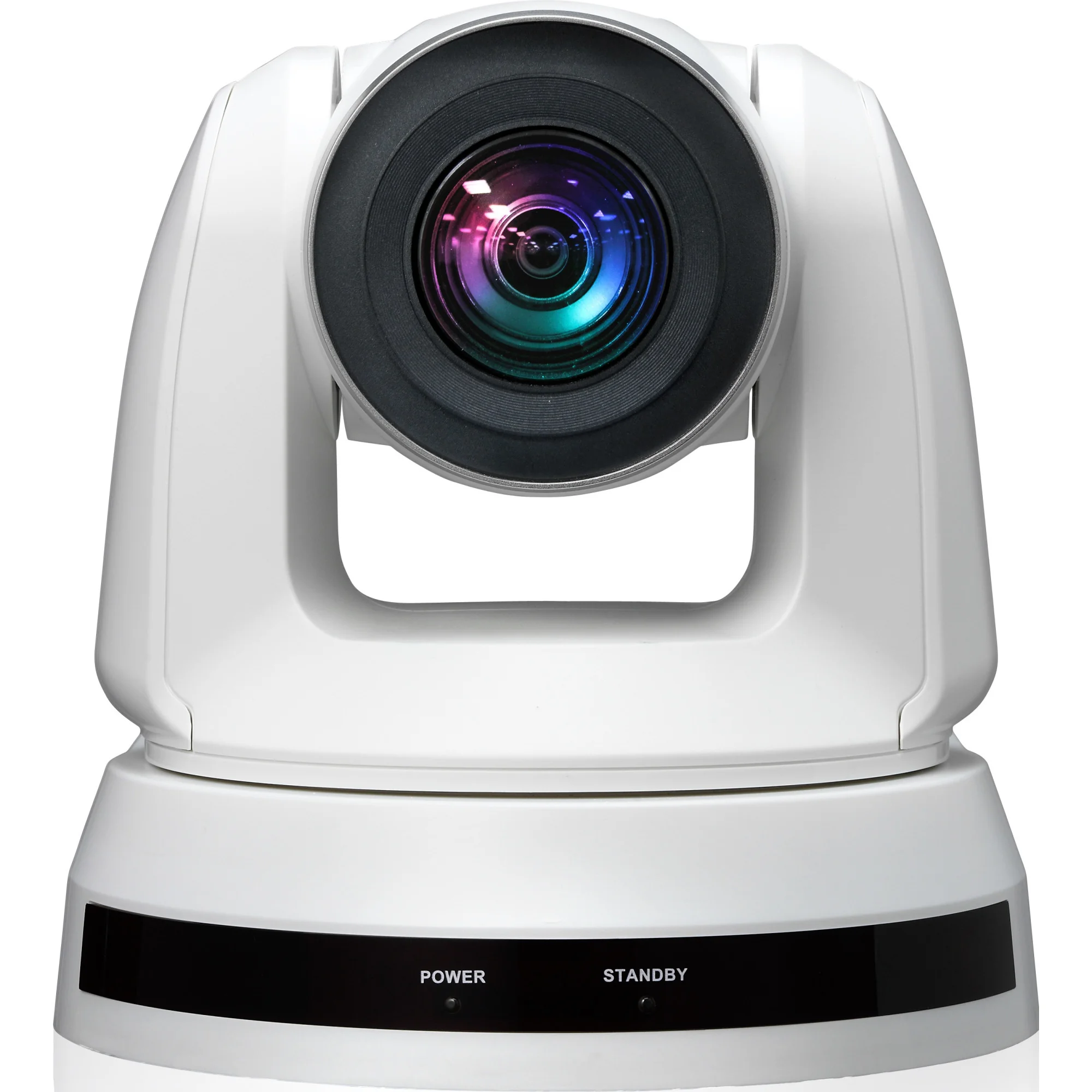

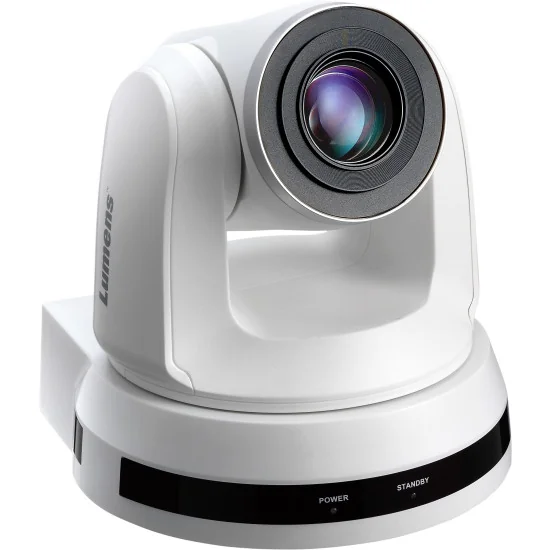

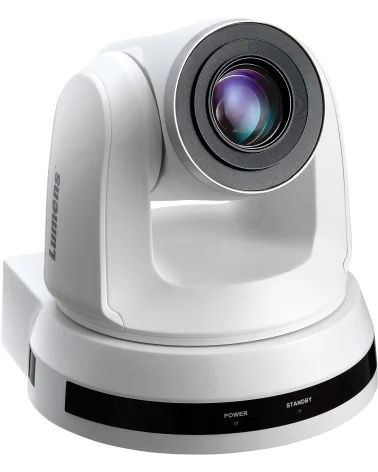

Lumens VC-TA50 White Auto-Tracking PTZ Camera

Lumens VC-TA50 White Auto-Tracking PTZ Camera

Name: Lumens VC-TA50 White Auto-Tracking PTZ Camera
Brand: Lumens
SKU: VC-TA50-W
Price: 1979.00 EUR
Availability: InStock

MPN: VC-TA50-W

Price: €1,979.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

A production manager specifying cameras for repeatable presenter capture needs more than a generic conferencing unit. The Lumens VC-TA50 White is a Full HD auto-tracking PTZ camera with a 1/2.8" 2.16 MP CMOS sensor, 1080p60 output and 20x optical zoom, so a control room can cut between a full-room view and a precise speaker shot without digital enlargement. Its white body suits bright interiors, lecture rooms and corporate spaces where black hardware would visually dominate the installation.

The camera follows a presenter through AI human detection, Auto Framing and Smart AF, keeping the face sharp while the speaker turns toward a display, writes on a board or moves across a training stage. Everywhere mode tracks free movement, Stage mode follows pan movement inside a defined area, and Partition mode recalls a preset angle and zoom for selected zones. A 57° horizontal angle of view, F1.6–F3.8 aperture, 1.0 lux sensitivity, WDR, 3D noise reduction, image flip and 300°/s pan/tilt motion give AV integrators practical control over ceiling, wall or desk installations.

Video and network paths are ready for mixed AV systems. 3G-SDI, HDMI and Ethernet can be used together for a switcher, confidence monitor, recorder, encoder or lecture-capture appliance. IP streaming includes H.264/MJPEG with RTSP, RTMP, RTMPS, MPEG-TS and SRT, which makes the VC-TA50 useful for OBS production, managed streaming platforms, hybrid events and remote contribution links. PoE+ via IEEE 802.3at reduces cable runs, while line/mic input and embedded audio over Ethernet, SDI or HDMI keep the audio hand-off simple.

For controlled productions, RS-232, RS-422 and Ethernet control are supported alongside VISCA, VISCA over IP, PELCO-D and ONVIF. Operators can store 128 presets, use IR commands for room-side operation, trigger tally indication via system control and send FreeD data to AR/VR environments. The result is a Lumens VC-TA50 White camera that suits lecture capture, corporate training, presentation studios and multi-camera live switching where consistent framing, technical reliability and lower staffing load have direct business value.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

HD PTZ Camera with Multiple Tracking Modes, 20x Zoom and PoE+
- AI-Powered Human Face Recognition
- Three Tracking modes with auto framing
- 1080P 60fps with 20x Optical Zoom
- HDMI, SDI, and Ethernet simultaneous output
- Supports RTSP / RTMP / RTMPS / SRT

Everywhere Tracking Mode
The camera will follow wherever the presenter goes. You can simply change the tracked subject by clicking on the individual via the web interface

Partition Tracking Mode
When the presenter moves inside a user-defined Partition Area, the camera switches to a preset angle and zoom. When outside a Partition Area, the camera autonomously follows the presenter.

Stage Tracking Mode
When inside the Tracking Area, the camera follows the presenter with only a pan (left-right) movement. When the presenter moves outside the Tracking Area, the camera stops following.

Smooth Pan-Tilt-Zoom Movement
Whether in auto-tracking or manual mode, VC-TA50 offers a smooth pan, tilt, and zoom movements. The speed of camera movement can be set to meet the needs of each production.

Smart AF
The Smart AF feature keeps the presenter’s face in sharp focus even when they move across a stage. This advanced feature delivers fast, reliable, and accurate focusing performance.

Specification:
Sensor: 1/2.8" 2.16 MP CMOS
Video Format: 1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 , 1080i : 60 / 59.94 / 50 , 720p : 60 / 59.94 / 50
Video Output (HD) Interface: 3G-SDI / HDMI / Ethernet
Optical Zoom: 20x
Viewing Angle: 57° (H) / 32.1° (V) / 65.4° (D)
Aperture: F1.6~F3.8
Focal Length: 5.33mm~110mm
Shutter Speed: 1/1 ~ 1/10,000 sec
Minimum Object Distance: 1.5m (Wide/Tele)
Video S/N Ratio: > 50dB
Minimum Illumination: 1.0 lux (F1.6, 50IRE, 30fps)
Focus System: Auto / Manual / Smart AF
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
AR/VR Systems: FreeD
Tally Light: Yes
Auto-Tracking: Everywhere / Stage / Partition
Auto Framing: Yes
Panning Angle: +170 ~ -170°
Panning Speed: 300°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 300°/sec
Preset Positions: 128
HDMI / 3G-SDI: 1080p60
IP Stream: First : H.264 1080p 60fps , Second : H.264/MJPEG D1 30fps
IP Compression: H.264 / MJPEG
IP Protocol: RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE: PoE+ (IEEE802.3at)
Audio Input: Line In / MIC In
Audio Output: Ethernet / SDI / HDMI
Audio Compression Format: G.711

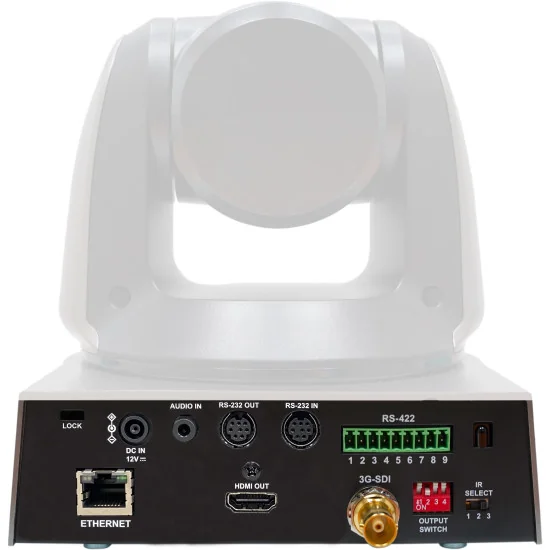

Interface: RS-232 / RS-422 / Ethernet
Protocol: VISCA / VISCAIP / PELCO D / ONVIF
IR Pass-Through: Yes
IR Receiver: Yes
IR Remote Control: Yes
DC In: 12V +/- 20%
Power Consumption: PoE : 18.5W , DC In : 17W
Body Color: Black / White
Weight: 4.4 lbs (2 kg)
Dimensions: 6.9" x 7.3" x 7.3" , (174 x 186 x 187mm )

Reference VC-TA50-W

Data sheet

Video Output: HDMI
RJ-45 (IP)
SDI
Audio Input: Mini Jack 3.5mm
Audio Output: HDMI Embedded
RJ-45
SDI Embedded
Max Output Resolution: 1080p 50/60 fps
Control protocol for PTZ cameras: ONVIF
PELCO-D
RS-232
RS-422
VISCA
VISCA IP
Network Connection: Ethernet
Sensor Size: 1/2.8"
Optical Zoom: 20x
PoE Technology: Yes
Auto-Tracking: Yes
Tally Light: Yes
