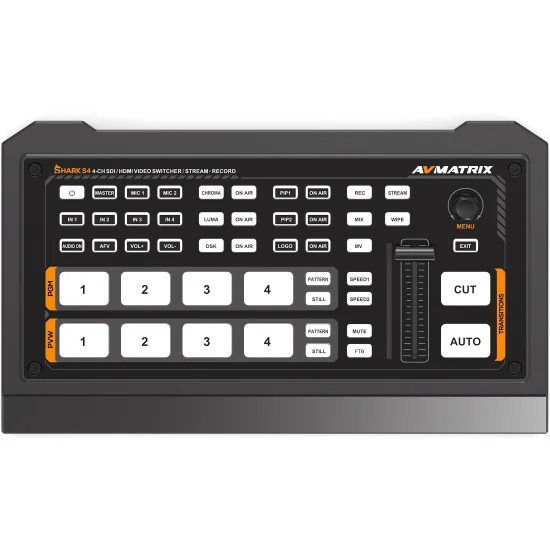

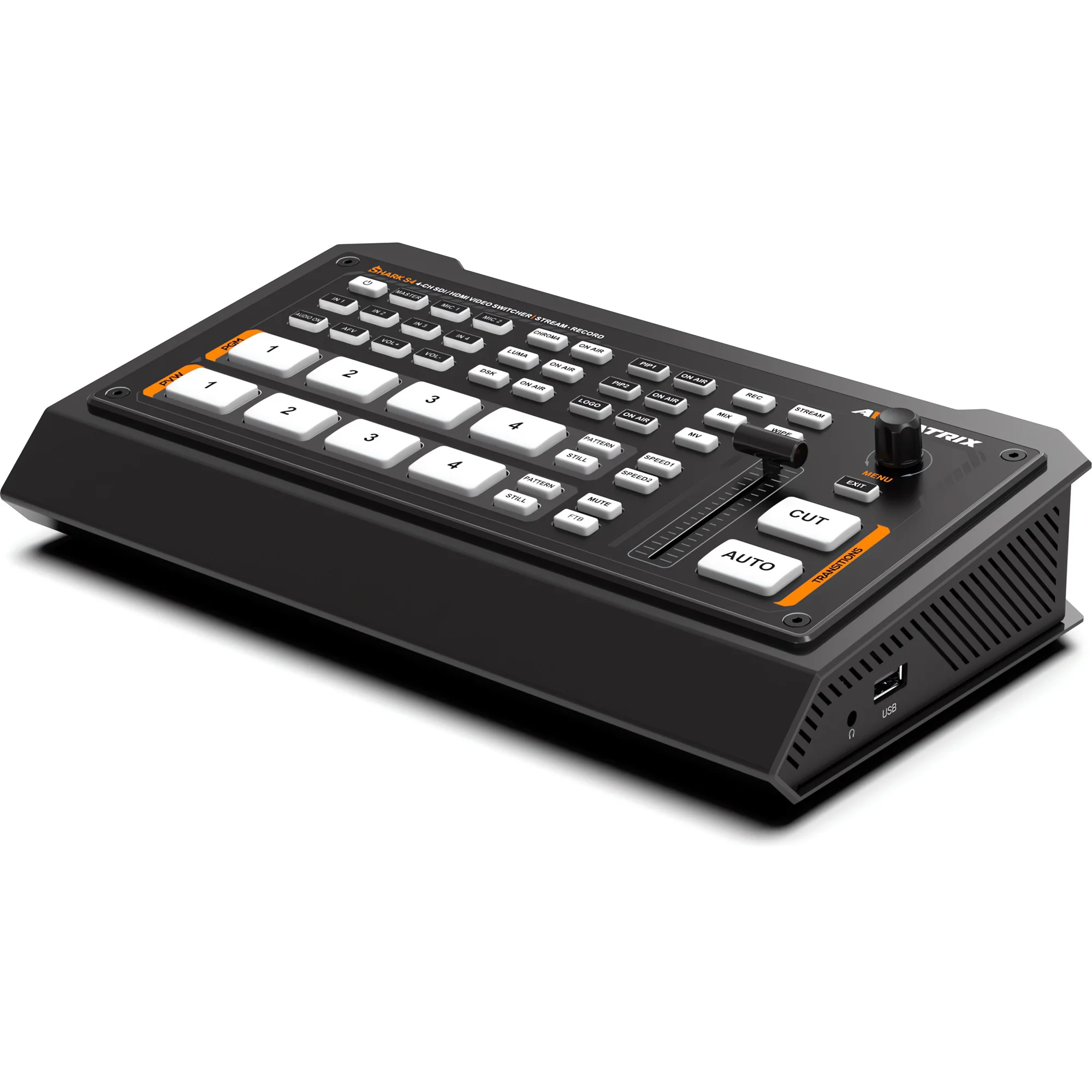

AVMATRIX Shark S4 Streaming Video Mixer
SHARK S4
Price: €595.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Four inputs — two 3G-SDI and two HDMI — feed the AVMATRIX Shark S4, a metal-chassis 4-channel video switcher that combines multi-camera live switching, audio mixing, streaming, and recording in one compact unit. Automatic format detection accepts signals up to 1080p60, and a built-in scaler reconciles mismatched resolutions and frame rates on the fly, so cameras and playback devices can be combined without manual reconfiguration.
Two HDMI program outputs, one HDMI multiview feed, a USB Type-C capture port, and an RJ45 LAN streaming connection give production crews multiple delivery paths simultaneously. The Type-C port acts as a UVC device on Windows, macOS, and Linux — instantly recognized by OBS, vMix, Zoom, Microsoft Teams, or any software that reads a webcam source, which simplifies hybrid events and remote consultations. The LAN port streams via RTMP, RTMPS, or SRT at bitrates from 2 to 32 Mbps (CBR/VBR), reaching YouTube, Twitch, Facebook Live, or private media servers without an external encoder.
Tactile control comes from a physical T-bar, AUTO, and CUT buttons working alongside 33 wipe patterns, mix, dip, and fade-to-black transitions. An upstream luma key, chroma key, two picture-in-picture windows, POP mode, one downstream key, and a logo overlay provide enough compositing layers for lower thirds, sponsor graphics, and green-screen talent — all within a single production. The integrated six-channel audio mixer blends embedded audio from every input with two external 3.5 mm mic/line sources, while adjustable audio delay maintains lip-sync accuracy.
Simultaneous recording to USB drive or SD card captures the program in MP4 or TS format, with segment lengths from one minute to two hours and FAT32, exFAT, or NTFS support. A built-in media library holds 39 preset patterns, 16 imported images, 16 captured stills, and two colour generators — ready for slides, test cards, or branded holds between segments. The DB-15 GPIO tally output ties into standard broadcast tally systems for on-air and preview indication. From a four-camera church service to a corporate webinar, a small television studio, or a live e-sports broadcast, the AVMATRIX Shark S4 manages signal routing, compositing, and distribution from one self-contained surface.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
SHARK S4 is a compact design 4-channel HDMI&SDI multi-format video switcher with metal housing. It supports various functions including LAN streaming, recording, video switching, audio mixing, PGM/multiview/ Aux out, different transition effects, Luma Key, Chroma Key, DSK, LOGO, PIP/ POP, media library, etc. Inputs support multi-format while,output can be scaled and configured.Enjoy flexible live streaming and recording options with this unit. Stream directly over the Ethernet or USB, and record to USB disk or SD card, all at up to 1080P resolution and 32Mbps bitrate. Users can also customize different settings and import or export the configuration quickly for various scenarios. It’s a powerful and professional video switcher for your choices.
Main Features
- 2×HDMI & 2x3G-SDI inputs, support auto-detected
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- RTMP/SRT stream via Ethernet
- USB disk/ SD card recording
- AUX output configurable and assignable
- USB-C for capturing and streaming on PC
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×3 patterns) / MIX/ DIP
- Audio mixer: 2×HDMI, 2×SDI embedded audio and 2-Ch MIC in; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- Customer configuration import and export
- Broadcast video monitoring,FTB/ MUTE/ STILL/ GPIO for tally
SPECIFICATION
CONNECTION
Video In: HDMI ×2, SDI ×2
Video Out: HDMI PGM ×2 , HDMI Multiview ×1 , USB Capture: USB type-C ×1 , Streaming: LAN ×1
Audio In: MIC/ Line level (3.5mm stereo audio) ×2
PC Control: Port LAN ×1
Media Library: USB type-A ×1 (USB disk port for image import and firmware upgrade)
Tally Port: DB-15 ×1
Power In: DC 12V ×1
STREAM&REC
Bitrate: 2M~32Mbps
Rate control: CBR/VBR
Control protocols: RTMP, RTMPS,SRT
REC SD card format: FAT32/exFAT/NTFS
REC U disk format: FAT32/exFAT/NTFS
REC File segment: 1/5/10/20/30/60/90/120mins
FUNCTIONS
Transitions: T-Bar/AUTO/ CUT
Effects Wipe: (11×3 patterns)/ Mix/ DIP/ Still(freeze)/ MUTE/ FTB
Layouts: 2 styles of Multiview layout (6 windows and status)
Keys: Upstream Key: Luma Key ×1/ Chroma Key ×1/ PIP ×2/ POP , Downstream Key: DSK ×1/ Logo ×1
Audio Mixer: HDMI×2, SDI×2 and MIC/ Line level ×2; Audio delay: 0-500ms
Media: Default image: 39 preset patterns , Local image: up to 16 imported images , Capture image: up to 16 captured images
Generators: Pattern generator ×1 , Color generators ×2
STANDARDS
HDMI In Format Support: 1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98 , 1080i 50/ 59.94/ 60 , 720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98 , 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
HDMI PGM Out: 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Multiview Out: 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Color Space: RGB/ YUV
SDI In Format Support: 1080p 60/59.94/50/30/29.97/25/24/23.98 , 1080psF 30/29.97/25/24/23.98 , 1080i 60/59.94/50 , 720p 60/59.94/50/30/29.97/25/24/23.98 , 625i 50 PAL, 525i 59.94 NTSC
SDI Color Space: YUV
USB Capture: Out Up to 1080p 60
Media Format: USB disk format support: FAT32, Ext3, Ext4, up to 256GB , Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga , Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga , Logo size support: 10×10 pixel to 600×600 pixel
OTHERS
Power: Wide voltage: 7~24V; Operating power:16.8W (12V 1.4A)
Dimension (LWD): 244.5×143.2×44.5mm
Weight: Net: 1009.5g, Gross: 1360g
Temperature: Working: -20℃~60℃, Storage: -30℃~70℃
Accessories: Power supply (12V 2A) ×1; USB cable (type A-C) ×1; Tally connector (DB-15) ×1
SHARK S4
14 Items
Data sheet
- Video Input
- HDMI
SDI - Video Output
- HDMI
RJ-45 (IP)
USB - Audio Input
- HDMI Embedded
Mini Jack 3.5mm
SDI Embedded - Audio Output
- HDMI Embedded
Mini Jack 3.5mm
RJ-45
USB - Max Output Resolution
- 1080p 50/60 fps
- Built-in scaler
- No
- Streaming protocols
- RTMP
RTMPS
SRT - Network Connection
- Ethernet
- Video input channels
- 4
- USB video capture
- Yes
- Tally Light
- Yes
Specific References
- ean13
- 6971118002405
- mpn
- SHARK S4
