AVMATRIX SHARK S6 PLUS Video Streaming Mixer

AVMATRIX SHARK S6 PLUS Video Streaming Mixer

Name: AVMATRIX SHARK S6 PLUS Video Streaming Mixer
Brand: AVMATRIX
SKU: SHARK S6 PLUS
Price: 1299.00 EUR
Availability: InStock

MPN: SHARK S6 PLUS

Price: €1,299.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

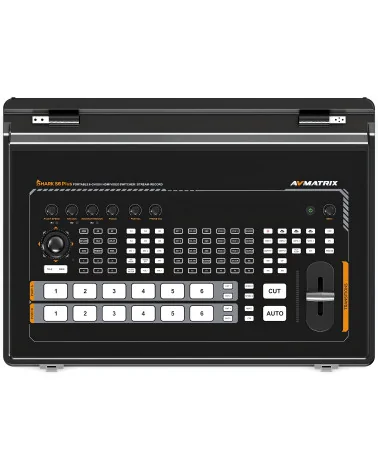

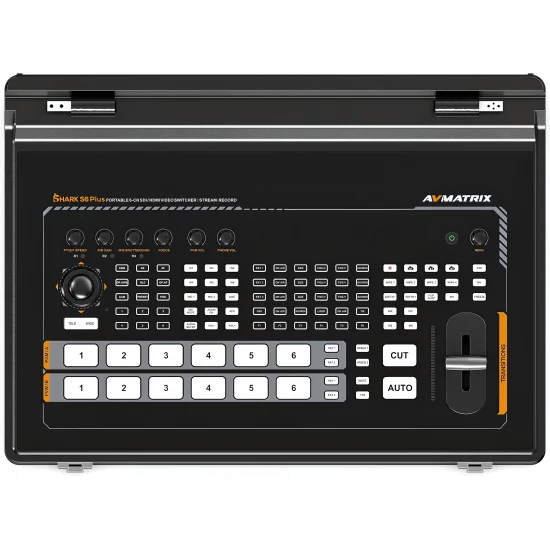

AVMATRIX SHARK S6 PLUS is a portable live switcher that merges a bright 17.3-inch (43.9 cm) FHD IPS touchscreen with tactile preview/program operation for multicam crews. Sources connect via 4× 3G-SDI and 2× HDMI 2.0 (accepting up to 4K60), then are aligned for clean Cut/Auto/T-bar transitions, wipes and DVE moves with stable timing for IMAG and broadcast cueing.

Output routing matches real sets: 2× HDMI PGM and 4× SDI PGM are configurable, plus an HDMI multiview where any input can be mapped to any window for rapid operator orientation. The Ethernet encoder pushes RTMP straight to CDNs (YouTube Live, Facebook Live or private endpoints), while internal capture records PGM to SD card or USB storage as MP4/TS, up to 1080p60 at 32 Mb/s with CBR/VBR rate control.

Compositing covers corporate and TV graphics: chroma key, luma key, DSK, logo overlay and 3× PiP with adjustable size/position for speaker+slides, panel shows, product demos or replay inserts. Still/graphic import supports JPG/PNG/BMP up to 1920×1080, and logo files up to 650×650 pixels. Audio runs through an 8-channel mixer (6 embedded + 2 analogue) with AFV, a selectable 500 ms audio delay, 2× XLR/TRS balanced inputs with 48 V phantom power, 3.5 mm line input, balanced XLR outputs, 3.5 mm line out and headphone monitoring.

For software workflows, the USB-C UVC output delivers uncompressed capture up to 1080p60 (RGB32/YUY2/NV12), feeding OBS, vMix and conferencing apps without an external capture card. Integrated PTZ control runs up to six cameras over LAN or RS-232/RS-485 using VISCA, ONVIF and Pelco D/P, with presets and speed control. Add macro playback (up to 20), tally GPIO for camera indicators, and wide-range 9–24 V DC power for flypacks. SHARK S6 PLUS fits worship production, corporate town halls, eSports, lecture capture and rental inventories where SDI distribution and a laptop-ready UVC feed are both required.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

6CH SDI/ HDMI PORTABLE VIDEO SWITCHER
Revolutionize your live streaming with the Video Switcher, the all-in-one solution for live streamers.

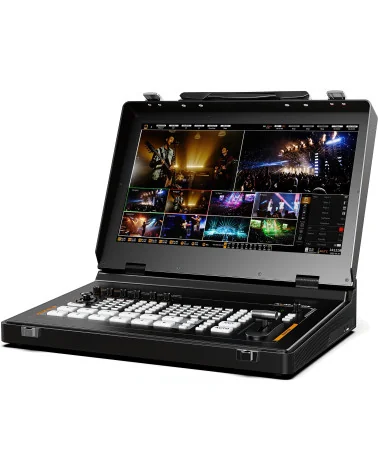

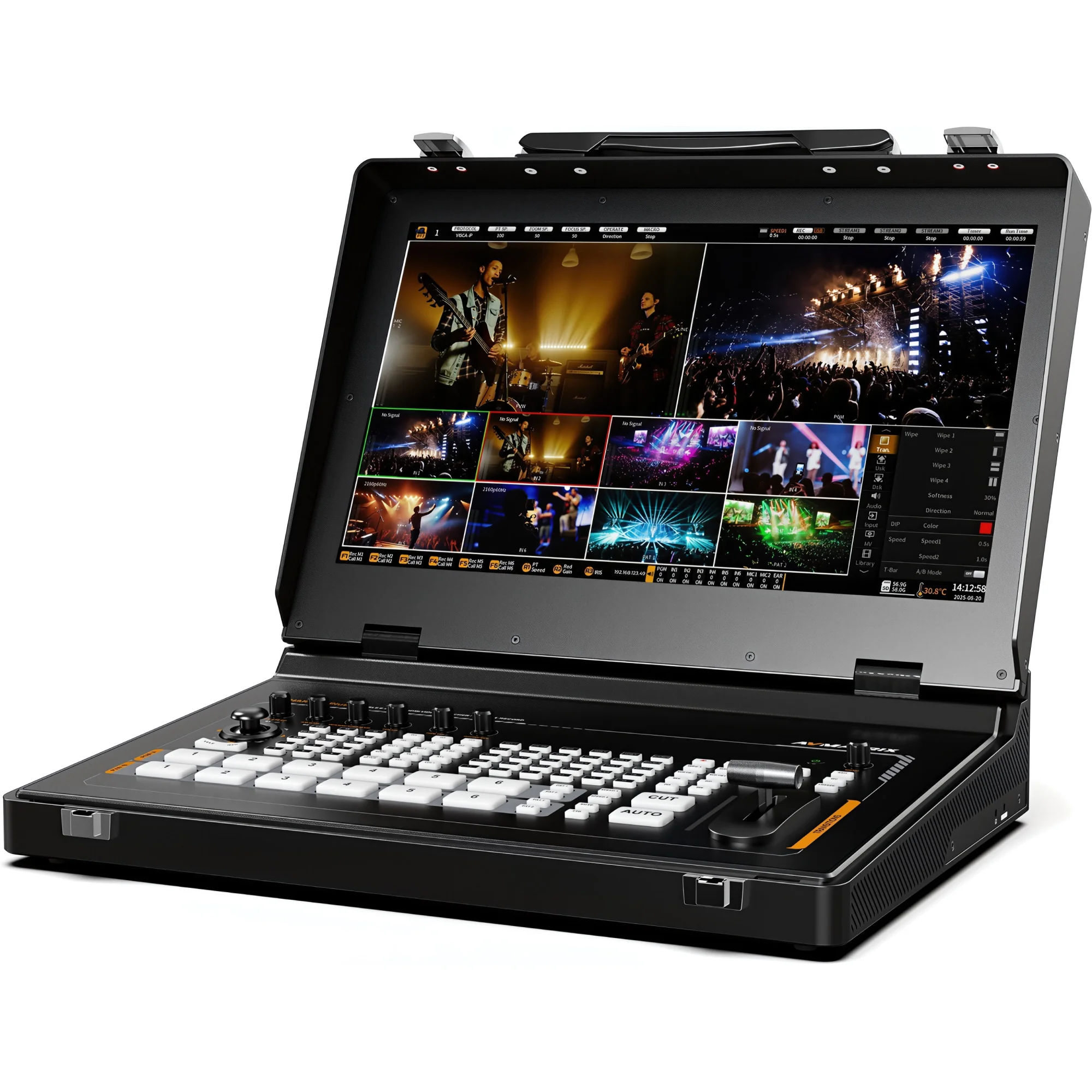

17.3 " FHD IPS Screen
A built-in 17.3-inch FHD IPS screen that clearly displays PVW, PGM, audio bar, multiview, audio settings, PTZ camera settings, FN key configurations, etc.

Versatile Inputs and Outputs
This switcher supports 6 inputs (4 SDI, 2 SDI/HM) and 7 flexible outputs (2 HDMI, 4 SDI, 1 multiview), handling up to 4K60 HDMI signals. It allows flexible source selection and configuration, ensuring high adaptability for professional production.

Convenient PTZ Control
The switcher features a PTZ controller supporting pan, tilt, zoom, and gain via RS232/RS485 and LAN. It controls up to 6 IP cameras and supports VISCA, ONVIF protocols.

Professional XLR Audio and 48V Phantom Power
The switcher features professional XLR input/output, supporting XLR, TRS, also it comes with 48V phantom power for condenser mics. User can configurate AFV, audio mixing and 500ms audio delay, making it ideal for professional productions.

Advanced Keyer Functions
The switcher integrates 3 powerful upstream keys for users to configure PIP, LUMA Key, Chroma Key freely and DSK, logo overlay. Position and size of these keys can be easily adjusted through the buttons or menu knob.

Build-in Recording
This switcher supports 1080p60 recording at up to 32Mbps via SD card, USB, offering professional-grade storage in MP4 and TS formats for seamless workflow integration.

Uncompressed USB Capture
The USB Type-C port functions can be used as a webcam, supporting uncompressed video and audio capture.It streams to various software and platforms including OBS, MIX, ZOOM, Teams, and VLC, and is compatible with Windows, Linux, and Mac systems. Capture Support RGB32, YUY2, NV12.

Live Stream Via LAN Port
The LAN port supports IP streaming transmission through the RTMP protocol, allowing users to easily live stream video programs to platforms such as YouTube, Skype, Facebook, and Twitch, and get high-quality videos.

Streamline Your Production with Macro
Users can execute recorded macros to replay a series actions with a single click, streamlining complex operations and boosting live production efficiency and professionalism.

Extensive Applications
All-in-one audio video switchers can be used in a wide range of live events such as live sports, virtual studios, churches, home entertainment, weddings, concerts, etc.

SPECIFICATIONS

CONNECTIONS
Video In: 3G-SDIx6, 4K HDMI×2
Video Out: HDMI(A/B, PGM)×2, SDI(A/B, PGM)x4, HDM|(Multiview)×1, USB-C(UVC)×1
Audio In: XLR/TRS×2, +48V phantom power, 3.5mm TRS(Line)x1
Audio Out: XLR× 2, 3.5mm TRS(Line)x1, 3.5mm TRS(Earphone)×1
Network Port: LAN×1(Stream, PC control, PTZ control, Upgrade)
USB Port: USB type-Cx1(For Capture), USB type-Ax1(For Record, Configuration/Media Import/Export)
Tally Port: DB-15x1
Serial Port: RS232/RS485x1, PTZ camera control
Record Port: USB disk slot×1, SD card slotx1

STANDARDS
SDI Inputs:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080psF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50
525i 59.94
HDMI Inputs:
4K 60/50/30
2K 60/50/30
1080p 60/59.94/50/30/29.97/25/24/23.98
720p 60/59.94/50/30/29.97/25/24/23.98
576p 50
480p 60/59.94
SDI Outputs:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
HDMI Outputs: 1080p 60/59.94/50/47.95/48/30/29.97/25/24/23.98, 1080i 60/59.94/50
Video Sampling: SDI: YUV 4:2:2 10bit; HDMI: YUV, RGB full, RGB limit
Color Space: SDI&HMI: Rec 709. Rec 601

STREAM & RECORD
USB Capture Out: YUY2, NV12, RGB32, Up to 1080p60 (Max 200Mbps)
Supports OS: Windows 7/8/10/11, Linu(Kernel version 2.6.38 and above), Mac OS(10.8 and above)
Software compatibility: OBS studio, Skype, ZOOM, Teams, Youtube Live, etc.
Stream: Bite rate: Up to 32Mbps
Record:
Storage format: USB disk, SD card
File format: MP4/TS, Up to 1080p60(32Mbps)
Rate control: CBR/VBR
Protocol:
Push Stream: RTMP
PTZ control: Visca. Onvif Pelco D/P

MEDIA
Media Format: Video: MP4, TS
Image: JPG, PNG, BMP, JPEG, Max 1920×1080 pixels
Logo: JPG, PNG, BMP, JPEG, Max 650x650 pixels

FEATURES
Display: 17.3 inch FHD LCD display
Macro: 20, Support record and playback
Keys: Up to 6 overlay, Adjustable size and position
1. Upstream Keyx3: Chroma Key/Luma Key/PIP
2. Downstream Keyx1: DSK ×1
3. Logo ×1
Audio Mixer: Up to 8 channel audio mixer (Videox 6 + XLR/TRS×2)

POWER & OTHERS
Power: Wide Voltage Support: 9V - 24V; Working: DC 15V, 50W max
Temperature: Working: 0°C~60°C, Storage: -30°C~70°C
Dimension(LWD): 433×307×75.5mm
Weight: Net: 5240g

Reference SHARK S6 PLUS

Data sheet

Video Input: HDMI
SDI
Video Output: HDMI
RJ-45 (IP)
SDI
USB
Audio Input: HDMI Embedded
Mini Jack 3.5mm
SDI Embedded
TRS Jack 6.3mm
USB
XLR
Audio Output: HDMI Embedded
Mini Jack 3.5mm
RJ-45
SDI Embedded
USB
Max Output Resolution: 1080p 50/60 fps
Output colour sampling: YUV/YCbCe/YPbPr 4:2:2 10-bit
Built-in scaler: No
Control protocol for PTZ cameras: ONVIF
PELCO-D
PELCO-P
VISCA
VISCA IP
Streaming protocols: RTMP
Network Connection: Ethernet
Video input channels: 6
USB video capture: Yes
Tally Light: Yes
Screen Size: 17.3"
