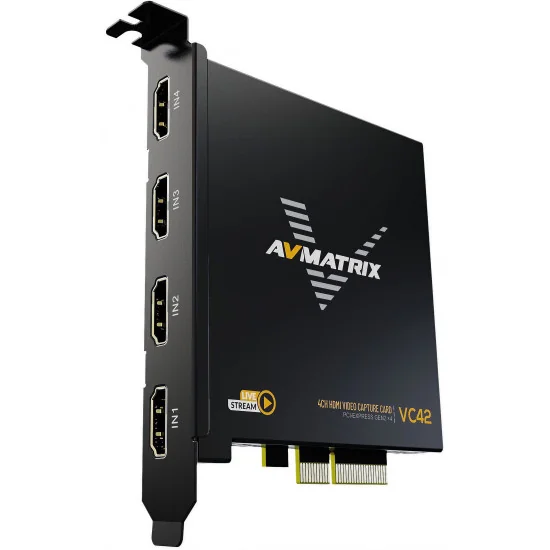

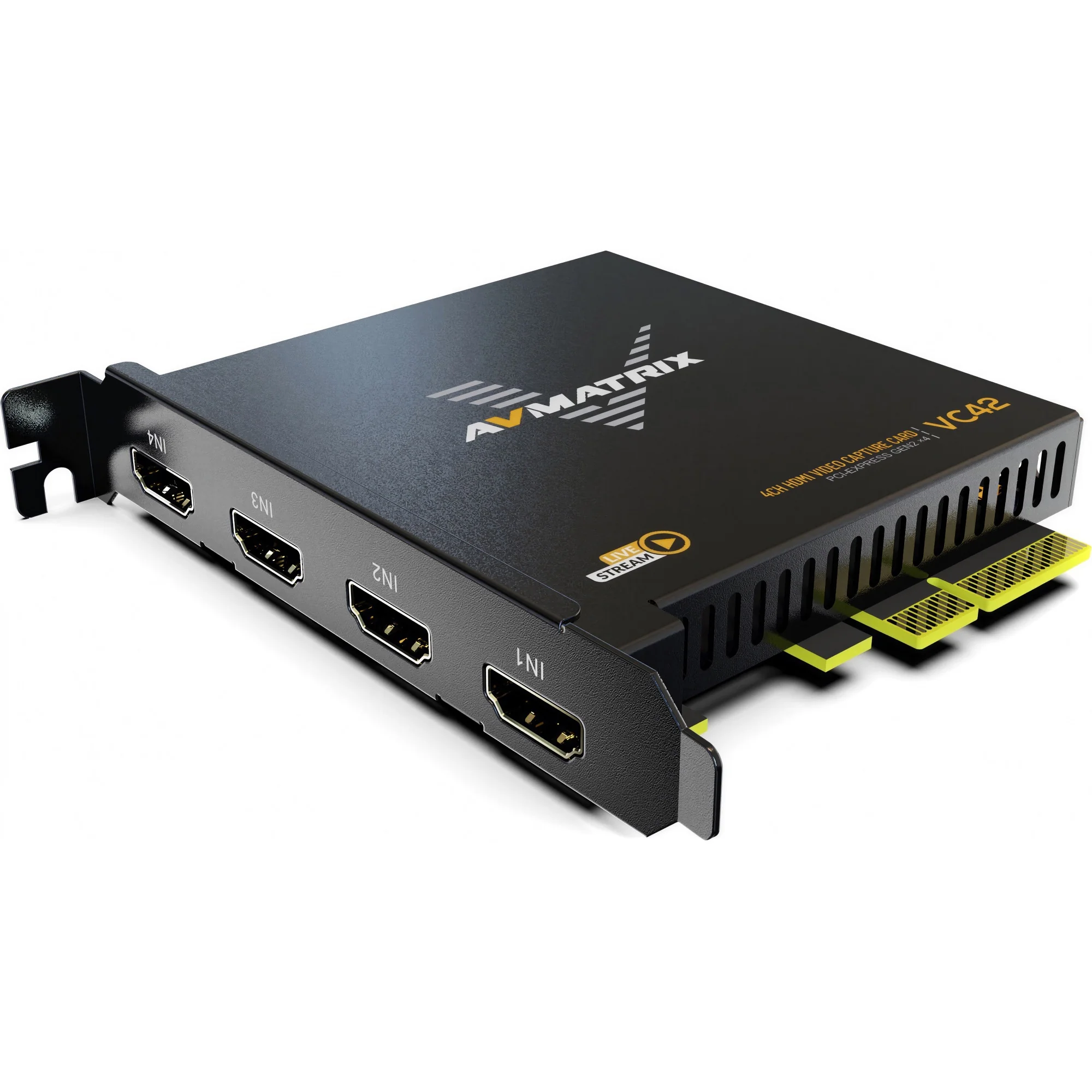

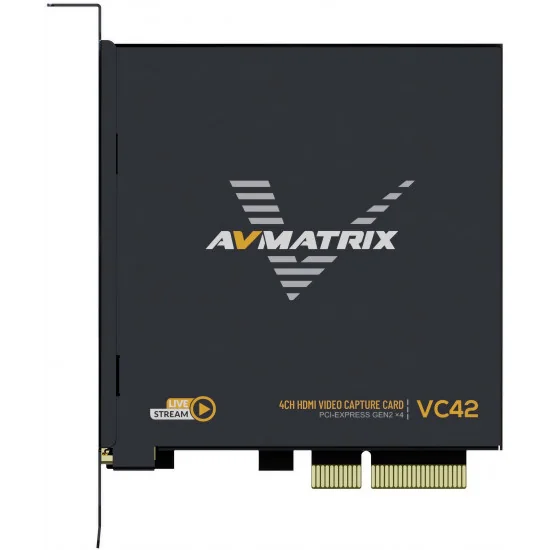

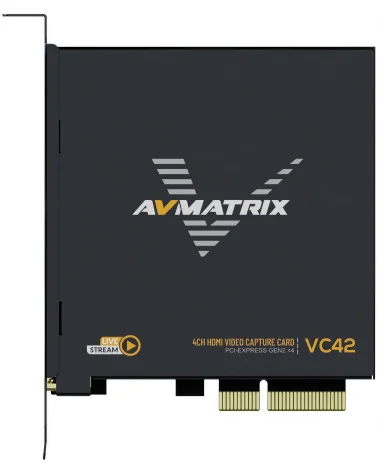

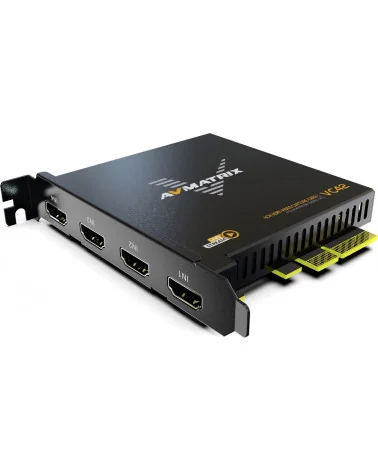

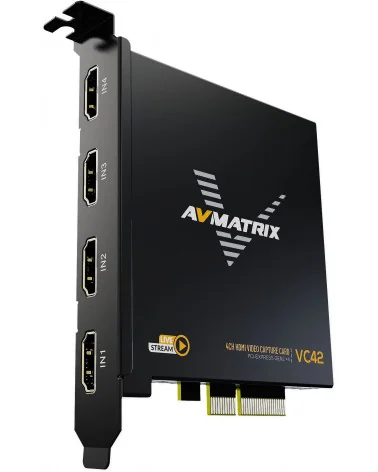

4-CHANNEL HDMI PCIE CAPTURE CARD

• 4-channel HDMI 1.4 simultaneous input and capture
• Input and capture up to 1080p60 with bit rates up to 200Mbps
• Support YUY2 uncompressed video
• PCIE GEN2 x4, 2.5GB/S transfer bandwidth
• Support portrait and landscape mode
• Compatible with Windows 7 and above, Linux 18.04 and above
• Compatible with OBS/potplayer/Split and other live recording software
• Stable operation, 24 hours non-stop work
• Support one machine with multiple cards working simultaneously

HDMI 1.4 Simultaneous Input And Capture
Support 4 channels of HDMI signal source input, connected to 4 HDMI interface devices, such as game consoles, cameras, switchers, etc., and multiple PCIE capture cards can be installed on a single PC, support multiple devices running simultaneously to achieve simultaneous live streaming on multiple platforms.

1080p60 FHD-Recording
The PCIE capture card provides more superior performance, single-channel input and capture up to 1080p60 with bit rates up to 200Mbp, YUY lossless compression HD video capture, capture HD uncompressed video in real time, providing true picture quality to the extreme.

Portrait And Landscape Mode
Support portrait and landscape mode, it can be customised and adjusted in the settings for flexible application to various scenarios.

Specs.

CONNECTIONS
Host Interface: PCIE2.0x4, 2.5GB/s transfer bandwidth

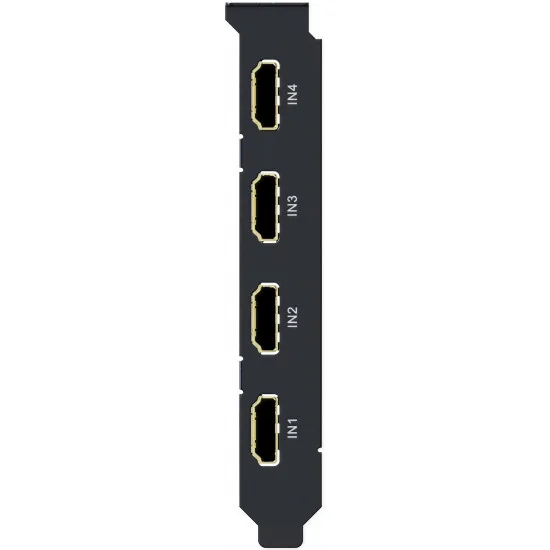

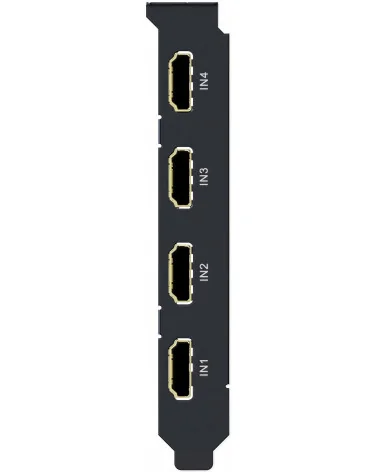

Video Interfaces: 4xHDMI1.4 inputs

STANDARDS
Capture Format: 1920×1200, 1920×1080, 1600×1200, 1600×900, 1440×900, 1280×1024, 1280×800, 1280×720, 1080×1920, 1024x768, 800x600, 720×576, 720×480 - 60fps
1920×1080, 1280×720, 1080×1920 - 59.94fps
1920×1080, 1280×720 - 50fps
1920×1080, 1280×720, 1080×1920, 800×600, 720×576, 720×480 - 30fps
1920×1080, 1280×720, 1080×1920 - 25fps
Capture Color Space: YUY2, uncompressed
Audio Capture: 4xHDMI embedded audio capture
Audio Codec: 16 bit PCM, 48kHz, 1536kbps
Other Features: Support 1080i hardware de-interlacing, 3D noise reduction algorithm

SUPPORTS
Device Support: Support XBOX, PS4, SWITCH, Video palyer, TV box and media box, etc.
OS Support: Windows 7 and above, Linux 18.04 and above
Software Compatible: OBS, Split, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any other DirectShowV4L2/ AVCapture Session encoding/streaming software
APIs Support: Windows(DirectShow, DirectSound/WASAPI), Linux(V4L2, ALSA)

OTHERS
Power consumption: ≤2.0W
Temperature: Operating temperature: 0°C~60°C, Storage Temperature: -20°C~70°C, Relative Humidity: 5%~90% non-condensing
Dimension: 120.1 × 88.4 × 21.6mm
Weight: Net weight: 150g, Gross Weight: 195g
