Magewell Pro Capture Quad SDI (11090) Video Capture Card
€865.00
Pro Capture Quad SDI is Magewell’s flagship 4-channel SDI capture card for demanding broadcast, live-streaming and post-production pipelines....
Magewell Eco Capture HDMI 4K M.2 is a single-channel HDMI capture card for embedded and space-limited systems that still need dependable ingest quality. It connects through M.2 2280 Type M over PCIe Gen2 x4, which makes it a practical choice for compact production PCs, rack computers, portable flypacks, vision appliances, conference processors and custom streaming platforms where there is no room for a full-height card. The unit accepts one HDMI signal with embedded audio and supports input resolutions up to 4096×2160, so it fits DCI 4K, UHD and HD integration scenarios in broadcast, live events, lecture capture and corporate AV.
What matters in daily operation is not only resolution, but signal discipline. This card automatically detects the incoming format, handles color format conversion, scaling, de-interlacing and frame-rate conversion, and supports RGB and YCbCr colour spaces including 601, 709 and 2020. Capture formats include 4:2:0, 4:2:2 and 4:4:4 8-bit, which gives system builders and software teams more freedom when matching ingest quality to codec, CPU load and archive targets. In practice, that means clean acquisition from PTZ cameras, mirrorless cameras, media players, presentation systems or stage processors without forcing unnecessary external conversion.
The Eco Capture HDMI 4K M.2 also suits installations that need determinism and low delay. Magewell specifies low-latency mode, SG-DMA transmission, hardware-based timestamping and synchronized clock options via SDK, all useful in multi-source recording, machine vision adjacent video tasks, operator review stations, replay buffers or synchronized lecture and training capture. Support for Sony/Canon DSLR time code extraction, customized EDID and 3D HDMI modes adds value in specialist ingest environments where signal negotiation can become the weak point.
For integrators and software-driven deployments, the card supports multiple boards in one host, replicated capture streams from one input, and broad compatibility with Windows and Linux tools such as OBS, vMix, Wirecast and other DirectShow or V4L2 software. That makes it relevant not only for live streaming, but also for broadcast compliance recording, courtroom or medical video systems, studio preview ingest, e-learning capture nodes and OEM appliances. It is a compact card, but in the right build it solves a very specific problem well: stable 4K HDMI video capture inside systems where every slot, watt and millisecond matters.

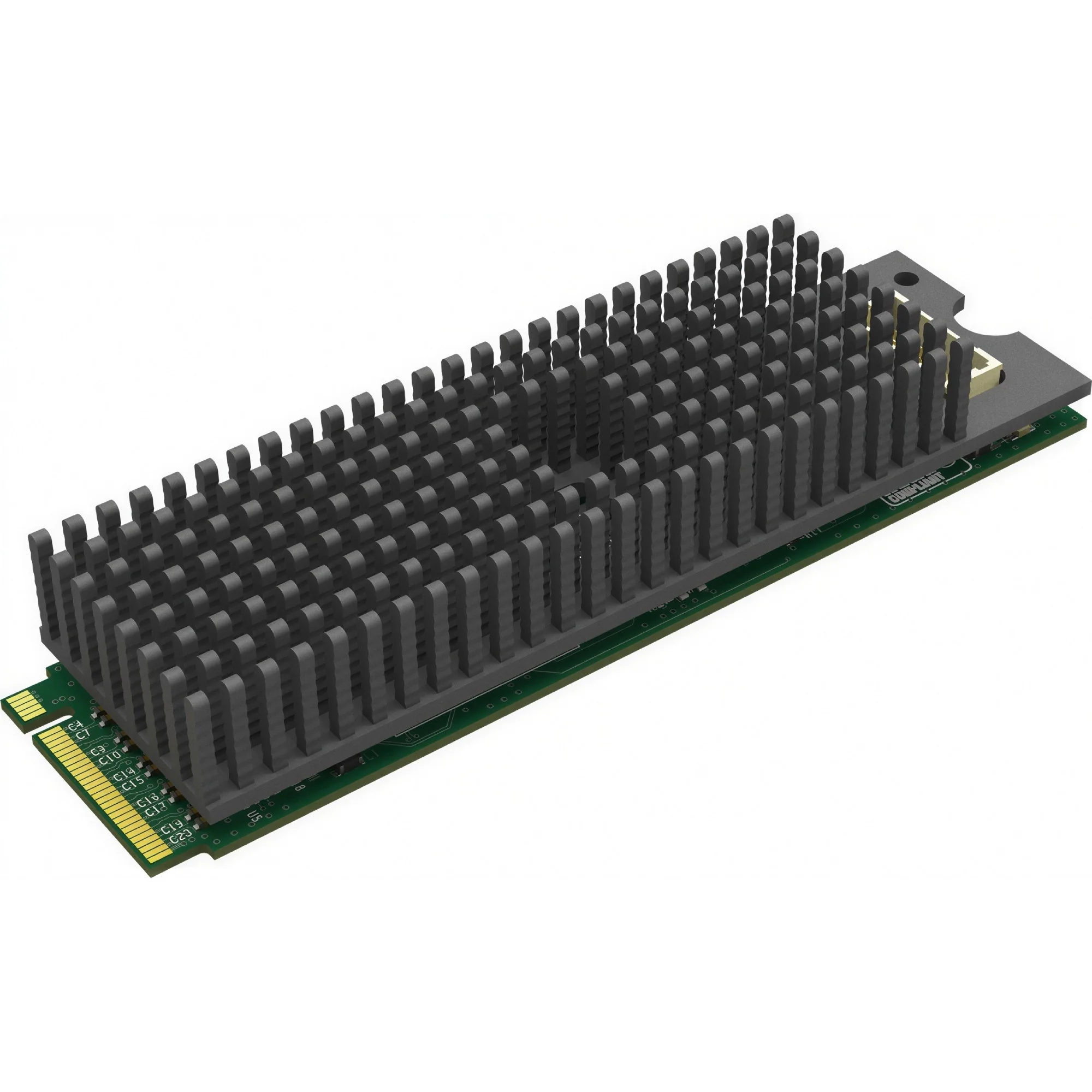

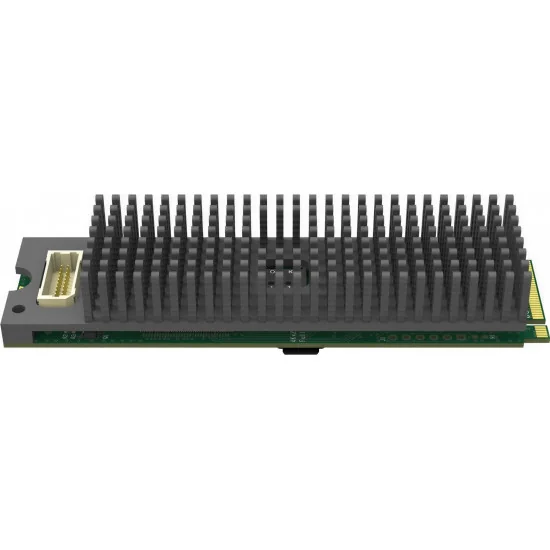

Magewell Eco Capture HDMI 4K M.2 (11520) Video capture card
115200000
Price: €379.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Magewell Eco Capture HDMI 4K M.2 is a single-channel HDMI capture card for embedded and space-limited systems that still need dependable ingest quality. It connects through M.2 2280 Type M over PCIe Gen2 x4, which makes it a practical choice for compact production PCs, rack computers, portable flypacks, vision appliances, conference processors and custom streaming platforms where there is no room for a full-height card. The unit accepts one HDMI signal with embedded audio and supports input resolutions up to 4096×2160, so it fits DCI 4K, UHD and HD integration scenarios in broadcast, live events, lecture capture and corporate AV.
What matters in daily operation is not only resolution, but signal discipline. This card automatically detects the incoming format, handles color format conversion, scaling, de-interlacing and frame-rate conversion, and supports RGB and YCbCr colour spaces including 601, 709 and 2020. Capture formats include 4:2:0, 4:2:2 and 4:4:4 8-bit, which gives system builders and software teams more freedom when matching ingest quality to codec, CPU load and archive targets. In practice, that means clean acquisition from PTZ cameras, mirrorless cameras, media players, presentation systems or stage processors without forcing unnecessary external conversion.
The Eco Capture HDMI 4K M.2 also suits installations that need determinism and low delay. Magewell specifies low-latency mode, SG-DMA transmission, hardware-based timestamping and synchronized clock options via SDK, all useful in multi-source recording, machine vision adjacent video tasks, operator review stations, replay buffers or synchronized lecture and training capture. Support for Sony/Canon DSLR time code extraction, customized EDID and 3D HDMI modes adds value in specialist ingest environments where signal negotiation can become the weak point.
For integrators and software-driven deployments, the card supports multiple boards in one host, replicated capture streams from one input, and broad compatibility with Windows and Linux tools such as OBS, vMix, Wirecast and other DirectShow or V4L2 software. That makes it relevant not only for live streaming, but also for broadcast compliance recording, courtroom or medical video systems, studio preview ingest, e-learning capture nodes and OEM appliances. It is a compact card, but in the right build it solves a very specific problem well: stable 4K HDMI video capture inside systems where every slot, watt and millisecond matters.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The Magewell Eco Capture HDMI 4K M.2 is a high-performance video capture card designed to capture HDMI video signals with resolutions up to 4K60, delivering high-quality, low-latency video capture with embedded audio. This versatile capture card is perfect for applications such as live streaming, video production, broadcasting, and content creation, providing reliable performance and exceptional video clarity.
Equipped with advanced processing features like color adjustments, deinterlacing, and hardware timestamping, the Eco Capture HDMI 4K M.2 ensures superior video quality and smooth operation. It supports automatic input format detection, timecode, and closed captioning, making it an ideal solution for professional environments.
The Eco Capture HDMI 4K M.2 is compatible with major operating systems, including Windows, Linux, and macOS, and integrates seamlessly with popular software such as OBS Studio, vMix, and more. Its compact M.2 form factor ensures easy installation in space-constrained setups, making it perfect for portable or compact devices.
Designed for 24/7 operation, the Eco Capture HDMI 4K M.2 guarantees smooth, uninterrupted video capture for high-demand workflows, including live broadcasts, recordings, and more. It comes with a 2-year warranty, providing peace of mind and dependable performance for professional users.
Applications
Live Streaming & Broadcasting: Capture high-quality 4K HDMI video for live streaming or broadcast production.
Video Conferencing: Ideal for professional video conferencing setups requiring 4K HDMI capture support.
Content Creation: Perfect for video creators needing 4K HDMI video capture for platforms like YouTube or Vimeo.
Recording & Archiving: Capture and archive high-quality 4K HDMI video for future editing, storage, or use.
What's in the Box:
Eco Capture HDMI 4K M.2 card
1 x SHD to HDMI type A breakout (Part number: ACC00070)
Installation guide
Warranty card
Specifications
Product Identification
Product Family: Eco Capture
Model Name: Eco Capture HDMI 4K M.2
Host Interface: M.2 (PCIe Gen2 x4)
Primary Selling Points: 4Kp30 HDMI capture; Small form factor; Low power consumption;
Video Input Interfaces
Interface Type: HDMI
Number of Input Ports: 1
Input Standards: HDMI 1.4a;DVI 1.0
Colnnector Type: FPC 20-Pin socket
Signal Types: Progressive; Interlaced
Video Input Features
Max Resolution / Frame Rate: 4096x2160 30fps
Color Format: RGB/YUV 4:4:4;YUV 4:2:2
Audio Input
Embedded Audio Support: Yes
Maximum Audio Channels: 8
Video Processing Features
Scaling: Yes
De-interlacing: Yes
Color Space Conversion: Yes
Frame Rate Conversion: Yes
Aspect Ratio Conversion: Yes
Image Adjustment: Yes
Software
Supported OS: Windows; Linux
Compatible Software: VLC;VirtualDub;OBS;XSplit;vMix;VidBlaster;Wirecast;Microsoft Media Encoder;Adobe Flash Media Encoder;Any other DirectShow/V4L2 encoding/streaming software
Operational
Power Consumption: ~ 3.75 W
Max current: Max current at 3.3V: ~ 1.12 A
Operating Temperature Range: 0 to 40 deg C
Form Factor
Length: 80mm
Width: 22mm
115200000
Data sheet
- Video Input
- DVI
HDMI - Video Output
- M.2
- Audio Input
- HDMI Embedded
- Audio Output
- M.2
- Interface
- M.2
- Max Output Resolution
- 4K UltraHD (3840 x 2160) 25/30 fps
- For Operating System
- Linux
Windows - Output colour sampling
- RGB 4:4:4 8-bit
YUV/YCbCe/YPbPr 4:2:2 8-bit - Video input channels
- 1
Specific References
- ean13
- 6936572400983
- mpn
- 115200000
