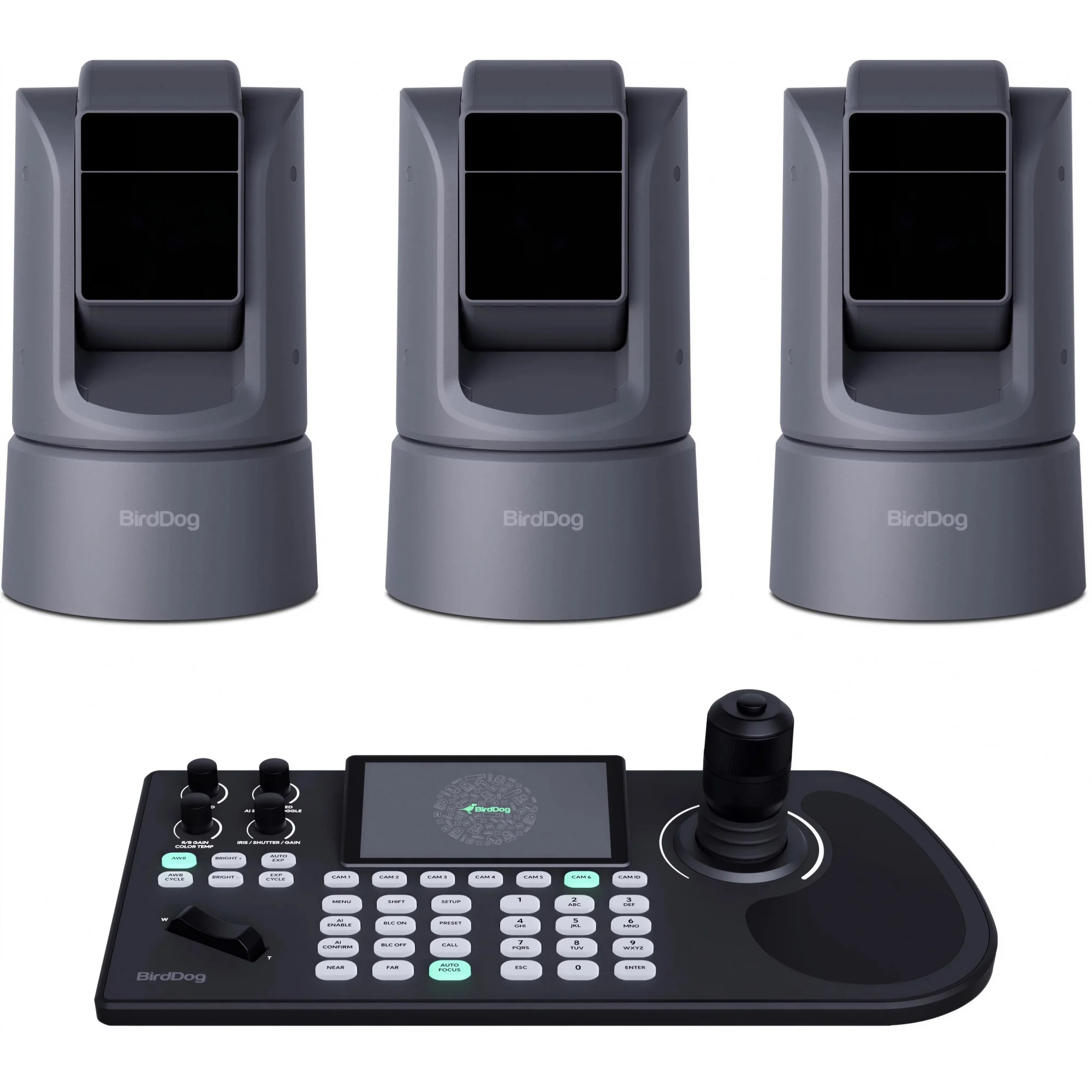

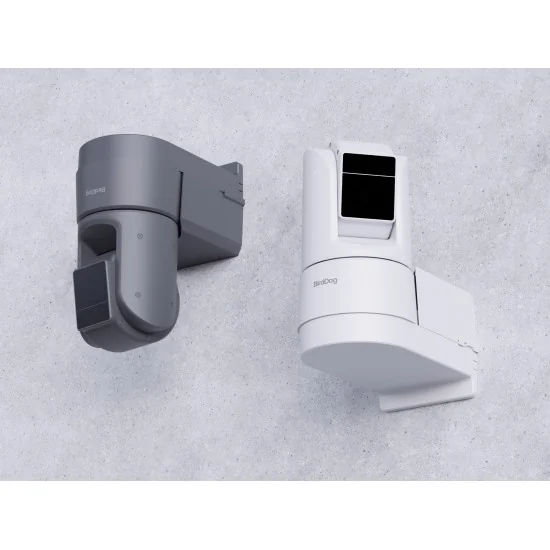

BirdDog O4 Grey Combo combines three grey BirdDog O4 outdoor PTZ cameras with one BirdDog KBD controller for sites that need long-range imaging and fast central control. It fits stadiums, outdoor venues, campuses, worship exteriors and municipal monitoring points where one operator must manage several angles. Each O4 uses a 1/1.8-inch Ultra HD CMOS sensor and captures 4K60, while 30x optical zoom in UHD extends to 60x in HD for distant stage, speaker or perimeter shots.
Outdoor scenes change fast, so the imaging section is built for contrast and low light. HDR, REC.2020 colour space, fast autofocus and 2D/3D noise reduction help preserve detail through backlit scenes, mixed weather and night work. The integrated 500 m IR laser, IR cut and monochrome night mode keep gates, roads and open grounds visible after dark. AI auto tracking adds framing-height control, tilt lock and sensitivity adjustment, useful for following a presenter, athlete or vehicle without an operator at each camera. With up to 255 presets per camera, framing for entrances, podiums or traffic lanes is instantly available.
The camera body is specified for permanent external deployment. IP66 sealing, operation from -40°C to +60°C, an integrated heater and hydrophobic, anti-fouling front-glass coating support year-round use in rain, dust and snow. Connectivity is equally practical: 12G-SDI, NDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTMP, RTSP, SFP fibre, PoE++ and analogue audio I/O cover broadcast, AV and IP transport without forcing a single signal standard.
The included BirdDog KBD adds direct hardware control through a 4D joystick, zoom rocker, preset keys and a 5-inch 1280 x 720 display with multiview monitoring. Support for NDI, VISCA-IP, ONVIF, PELCO-P and PELCO-D also makes the combo useful in mixed PTZ fleets. For outdoor concerts, sports coverage, venue security or traffic observation, this package delivers three matched 4K outdoor PTZ cameras and a dedicated control surface in one rig.
Instead of €17,716.00
BirdDog O4 Grey Combo combines three grey BirdDog O4 outdoor PTZ cameras with one BirdDog KBD controller for sites that need long-range imaging and fast central control. It fits stadiums, outdoor venues, campuses, worship exteriors and municipal monitoring points where one operator must manage several angles. Each O4 uses a 1/1.8-inch Ultra HD CMOS sensor and captures 4K60, while 30x optical zoom in UHD extends to 60x in HD for distant stage, speaker or perimeter shots.
Outdoor scenes change fast, so the imaging section is built for contrast and low light. HDR, REC.2020 colour space, fast autofocus and 2D/3D noise reduction help preserve detail through backlit scenes, mixed weather and night work. The integrated 500 m IR laser, IR cut and monochrome night mode keep gates, roads and open grounds visible after dark. AI auto tracking adds framing-height control, tilt lock and sensitivity adjustment, useful for following a presenter, athlete or vehicle without an operator at each camera. With up to 255 presets per camera, framing for entrances, podiums or traffic lanes is instantly available.
The camera body is specified for permanent external deployment. IP66 sealing, operation from -40°C to +60°C, an integrated heater and hydrophobic, anti-fouling front-glass coating support year-round use in rain, dust and snow. Connectivity is equally practical: 12G-SDI, NDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTMP, RTSP, SFP fibre, PoE++ and analogue audio I/O cover broadcast, AV and IP transport without forcing a single signal standard.
The included BirdDog KBD adds direct hardware control through a 4D joystick, zoom rocker, preset keys and a 5-inch 1280 x 720 display with multiview monitoring. Support for NDI, VISCA-IP, ONVIF, PELCO-P and PELCO-D also makes the combo useful in mixed PTZ fleets. For outdoor concerts, sports coverage, venue security or traffic observation, this package delivers three matched 4K outdoor PTZ cameras and a dedicated control surface in one rig.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop

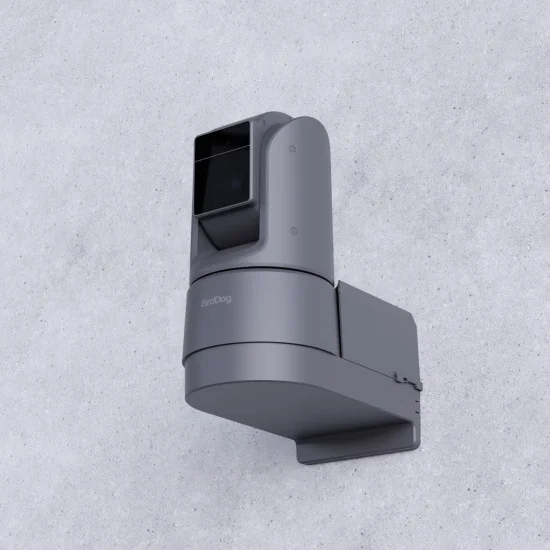

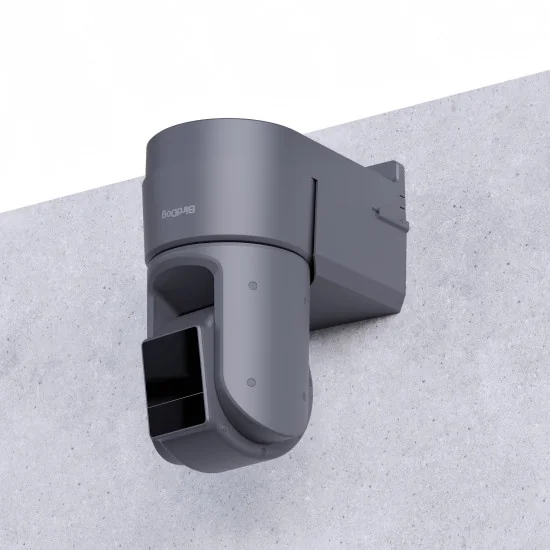

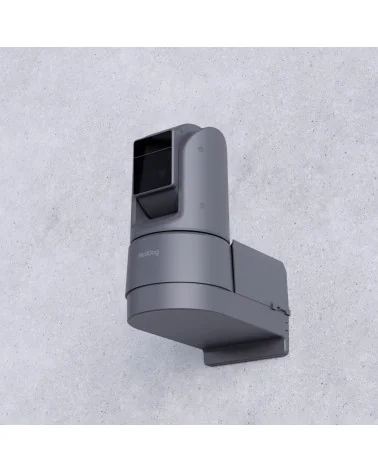

The BirdDog O4 is the outdoor PTZ built for real-world deployments. Its die-cast, IP66-rated body runs from –40 °C to +60 °C and includes a heater and hydrophobic lens coatings to keep optics clear in rain, dust, or snow. Capture sharp, color-accurate 4K60 on a 1/1.8" sensor and frame the action from afar with 30× optical zoom (60× in HD). When light disappears, a precision 500 m IR laser and B/W night mode maintain visibility.
Installation is fast and tidy: all I/O sits inside a sealed undercarriage with strain relief and three weatherproof flanges; power with PoE++ or external DC. O4 streams Full NDI® and NDI® HX3 simultaneously, and can output NDI plus SRT/RTMP/RTSP at the same time. With 12G-SDI, and SFP+ fiber, plus adjustable AI tracking profiles, O4 integrates into IP, hybrid, and baseband workflows with broadcast confidence.
Features:
IP66 weatherproof housing with –40 °C to +60 °C operating range and built-in heater.
Hydrophobic, smudge-resistant front glass for clear optics without wipers.
30× optical zoom (60× in HD) for long-range framing.
500 m infrared laser night vision with automatic B/W mode and IR cut filters.
1/1.8" CMOS sensor capturing 4K60 with wide dynamic range.
Simultaneous Full NDI® and NDI® HX3 streaming.
Dual streaming options: deliver NDI plus SRT/RTMP/RTSP concurrently.
12G-SDI, and SFP+ (fiber) for IP, hybrid, and baseband installs.
Sealed undercarriage cabling with three weatherproof flanges and strain relief; PoE++ or DC power.
Adjustable AI autotracking (fast for sports, smooth for events) via BirdUI.
Tech Specs:
IMAGING
Imaging Sensor: Sony 1 / 1.8” CMOS – ULTRA HD
Lens: f=6.9mm~215mm
Optical Zoom: Optical 30x (4k) – 60x (HD), 8x Digital
Video Format: 2160p @ 60/59.94/50/30/29.97/25fps
1080p @ 60/59.94/50/30/29.97/25fps
1080i @ 60,59.94,50fps
720p @ 30/29.97/25fps"
Horizontal angle of view: 60°~2°
Vertical angle of view: 34°~1.1°
Diagonal angle of view: 67°~2.3°
Aperture: f1.35~f4.6
Focus: Auto (Global/Centre/Upper/Lower/Left/Right), Manual
Exposure: Auto, Manual Shutter Priority, Iris Priority, Brightness Priority
Exposure Metering: Average, Centre, Top, Bottom, Left, Right
Backlight Compensation: Yes
Exposure Compensation: Yes
Flicker Reduction: Outdoor / 50Hz / 60Hz
White Balance: Auto / One Push / Indoor / Outdoor / Manual / Color Temperature
Digital Noise Reduction: 2D/3D Noise Reduction
SNR: >50dB
Effective Pixels: 8.4MP
HDR: Supported, REC.2020 Colour Space
MECHANICAL
Pan/Tilt rotation: ±170°, -30° ~ +90°
Pan Control Speed: 0.05-90°/sec
Tilt Control Speed: 0.05-90°/sec
Preset Number: 255 Presets
IR Laser: Included, 500m illumination distance
FreeD Support: Included, UDP and Embedded in NDI Stream
Integrated Heater: Included
Glass Coating: High-strength Aerospace/Marine grade Hydrophobic, Anti-mildew, Anti-fouling coating.
AI FUNCTIONS
AI Auto Tracking: Area Management, Framing Adjustment, Sensitivity Adjustment, Auto Framing, Stage Tracking, Zone Tracking
AI Gesture Control: Supported
I/O INTERFACE
Video Output Interfaces: 12G-SDI, RJ-45
Video Compression Formats: h.264, h.265, NDI High Bandwidth
Audio I/O: Stereo Unbalanced 1/4” TRS Input/Output
Network Interface: SFP+ Fibre Optic, RJ45 1GbBaseT adaptive Ethernet port; PoE++
Encoder Network Protocols: NDI®|HX2, NDI®|HX3, High Bandwidth NDI, RTSP, RTMP, SRT, Dante AV-H (unlocked via Dante Activator)
Control Interfaces: Ethernet, Serial
Control Protocols: NDI, VISCA-IP
API Control: BirdDog RESTful API 2.0
GENERAL
Input Voltage: DC 24V, PoE++
Input Current: 1.2A
Power Consumption: 40W Max.
Operating Temperature: -40°C ~ +60°C
IP Rating: IP66
Dimensions (W*H*D): 200 x 330 x 226 mm
Weight: 7.6 kg

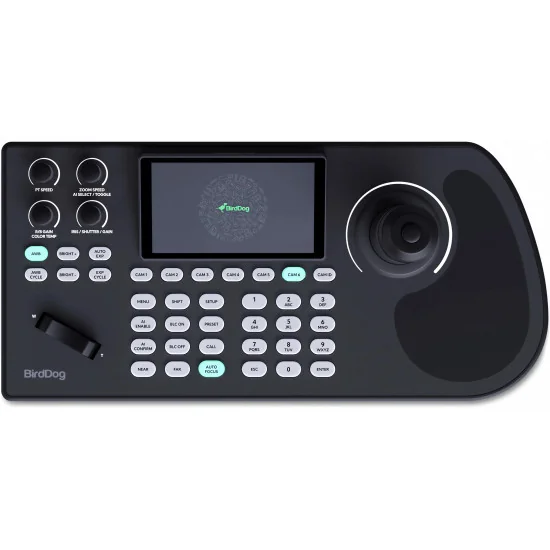

BirdDog KBD PTZ Controller
Crafted from Feedback. Built for Brilliance.
BirdDog KBD Controller offers PTZ camera operators a rugged, ergonomic design, a large multi-camera display, and direct access to essential functions. With a built-in tally display and physical feedback for camera switching, it’s intuitive and eco-friendly, made with Ocean-Bound Plastics and recyclable Aircraft-grade Aluminum. NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity ensure versatility no matter what language you speak.
Built for Seamless Control and Comfort.
KBD is crafted for those who rely on precision and ease in their workflow. With a rugged, ergonomic design, it’s built for comfort, featuring a hand-rest area and tactile controls for all-day use.
Super-fine Control Mode.
When it’s time to fine-tune, you can easily shift the camera joystick into ‘fine-tune’ mode, increasing the sensitivity of the joystick by 10x, making reframing shots on air more artistic flair than nail-biting scare.
Expanded Screen. Instant Camera Control.
The big screen allows you to monitor up to four cameras at once or focus on one full screen. Pairing and switching between cameras is just a single press away, with a tactile button that gives instant feedback under your finger, making transitions smooth and intuitive.
The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.
Built-in Tally Borders.
Pairing and switching between cameras is just a single press away, with tactile buttons providing instant feedback under your finger for smooth, intuitive transitions. When integrated with mixers like TriCaster or vMix, KBD’s built-in tally border shows the live camera directly on the keyboard, so you can stay focused without looking at other screens.
Camera Setting Sync.
An industry-first feature, you can tune one camera to look exactly how you like, and then simply copy those settings directly to another camera of the same model (BirdDog X series function). Making it easy to dial your cameras in and take your production quality to the next level.
Direct Access to Key Functions.
No more endless menu diving! KBD brings you straight to the essentials. With its streamlined layout, operators can access camera pairing, switching, and configuration in seconds. It’s all there, clear and accessible, thanks to user feedback that’s shaped a truly friendly experience.
Ultimate Connectivity in an Eco-Friendly Design.
BirdDog KBD connects seamlessly through NDI, VISCA, ONVIF, RS-232, and RS-422, making it versatile for any setup. And with a commitment to sustainability, it’s made using ocean-bound plastics, reducing environmental impact.
Affordable Innovation.
With enhanced features and a lower price than its predecessor, KBD is refined through user insight, offering unmatched comfort, control, and eco-consciousness for the modern PTZ camera operator.
*The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.
Tech Spec:
Camera Control
PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
Fine PTZ Control: VISCA-IP, NDI
Focus Control: Auto Focus, Manual Focus buttons
Auto Exposure: Direct Button
Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
Auto White Balance: Direct Button
Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
Auto Focus: Direct Button
Manual Focus: Direct Button (Near/Far)
BLC (Backlight Compensation): Direct Button
Zoom Ring on Joystick: Yes (enable/Disable)
Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
AI Camera Mode Control: Camera Dependent, supported
Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)
Camera Access
Max. Cameras support: 255
Direct Camera access keys: 6
Direct Preset access keys: 10
Max Preset support: 255 per camera
OSD Camera Menu: Menu Button / Interaction with Joystick
Display
Display Diagonal Dimension: 5"
Display Resolution: 1280x720
Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
IP Video CODEC support: h.264, h.265
Tally Borders: Selectable, Multiview and Full Screen mode
On Screen Menu: Fully configurable
Light/Dark Mode: YES
NDI Support
NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
NDI Multiview: NDI HX2, NDI HX3
NDI Router: Yes, follows current active camera
NDI Discovery: Supported
NDI Access Manager: Supported
NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)
Setup/Configuration
WebUI: BirdUI for setup and firmware updates
Light/Dark Mode: YES
API-based Camera Selection: YES
Serial Connections
RS-232: D-Sub connector (9-pin)
RS-422: Phoenix connector
Mechanical
Joystick Type: 4D (Integrated Trigger button)
Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
Zoom Rocket: Spring loaded, adjustable
Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
ConstructionMaterial: Aluminium; OBP Ocean-Bound Plastic
Integrated Carry Handle: YES
Operating Temperature: -10°C - +55°C; 14°F - 130°F
Storage Temperature: -10°C - +55°C; 14°F - 130°F
Operating Humidity: 20% - 80% (Non-condensing)
Storage Humidity: 0% - 90% (Non-condensing)
Power Supply: PoE (802.3af), DC12V
Power Consumption: ≤5W
Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in
