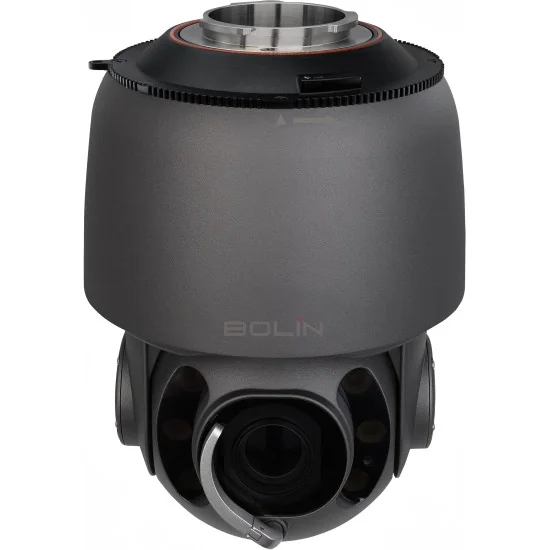

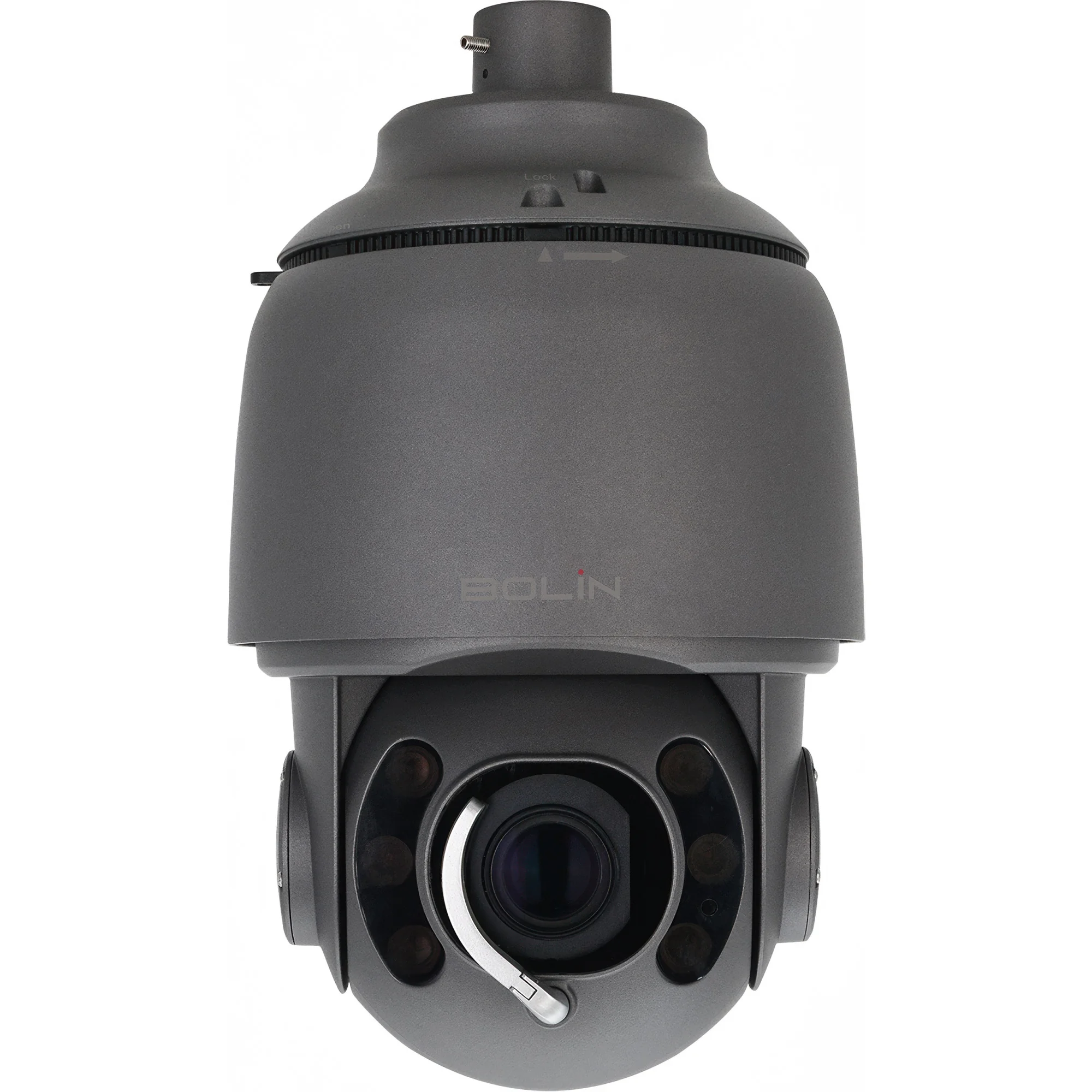

SD530H SDI IP Outdoor PTZ Camera Gen3
Designed for demanding outdoor production environments, the Bolin SD530H SDI IP Outdoor PTZ camera delivers broadcast-quality Full HD video with clarity and smooth motion. Equipped with a 30x zoom, the SD530H captures detailed images from long distances, making it ideal for sports, outdoor events, and remote monitoring applications. Its advanced low-light performance ensures clear and vibrant visuals in challenging lighting conditions. The Super Image Stabilization Plus feature minimizes vibrations and motion blur, providing steady shots in dynamic and high-vibration settings.

Built to withstand extreme weather conditions, the SD530H's IP67-rated housing offers robust protection against water, ice, dust, and corrosion. The integrated rain wiper and heater maintain a clear lens, guaranteeing uninterrupted performance regardless of the environment. The camera's innovative mechanical roll-axis adjustment up to 15 degrees adds flexibility for creative positioning and corrects leveling issues. With 360-degree continuous pan and high-speed movement, the SD530H allows operators to track fast-moving subjects with smooth, precise control. This makes it perfect for capturing dynamic live events, sports action, and large-area monitoring where real-time responsiveness is critical. The SD530H supports simultaneous and independent outputs, including 3G-SDI and IP streaming. The inclusion of the FreeD protocol enables real-time AR/VR tracking, making the SD530H a valuable asset for sports analytics and interactive live experiences.

From fast-paced sports to complex outdoor productions, the Bolin SD530H delivers exceptional Full HD video quality, precise high-speed movement, and rugged durability. Its advanced features and robust construction ensure that every moment is captured with clarity, stability, and accuracy, regardless of the conditions.

SD530H SDI IP Outdoor PTZ camera equipped with the latest Sony's 1/2.8-type Full HD color image sensor Full HD offers high sensitivity with a minimum illumination of 0.009 lx. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

• 1/2.8 inch STARVIS II sensor
• Enhanced High Resolution image quality
• 30X High Resolution optical zoom lens
• Advanced AF performance, Spot Focus · Spot AE · Spot AWB
• Wide Dynamic Range (Wide-D)
• Visibility Enhancer (VE)
• Super low light in color performance
• Super image stabilizer

RUGGED & DURABLE

• Made for Extreme Weather Condition
• Dustproof and Waterproof IP67 Rated
• Wind Load Durability, Non-Destructive and Steady Operation at 30 m/s or less
• –30 °C to 60 °C (-22°F to 140°F) Operational

High Resolution-Day Light/Night View
The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

Super image stabilization
The blur suppression has been greatly improved from the conventional stabilizer function, and high-definition movies with less blur can be shot even in a harsh environment with large vibrations. Equipped with two modes, "Super" and "Super + (plus)" .

Advanced AF performance
Sony’s proprietary AF algorithm enables zoom and focus at the same time in difficult conditions. Unlike common cameras, which cannot zoom and focus at the same time nor refocus after defocusing under certain circumstances, the camera can zoom and focus at the same time and has the algorithm design which minimizes defocusing in difficult conditions, especially in dark environments (including environments with a mixture of visible light and infrared light and environments with locally strong light sources).

Sony’s sophisticated proprietary AF algorithm
Sony’s proprietary AF algorithm enables zoom and focus at the same time in difficult conditions. Unlike common cameras, which cannot zoom and focus at the same time nor refocus after defocusing under certain circumstances, the camera can zoom and focus at the same time and has the algorithm design which minimizes defocusing in difficult conditions, especially in dark environments (including environments with a mixture of visible light and infrared light and environments with locally strong light sources).

30x enhanced optical zoom
In pursuit of high image quality, with  a 30x enhanced optical zoom, beautiful images can be obtained not only at the Wide end, but also at the Tele end where the effects of reduced resolution and aberrations are easily visible.

Jero effect correction
In electronic image stabilization, the image is generally distorted when the amount of blur is large. This product corrects this phenomenon and enables the acquisition of natural images with little distortion.

FreeD Protocol Integrated for VR/AR Video Production
FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

PTZ Movement-Smooth, Accurate and Quiet

• PAN: 360° continuous; Fully proportional 0.05°〜135°/S
• TILT: 105° (-90° to +15°); Fully proportional, speed 0.05° to 135°/s
• Preset: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.03°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
• Smooth and Accurate Movement
• NDAA Compliant

Various Control Methods

• IP Control
• Serial Control
• API
• Control Protocol:
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D

SPECIFICATION

IMAGE FULL HD, 30X
Image Block: Sony
Image Sensor: Progressive scan CMOS image sensor 1/2.8 type, STARVISTM 2
Number of effective pixels: 2.13MP
Picture elements: 1920x1080
Lens Optical zoom: 30X
Digital Zoom: 12X
Horizontal Angle of View: 64 ˚ (W)~2.4 ˚ (T)
Focal Length: f= 4.3 mm (WIDE) to 129 mm (TELE)
Min. object distance: 10mm (Wide), 1200mm (Tele)
Aperture: F1.6 (Wide) to F14 (Tele)
Min. Illumination (50%, High Sensitivity Mode ON): ICR-OFF mode: 0.009 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00008 lx (Shutter Speed: 1/30 s)
Min. Illumination (50%, High Sensitivity Mode OFF): ICR-OFF mode: 0.09 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00063 lx (Shutter Speed: 1/30 s)
Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
Focusing System: Auto, Manual, One Push Trigger, Full Scan one push trigger, Near Limit, Spot Light Avoidance, Spot Focus
White Balance: Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp Outdoor Auto
Exposure: Full Auto, Gain Limit Setting, Shutter Priority, Iris Priority, Manual, EV Compensation
Features: Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker ,Contrast, Effect, Sharpness
WDR: Yes
ND Filter: /
Image Stabilizer: Yes: Super image stabilizer (Super / Super+)
Contrast: Yes
Color Gain: Yes
Color Hue: Yes
Color Matrix: Yes
Gamma: Yes
Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D Noise Reduction
S/N Ratio: ≥50db
Spot Light Avoidance: Yes
E-Flip: Yes
Spherical Privacy Zone Masking: -
Defog: Yes (low/mid/high)
High Sensitivity: Yes
Slow AE Response: Yes
Day/Night (Auto ICR): Yes: ON (B&W/Color)
Backlight Compensation: Yes
Low Latency Mode: Yes
Focus Zone: All, Central Area
Scene Style: Default, Clear, Bright, Soft
Auto Flip: Yes

MECHANICAL
Pan Movement: PAN: 360° Continuous ; Fully proportional 0.05°〜135°/S
Tilt Movement: TILT: 105° (-90° to +15°); Fully proportional 0.05°〜135°/S
Image Rolling Adjustment: ±15°
Speed Proportional: Pan/Tilt speed proportional to zoom range
Preset Position: 255 positions, Speed 135°/s, 0~5 Level Adjustable, Accuracy: 0.05°
Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless Preset: ON/OFF
PTZ Trace Memory: Yes,4
Cruise: Yes, 12
Position Limit: Pan/Tilt, programmable
Quietness: NC55
Home Position: Yes
FreeD: Yes, FreeD protocol for AR/VR camera tracking, via IP
Position Deviation Correction: Yes
Environmental: IP67 (Waterproof and Dust Proof)
Environment Temperature Sensor: Yes
Body Finishing: C5 Corrosion Resistant Power Coating
Wind Load Durability: 0-15m/s Operation Normal 15-30m/s Pan/Tilt Operational Non-Destructive and steady operation at 30 m/s or less
Wiper: Yes
Heater: Yes
Illumination: IR LED (70M)

INTERFACE
SDI Video Output: 3G-SDI, Standard 75 Ω (BNC x 1)
Network LAN Port: RJ45 Standard 10M/100M/1000M Ethernet, LAN connector for IP control/video output/System FW Upgrade
Camera Environment Temperature: Outside camera body temperature sensor built in
System Firmware Upgrade: FW Upgrade via IP interface (Including MCU, IP, FPGA)
Power Connector Type: AC24V/ DC 36V, PoE++ (IEEE802.3bt)
Control Interface: RS422, IP Control
Control Protocol: Serial: VISCA, PELCO P/D, IP: VISCA Over IP, ONVIF, FreeD

SDI SIGNAL FORMAT
SDI Video Format: 1080p: 60/59.94/50/30/29.97/25; 1080i: 60/59.94/50; 720p: 60/59.94/50
Color Precision: 10bit(SDI), YCbCr, 4:2:2
Color Space: YUV
Standard: SMPTE 292M ，SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M，SMPTE 425-A (3Gb/s) standard / 75 Ω (BNC x 1), With SMPTE352 SDI Metadata Supported
True Dual Output: IP and SDI signal can be set to independent resolution formats
OSD Menu Display: Yes
On-Screen Information Display: Yes, In-video On-Screen character generator （Image Parameter Setting, Camera Optional Data, User Customization Character, Image/Logo Insert)

NETWORK
Video Compression: MJPEG,H.264/H.265 by SoC
IP Resolution/Frame Rate: 1080P60/50/30/25; 720P60/50/30/25 2nd Stream:704x576, 640x480, 640x360, 576x480, 352x228 P30/25
True Dual Output: IP and SDI signal can be set to independent resolution formats
IP Protocols: TCP/IP, ICMP, ARP, RTP, UDP, HTTP, HTTPS, DNS, DHCP, FTP, NTP
Application Protocols: RTP, RTSP, RTMP,RTMPS, SRT, ONVIF
Multi-stream: 2 Stream (Simultaneous up to 8 users)
OSD: Customized OSD
Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
Bandwidth ( results may vary depending on network configuration and management settings.): 1024-101376Kbps; By default, 1920x1080 H.264 4096kbps,1920x1080 H.265 2048kbps; 1280x720 H.264 4096kbps 1280x720 H.265 2049kbps
Latency (Overall latency may increase depending on network configurations): <150ms
Browser Support: HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

GENERAL
Operating Temperature: -30 to +60 (°C)/-22 to 140 (°F)
Operating Humidity: 100% Suitable for Use
Power Input: AC 24V/DC 36V, PoE++(Compatible with IEEE802.3bt)
Power Consumption: Min: 28W(Static state with no movement); Max: 78W（Fully loaded operation）
Installation Method: Pendant Mount

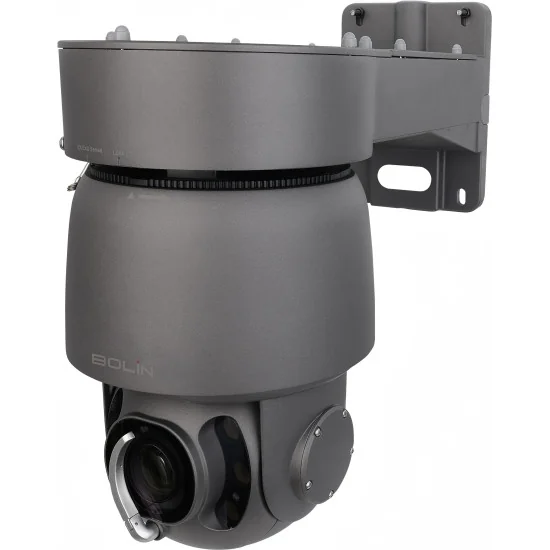

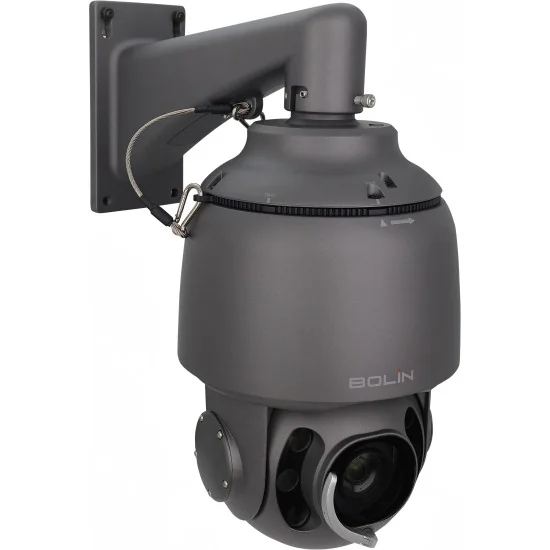

Mounting Bracket: Ceiling Mount, Wall Mount
Body: Color Grey / White
Dimension: Φ212×297mm
Weight: 11.5Ibs/5.2kg (Net weight)
Accessories Included: Power Adaptor x1, Safety Chain Lock x1, Power Connector x1
Accessories Optional: Wall Mount with Tail-cable - SD-TCA, Ceiling Mount with Tail-cable - SD-CMK, Wall Mount - ES-WM
Certificate: CE，FCC，IC，UKCA，ROHS，WEEE
