Marshall CV620-BI2 PTZ camera is a Full HD remote camera for broadcast, streaming and installed AV systems that need stable motion, direct integration and repeatable framing. It uses a 2MP Sony IMX327 1/2.8" sensor with a 20x optical zoom lens (5.33-110 mm), covering a wide 57° horizontal angle for room shots and tightening to about 3.7° for podium, stage or lectern close-ups. The camera outputs up to 1080p at 60 fps, and also supports 1080i and 720p formats, which is practical when matching existing SDI switchers, streaming encoders and venue standards. WDR and 3D noise reduction help maintain a cleaner image in mixed lighting, especially in conference halls, churches and council chambers.
The PTZ block is built for smooth operation during live productions. Pan/tilt/zoom motors run synchronously, with selectable speed behavior and a movement range of ±170° pan and -30° to +90° tilt. In practice, this gives reliable coverage of presenters, panel discussions, classrooms and sports commentary positions without visible jumps in framing. The camera also stores 128 presets, so operators can recall repeatable angles for stage marks, interview positions or multi-speaker sessions. A tally light is included, which is useful in studio and event environments where on-air indication matters for presenters and camera matching.
For integration, Marshall CV620-BI2 provides simultaneous 3G-SDI, HDMI, USB and IP outputs, allowing one camera feed to serve a vision mixer, confidence monitor, conferencing PC and network stream at the same time. IP transport and control options include common protocols such as RTSP, RTMP, SRT, ONVIF and VISCA over IP, with additional control via RS-232, RS-422, IR remote and web interface. This makes the camera easy to place in lecture theatres, broadcast studios, corporate webcast rooms, courtrooms, government installations and live event rigs where different control layers are used by different teams. Audio can be embedded through the 3.5 mm mic/line input, and power can be supplied by 12 V DC or PoE (IEEE 802.3af), which simplifies single-cable installation on walls, trusses or ceiling mounts.

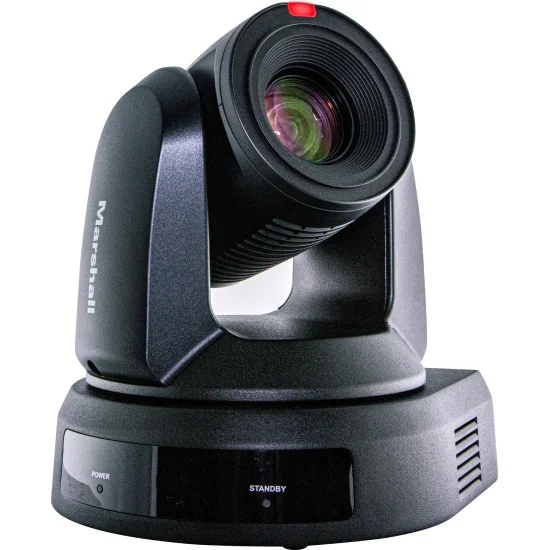

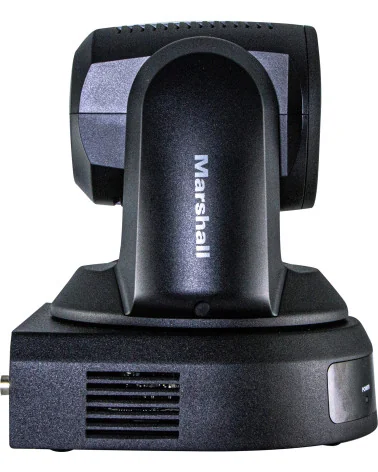

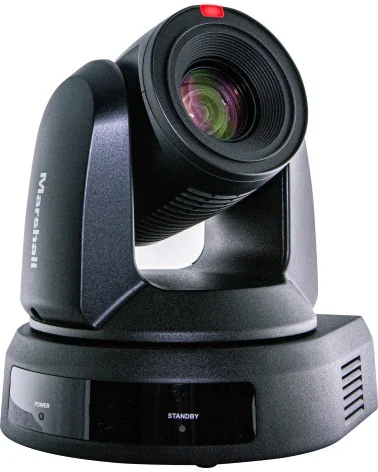

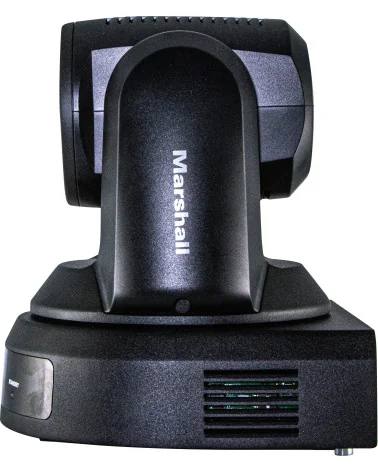

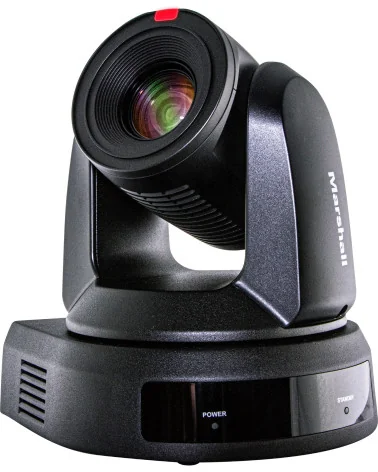

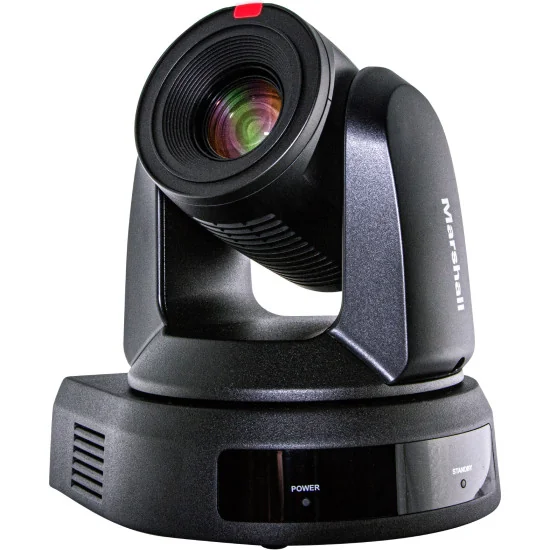

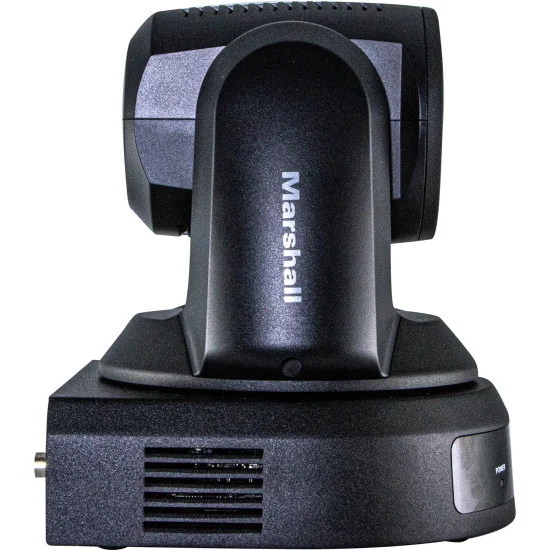

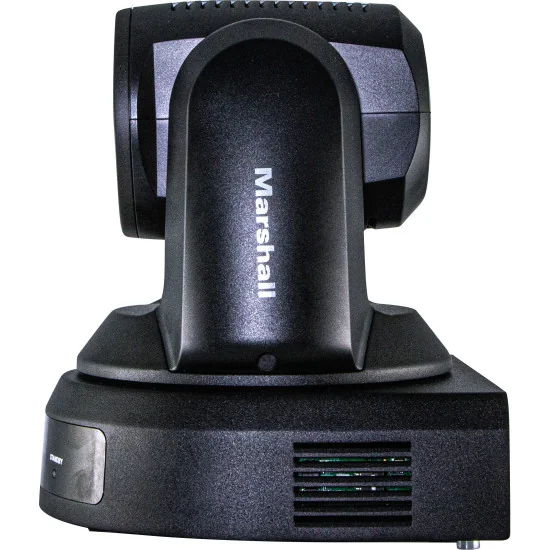

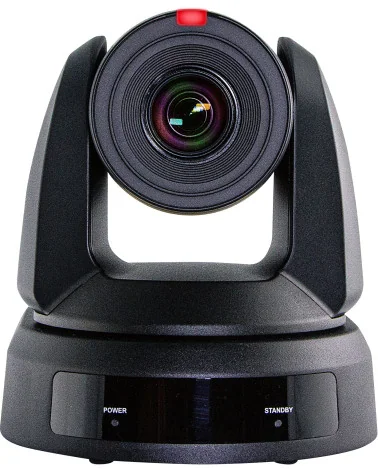

Marshall CV620-BI2 PTZ Camera
CV620-BI2
Price: €1,999.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Marshall CV620-BI2 PTZ camera is a Full HD remote camera for broadcast, streaming and installed AV systems that need stable motion, direct integration and repeatable framing. It uses a 2MP Sony IMX327 1/2.8" sensor with a 20x optical zoom lens (5.33-110 mm), covering a wide 57° horizontal angle for room shots and tightening to about 3.7° for podium, stage or lectern close-ups. The camera outputs up to 1080p at 60 fps, and also supports 1080i and 720p formats, which is practical when matching existing SDI switchers, streaming encoders and venue standards. WDR and 3D noise reduction help maintain a cleaner image in mixed lighting, especially in conference halls, churches and council chambers.
The PTZ block is built for smooth operation during live productions. Pan/tilt/zoom motors run synchronously, with selectable speed behavior and a movement range of ±170° pan and -30° to +90° tilt. In practice, this gives reliable coverage of presenters, panel discussions, classrooms and sports commentary positions without visible jumps in framing. The camera also stores 128 presets, so operators can recall repeatable angles for stage marks, interview positions or multi-speaker sessions. A tally light is included, which is useful in studio and event environments where on-air indication matters for presenters and camera matching.
For integration, Marshall CV620-BI2 provides simultaneous 3G-SDI, HDMI, USB and IP outputs, allowing one camera feed to serve a vision mixer, confidence monitor, conferencing PC and network stream at the same time. IP transport and control options include common protocols such as RTSP, RTMP, SRT, ONVIF and VISCA over IP, with additional control via RS-232, RS-422, IR remote and web interface. This makes the camera easy to place in lecture theatres, broadcast studios, corporate webcast rooms, courtrooms, government installations and live event rigs where different control layers are used by different teams. Audio can be embedded through the 3.5 mm mic/line input, and power can be supplied by 12 V DC or PoE (IEEE 802.3af), which simplifies single-cable installation on walls, trusses or ceiling mounts.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Marshall CV620-BI2/WI2 features a 20x optical zoom range and flexible IP, 3GSDI, USB, and HDMI simultaneous outputs with clear Full-HD images up to 1920x1080p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances via IP, VS-PTC-300 controller, Video Management Software (VMS), Software GUI, OBS Plugins/Docks, vMix and compatible 3rd party control decks.
Key features
- 2 Megapixel Full-HD Sensor (Sony 1/2.8")
- 20x Optical zoom (5.3mm~110mm) starting at 60° H.AOV
- 340° pan and 120° tilt range with various PT selectable speeds
- 3GSDI, HDMI, USB, and IP (H.264) available outputs
- IP formats: HTTP, RTSP, RTMP, RTP, TCP, UDP, SRT, MPEG-TS, ONVIF, Multicast, RTMPS
- Full-HD: 1920x1080p, and 1280x720p
- 60, 50, 30, 25 frames per second
- 3.5mm TRS Stereo Audio (Mic/Line)
- 12V Power cable included (10W max) or PoE+ (10W max)
- Operating Temp: 0 to 40°C, Storage Temp: -20 to 60°C
- Free-D protocol support and CGI protocol commands
Crisp Full-HD Video Output
The CV620-BI2/WI2 cameras are built around a professional-grade, 2-Megapixel 1/2.8-inch Sony sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p60fps, 1920x1080i and 1280x720p.
Versatile Camera Position
The CV620-BI2/WI2 cameras are equipped with synchronous pan, tilt, and zoom motors with various speed adjustment for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.
Easy I/O and Control

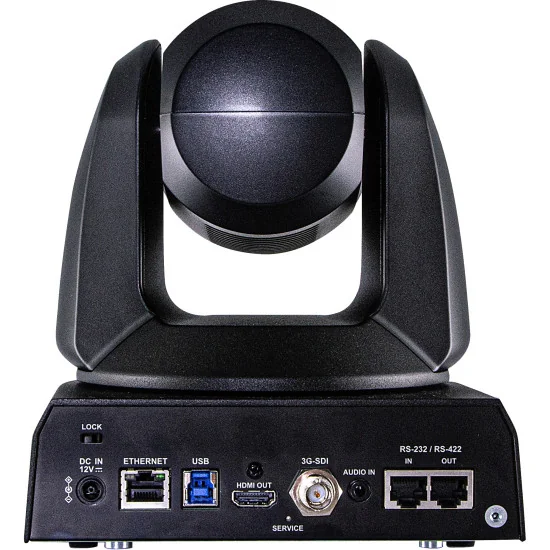

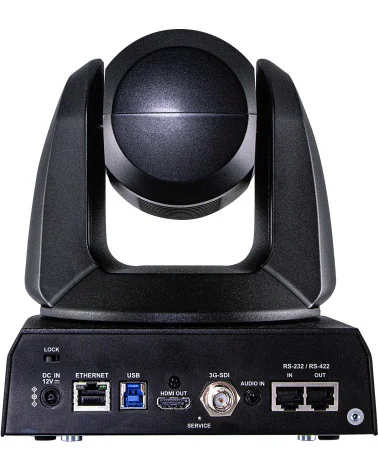

Simultaneous IP, 3GSDI, USB, and HDMI outputs with command options of Visca over IP, RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows. Also, easy one-cable to camera setup via IP ethernet cable for control, video, audio, tally and PoE+ (power).
Flexible Control Sources
Marshall IP PTZ Cameras are setup to be controlled from IR remote (included), VS-PTC-300 or VS-PTC-200 controllers, Video Management Software (VMS), Software GUI through web, OBS plugins/docks, vMix and other 3rd party software/hardware control decks.
Camera Applications:
Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation
CV620-BI2 / CV620-WI2 Specifications:
Sensor: SONY IMX327
Video Format:
1080p/60,1080p/30
1080p/50,1080p/25
720p/60, 720p/30
720P/50, 720P/25
Video Output (HD) Interface: 3G-SDI / HDMI / Ethernet/USB
Optical Zoom: 20X max
Horizontal Viewing Angle: Wide=57° (+/-5%), Tele ≒3.7° (+/-5%)
Panning Angle: +/-170°
Panning Speed: 225°/sec
Tilting Angle: -30 °～+90°
Tilting Speed: 225°/sec
Aperture: Fno1.6~Fno3.8
Focal Length (lens spec): 5.33~110 mm
Shutter Speed: 1/25 to 1/10,000 s
Minimum Object Distance: ∞~1.5m
Focus System: Auto / Manual / Smart AF(TBD)
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
Preset Positions: 128
Control Interface: VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote
Control Protocol: VISCA / VISCA IP /ONVIF / UVC /HTTP CGI command/UAC
Tally Light: Yes
PoE: IEEE 802.3af(PoE)
Video Stream: HTTP，RTSP，RTMP，RTP， TCP， UDP，SRT，MPEG-TS，ONVIF, Multicast、RTMPS、ONVIF (Profile S) can support Windows 10
Video Compression: H264: 25/30/50/60 fps 1080p/720p, MJPEG 1080p 30/15 fps
Audio Input: Line in/ Mic in
Audio Output: Ethernet / SDI / HDMI/USB
IR Pass-through: No
IR Receiver: Yes
IR Remote Control: Yes
Power Consumption: DC : ≦11W, PoE : ≦12.9W
Weight: 1.9 Kg
Dimensions: 181(L)x195(H)x174(W)
Operating Temperature: 0~40˚C
Storage Temperature: -20°C ~ +60°C
CV620-BI2
Data sheet
- Video Output
- HDMI
RJ-45 (IP)
SDI
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 1080p 50/60 fps
- Control protocol for PTZ cameras
- ONVIF
RS-232
RS-422
UVC
VISCA
VISCA IP - Network Connection
- Ethernet
- Sensor Size
- 1/2.8"
- Optical Zoom
- 20x
- PoE Technology
- Yes
- Auto-Tracking
- No
- Tally Light
- Yes
