Cartoni Focus 18 Video Fluid Head

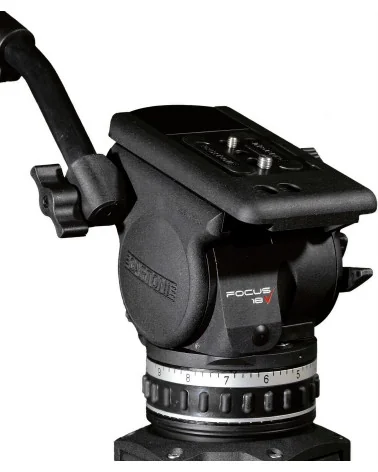

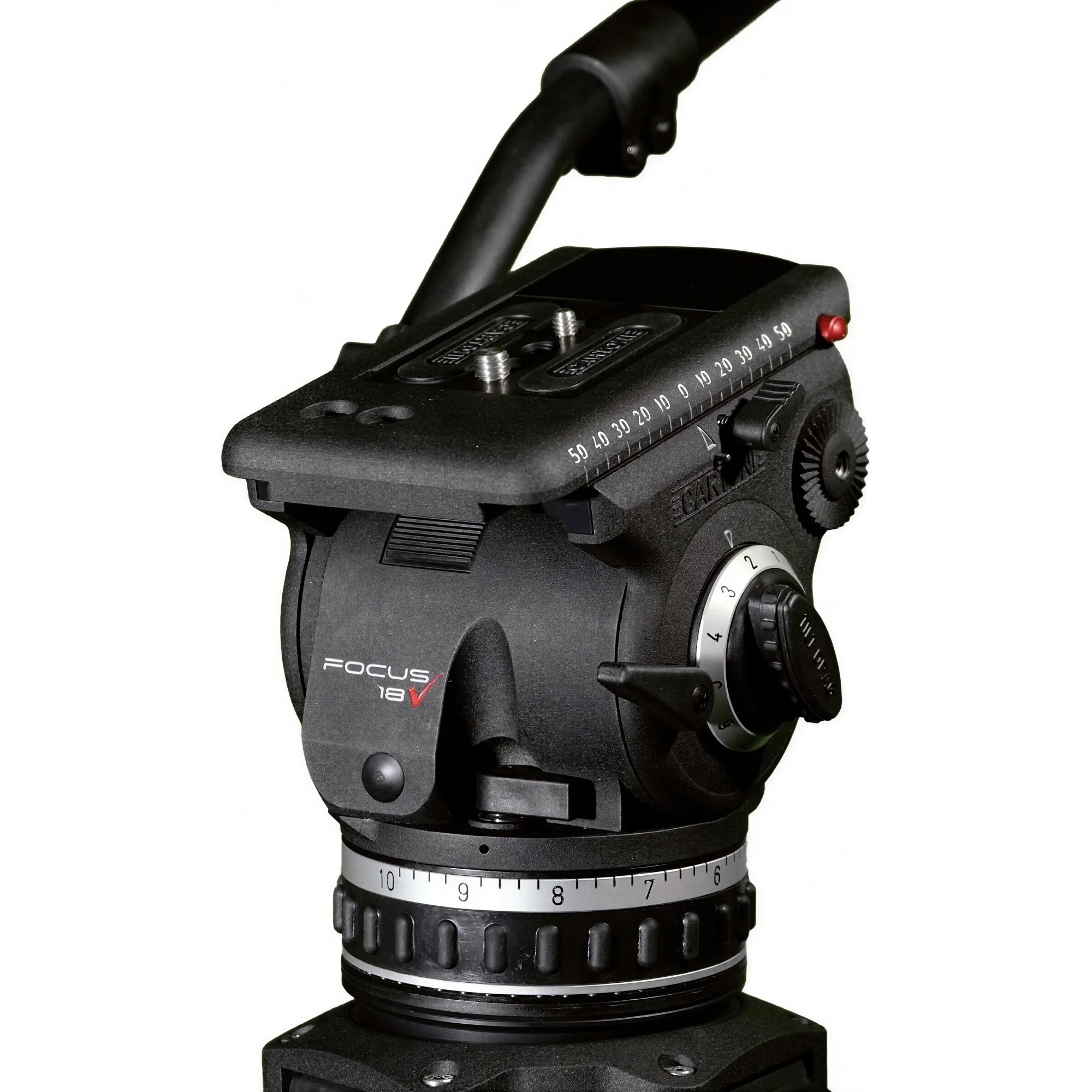

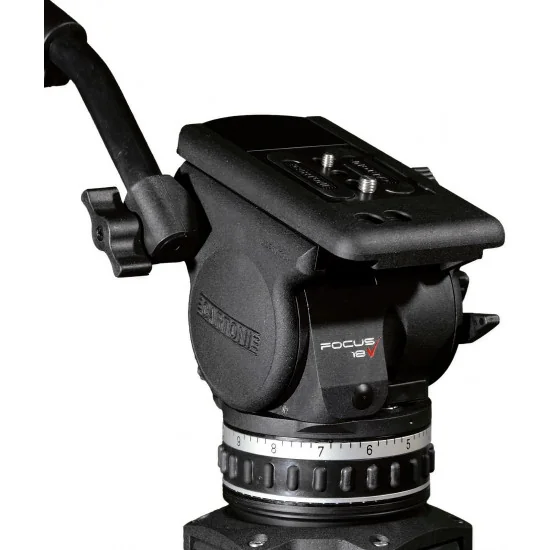

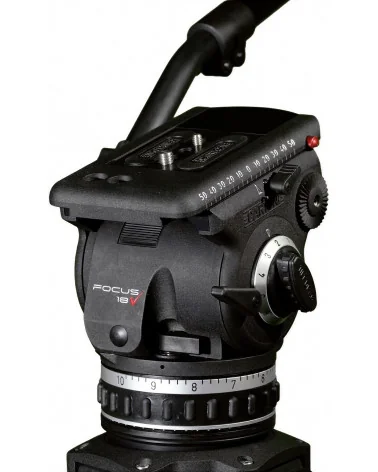

Heavy camera packages do not leave much margin for vague head control. The Cartoni Focus 18 is a 100 mm bowl fluid video head for ENG, EFP and studio camera rigs, specified for payloads from 5 to 21 kg. That range covers shoulder camcorders, cinema cameras with servo zooms, box-style bodies with rails and matte boxes, and live-production cameras carrying viewfinders, radio links or tally hardware. Its magnesium alloy and aluminium construction keeps the head rigid under accessory-heavy builds, so framing remains calm during interviews, press coverage, sports positions and multi-camera event production.

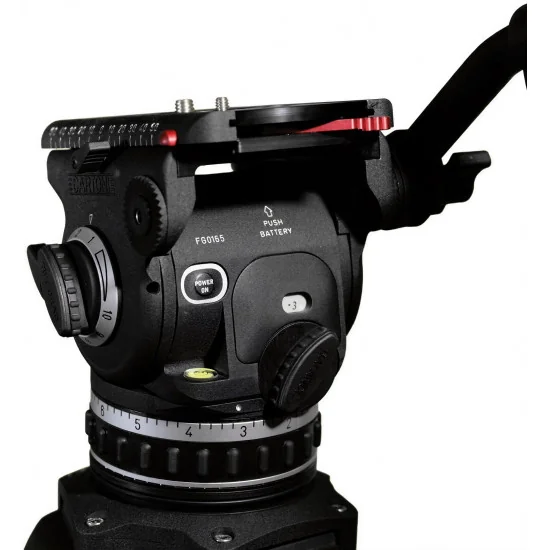

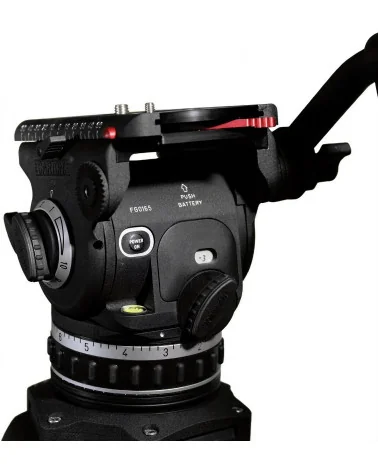

The handling logic is based on continuous counterbalance and continuous fluid drag on pan and tilt, not stepped presets that may sit between two usable settings. Operators can tune the resistance for a long lens move, a slow product shot, or a fast pan from one speaker to another, then return to the same feel with the numbered counterbalance reference. The standard Focus 18 has a +90° / -70° tilt range, 360° pan rotation, and independent pan/tilt brakes for secure lens changes or camera mounting. In low-light control positions, the illuminated bubble level and readable side controls reduce setup friction.

A Euro-style quick release sliding plate gives enough fore-aft travel to balance rigs that change during a shoot: a battery swap, heavier lens, follow-focus motor or on-board monitor can alter the centre of gravity. The telescopic orientable pan bar can be set to the operator's position and attached for right- or left-side use, which helps in cramped OB platforms, studio pedestals or camera rows. The head interfaces with 100 mm bowl tripods, while Cartoni lists adapters for selected pedestals and a converter for 150 mm tripod use.

For buyers comparing professional tripod heads, the value of the Cartoni Focus 18 is not only the headline payload. The important point is repeatable balance and drag control under real camera mass: slow, accurate pans during panel discussions, stable tilt moves for documentary interviews, and reliable framing in theatres, sports venues, studios and mobile production units. The package includes the head, telescopic pan bar, tie-down knob and camera plate, so the main operating parts are supplied for a compatible 100 mm support.
