Cartoni Focus 12 Video Fluid Head
€1,049.00
A camera build can change several times during one shooting day: box camera, ENG camcorder, cine lens, matte box, monitor, radio focus. The...
Libec LX10 is a professional fluid head tripod built around a 100 mm bowl for rapid leveling when camera height, lens and accessories change throughout a shoot. With a rated payload up to 16 kg, it suits typical broadcast and cinema configurations: ENG camcorders with long servo zooms, compact cine cameras with matte box and follow-focus, or studio packages carrying wireless video links, intercom receivers and on-board power.
The LX10 head pairs a fixed counterbalance with 2-step fluid drag on both pan and tilt, giving operators a repeatable feel across multiple cameras during live production. A broad tilt range of +85° to −65° supports podium framing, low-angle product shots and fast reframes for sports, news and event coverage. The sliding camera plate provides 50 mm fore/aft travel for balance tuning, clamps via dual 3/8 mounting screws, and keeps the build secure when swapping between prime-lens and zoom-lens setups. A non-illuminated bubble level remains visible under studio key light without adding batteries or cables.
RT50B aluminum 2-stage legs emphasize torsional rigidity for teleprompter work, sit-down interviews and outside-broadcast positions where a locked horizon is non-negotiable. The included floor-level spreader stabilizes geometry on smooth stages and newsroom floors, and its adjustable/removable structure supports both low and higher working positions without introducing leg splay drift. For location work, integrated metal spikes and rubber feet help transition to grass, gravel or hard floors in seconds. Operation is specified from −20°C to +60°C, covering winter exteriors, summer festivals and continuous studio use.
Delivered as a complete kit with spreader and RC-50 carry case, the LX10 targets crews that need consistent movement and fast resets for multicam streaming, corporate video, education studios, worship venues and regional TV—anywhere a rugged broadcast tripod system reduces downtime between takes.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop

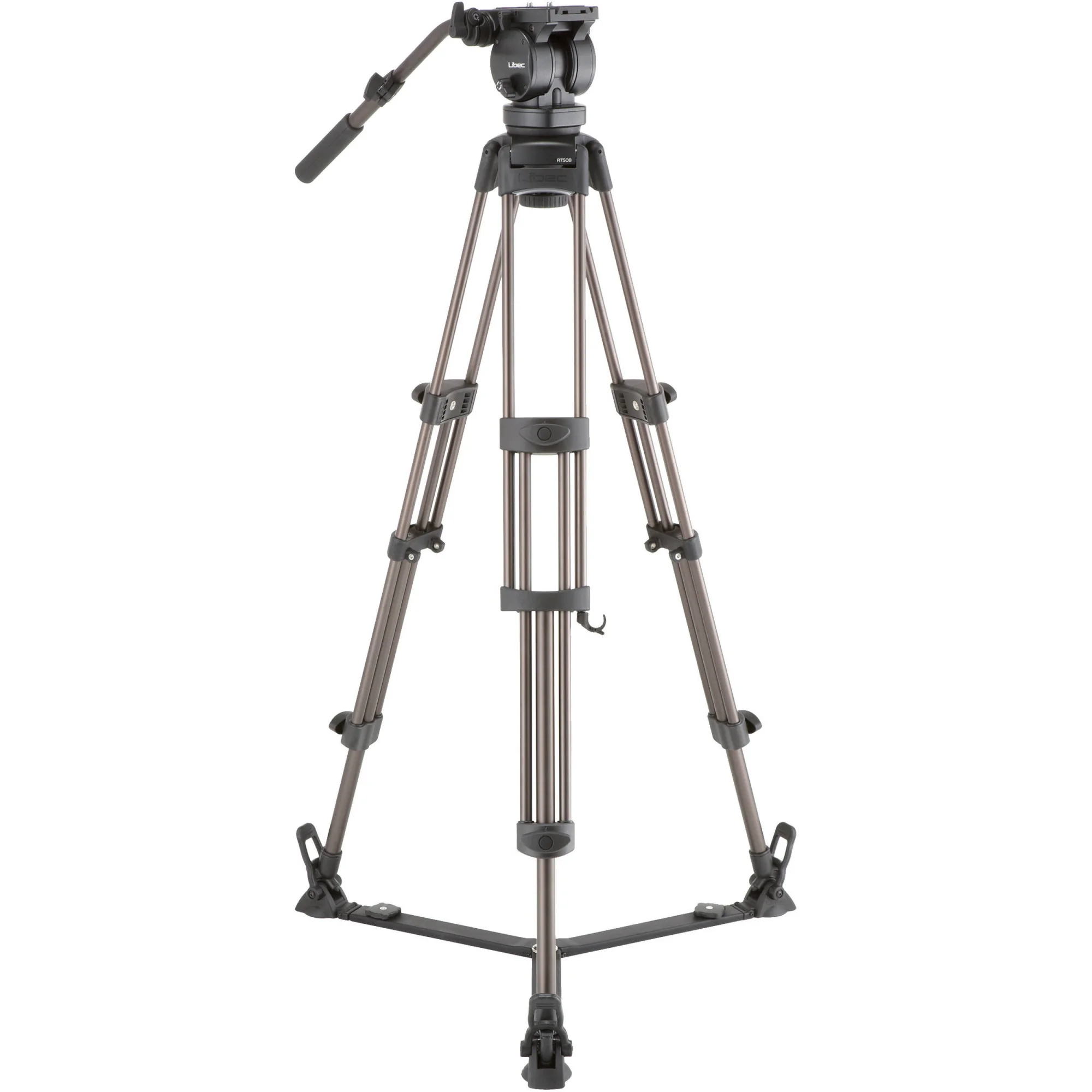

The Libec LX10 Two-Stage Aluminum Tripod System and LX10 Head and floor-level Spreader supports cameras and accessories weighing up to 5 kg. The head and legs feature a 100mm ball/bowl, which provides a wide platform for stable shots. The legs are made from aluminum and feature three leg sections. The head and legs come with a floor-level spreader, and the system is height-adjustable from 47,5 to 158 cm. To aid in leveling your shot, a spirit level is incorporated into the head. The head also features a sliding baseplate that allows you to adjust the balance of your camera. It provides fixed counterbalance that helps the fluid head support loads up to 16 kg.
With individual fluid drag adjustments for both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features discreet pan and tilt locks, and the removable pan handle can be attached to either side of the head by via the built-in rosettes.
LX10 Head
Tripod RT50B
Floor-level Spreader SP-2B
Carrying Bag
Specifications
Payload 16kg / 35.0lb
Counterbalance FIX
Drag mode 2STEP
Tilt angle +85° / -65°
Temperature range -20°C to +60°C / -4°F to +140°F
Bubble level Non illuminated
Camera plate Sliding plate
Sliding range +/-50mm / 2.0"
Plate attachment 3/8" screw x2
Spare screw 3/8" screw
Weight 7.6kg / 16.7lb
Height 63 to 173.5cm / 25.0 to 68.5"
Ball diameter 100mm
Section 2STAGE
