Telycam Drive+ SE HDMI BK PTZ Camera
€695.00
Telycam Drive+ SE HDMI BK is a compact PTZ camera built for workflows that need stable 1080p60 over HDMI with simultaneous NDI|HX and...

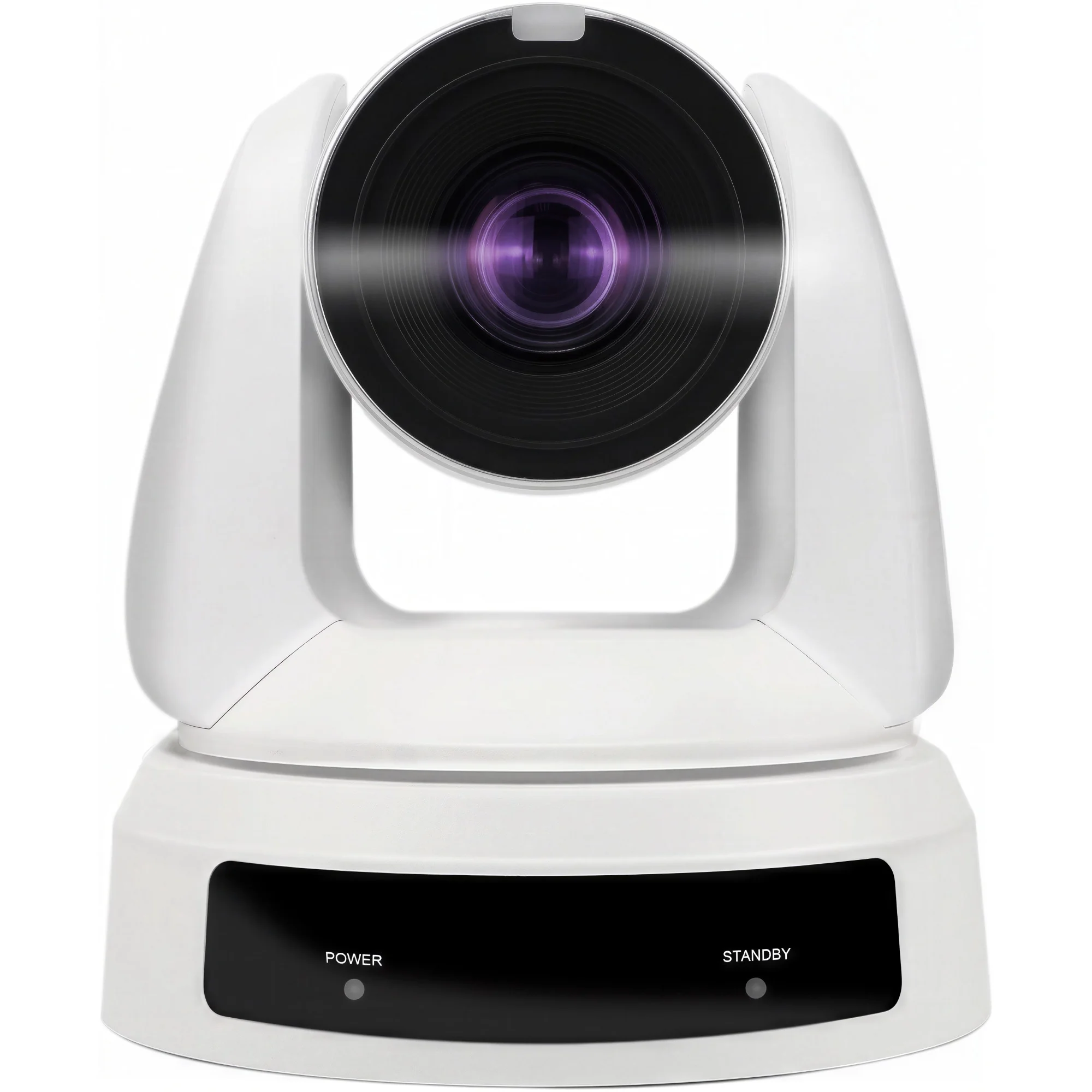

White casings have become a quiet operational asset in modern broadcast: they vanish against lecture-hall ceilings, blend into hotel ballroom décor, and stay invisible in clean corporate sets. The Lumens VC-A53 White brings that visual discretion together with serious Full HD PTZ engineering, so a production owner can specify the same camera body across permanent installs and high-end rental jobs without compromising image consistency. Around its 1/2.8" Sony CMOS sensor of 2.13 megapixels, the unit captures clean 1080p60 footage with above 50 dB SNR and a minimum illumination of 1.0 lux.
The optical block carries a 20x optical zoom across a 5.33–110 mm range at f/1.6–3.8, giving a 57° horizontal angle wide enough for theatre stages and tight enough to isolate a single presenter from the back of a 30-metre conference room. Pan moves through ±170° and tilt from -30° to +90° at speeds reaching 225° per second, which keeps preset recalls snappy on a live programme. The on-board memory holds 256 presets, addressable from RS-232, RS-422, IR remote or IP control, and the tally indicator helps stage hosts catch when their feed is live.

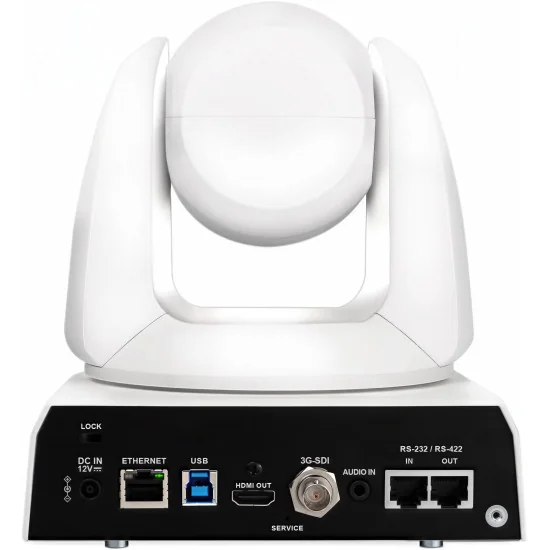

Integration is where the VC-A53 White earns its keep on a busy gallery. Video leaves the camera at the same time through 3G-SDI, HDMI, USB 2.0 and IP (RJ45), so an event producer can route a clean signal to a hardware mixer, a confidence display, a NewBlue or vMix encoder, and a remote shader station simultaneously. The Ethernet port supplies both signal and PoE+ for a single-cable run — a meaningful time saving when six cameras hang from a truss above a corporate plenary. Encoding covers H.264 and MJPEG, with streaming support over RTSP, RTMP/RTMPS, SRT, MPEG-TS, HTTP and HTTPS, while VISCA, VISCA over IP, ONVIF and FreeD are available for control and AR tracking.
For a production company that values predictable purchasing decisions, the Lumens VC-A53 White ships with a five-year manufacturer warranty, an image-flip function for inverted ceiling installs and an audio input that lets a stage microphone feed travel with the picture. From hybrid town halls to e-sport studios, theatre captures and museum lectures, the white finish keeps the camera unobtrusive while the underlying spec sheet holds its own against units twice the price.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
VC-A53 Full HD PTZ IP Camera
Professional High Speed Robotics
With high-precision motors, the VC-A53 can run at up-to 225° per second for very fast movement between preset positions. The unit is also able to move at low speed to deliver smooth and judder-free tracking shots.
Networking Built-in
The VC-A53’s Ethernet port is truly multi-purpose. It supports power over Ethernet, video streaming in a variety of secure and broadcast standard formats, and IP control. Users can remotely control multiple units and manage their cameras facility-wide using the complimentary Lumens Deployment Tool 2.0
Production Ready
The VC-A53 is based around a professional Sony sensor, making the video output easy to integrate into mixed camera productions. The unit can be controlled using RS-232, RS-422 , USB and Ethernet control interfaces enabling users to add the camera into existing workflows.
Intelligent Auto
VC-A53 offers full manual settings to give producers full creative control. The camera also incorporates intelligent automatic modes that deliver exceptional auto-focus, predictive auto-exposure and auto-white balance. These features allow users to trust the camera to run without user-input and to deliver consistently professional results.
| More Details | |
|---|---|
| Sensor | 1/2.8" 2.16 MP CMOS |
| Video Format | 1080p : 60 / 50 / 30 / 25 720p : 60 / 50 / 30 |
| Video Output (HD) Interface | 3G-SDI / HDMI / Ethernet / USB3.0 |
| Optical Zoom | 20x |
| Digital Zoom | 12x |
| Horizontal Viewing Angle | 57° |
| Vertical Viewing Angle | 32.1° |
| Diagonal Viewing Angle | 65.4° |
| Aperture | F1.6~F3.8 |
| Focal Length | 5.33mm~110mm |
| Shutter Speed | 1/1 ~ 1/10,000 sec |
| Minimum Object Distance | Wide: 0.5M / Tele: 1.5M |
| Video S / N Ratio | > 50dB |
| Minimum Illumination | 1.0 lux (F1.6, 50IRE, 30fps) |
| Focus System | Auto / Manual / Smart AF |
| Gain Control | Auto / Manual |
| White Balance | Auto / Manual |
| Exposure Control | Auto / Manual / Smart AE |
| WDR | Yes |
| 3D NR | Yes |
| Image Flip | Yes |
| AR / VR Systems | FreeD |
| Tally Light | Yes |
| Panning Angle | +170° ~ -170° |
| Panning Speed | 225°/sec |
| Tilting Angle | +90° ~ -30° |
| Tilting Speed | 225°/sec |
| Preset Positions | 256 |
| HDMI / 3G-SDI | 1080p 60 |
| IP Stream | Main : H.264 1080p 60 Second : H.264 640x360p 30 Webpage Preview: 1280x720 30 |
| IP Compression | H.264 |
| USB Output | 1080p 60 |
| USB Compression | H.264 / MJPEG |
| IP Protocol | RTSP / RTMP / RTMPS / MPEG-TS / SRT / HTTP / HTTPS |
| PoE | PoE (IEEE802.3af) |
| Input | Line In / MIC In |
| Output | Ethernet / USB 3.0 / HDMI / SDI |
| Compression Format | AAC / PCM |
| Interface | RS-232 / RS-422 / Ethernet / USB / Remote |
| Protocol | VISCA / VISCAIP / ONVIF |
| UVC | 1.1 |
| UAC | Yes |
| DC In | 12V +/- 20% |
| Power Consumption | PoE : 13W DC In : 12W |
| Weight | 2 kg (4.4 lbs) |
| Dimension (WxHxD) | 6.85" x 7.76" x 7.09" (174 x 197 x 180 mm) |
