Auto-tracking is processed on board. The camera picks up a presenter within roughly 7.5 m of its start position and keeps following out to around 18 m. Presenter-Lock stays on the chosen person when a stagehand crosses in front; another subject can be selected left or right from the IR remote, the browser or a VISCA-capable joystick. Set the automation menu to Auto Framing and it composes a group instead. A stop location, a target-loss timer and a recovery preset decide what happens once the speaker leaves, and presets 150 and 151 let a Stream Deck key or room controller start and stop tracking. A university recording a full semester, or an agency streaming a product launch, gets a shot that looks operated without paying anyone to operate that angle.

Signal routing is a setting, not a guess. Four output modes are available: baseband plus IP, USB plus IP, USB plus baseband, or every path at once with frames held at 30 fps. Baseband means HDMI 1.3 or 3G-SDI on BNC to SMPTE 424M, the one to run back to an ATEM or a broadcast router. The baseband-plus-IP mode is also where NDI|HX3 is switched on, so a hybrid rig can feed a hardware mixer and an NDI production from the same head. Over USB-C the camera appears as a UVC webcam with USB audio, carrying MJPEG at 1080p60 or YUY2 at 1080p30 into Teams, Zoom or a capture PC.

Two independent encoded streams leave the RJ45 port in H.264 or H.265 (the second can also be MJPEG), the main one at up to about 100 Mb/s in CBR or VBR. Each stream has its own RTMP or RTMPS target, so a keynote can reach YouTube and a corporate CDN at once without an external encoder. SRT works as caller or listener, with encryption passphrases of 10 to 79 characters, for contribution over unpredictable venue internet. RTSP, RTP multicast and ONVIF serve recorders and VMS platforms, and native NDI now runs on the 6.3 SDK with transport selectable among RUDP, TCP, plain UDP and multicast. Line-level audio from the 3.5 mm jack is encoded as AAC at 44.1 or 48 kHz, or as G.711A for conferencing systems, and embedded across the outputs.

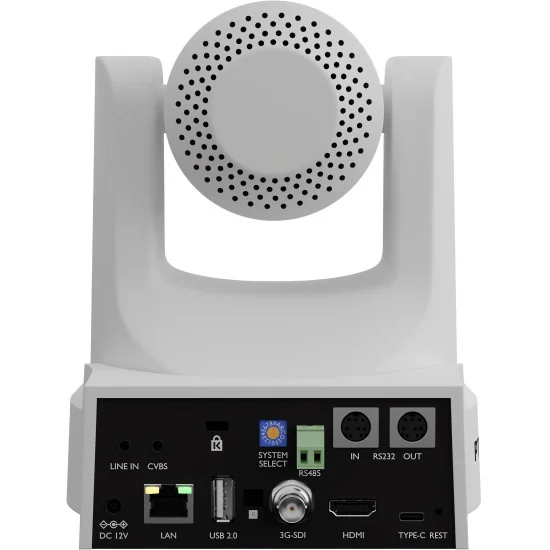

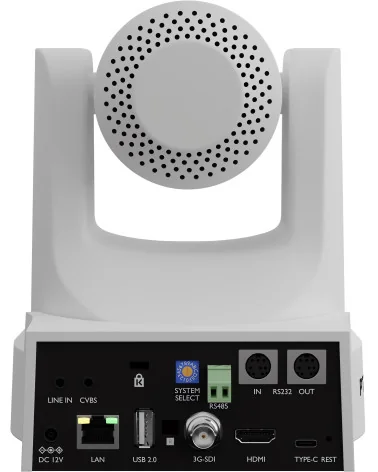

The same head answers to VISCA over IP and Sony's UDP variant, to VISCA or Pelco-D/P over RS-232 (30 m, daisy-chainable) and RS-485 (1,200 m), to ONVIF, HTTP calls and MIDI mapping. PTZOptics' SuperJoy and PT-JOY-G4 joysticks, the OBS and vMix integrations, Hive cloud control and far-end camera control in Zoom all work with it. Recent firmware added API queries for saved preset coordinates and pan/tilt limits, stills from either stream and confirmation once a preset has arrived, which gives automation scripts something solid to wait on. IT departments get digest authentication on API routes by default, guest logins that cannot read SRT or RTMP keys, ONVIF authentication on out of the box and NDAA compliance.

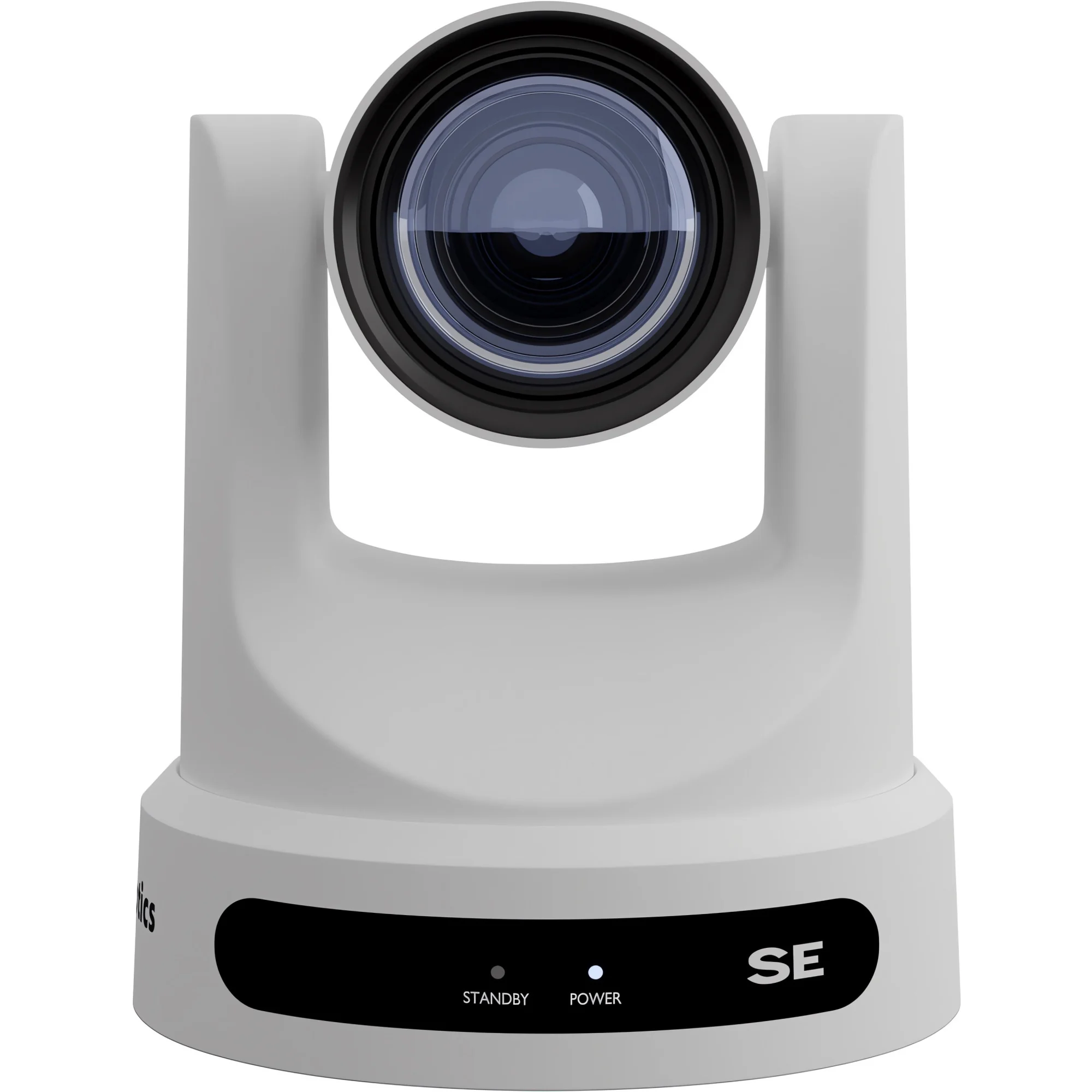

Installation is one Cat5e or Cat6 run to an 802.3af PoE port; the 12 V supply in the box handles every other case. On a ceiling mount, a gravity sensor flips the picture upright by itself, and pan/tilt limits, now retained after a reboot, keep the lens away from a projection screen or the audience. Front and rear IR receivers, a tally light, a Kensington slot and a privacy mode that turns the lens aside fit shared rooms. The white housing blends into light acoustic panels, glass-walled boardrooms, exhibition stands and medical training suites. Videomaker's reviewers did note an audible fan in hushed rooms, so leave some distance to lectern microphones. Operation is indoor, from −10 to 40 °C.
