Z-CAM P2-R1N 18x Zoom PTZ Camera
€2,490.00
Z CAM P2-R1N 18x Zoom is a broadcast-grade PTZ camera built around a large 1/1.3" CMOS sensor, delivering controlled depth cues and stable...
At OB desks, studio galleries and event venues, framing quality often depends on optics, timing and how cleanly the camera enters the signal chain. The Lumens VC-A71P-HN Black places a 1/1.8-inch 9.17 MP CMOS block behind a 30x optical zoom, giving 4K 60fps capture with enough reach for speaker close-ups, panel shots or arena positions without moving the camera. Its lens covers 63° at wide end down to 3.7° at telephoto, while Smart AF, manual focus, Smart AE, WDR and 3D noise reduction help maintain detail under LED walls, mixed stage lighting and dark background sets.
For signal routing, 12G-SDI carries UHD from a single BNC path, 3G-SDI and HDMI serve conventional switchers, and the Ethernet port handles NDI High Bandwidth, NDI HX3, NDI HX2, RTSP, RTMP, RTMPS, MPEG-TS and SRT. USB 3.0 can output H.264 4K30 or MJPEG 1080p30 for software capture. The camera can output network and baseband signals in parallel, so a crew can feed a hardware mixer, an IP encoder and a monitoring station from the same source.
Broadcast timing is covered through genlock, including NDI Genlock, making the camera easier to place among 12G-SDI cameras, replay systems and graphics servers. Rec.709 and BT.2020 color space options allow controlled matching in HD and UHD chains. FreeD data supports virtual production tracking, while the tally light assists operators during multi-camera switching. With 256 presets, very slow 0.01°/s movement, rapid 300°/s repositioning and +170° to -170° pan range, camera cues can be repeated with precision during conferences, sports, e-sports, product launches and education capture.
Network operation is not an afterthought: PoE++ reduces cabling on ceilings, truss positions or fixed studio mounts, and 802.1x suits managed AV-over-IP infrastructure. RS-232, RS-422, Ethernet, USB and remote control options fit both traditional PTZ panels and software control rooms. A 3.5 mm line/mic input with AAC, G.711 and PCM audio formats also gives the Lumens VC-A71P-HN Black a practical route for lecture capture, live streaming and corporate production where embedded audio matters.

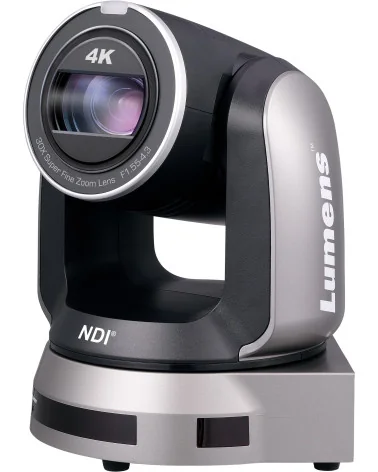

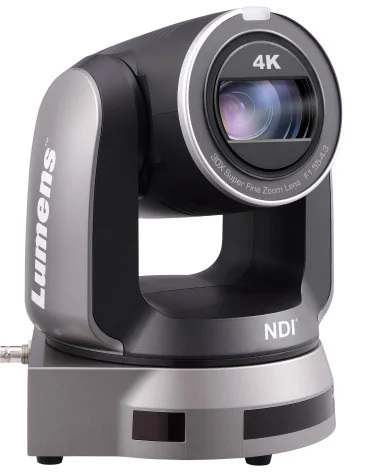

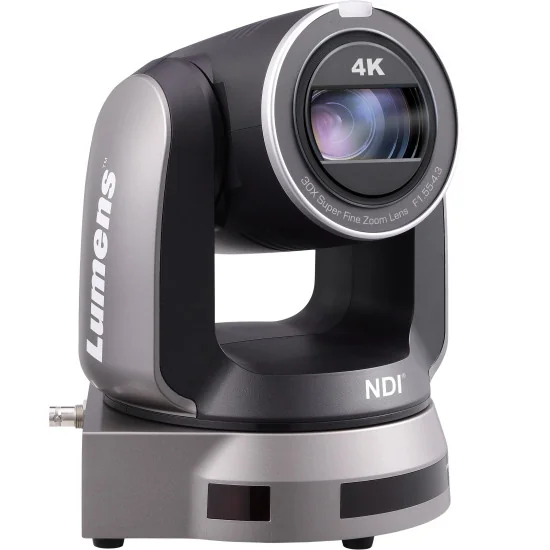

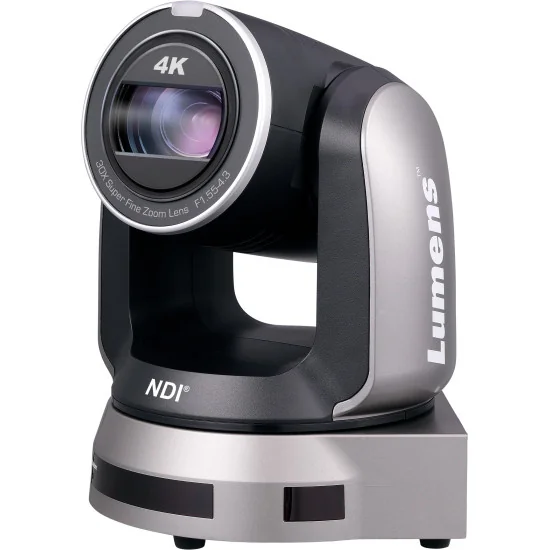

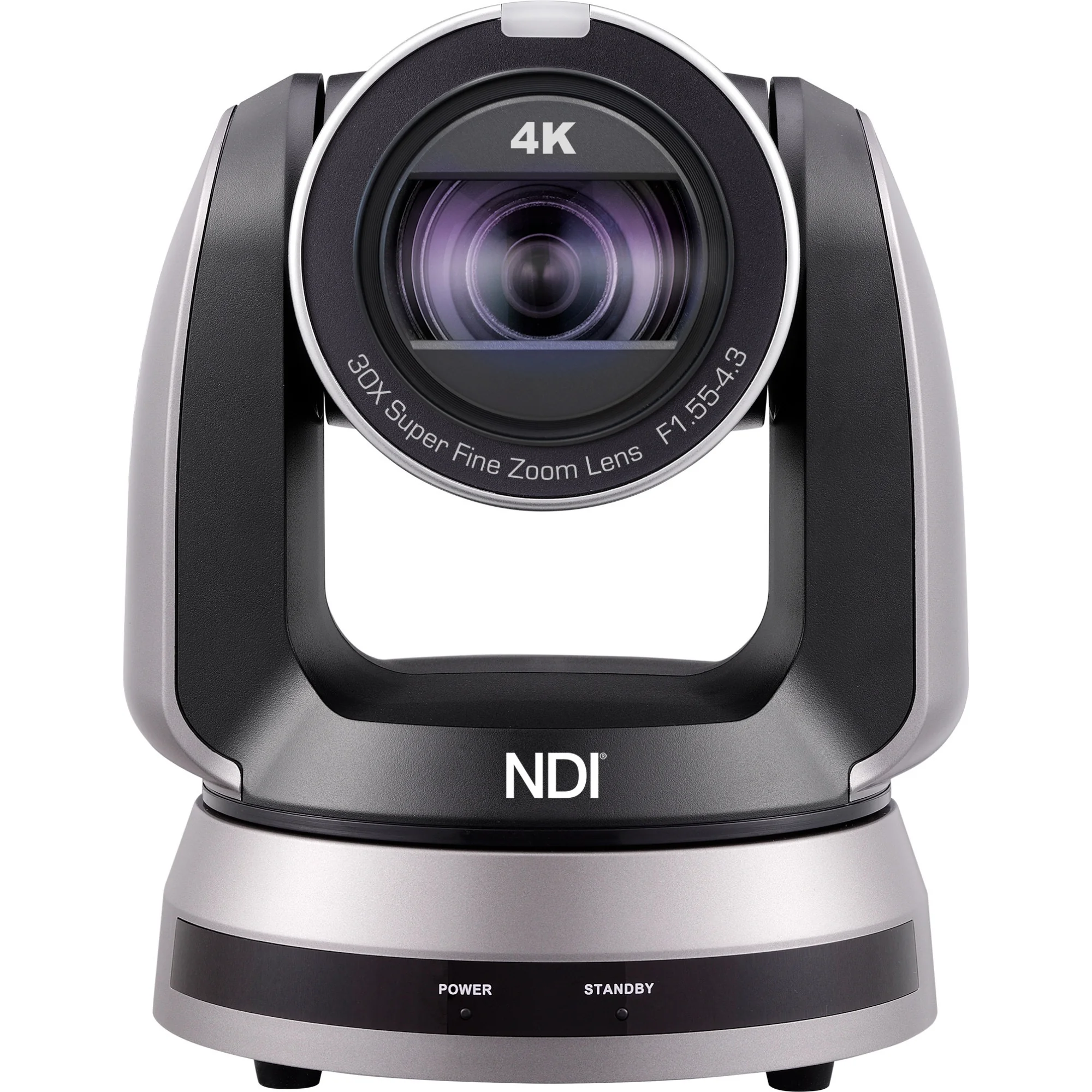

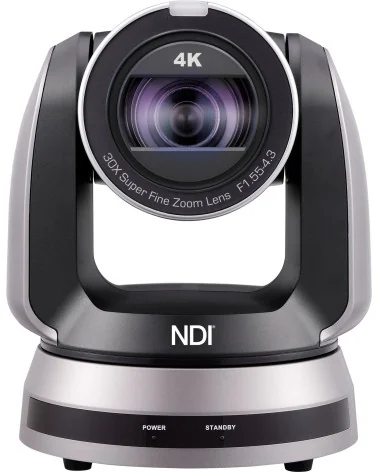

Lumens VC-A71P-HN Black PTZ Camera
VC-A71P-HN-B
Price: €3,599.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
At OB desks, studio galleries and event venues, framing quality often depends on optics, timing and how cleanly the camera enters the signal chain. The Lumens VC-A71P-HN Black places a 1/1.8-inch 9.17 MP CMOS block behind a 30x optical zoom, giving 4K 60fps capture with enough reach for speaker close-ups, panel shots or arena positions without moving the camera. Its lens covers 63° at wide end down to 3.7° at telephoto, while Smart AF, manual focus, Smart AE, WDR and 3D noise reduction help maintain detail under LED walls, mixed stage lighting and dark background sets.
For signal routing, 12G-SDI carries UHD from a single BNC path, 3G-SDI and HDMI serve conventional switchers, and the Ethernet port handles NDI High Bandwidth, NDI HX3, NDI HX2, RTSP, RTMP, RTMPS, MPEG-TS and SRT. USB 3.0 can output H.264 4K30 or MJPEG 1080p30 for software capture. The camera can output network and baseband signals in parallel, so a crew can feed a hardware mixer, an IP encoder and a monitoring station from the same source.
Broadcast timing is covered through genlock, including NDI Genlock, making the camera easier to place among 12G-SDI cameras, replay systems and graphics servers. Rec.709 and BT.2020 color space options allow controlled matching in HD and UHD chains. FreeD data supports virtual production tracking, while the tally light assists operators during multi-camera switching. With 256 presets, very slow 0.01°/s movement, rapid 300°/s repositioning and +170° to -170° pan range, camera cues can be repeated with precision during conferences, sports, e-sports, product launches and education capture.
Network operation is not an afterthought: PoE++ reduces cabling on ceilings, truss positions or fixed studio mounts, and 802.1x suits managed AV-over-IP infrastructure. RS-232, RS-422, Ethernet, USB and remote control options fit both traditional PTZ panels and software control rooms. A 3.5 mm line/mic input with AAC, G.711 and PCM audio formats also gives the Lumens VC-A71P-HN Black a practical route for lecture capture, live streaming and corporate production where embedded audio matters.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
4K NDI PTZ Camera with NDI High Bandwidth and NDI HX3
- 4K 60 fps, 30x Optical Zoom, 1/1.8" Sensor
- HDMI / 3G-SDI / 12G-SDI / IP / USB
- Genlock Support
- Rec.709 / BT.2020 Support
- NDI High Bandwidth / NDI HX3 / RTSP / RTMP / RTMPS / MPEG- TS / SRT Support
- FreeD Protocol for Live VR/AR Production
- 802.1x Support
NDI High Bandwidth
Featuring NDI High Bandwidth, VC-A71P-HN delivers high-quality video over IP networks with ultra-low latency. Visually lossless, the I-Frame NDI codec is suitable for use in high-end video and TV production, live events and studios.
NDI HX3 Technology
VC-A71P-HN supports the latest version of the NDI protocol, NDI HX3. It delivers high-quality video with very low latency and connects directly to NDI networks. VC-A71P-HN outputs NDI HX3 and NDI High Bandwidth output simultaneously.

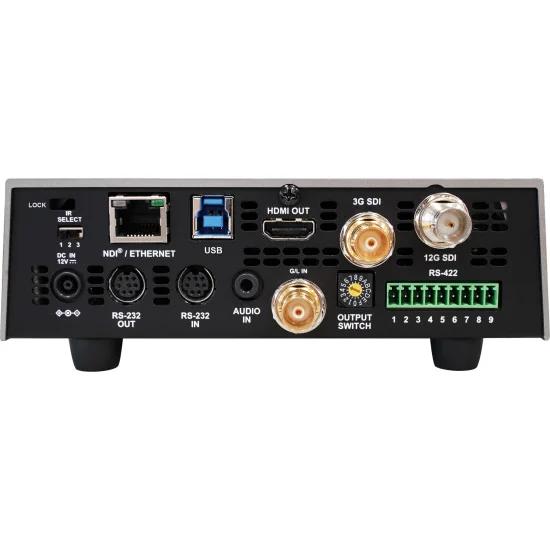

Broadcast Connections
VC-A71P-HN is equipped with dual SDI ports (12G and 3G) and a genlock connector to synchronize broadcast equipment. The camera can be powered over the Ethernet (PoE++); the network port can also be used for SRT and MPEG- TS output, as well as standard webstreaming protocols.
BT.2020 / Rec.709
Lumens VC-A71P-HN supports the BT.2020 color gamut for wide and precise color reproduction. With BT.2020, VC-A71P-HN can be matched with other cameras and deliver video output optimized for new generation UltraHD monitors.
Specification:
Sensor: 1/1.8" 9.17 MP CMOS
Video Format: 2160p: 59.94 / 50 / 29.97 / 25 , 1080p: 59.94 / 50 / 29.97 / 25 , 1080i: 59. 94 / 50 , 720p: 59.94 / 50
Video Output Interface: HDMI / Ethernet / 12G-SDI / 3G-SDI / USB 3.0
Genlock: Yes
Optical Zoom: 30x
Digital Zoom: 12x
Horizontal Viewing Angle: 63° (Wide) to 3.7° (Tele)
Vertical Viewing Angle: 35.4° (Wide) to 2.1° (Tele)
Diagonal Viewing Angle: 72.3° (Wide) to 4.2° (Tele)
Aperture: F1.6 ~ F4.8
Focal Length: 6.5mm ~ 202mm
Shutter Speed: 1/1 ~ 1/10,000 sec
Minimum Object Distance: 1.5m (Wide/Tele)
Video S/N Ratio: > 50dB
Minimum Illumination: 0.05 lux (F1.6, 50IRE, 30fps)
Focus System: Auto / Manual / Smart AF
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual / Smart AE
IQ Sync: Yes
WDR: Yes
3D NR: Yes
Image Flip: Yes
Color Space: Standard / BT.2020 / REC.709
AR/VR systems: FreeD
NDI Genlock: Yes
Tally Light: Yes
Panning Angle: +170 ~ 170°
Panning Speed: 0.01~300°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 0.01~300°/sec
Preset Positions: 256
HDMI/12G-SDI: 2160p59.94
IP Stream: NDI : HEVC 4K59.94fps , H.264 640x360 29.97fps or RTSP : HEVC 4K 59.94fps , H.264 1080p 59.94fps , H.264 640x360 29.97fps
IP Compression: HEVC / H.264
USB Output: H.264 4K30fps , MJPEG 1080p30
USB Compression: H.264 / MJPEG
IP Protocol: NDI High Bandwidth / NDI HX3 / NDI HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE: PoE++ (IEEE802.3bt)
Input: Line In/MIC In , Phone Jack 3.5mm x1
Output: Ethernet / 12G-SDI / 3G-SDI / HDMI2.0 / USB 3.0
Compression Format: IP : G.711
USB : PCM
Interface: RS-232 / RS-422 / Ethernet / USB 3.0 / Remote
Protocol: VISCA / VISCAIP / ONVIF / PELCO D / NDI / UVC / UAC
DC In: 12V +/- 20%
Power Consumption: PoE : 40 W , DC In : 40 W
Weight: 6.6 lbs (3 kg)
Dimension: 9.1” x 7.4” x 7.4” , (232 x 188 x 189 mm)
VC-A71P-HN-B
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP)
SDI
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 4K UltraHD (3840 x 2160) 50/60 fps
- Control protocol for PTZ cameras
- NDI
ONVIF
PELCO-D
RS-232
RS-485
UAC
UVC
VISCA
VISCA IP - Network Connection
- Ethernet
- Sensor Size
- 1/1.8"
- Optical Zoom
- 30x
- PoE Technology
- Yes
- Auto-Tracking
- No
- Tally Light
- Yes
Specific References
- ean13
- 4711246503243
- mpn
- VC-A71P-HN-B
