For productions that need 4K detail from long camera positions, the Lumens VC-A71P-HN White combines a 1/1.8" 9.17 MP CMOS sensor, 2160p video up to 59.94 fps and a 30x optical zoom lens in a white PTZ body for permanent installations and visible studio spaces. The lens covers 63° at the wide end and narrows to 3.7° at telephoto, so it can frame a full stage, then isolate a presenter, panelist or athlete without moving the rig. 12x digital zoom gives extra reach for monitoring shots, while 0.05 lux sensitivity, WDR and 3D noise reduction help retain usable detail in low-light rooms and high-contrast LED environments.
The camera fits mixed baseband and IP systems: 12G-SDI, 3G-SDI, HDMI 2.0, Ethernet and USB 3.0 outputs let a director send UHD over SDI, feed a local confidence monitor, stream to an IP production network and attach to software tools over USB. NDI High Bandwidth, NDI HX3 and NDI HX2 can be used alongside RTSP, RTMP, RTMPS, MPEG-TS and SRT, giving engineers clean options for multi-camera live switching, remote contribution, lecture capture and event relay. PoE++ supports single-cable network installation; a 12 V DC input remains available for racks or wall boxes.
Broadcast timing is covered by genlock and NDI genlock, while Rec.709 and BT.2020 color modes help match the VC-A71P-HN White with other cameras across HD and UHD chains. FreeD output supplies pan, tilt, zoom and lens data for AR/VR graphics, virtual studios and set mapping. For controlled camera moves, the head pans from -170° to +170°, tilts from -30° to +90° and reaches up to 300°/sec; 256 presets give repeatable framing for news desks, product demos, training rooms and live venues.
Protocol coverage suits professional control rooms. VISCA, VISCA over IP, ONVIF, Pelco-D, NDI, UVC and UAC support allows operation from PTZ controllers, automation software and unified AV systems. Smart AF, auto/manual exposure, auto/manual gain and white balance reduce operator correction during fast changes, while the tally light gives camera status to on-camera talent. A 3.5 mm line/mic input with AAC, G.711 and PCM handling adds simple audio embedding for webcasts, education, corporate briefings and live event coverage.

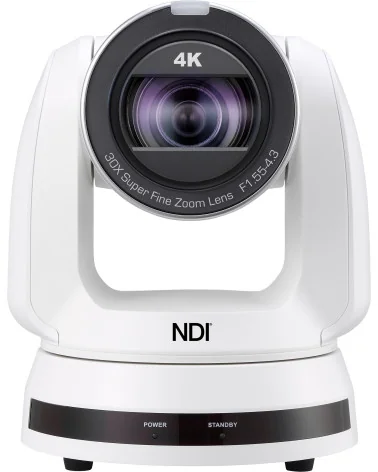

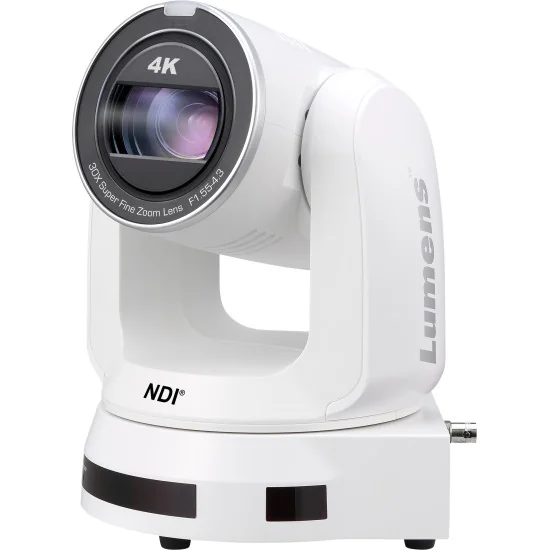

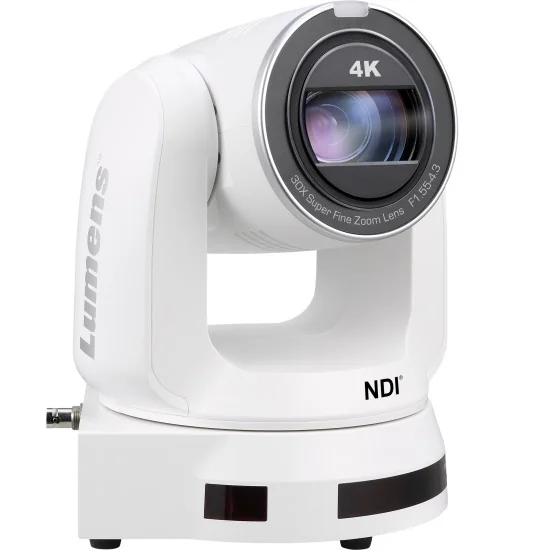

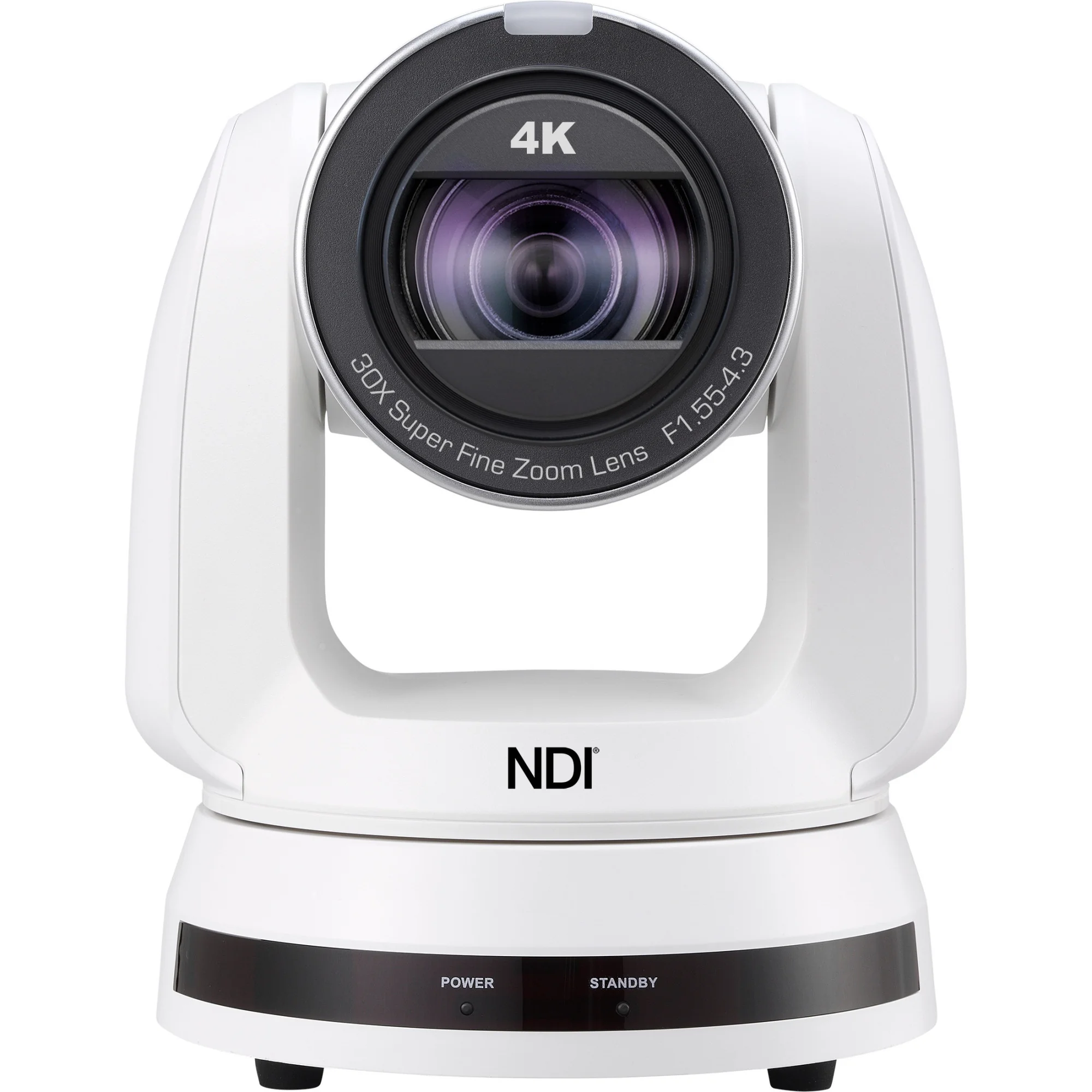

Lumens VC-A71P-HN White PTZ Camera
VC-A71P-HN-W
Price: €3,599.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
For productions that need 4K detail from long camera positions, the Lumens VC-A71P-HN White combines a 1/1.8" 9.17 MP CMOS sensor, 2160p video up to 59.94 fps and a 30x optical zoom lens in a white PTZ body for permanent installations and visible studio spaces. The lens covers 63° at the wide end and narrows to 3.7° at telephoto, so it can frame a full stage, then isolate a presenter, panelist or athlete without moving the rig. 12x digital zoom gives extra reach for monitoring shots, while 0.05 lux sensitivity, WDR and 3D noise reduction help retain usable detail in low-light rooms and high-contrast LED environments.
The camera fits mixed baseband and IP systems: 12G-SDI, 3G-SDI, HDMI 2.0, Ethernet and USB 3.0 outputs let a director send UHD over SDI, feed a local confidence monitor, stream to an IP production network and attach to software tools over USB. NDI High Bandwidth, NDI HX3 and NDI HX2 can be used alongside RTSP, RTMP, RTMPS, MPEG-TS and SRT, giving engineers clean options for multi-camera live switching, remote contribution, lecture capture and event relay. PoE++ supports single-cable network installation; a 12 V DC input remains available for racks or wall boxes.
Broadcast timing is covered by genlock and NDI genlock, while Rec.709 and BT.2020 color modes help match the VC-A71P-HN White with other cameras across HD and UHD chains. FreeD output supplies pan, tilt, zoom and lens data for AR/VR graphics, virtual studios and set mapping. For controlled camera moves, the head pans from -170° to +170°, tilts from -30° to +90° and reaches up to 300°/sec; 256 presets give repeatable framing for news desks, product demos, training rooms and live venues.
Protocol coverage suits professional control rooms. VISCA, VISCA over IP, ONVIF, Pelco-D, NDI, UVC and UAC support allows operation from PTZ controllers, automation software and unified AV systems. Smart AF, auto/manual exposure, auto/manual gain and white balance reduce operator correction during fast changes, while the tally light gives camera status to on-camera talent. A 3.5 mm line/mic input with AAC, G.711 and PCM handling adds simple audio embedding for webcasts, education, corporate briefings and live event coverage.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
4K NDI PTZ Camera with NDI High Bandwidth and NDI HX3
- 4K 60 fps, 30x Optical Zoom, 1/1.8" Sensor
- HDMI / 3G-SDI / 12G-SDI / IP / USB
- Genlock Support
- Rec.709 / BT.2020 Support
- NDI High Bandwidth / NDI HX3 / RTSP / RTMP / RTMPS / MPEG- TS / SRT Support
- FreeD Protocol for Live VR/AR Production
- 802.1x Support
NDI High Bandwidth
Featuring NDI High Bandwidth, VC-A71P-HN delivers high-quality video over IP networks with ultra-low latency. Visually lossless, the I-Frame NDI codec is suitable for use in high-end video and TV production, live events and studios.
NDI HX3 Technology
VC-A71P-HN supports the latest version of the NDI protocol, NDI HX3. It delivers high-quality video with very low latency and connects directly to NDI networks. VC-A71P-HN outputs NDI HX3 and NDI High Bandwidth output simultaneously.
Broadcast Connections

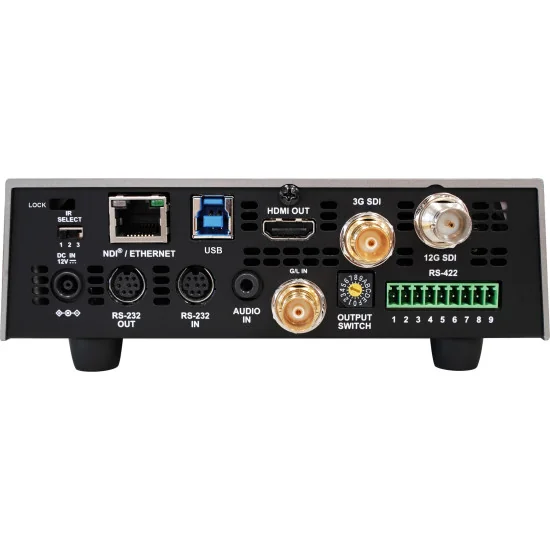

VC-A71P-HN is equipped with dual SDI ports (12G and 3G) and a genlock connector to synchronize broadcast equipment. The camera can be powered over the Ethernet (PoE++); the network port can also be used for SRT and MPEG- TS output, as well as standard webstreaming protocols.
BT.2020 / Rec.709
Lumens VC-A71P-HN supports the BT.2020 color gamut for wide and precise color reproduction. With BT.2020, VC-A71P-HN can be matched with other cameras and deliver video output optimized for new generation UltraHD monitors.
Specification:
Sensor: 1/1.8" 9.17 MP CMOS
Video Format: 2160p: 59.94 / 50 / 29.97 / 25 , 1080p: 59.94 / 50 / 29.97 / 25 , 1080i: 59. 94 / 50 , 720p: 59.94 / 50
Video Output Interface: HDMI / Ethernet / 12G-SDI / 3G-SDI / USB 3.0
Genlock: Yes
Optical Zoom: 30x
Digital Zoom: 12x
Horizontal Viewing Angle: 63° (Wide) to 3.7° (Tele)
Vertical Viewing Angle: 35.4° (Wide) to 2.1° (Tele)
Diagonal Viewing Angle: 72.3° (Wide) to 4.2° (Tele)
Aperture: F1.6 ~ F4.8
Focal Length: 6.5mm ~ 202mm
Shutter Speed: 1/1 ~ 1/10,000 sec
Minimum Object Distance: 1.5m (Wide/Tele)
Video S/N Ratio: > 50dB
Minimum Illumination: 0.05 lux (F1.6, 50IRE, 30fps)
Focus System: Auto / Manual / Smart AF
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual / Smart AE
IQ Sync: Yes
WDR: Yes
3D NR: Yes
Image Flip: Yes
Color Space: Standard / BT.2020 / REC.709
AR/VR systems: FreeD
NDI Genlock: Yes
Tally Light: Yes
Panning Angle: +170 ~ 170°
Panning Speed: 0.01~300°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 0.01~300°/sec
Preset Positions: 256
HDMI/12G-SDI: 2160p59.94
IP Stream: NDI : HEVC 4K59.94fps , H.264 640x360 29.97fps or RTSP : HEVC 4K 59.94fps , H.264 1080p 59.94fps , H.264 640x360 29.97fps
IP Compression: HEVC / H.264
USB Output: H.264 4K30fps , MJPEG 1080p30
USB Compression: H.264 / MJPEG
IP Protocol: NDI High Bandwidth / NDI HX3 / NDI HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE: PoE++ (IEEE802.3bt)
Input: Line In/MIC In , Phone Jack 3.5mm x1
Output: Ethernet / 12G-SDI / 3G-SDI / HDMI2.0 / USB 3.0
Compression Format: IP : G.711
USB : PCM
Interface: RS-232 / RS-422 / Ethernet / USB 3.0 / Remote
Protocol: VISCA / VISCAIP / ONVIF / PELCO D / NDI / UVC / UAC
DC In: 12V +/- 20%
Power Consumption: PoE : 40 W , DC In : 40 W
Weight: 6.6 lbs (3 kg)
Dimension: 9.1” x 7.4” x 7.4” , (232 x 188 x 189 mm)
VC-A71P-HN-W
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP)
SDI
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 4K UltraHD (3840 x 2160) 50/60 fps
- Control protocol for PTZ cameras
- NDI
ONVIF
PELCO-D
RS-232
RS-485
UAC
UVC
VISCA
VISCA IP - Network Connection
- Ethernet
- Sensor Size
- 1/1.8"
- Optical Zoom
- 30x
- PoE Technology
- Yes
- Auto-Tracking
- No
- Tally Light
- Yes
Specific References
- ean13
- 4711246503250
- mpn
- VC-A71P-HN-W
