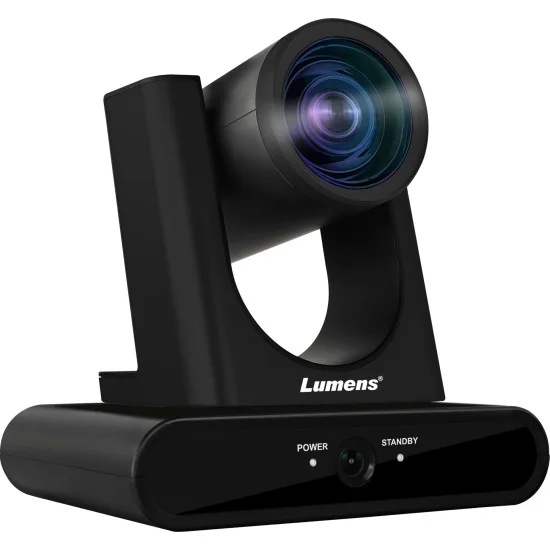

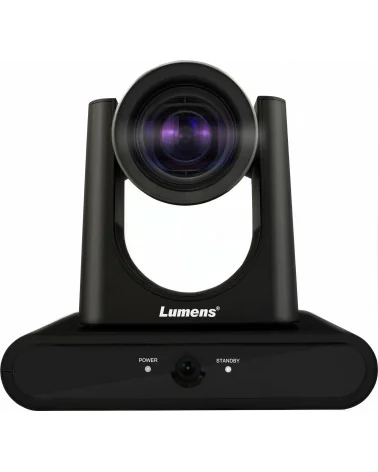

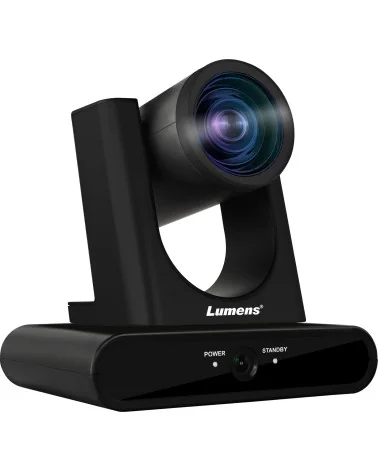

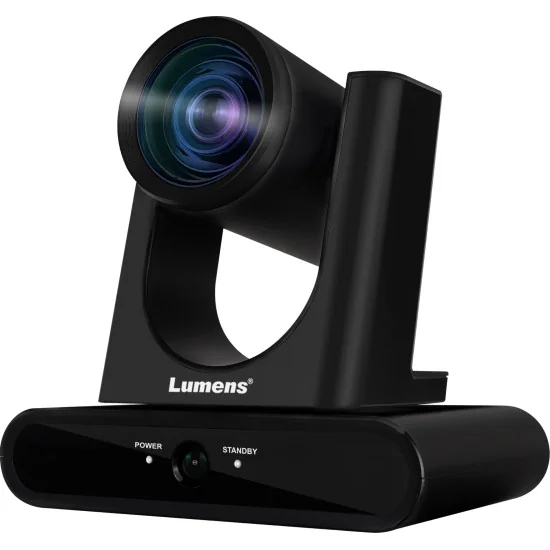

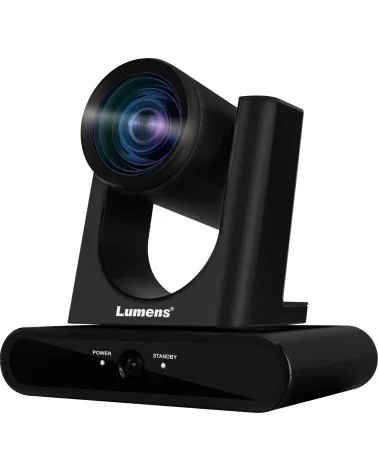

Lumens VC-TR30 Black Auto-Tracking PTZ Camera

Lumens VC-TR30 Black Auto-Tracking PTZ Camera

Name: Lumens VC-TR30 Black Auto-Tracking PTZ Camera
Brand: Lumens
SKU: VC-TR30-PB
Price: 1349.00 EUR
Availability: InStock

MPN: VC-TR30-PB

Price: €1,349.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

Hands-off capture starts the moment a presenter steps in front of the Lumens VC-TR30 Black PTZ camera. Built around an AI engine with human detection, this Full HD camera follows the speaker on its own, holding a clean frame while they move across a stage, a meeting table, or a teaching space. Three tracking behaviours (Everywhere, Stage, Partition) and two auto-framing modes let an operator match the room rather than fight it, and a quick gesture, raising the hands, hands the shot to a new subject without anyone touching a controller.

The optics are matched to real rooms. A 12x optical zoom paired with 12x digital reach covers everything from a tight head-and-shoulders shot to a wide 72.5° view across the front of a hall, while the 1/2.8" 2.16MP CMOS sensor, Wide Dynamic Range and 3D noise reduction keep faces clean under mixed lighting and down to roughly 1 lux. A second panoramic sensor watches the whole space so tracking stays aware of who is where, and 256 stored positions make recurring shots repeatable session after session.

For a production house juggling several venues, the connection side is where the VC-TR30 earns its place. HDMI, USB 3.0 and IP stream at the same time, so the same unit can feed a vision mixer, a laptop running a soft codec, and an IP streaming encoder in one pass. The network port carries video, control and power together over a single cable on a PoE switch, RTSP, RTMP, RTMPS and SRT cover the route to most platforms, and VISCA, ONVIF, RS-232 and UVC slot the camera into existing control schemes and third-party switchers.

That mix suits multi-camera live events, hybrid town halls, lecture capture and corporate studios, anywhere staff numbers are thin and reliability is non-negotiable. With a five-year manufacturer warranty behind it, the Lumens VC-TR30 reads as a long-term fixture rather than a stopgap, and our team can advise on mounts, controllers and cabling so the rig is right before it ships.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

AI Auto-Tracking Camera

AI-Powered Tracking with Human Detection
3 Tracking modes and 2 Framing modes
HDMI, Ethernet and USB simultaneous output
1080P 60fps with 12x Optical Zoom
Mount upright or inverted

Automatic Production
VC-TR30 is perfect for use in meeting rooms and presentations because of its intelligent auto-tracking and auto-framing modes. Both enable hands-off video capture, with the camera following a presenter or framing the shot around delegates present in the meeting room.

Flexible Lens
The 12x zoom lens has a 72.5° horizontal field of view at its widest setting, facilitating its use in small video studios, meeting spaces or presentation stages. It works in partnership with the high sensitivity sensor to deliver excellent video quality in all lighting conditions.

Gesture Control Tracking Method
The VC-TR30 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.

Single Cable Installation
The VC-TR30's Ethernet connection is multi-purpose. Connected to a PoE-enabled switch, the network cable can transport video, power and control signals. This makes installation extremely quick and cost-effective.

Specs.
PTZ Camera Sensor: 1 / 2.8" 2.16MP CMOS
PTZ Camera Video Format:
1080p60
1080p50
1080p30
1080p25
720p60
720p50
Video Output (HD) Interface: HDMI / Ethernet / USB 3.0
Optical Zoom: 12x
Digital Zoom: 12x
PTZ Camera Horizontal Viewing Angle: 72.5°
PTZ Camera Vertical Viewing Angle: 40.8°
Diagonal Viewing Angle: 83.2°
PTZ Camera Aperture: F1.6 ~ F2.8
PTZ Camera Focal Length: f = 3.9mm ~ 46.8mm
Shutter Speed: 1 / 25 ~ 1 / 10,000 sec
Minimum Object Distance: Wide = 1000mm , Tele = 1500mm
Video S / N Ratio: > 50dB
Minimum Illumination: 1 lux (F1.6, 50IRE, 30fps)
Focus System: Auto, manual
Gain Control: Auto, manual
White Balance: Auto, manual
Exposure Control: Auto, manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
Auto Tracking: Everywhere / Stage / Partition
Auto Framing: Everywhere / Partition
Gesture Control: Yes
Panoramic Camera Sensor: 1 / 2.8" 2MP CMOS
Panoramic Camera Video Format: 720p30
Panoramic Camera Horizontal Viewing Angle: 111°
Panoramic Camera Vertical Viewing Angle: 62°
Panoramic Camera Aperture: F2.4
Panoramic Camera Focal Length: 3.1mm
Panning Angle: +170 ~ -170°
Panning Speed: 0.2 ~ 120° / sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 0.2 ~ 80° / sec
Preset Positions: 256
IP Stream:
PTZ Camera: Main: 1080p60 , Second: 720p30
Panoramic Camera: 720p30
IP Compression: H.264
USB Output: 1080p30
USB Compression: MJPEG
IP Protocol: HTTP / RTSP / RTMP / RTMPS / SRT
PoE: Yes (IEEE802.3af)
Audio Input: Line In / MIC In
Audio Output: Ethernet / USB 3.0 / HDMI
Audio Compression Format: AAC / PCM

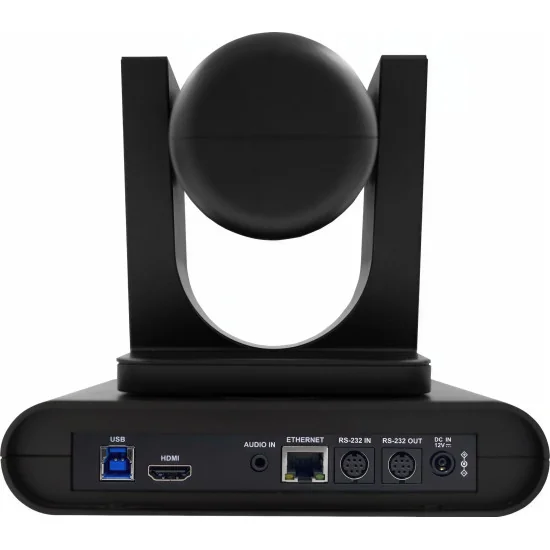

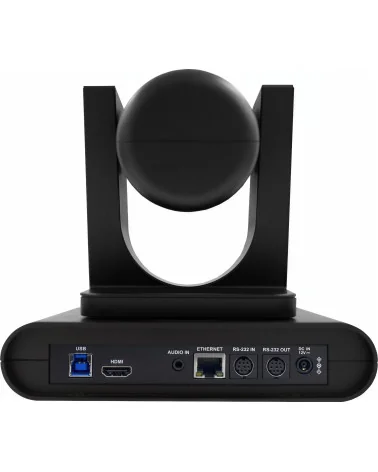

Interface: RS-232 / Ethernet / USB 3.0
Protocol: VISCA / ONVIF
UVC: 1.1
UAC: Yes
DC In: 12V + / - 20%
Power consumption: PoE: 11W , DC In: 10W
Weight: 1.5 kg
Dimension: 190 ×185 ×138 mm
