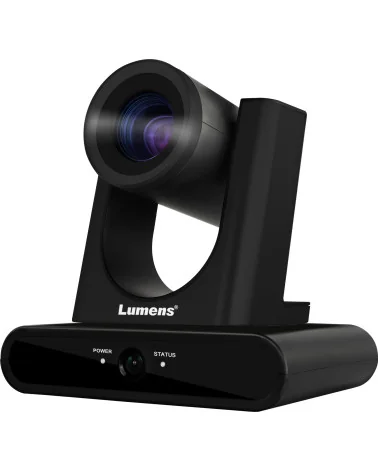

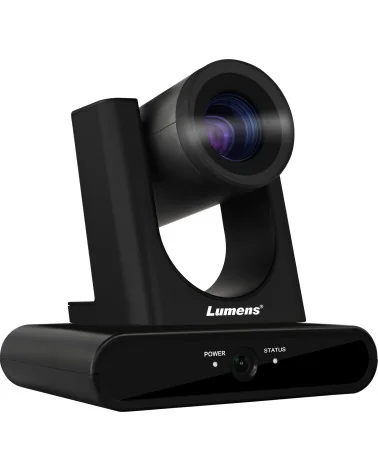

Lumens VC-TR41 Black Auto-Tracking PTZ Camera

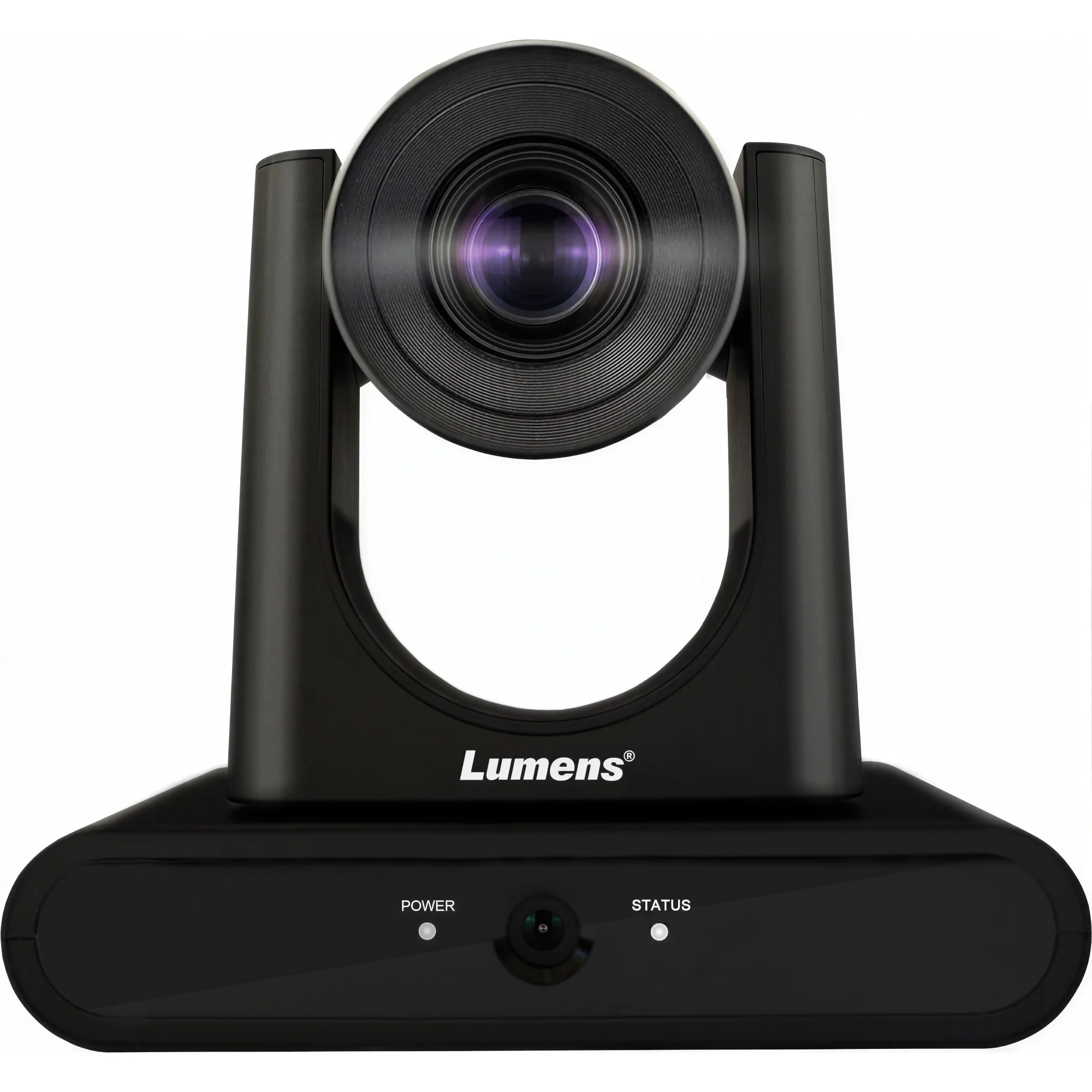

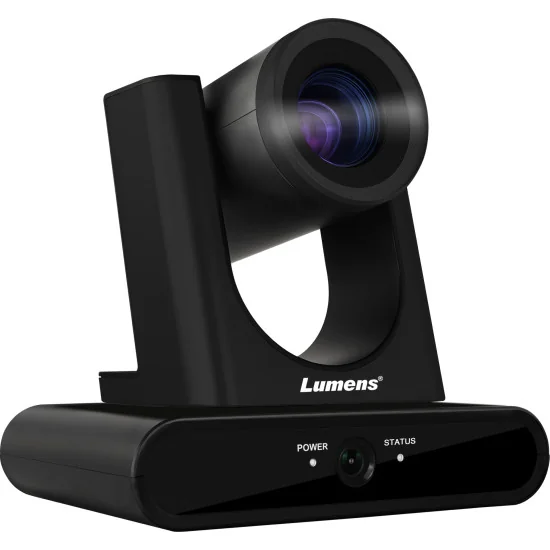

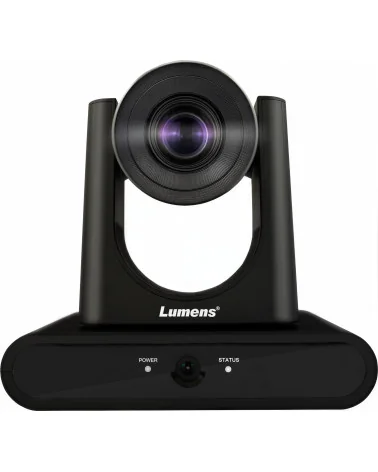

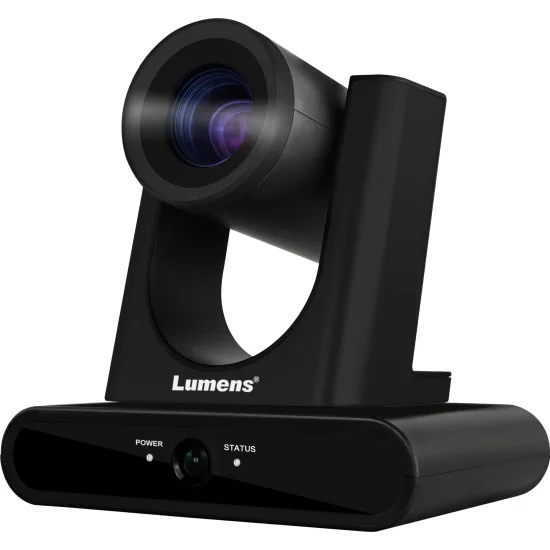

Two synchronised lenses sit inside the Lumens VC-TR41 Black, and that hardware choice shapes everything it does on a busy set. A wide panoramic sensor scans the room in real time and feeds positional data to the AI engine, while the main 1/2.8" 2.16MP CMOS optical block frames the actual shot. The result is a PTZ auto-tracking camera that keeps a presenter or panellist centred at 1080p60 without an operator on the joystick — a practical answer for studios juggling multi-room schedules with limited crew.

Optical performance backs the AI side. The lens covers 20x optical zoom plus 12x digital extension, focal length 4.9–94 mm, aperture F1.6–F2.8, low-light sensitivity down to 1 lux and a signal-to-noise ratio above 50 dB. Pan reaches ±170°, tilt spans +90° to -30°, with 256 stored presets and motion speeds tuned for both slow reveals and quick reaction shots. 3D noise reduction and Wide Dynamic Range tame harsh lobby lighting or backlit windows during a corporate town hall in a glass atrium or a hybrid keynote on a darkened conference stage.

The AI feature set goes deeper than basic subject follow. Everywhere, Stage, Partition and Audience tracking modes let an operator decide whether the camera locks onto one speaker, a defined zone of the stage, or pivots toward audience members who stand to ask a question. Auto framing, gesture control and the new Intelligent Director mode — active in tandem with the Lumens LC300 media processor — coordinate multiple VC-TR41 units for hands-free multi-camera switching during live events, lectures and panel discussions. Zoom certification plus native RTSP, RTMP, RTMPS and SRT support make it a reliable feed source for hybrid productions and direct-to-cloud streams.

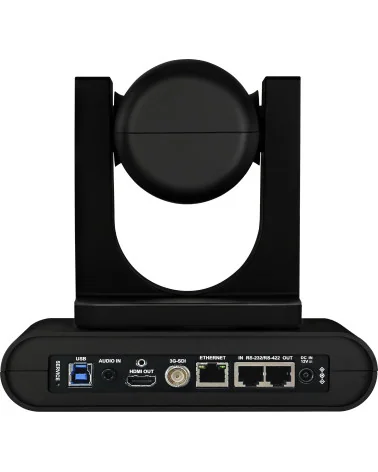

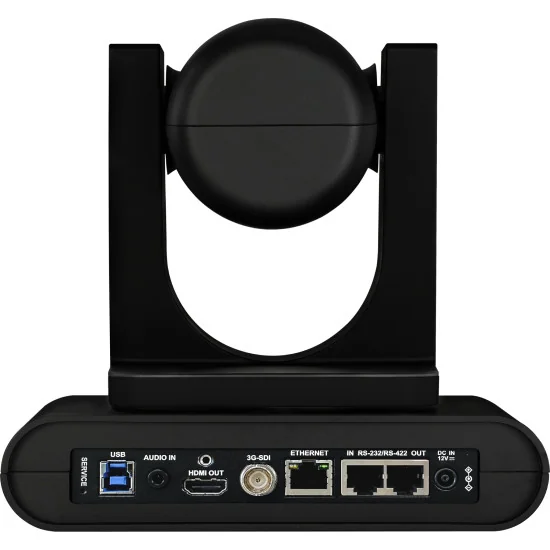

Signal distribution covers HDMI, 3G-SDI, USB 3.0 and IP simultaneously, so a single VC-TR41 can feed a vision mixer, a USB capture rig and a CDN encoder in parallel. Audio inputs accept line and microphone signals with AAC encoding, the tally lamp responds to RS-232 commands for clean multi-camera coordination, and PoE (IEEE 802.3af, 11 W) trims cable runs in ceiling or wall mounts. For production houses building rental fleets or fixed studio rigs, the Lumens VC-TR41 Black brings the uptime and AI automation expected from a long-term broadcast investment.
