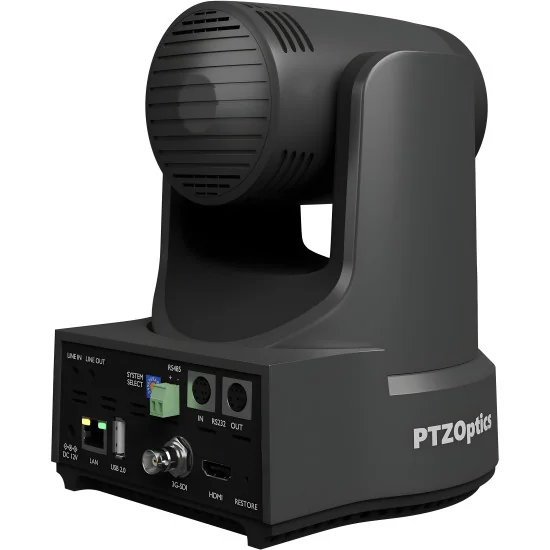

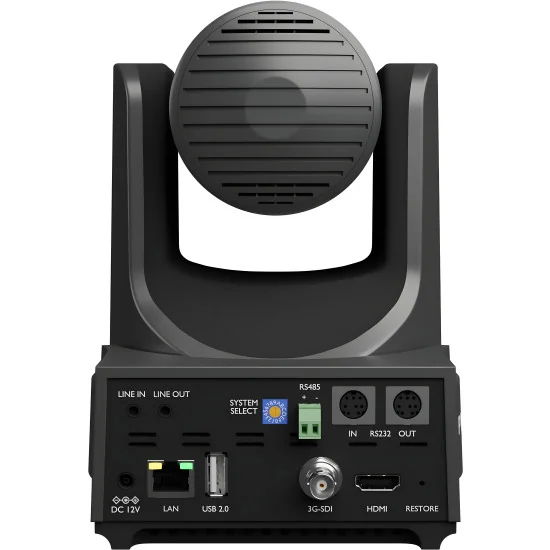

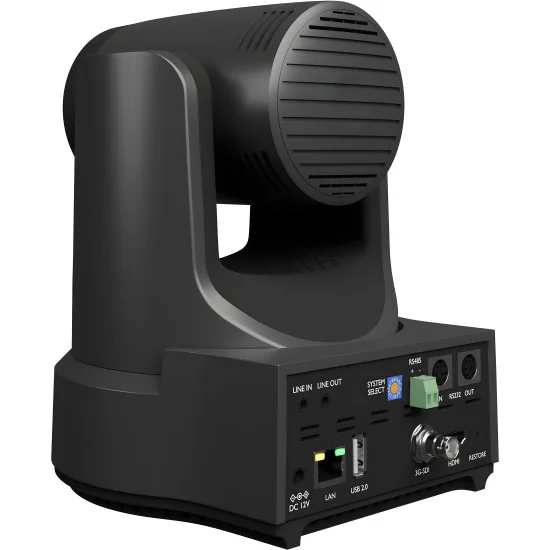

Connectivity covers broadcast and IT in one housing. HDMI 2.0 carries uncompressed 4K60, and the 3G-SDI connector sends 1080p60 over coax runs of roughly 90 metres to a remote switcher. One detail matters at the planning stage: HDMI and SDI are selected rather than active together, switched from the web interface or with an IR remote shortcut, so a typical rig sends SDI to the vision mixer while IP and USB run in parallel. The USB 2.0 port presents the camera as a UVC device at up to 2160p30 for Teams, Zoom or a capture PC, pan and tilt included. Over the network, two encoded streams (H.265, H.264 or MJPEG) feed RTSP, RTMP or RTMPS destinations and multicast groups, and SRT streaming, configured as caller or listener, handles contribution over the public internet — sending a guest speaker from a partner venue back to the main production gallery, for instance.

Subject tracking is processed inside the head, with no PC or plugin in the chain. Presenter-Lock auto-tracking lets the operator choose one person, from the control interface or with the arrow keys on the IR remote, and the head stays with that person while colleagues cross the shot. On the 12x model the tracking range reaches about 60 metres, which comfortably covers training rooms, panel discussions and keynotes followed by audience Q&A. PTZOptics now ships Horizon, its browser-based control and automation platform, as standard on its 4K cameras, so visual presets, tracking options and image tuning can be handled from a tablet. For a production company running recurring corporate events, that means one technician can supervise several heads instead of staffing each position.

Mechanically, the pan range spans ±170° and tilt moves from −30° to +90°, with pan speeds between 0.7°/s and 100°/s for both slow reveals and fast repositioning. Up to 255 presets return with 0.1° repeatability. A built-in tally lamp tells presenters which camera is live, automatic image flip recognises a ceiling installation, and image freeze can hold the output still while the head repositions.

Control options suit both new and legacy systems: VISCA over IP, ONVIF Profile S, Pelco-P/D, RS-232 for runs up to 30 metres, RS-485 for up to 1,200 metres, plus an IR remote with four selectable addresses. The camera answers to the SuperJoy and other PTZ camera controllers, the PTZOptics OBS plugin, vMix, Wirecast, TriCaster and mimoLive, and an open control API makes room-automation integration straightforward.

An 802.3at PoE+ switch port or the bundled 12 V supply powers the unit, so a single network cable can handle power, control, video and Dante audio. It is rated for indoor use from −10 to +40 °C, firmware updates run directly from the web interface, and NDAA compliance answers a requirement often written into public-sector and university tenders. The grey finish sits discreetly on dark studio rigs and black ceiling grids. Planning a multi-camera Dante system? Our team can review PoE+ budgets, mounting choices and stream settings with you before the order ships.
