Telycam Explore SE WH PTZ Camera
€2,799.00
Telycam Explore SE WH is a broadcast-class 4K60 PTZ camera for studios, events and XR stages. Its 1/1.8-inch 9MP CMOS works with a 30×...
For venues where a presenter must remain framed without a camera operator, the Lumens VC-TR61-W White AI Auto-Tracking PTZ Camera brings a dual-camera PTZ architecture into one white unit. Its main 1/1.8" 8.48 MP sensor captures up to UHD 4K60, backed by a 30x optical zoom, F1.6–F5.4 lens and 7.1–213 mm focal range. The separate 1/2.8" 8.6 MP panoramic module gives a constant wide reference view at up to 2160p60 with an 85.1° horizontal field, so lecture halls, boardrooms, council chambers and training spaces can keep both close-ups and room context available.
The tracking engine follows a person across a 2–18 m operating range and offers Stage, Everywhere and Partition modes. Partition Tracking can recall different framing behaviour as the subject moves through defined areas; this is useful for a presenter moving between a lectern, screen and demonstration table. Tracking areas, exclusion zones and auto framing help avoid false targets and keep group shots controlled. For hybrid meetings or lecture capture, the camera can supply a tight PTZ image and a panoramic view as two independent 4K IP feeds, while PIP output over HDMI and USB places the wide shot and close shot in one signal with web-adjustable size and position.
Connectivity suits production and AV integration: HDMI, Ethernet, 3G-SDI and USB outputs, RTSP, RTMP, RTMPS and SRT streaming, plus H.264/HEVC compression over IP. HDMI can carry 2160p60 from the PTZ or panoramic camera, 3G-SDI provides 1080p60 from the PTZ head, and USB outputs up to 2160p30 with H.265, H.264, MJPEG, YUV2 and NV12 formats. Line-level audio input, AAC/PCM audio handling and embedded output via Ethernet, USB, HDMI or SDI allow cleaner capture for webinars, teaching platforms, recorders and hardware switchers.
For control rooms and fixed installations, VC-TR61-W adds RS-232, Ethernet, USB and IR remote control with VISCA and ONVIF support, UVC/UAC compatibility and 256 preset positions. The pan range of +170° to -170° and tilt range of +90° to -30° cover large rooms without forcing the camera into the centre of the set. WDR, 3D noise reduction, 0.5 lux sensitivity, auto/manual focus, gain, exposure and white balance give integrators the exposure tools needed for mixed light, projection screens and LED walls.

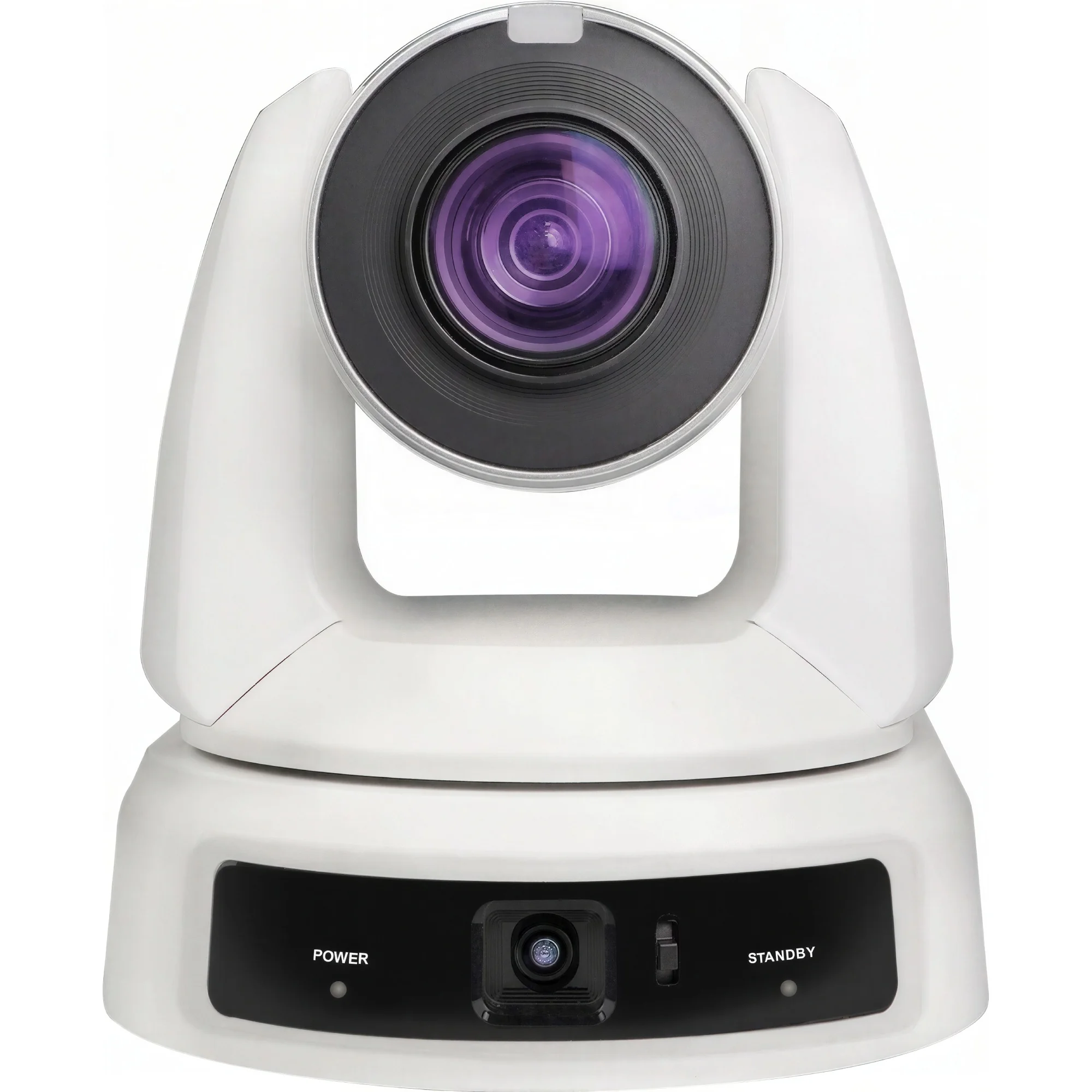

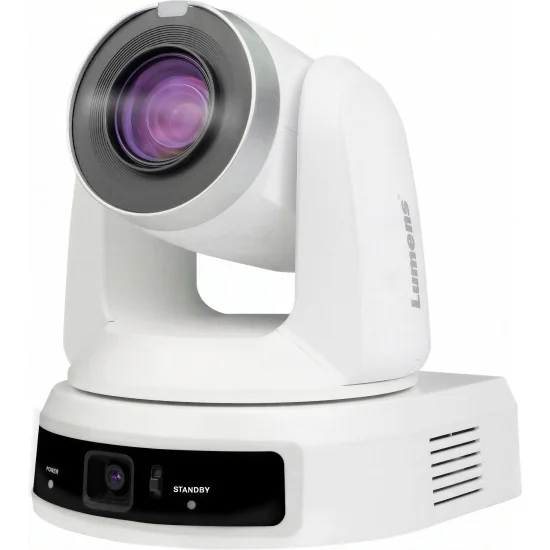

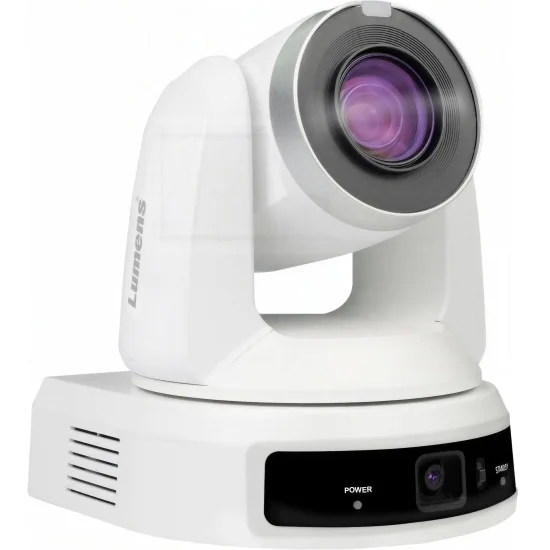

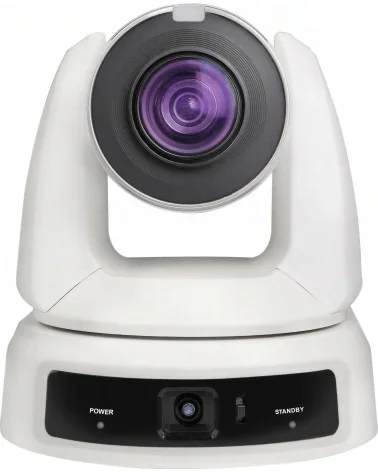

Lumens VC-TR61 White AI Auto-Tracking PTZ Camera
VC-TR61-W
Price: €2,219.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
For venues where a presenter must remain framed without a camera operator, the Lumens VC-TR61-W White AI Auto-Tracking PTZ Camera brings a dual-camera PTZ architecture into one white unit. Its main 1/1.8" 8.48 MP sensor captures up to UHD 4K60, backed by a 30x optical zoom, F1.6–F5.4 lens and 7.1–213 mm focal range. The separate 1/2.8" 8.6 MP panoramic module gives a constant wide reference view at up to 2160p60 with an 85.1° horizontal field, so lecture halls, boardrooms, council chambers and training spaces can keep both close-ups and room context available.
The tracking engine follows a person across a 2–18 m operating range and offers Stage, Everywhere and Partition modes. Partition Tracking can recall different framing behaviour as the subject moves through defined areas; this is useful for a presenter moving between a lectern, screen and demonstration table. Tracking areas, exclusion zones and auto framing help avoid false targets and keep group shots controlled. For hybrid meetings or lecture capture, the camera can supply a tight PTZ image and a panoramic view as two independent 4K IP feeds, while PIP output over HDMI and USB places the wide shot and close shot in one signal with web-adjustable size and position.
Connectivity suits production and AV integration: HDMI, Ethernet, 3G-SDI and USB outputs, RTSP, RTMP, RTMPS and SRT streaming, plus H.264/HEVC compression over IP. HDMI can carry 2160p60 from the PTZ or panoramic camera, 3G-SDI provides 1080p60 from the PTZ head, and USB outputs up to 2160p30 with H.265, H.264, MJPEG, YUV2 and NV12 formats. Line-level audio input, AAC/PCM audio handling and embedded output via Ethernet, USB, HDMI or SDI allow cleaner capture for webinars, teaching platforms, recorders and hardware switchers.
For control rooms and fixed installations, VC-TR61-W adds RS-232, Ethernet, USB and IR remote control with VISCA and ONVIF support, UVC/UAC compatibility and 256 preset positions. The pan range of +170° to -170° and tilt range of +90° to -30° cover large rooms without forcing the camera into the centre of the set. WDR, 3D noise reduction, 0.5 lux sensitivity, auto/manual focus, gain, exposure and white balance give integrators the exposure tools needed for mixed light, projection screens and LED walls.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
4K Dual Video Outputs
For accurate tracking, VC-TR61 features dual UltraHD cameras – a main robotic head with optical zoom and a panoramic camera with an ultra-wide viewing angle. Each camera generates an independent 4K IP output for live streaming, AV transmission or multi-channel video production
Stage Tracking and Everywhere Tracking Modes
Lumens advanced tracking algorithms make the VC-TR61 suitable for use in presentations, conferences, houses of worship and education. Delivering reliable and smooth results, the camera includes mode selection to set tracking areas, exclusion zones and camera movement.
Partition Tracking Mode
In Partition Tracking Mode, the operator can program camera actions depending on the location of the subject within the tracking area. This can include triggering a particular zoom angle to focus the audience’s attention on the presenter or a wider shot to frame both the speaker and a whiteboard.
Picture-in-Picture (PIP) Output
As a 2-camera unit, VC-TR61 outputs dual independent IP streams. A simple menu setting also enables it to create a composite picture-in-picture output (via HDMI and USB). The user can easily define the position and size of the inset picture via the web interface.
Excellent Quality Ultra HD Video
Paired with a low distortion professional zoom lens, the camera's large (1/1.8") CMOS sensor produces very high quality 4K and HD images. Pictures are detailed and color accurate, and the 60P native frame rate produces extremely natural looking video.
Specification
Sensor: 1/1.8" 8.48M
Video Format:
2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
720p : 60 / 50 / 30 / 25
1080i : 60 / 50 [1]
[1] 1080i is only available on HDMI
Video Output (HD) Interface: HDMI / Ethernet / 3G-SDI / USB
Zoom: 30x
Digital Zoom: 8x [2]
[2] Digital Zoom only works with HDMI/SDI at 1080p/720p resolution
Horizontal Viewing Angle: 59.2°
Vertical Viewing Angle: 33.3°
Diagonal Viewing Angle: 67.9°
Aperture: F1.6 ~ F5.4
Focal Length: 7.1 ~ 213 mm
Shutter Speed: 1/25 ~ 1/10,000 sec
Minimum Object Distance: Tele:1.5m Wide:1m
Video S/N Ratio: > 50dB
Minimum Illumination: 0.5Lux (F1.6, AGC ON)
Focus System: Auto, manual
Gain Control: Auto, manual
White Balance: Auto, manual
Exposure Control: Auto, manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
PIP: Yes
Auto Tracking: Yes
Auto Framing: Yes
Sensor: 1/2.8" 8.6M
Video Format:
2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
Horizontal Viewing Angle: 85.1°
Aperture: F2.0
Focal Length: 3mm
Panning Angle: +170 ~ -170°
Panning Speed: 0.1°~100°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 0.1°~ 60°/sec
Preset Positions: 256
HDMI / 3G-SDI:
HDMI:
PTZ Camera : 2160p60
Panoramic : 2160p60
3G-SDI:
PTZ Camera : 1080p 60
IP Stream
PTZ Camera
Stream 1 : 2160p 60 fps
Stream 2 : 720p 30 fps
Panoramic Camera : 2160p 60fps
IP Compression: H.264 / HEVC(H.265)
USB Output: 2160p30
USB Compression: H.265(HEVC) / H.264 / MJPEG / YUV2 / NV12
IP Protocol: RTSP / RTMP / RTMPS / SRT / Dante Ready
PoE: PoE+ (IEEE802.3at)
Audio Input: Line In
Audio Output: Ethernet / USB / HDMI / SDI / Dante Ready
Audio Compression Format: AAC / PCM
Interface: RS-232 / Ethernet / USB / Remote
Protocol: VISCA / ONVIF
UVC: Yes
UAC: Yes
DC In: 12V +/- 20%
Power consumption: PoE: 26W, DC In: 25W
Weight: 4.4 lbs (2 kg)
Dimension: 174 x 197 x 187 mm
VC-TR61-W
Data sheet
- Video Output
- HDMI
RJ-45 (IP)
SDI
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 4K UltraHD (3840 x 2160) 50/60 fps
- Control protocol for PTZ cameras
- ONVIF
RS-232
VISCA - Network Connection
- Ethernet
- Sensor Size
- 1/1.8"
- Optical Zoom
- 30x
- PoE Technology
- Yes
- Auto-Tracking
- Yes
- Tally Light
- Yes
Specific References
- ean13
- 4711246503670
- mpn
- VC-TR61-W
