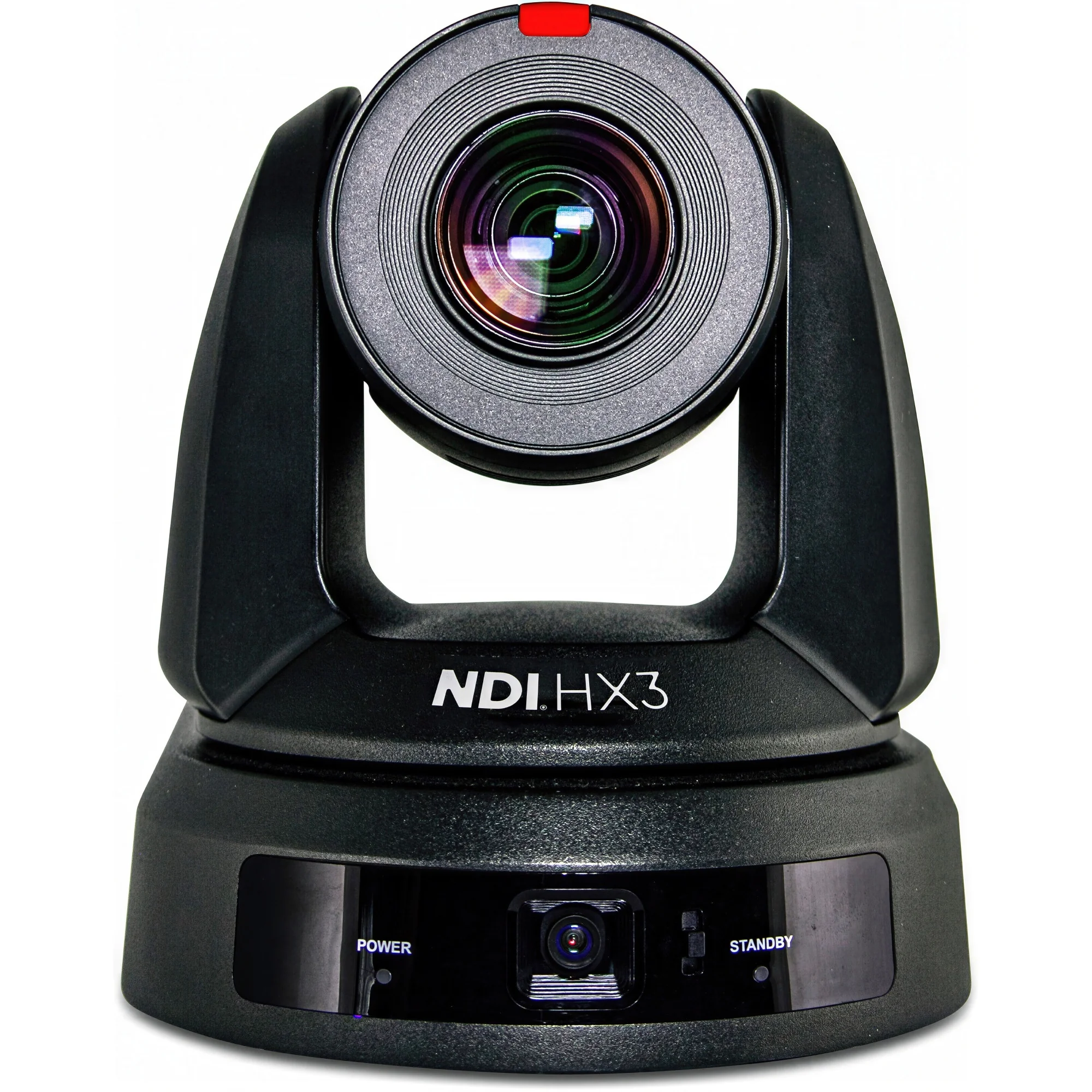

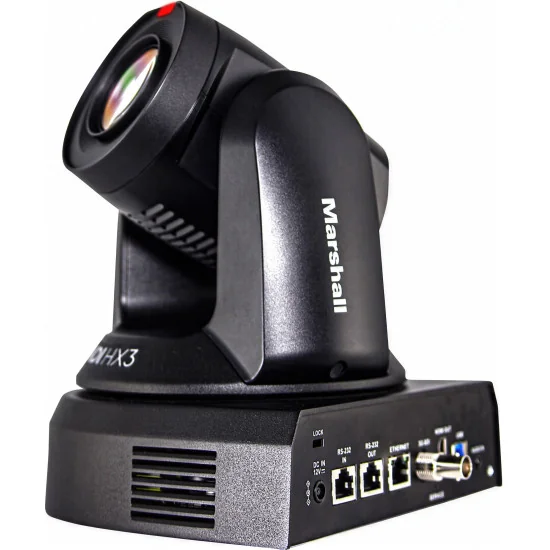

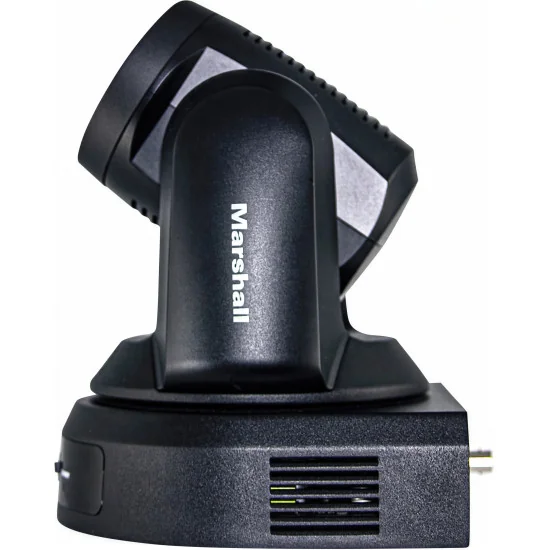

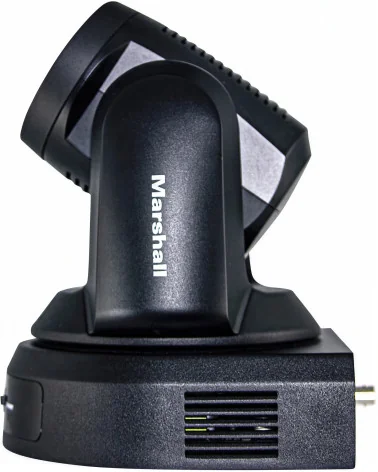

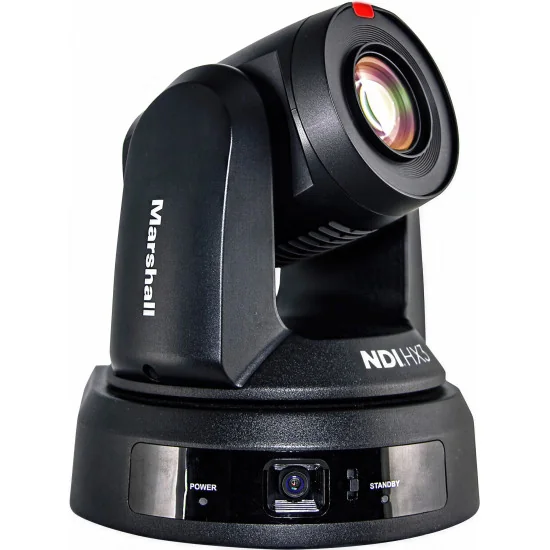

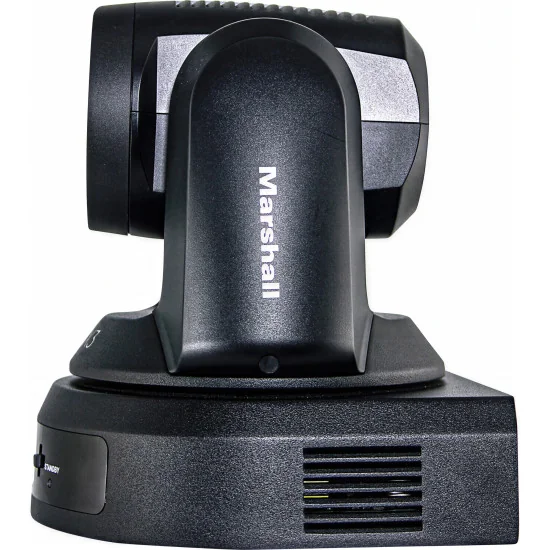

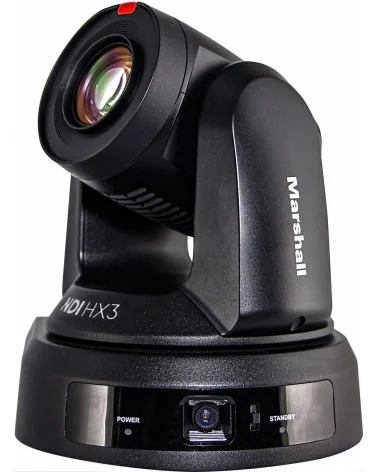

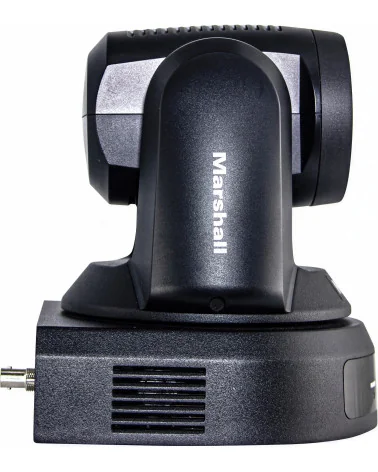

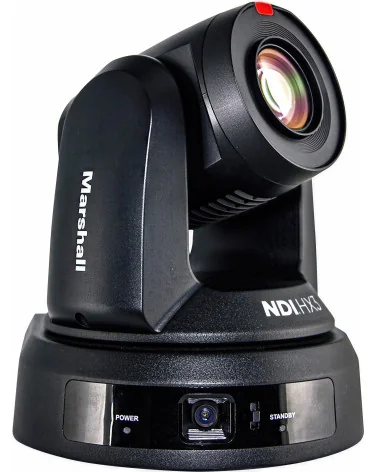

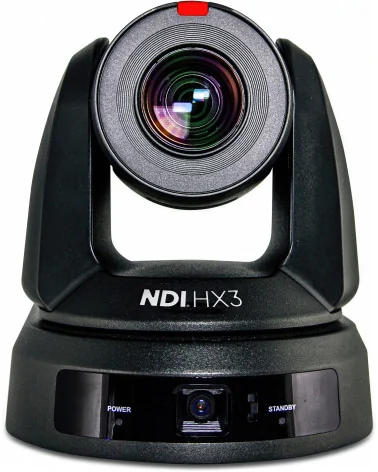

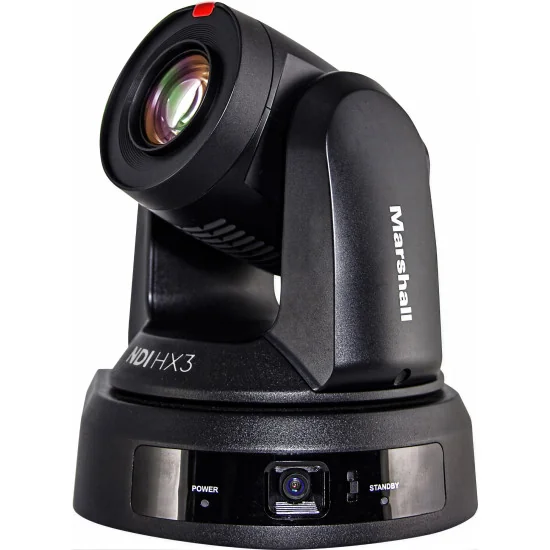

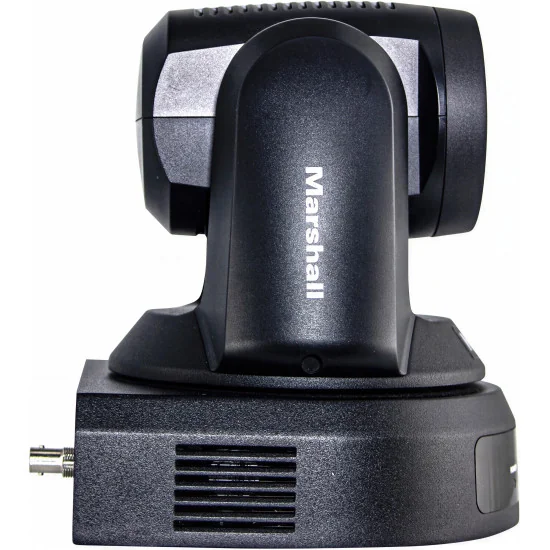

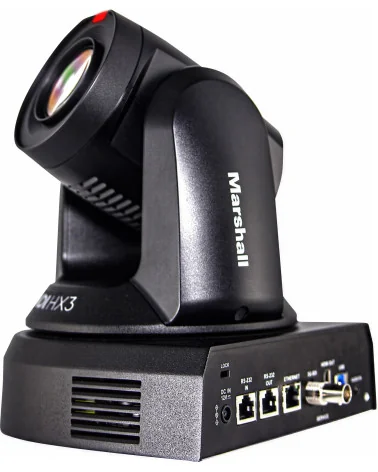

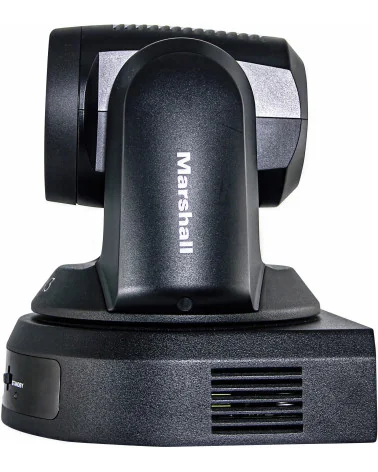

Marshall CV625-TBN PTZ Camera
CV625-TBN_NDI_BLACK
Price: €3,499.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Marshall built the CV625-TBN around a question production managers keep asking: why rig two cameras, and staff them, for a stage that one head could cover? Its answer is a pair of optical blocks in a single housing — a motorised telephoto with 25x optical zoom (7.1–171.95 mm) on a 1/1.8" 8-megapixel Sony sensor, plus a fixed panoramic module spanning an 83.1° field of view. Both capture 4K UHD at 60 fps, run at the same time, and can be cut between, streamed apart or layered as picture-in-picture.
The AI auto-tracking works ahead of the subject rather than behind it. Facial recognition paired with learned movement patterns lets the head predict a presenter's next position, so reframes glide instead of jerking; meanwhile the wide sensor counts everyone standing 2 to 18 metres out, which keeps the telephoto locked on its target if a second person steps into view. The same processing steadies autofocus against breathing. Sensitivity of 0.1 lux at f/1.6, WDR and 3D noise reduction hold picture quality in dim lecture halls, courtrooms and conference rooms where relighting is off the table.
On the network side, NDI HX2 and NDI HX3 sit alongside SRT, RTSP, RTMP and RTMPS with H.264 or HEVC encoding, while HDMI carries 2160p60, 3G-SDI feeds 1080p60 to broadcast switchers, and USB 3.0 registers as a UVC source in OBS, vMix or a conferencing codec — every output active simultaneously, each with audio embedded from the 3.5 mm line input. HDMI and SDI latency stays at or under 67 ms. VISCA over serial and IP, ONVIF, an HTTP API, 256 presets and a tally light round out multi-camera control.
Powered over PoE+ (802.3at, 24.5 W maximum), the Marshall CV625-TBN needs exactly one network cable for video, control, audio and power — the arithmetic that makes a 340° pan, 120° tilt remote head cheaper to install than to wire conventionally, and the reason integrators specify it for venues that must operate for years with nobody behind the lens.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Key features:
- Accurate auto-track, follow and frame
- 8 Megapixel FHD Sensor (1/1.8") – 2160p, 1080p, & 720p (progressive), and 1080i (interlaced HDMI Output only)

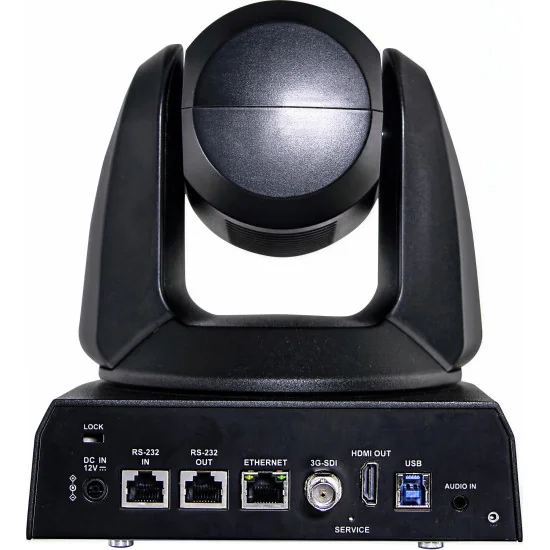

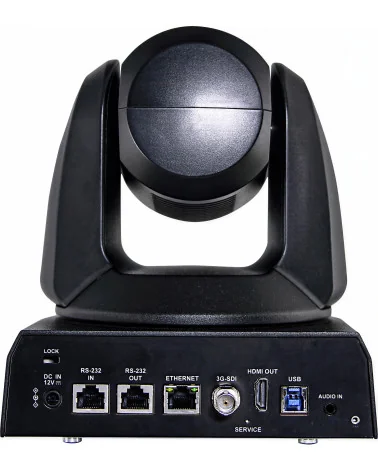

- 3G-SDI, HDMI, Ethernet and USB outputs
- 25x optical zoom (7.1 mm ~ 171.95mm) starting at 60° H.AOV, and fixed base M12 lens camera at 83° H.AOV
- 340° pan and 120° tilt range with selectable PTZ maneuver speeds
- IP formats: VISCA / VISC over IP / ONVIF / NDI
- Stream Protocols: RTSP / RTMP / RTMPS / SRT / NDI HX2/ NDI HX3
- 3.5mm TRS Stereo Audio Input (Line In) embedding on all available outputs
- PoE+ (IEEE802.3at), DC: 23.5W (max), PoE: 24.5W (max)
Camera Applications: Higher Education, Courtroom, Government, Broadcast, Production, Interview, Learning, Lecture, Sportscast, Newscast, Weathercast, Podcast, and anywhere high-quality PTZ cameras are used.
Intelligent Auto Track, Follow and Frame
Take the reins of your production with our Intelligent auto-tracking system, designed to be proactive and predictive. This cutting-edge technology allows you to follow and frame presenters with natural and smooth maneuvers. Use the auto-tracking feature along with the panoramic camera to capture the perfect presentation. With the ability to pan, tilt, and zoom, the system uses intelligent facial recognition while learning the movement dynamics of the subject, thereby anticipating motion and ensuring accurate following and framing with smooth transitions.
Two Camera Production
The CV625-TBN/TWN 4K UHD is equipped with a two-camera set featuring a perfect combination for both your remote and live presentations. With an optical 25X zoom lens, ideal for capturing the presenter or a focused presentation in 4K while having a fixed panoramic wide view of the audience, and the capability to display a head count.
Control Features Made Simple
With the two-camera feature in one unit, you can switch between two cameras or have a picture-in-picture as your output.
Crisp Full-HD Video Output
The CV625-TBN/TWN 4K UHD are built around a professional-grade 8-Megapixel 1/1.8-inch Sony sensor with smooth 25x Optical Zoom (7.1 mm ~ 171.95 mm) producing clear UHD video up to 3840x2160p60 with NDI HX2/ NDI HX3, SRT, and IP. Smart Intelligent auto-focus identifies faces and maintains accurate and sharp focus of subjects.
Specifications:
| Camera | |
|---|---|
| Sensor | 1/1.8" 8MP (IMX678) |
| Video Format | 2160p: 59.94 / 50 / 29.97 / 25 1080p: 59.94 / 50 / 29.97 / 25 720p: 59.94 / 50 / 29.97 / 25 1080i: 59.94 / 50 (HDMI Only) |
| Video Output (HD) Interface | HDMI / 3G-SDI / Ethernet / USB3.0 |
| Optical Zoom | 25X |
| Horizontal Viewing Angle | 60° (±5%) |
| Focal Length | 7.1mm~171.95mm ±5% |
| Minimum Object Distance | Tele: 1.5m, Wide: 1.5m |
| Minimum Illumination | 0.1 lux (F1.6, 50IRE, 30fps) |
| Panoramic Lens | |
| Sensor | 1/2.8" 8M (IMX415) |
| Video Format | 2160p 60fps |
| Horizontal Viewing Angle | 83.1° |
| People Counting | Yes |
| Tracking Distance | 2~18m |
| PTZ Pan & Tilt | |
| Panning Angle | +170 ~ 170° |
| Panning Speed | 0.1°~100°/sec |
| Tilting Angle | +90 ~ -30° |
| Tilting Speed | 0.1°~60°/sec |
| Tally Light | Yes |
| Software Spec | |
| Preset Positions | 256 |
| Focus System | Auto / Manual |
| Gain Control | Auto / Manual |
| White Balance | Auto / Manual |
| Exposure Control | Auto / Manual |
| WDR | Yes |
| 3D NR | Yes |
| Image Flip | Yes |
| Tracking | |
| Auto Tracking | Yes |
| Auto Framing | Yes |
| SNR | ≥ 50dB |
| Minimum Illumination | 10 Lux |
| Hardware Spec | |
| Power Supply | DC, 12V@3A |
| Power Consumption | DC Input ≤ 23.5W PoE (802.3at) ≤ 24.5W |
| Interface | |
| Video Output | HDMI 2160p: 59.94 / 50 / 29.97 / 25 1080p: 59.94 / 50 / 29.97 / 25 720p: 59.94 / 50 / 29.97 / 25 1080i: 59.94 / 50 3G-SDI 1080p: 59.94 / 50 / 29.97 / 25 720p: 59.94 / 50 / 29.97 / 25 1080i: 59.94 / 50 |
| Stream Protocol | RTSP / RTMP / RTMPS / SRT / NDI HX2 / NDI HX3 |
| IP Stream | PTZ Camera: Stream 1: H.264/HEVC 2160p 60fps Stream 2: H.264/1080p 30fps Panoramic Camera: H.264 2160p 60fps |
| IP Compression | H.264, HEVC |
| USB | H.264 2160p 30fps MJPEG 1080p 60fps YUV2 480p 60fps HEVC 1080p 60fps NV12 480p 60fps |
| UVC Video Compression | H.264 / MJPEG / YUV2 / NV12 / HEVC |
| Video Latency | HDMI/SDI ≤ 67ms Stream ≤ 150ms UVC 4K@30 ≤ 160ms UVC 1080P@60 ≤ 160ms |
| Input | 3.5mm x 1 Line In |
| Output | HDMI / 3G-SDI / USB / Ethernet |
| Compression Format | AAC |
| USB Port | USB 3.0 x 1 Type-B |
| HDMI Out | HDMI x 1 |
| SDI Out | 3G-SDI x 1 |
| Network | RJ45 x 1, 10M/100M/1G |
| Camera Control | |
| Interface | RS-232 / Ethernet / Remote / USB |
| Protocol | VISCA / VISC over IP / ONVIF / NDI |
| Communication Baud Rate | 9600 (default) & 38400 |
| HTTP API Command | Yes |
| Human Machine Interface | |
| Remote Controller | Infrared remote control |
| Infrared Remote Control Distance | 15m |
| Remote Control Angle | ±15° |
| Remote Control | Yes, 40KHz |
| OSD Menu | English |
| Webpage | English |
| Environmental Spec | |
| Operating Temperature | 0~40˚C |
| Operating Humidity | 10% ~ 90% |
| Storage Temperature | -20°C ~ +60°C |
CV625-TBN_NDI_BLACK
1 Item
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP)
SDI
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 4K UltraHD (3840 x 2160) 50/60 fps
- Control protocol for PTZ cameras
- NDI
ONVIF
RS-232
VISCA
VISCA IP - Network Connection
- Ethernet
- Sensor Size
- 1/1.8"
- Optical Zoom
- 25x
- PoE Technology
- Yes
- Auto-Tracking
- Yes
- Tally Light
- Yes
Specific References
- ean13
- 801813234992
- mpn
- CV625-TBN
