In a white permanent-installation camera body, Lumens VC-TR61N-W combines a robotic close-up lens and a panoramic 4K reference view for rooms where one camera position must cover both the speaker and the wider scene. The PTZ channel uses a 1/1.8-inch 8.48 MP CMOS sensor and a 30x optical zoom lens with 7.1–213 mm focal range, F1.6–F5.4 aperture and 59.2° horizontal viewing at the wide end. It outputs UHD 2160p at 60/50/30/25 plus HD formats for mixed switchers, lecture capture systems or streaming encoders.
A separate panoramic module keeps the context visible. Its 1/2.8-inch 8.6 MP sensor, 3 mm lens, F2.0 aperture and 85.1° horizontal angle support a room-wide image while the motorised head follows the person on stage or in a training area. Stage, Everywhere and Partition tracking modes let operators define zones, exclude unwanted areas and trigger different framing behaviour as the subject moves. The stated tracking range reaches 18 m, so larger seminar rooms, council chambers, product briefings and hybrid corporate events can be covered with less manual camera work.
Connectivity gives the unit relevance beyond a standard USB conferencing camera. As an NDI HX3 4K PTZ camera, it provides NDI HX3/HX2, RTSP, RTMP, RTMPS and SRT over Ethernet, with H.264 or HEVC compression. The PTZ IP stream reaches 2160p60 with a secondary 720p30 stream, and the panoramic camera also streams 2160p60. HDMI can output PTZ or panoramic 2160p60, 3G-SDI carries the PTZ signal at 1080p60, and USB offers up to 2160p30 using H.265, H.264, MJPEG, YUV2 or NV12. The camera can also generate picture-in-picture through HDMI or USB, useful for showing a presenter and a wide room angle in one programme feed.
Control and installation have been specified for ProAV racks, not only desktops. VISCA, ONVIF and NDI control are available through RS-232, Ethernet, USB or remote control, with UVC/UAC compatibility for software platforms. Pan movement spans +170° to -170°, tilt covers +90° to -30°, and 256 presets store repeatable shots for panels, lecterns and demonstration zones. PoE+ PTZ camera operation reduces cabling, while WDR, 3D noise reduction, image flip, 0.5 lux sensitivity, auto/manual focus, gain, white balance and exposure help engineers match the Lumens VC-TR61N-W to AV rooms.

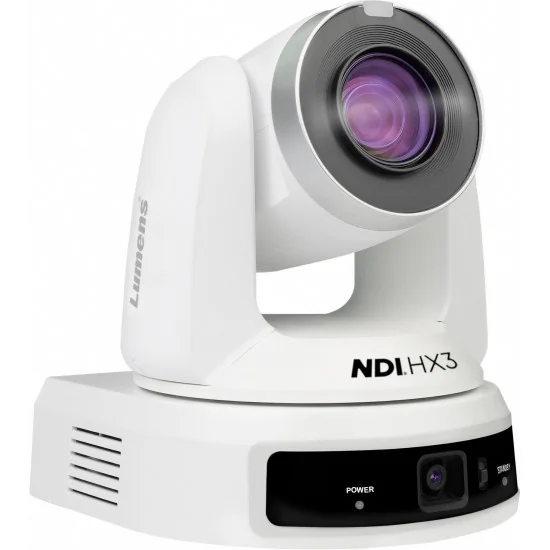

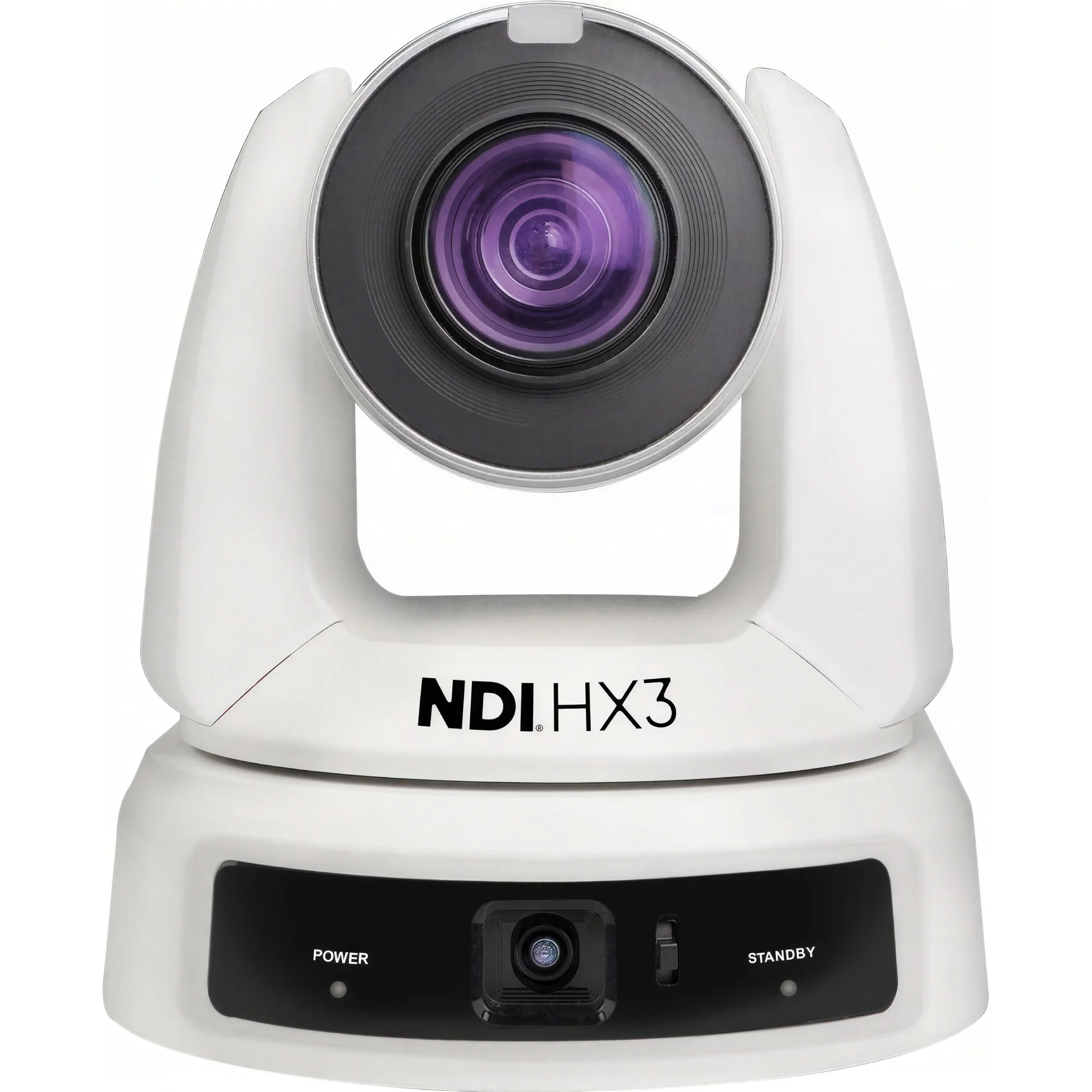

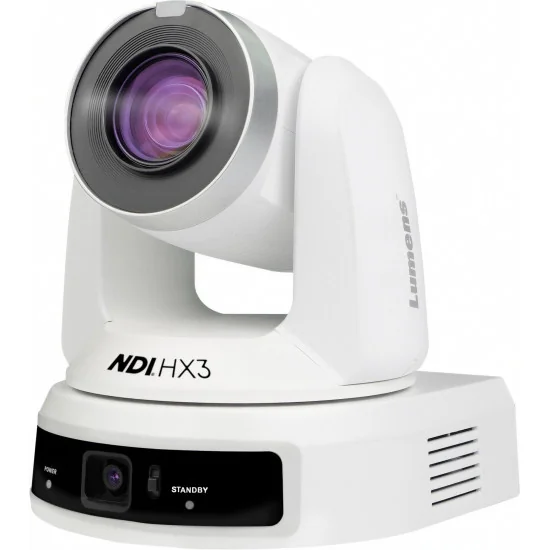

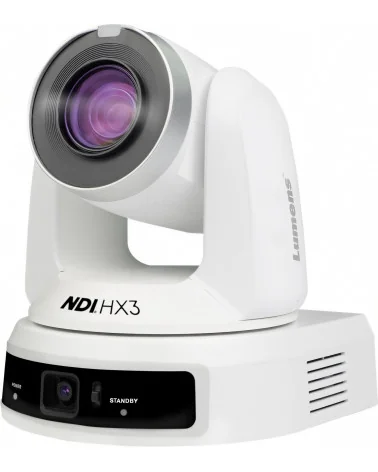

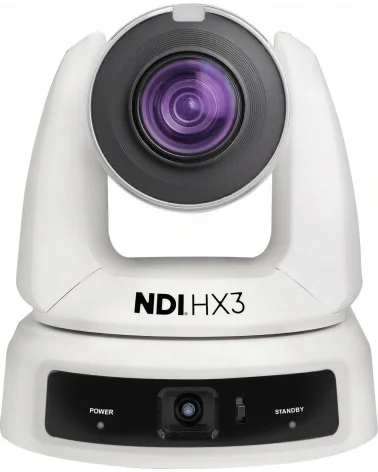

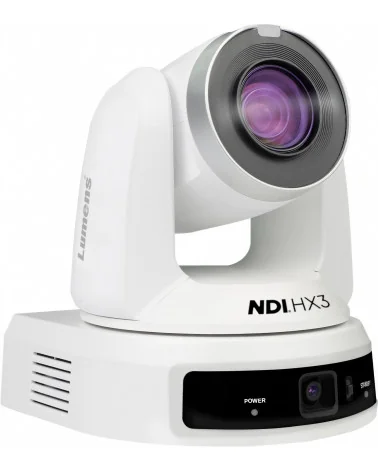

Lumens VC-TR61N White AI Auto-Tracking PTZ Camera
VC-TR61N-W
Price: €2,599.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
In a white permanent-installation camera body, Lumens VC-TR61N-W combines a robotic close-up lens and a panoramic 4K reference view for rooms where one camera position must cover both the speaker and the wider scene. The PTZ channel uses a 1/1.8-inch 8.48 MP CMOS sensor and a 30x optical zoom lens with 7.1–213 mm focal range, F1.6–F5.4 aperture and 59.2° horizontal viewing at the wide end. It outputs UHD 2160p at 60/50/30/25 plus HD formats for mixed switchers, lecture capture systems or streaming encoders.
A separate panoramic module keeps the context visible. Its 1/2.8-inch 8.6 MP sensor, 3 mm lens, F2.0 aperture and 85.1° horizontal angle support a room-wide image while the motorised head follows the person on stage or in a training area. Stage, Everywhere and Partition tracking modes let operators define zones, exclude unwanted areas and trigger different framing behaviour as the subject moves. The stated tracking range reaches 18 m, so larger seminar rooms, council chambers, product briefings and hybrid corporate events can be covered with less manual camera work.
Connectivity gives the unit relevance beyond a standard USB conferencing camera. As an NDI HX3 4K PTZ camera, it provides NDI HX3/HX2, RTSP, RTMP, RTMPS and SRT over Ethernet, with H.264 or HEVC compression. The PTZ IP stream reaches 2160p60 with a secondary 720p30 stream, and the panoramic camera also streams 2160p60. HDMI can output PTZ or panoramic 2160p60, 3G-SDI carries the PTZ signal at 1080p60, and USB offers up to 2160p30 using H.265, H.264, MJPEG, YUV2 or NV12. The camera can also generate picture-in-picture through HDMI or USB, useful for showing a presenter and a wide room angle in one programme feed.
Control and installation have been specified for ProAV racks, not only desktops. VISCA, ONVIF and NDI control are available through RS-232, Ethernet, USB or remote control, with UVC/UAC compatibility for software platforms. Pan movement spans +170° to -170°, tilt covers +90° to -30°, and 256 presets store repeatable shots for panels, lecterns and demonstration zones. PoE+ PTZ camera operation reduces cabling, while WDR, 3D noise reduction, image flip, 0.5 lux sensitivity, auto/manual focus, gain, white balance and exposure help engineers match the Lumens VC-TR61N-W to AV rooms.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
NDI Technology
VC-TR61N supports the latest version of the NDI protocol, NDI HX3. It delivers very high-quality video with ultra-low latency and connects directly to NDI networks.
4K Dual Video Outputs
For accurate tracking, VC-TR61N features dual UltraHD cameras – a main robotic head with optical zoom and a panoramic camera with an ultra-wide viewing angle. Each camera generates an independent 4K IP output for live streaming, AV transmission or multi-channel video production.
Stage Tracking and Everywhere Tracking Modes
Lumens advanced tracking algorithms make the VC-TR61N suitable for use in presentations, conferences, houses of worship and education. Delivering reliable and smooth results, the camera includes mode selection to set tracking areas, exclusion zones and camera movement.
Partition Tracking Mode
In Partition Tracking Mode, the operator can program camera actions depending on the location of the subject within the tracking area. This can include triggering a particular zoom angle to focus the audience’s attention on the presenter or a wider shot to frame both the speaker and a whiteboard.
Picture-in-Picture (PIP) Output
As a 2-camera unit, VC-TR61N outputs dual independent IP streams. A simple menu setting also enables it to create a composite picture-in-picture output (via HDMI and USB). The user can easily define the position and size of the inset picture via the web interface.
Specification
Sensor: 1/1.8" 8.48M
Video Format:
2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
720p : 60 / 50 / 30 / 25
1080i : 60 / 50
Video Output (HD) Interface: HDMI / Ethernet / 3G-SDI / USB
Zoom: 30x
Digital Zoom: 8x *
*Digital Zoom only works with HDMI/SDI at 1080p/720p resolution
Horizontal Viewing Angle: 59.2°
Vertical Viewing Angle: 33.3°
Diagonal Viewing Angle: 67.9°
Aperture: F1.6 ~ F5.4
Focal Length: 7.1 ~ 213 mm
Shutter Speed: 1/25 ~ 1/10,000 sec
Minimum Object Distance: Tele:1.5m Wide:1m
Video S/N Ratio: > 50dB
Minimum Illumination: 0.5Lux (F1.6, AGC ON)
Focus System: Auto, manual
Gain Control: Auto, manual
White Balance: Auto, manual
Exposure Control: Auto, manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
PIP: Yes
Auto Tracking: Yes
Auto Framing: Yes
Sensor: 1/2.8" 8.6M
Video Format:
2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
Horizontal Viewing Angle: 85.1°
Aperture: F2.0
Focal Length: 3mm
Panning Angle: +170 ~ -170°
Panning Speed: 0.1°~100°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 0.1°~ 60°/sec
Preset Positions: 256
HDMI/3G-SDI:
HDMI
PTZ Camera : 2160p60
Panoramic : 2160p60
3G-SDI
PTZ Camera : 1080p 60
IP Stream: RTSP / RTMP / RTMPS / SRT
PTZ Camera:
Stream 1 : 2160p 60 fps
Stream 2 : 720p 30 fps
Panoramic Camera : 2160p 60fps
NDI HX:
PTZ Camera
Main : 2160p 60fps
Sub : 640x360p 30fps
Panoramic Camera : 2160p 60fps
IP Compression: H.264 / HEVC(H.265)
USB Output: 2160p30
USB Compression: H.265(HEVC) / H.264 / MJPEG / YUV2 / NV12
IP Protocol: NDI HX3 / NDI HX2 / RTSP / RTMP / RTMPS / SRT
PoE: PoE+ (IEEE802.3at)
Audio Input: Line In
Audio Output: Ethernet / USB / HDMI / SDI
Audio Compression Format: AAC / PCM

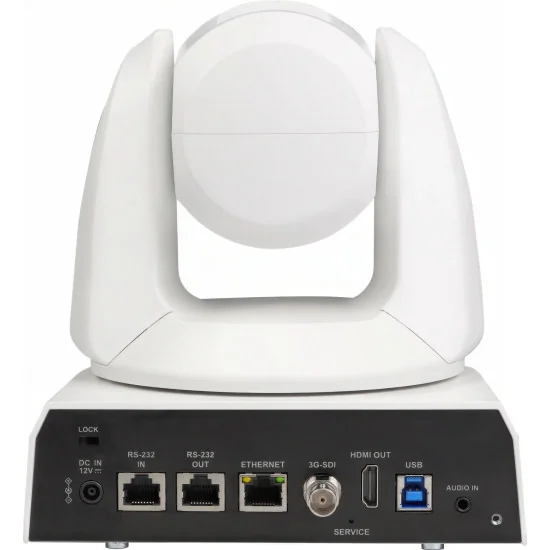

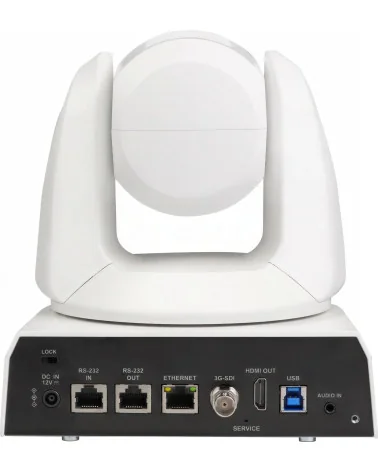

Interface: RS-232 / Ethernet / USB / Remote
Protocol: VISCA / ONVIF / NDI
UVC: Yes
UAC: Yes
DC In: 12V +/- 20%
Power consumption: PoE: 26W, DC In: 25W
Weight: 4.4 lbs (2 kg)
Dimension: 6.9" x 7.8" x 7.3" (174 x 197 x 187 mm)
VC-TR61N-W
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP)
SDI
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 4K UltraHD (3840 x 2160) 50/60 fps
- Control protocol for PTZ cameras
- NDI
ONVIF
RS-232
VISCA - Network Connection
- Ethernet
- Sensor Size
- 1/1.8"
- Optical Zoom
- 30x
- PoE Technology
- Yes
- Auto-Tracking
- Yes
- Tally Light
- Yes
Specific References
- ean13
- 4711246503786
- mpn
- VC-TR61N-W
