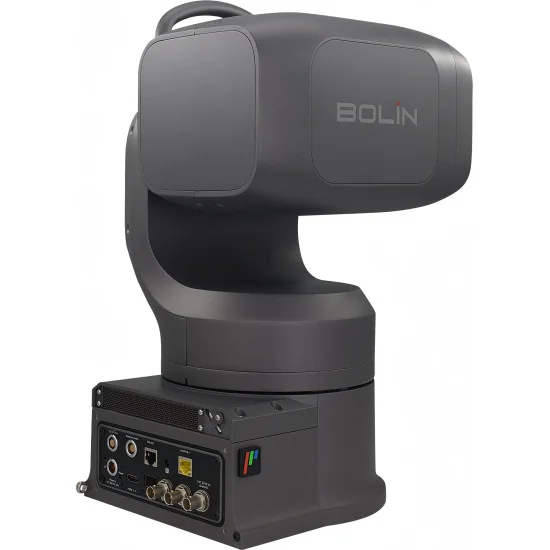

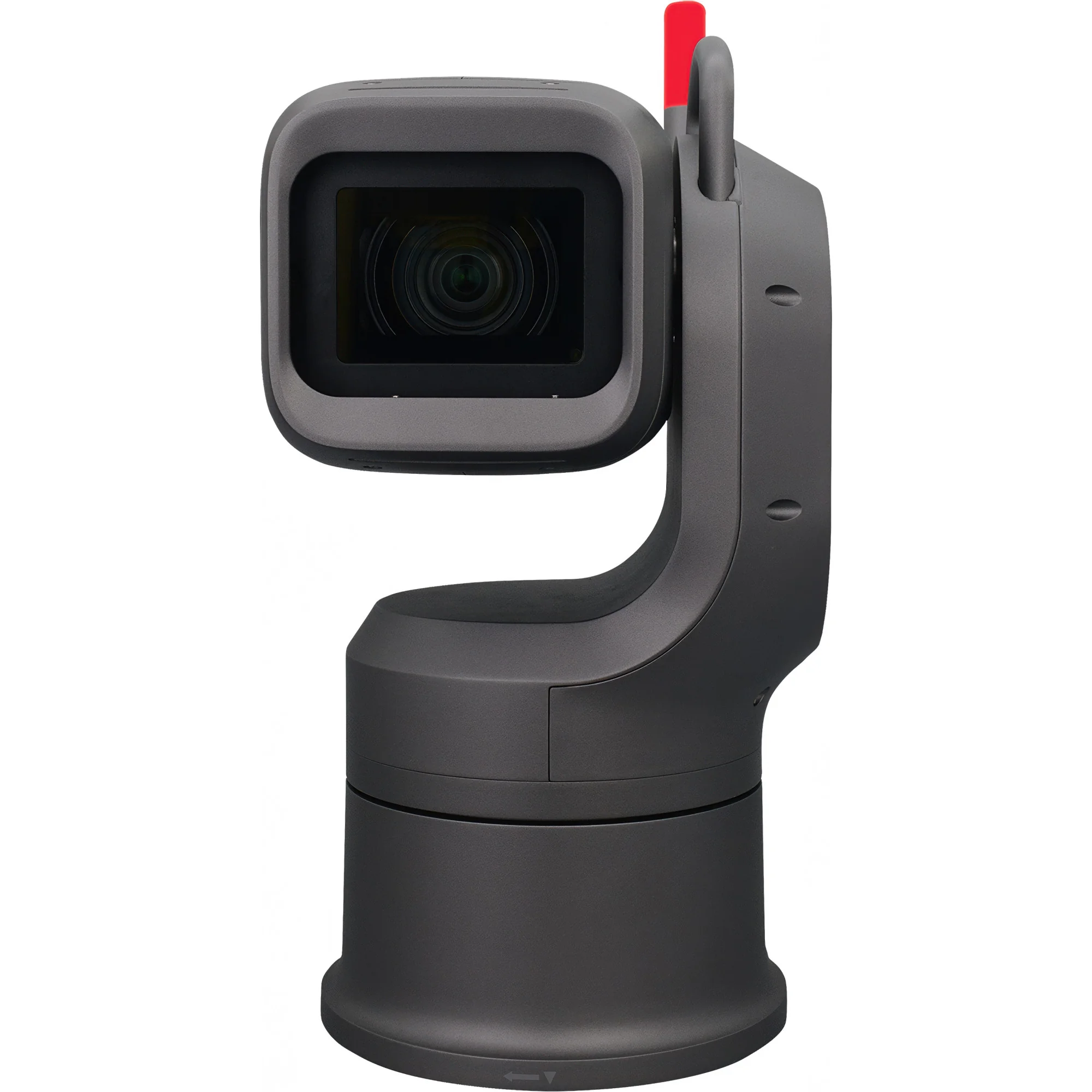

Bolin EXU248F Outdoor Long Range Professional PTZ Camera

Redefining The Outdoor PTZ Camera Experience
Built to perform in demanding outdoor environments, the Bolin EXU248F is a long-range outdoor PTZ camera delivering high-resolution video with industry-leading zoom range. Featuring a powerful 48x zoom in Full HD, the EXU248F ensures detailed imaging from long distances, making it an ideal solution for sports stadiums, observation towers, outdoor event coverage, and weather monitoring. With a Sony image block housing a 1.0-inch 4K sensor and built-in ND filters, the camera excels in low-light conditions, providing true-to-life colors, exceptional detail, and improved dynamic range, even in challenging lighting environments. Designed with an IP67-rated weatherproof housing, this rugged PTZ camera is fully protected against dust, water, and extreme temperatures, ensuring consistent operation in rain, snow, and direct sunlight.

With multiple simultaneous outputs, including dual 6G-SDI, HDMI, Optical SDI, and IP streaming, the EXU248F integrates into baseband and AV-over-IP workflows, providing reliable and flexible connectivity for professional production setups. FPGA hardware FAST HEVC codec provides high-quality, low latency and low bandwidth IP streams include RTSP, RTMP, SRT, ONVIF, and MPEG-TS.

The EXU248F supports FreeD protocol, allowing for real-time tracking in AR/VR applications, making it an ideal choice for guest/fan engagement in outdoor venues, sports analytics, and immersive live broadcasts. Genlock input allows for frame-accurate synchronization, ensuring in-sync multi-camera productions. Optical image stabilization, precise PTZ movement, and flexible power options including PoE++ ensure smooth operation in a variety of environments.

From sports coverage to remote monitoring, the Bolin EXU248F delivers outstanding image quality, extreme zoom range, and rugged durability, empowering production teams to capture every moment with confidence, no matter the conditions.

1 Inch Large 4K Sensor
Bolin's EXU248F 1-Inch 4K Outdoor PTZ Camera features a Sony 4K image block with a 1.0-type sensor, offering a large light-receiving area for crisp, noise-free, high-definition imaging. It also includes mechanical optical stabilization for enhanced clarity and stability.

Bolin's EXU248F 1-Inch 4K Outdoor PTZ Camera features a Sony 4K image block with a 1.0-type sensor, offering a large light-receiving area for crisp, noise-free, high-definition imaging. It also includes mechanical optical stabilization for enhanced clarity and stability.

• 1 inch type Exmor R CMOS Large Image Sensor
• 14.2 Megapixels
• Best Image Quality in class
• 4K with 18X zoom, FHD with 24X zoom
• Zeiss Lens Constant F2.8 Aperture
• Optical Image Stabilizer
• Black Level
• Color Matrix
• ND Filter
• True WDR

Extreme Weather Survival

• Wind Load Durability, steady operational and  non-destructive at 30-60 m/s or less
• Heater, Defroster built-in
• –40 °C to 60 °C (-40°F to 140°F) operational
• Hidden-Type Rain Wiper and Sun Shield
• All Stainless Steel/brass/metal interior mechanical parts
• Entire body IP67 rated dustproof and waterproof

4K Lens 48X Zoom Range at Full HD Resolution
The high-quality 4K lens offers a bright F2.8 maximum aperture and up to 48X zoom range when  FHD(1080p59.94/60fps) resolution is used. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close ups ensuring critical detail is not missed.

Fast, bright lens with rapid up to 18x zoom range
The high-quality lens offers a bright F2.8 maximum aperture and up to 18X zoom range in 4K/29.97/30fps quality. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close ups ensuring critical detail is not missed.

The new FCB-ES8230 represents a new avenue of high quality and 'best in class' images in stunning 4K clarity thanks to the combination of Sony's 1-type Exmor R CMOS sensor, high quality lens and Sony unique ISP engine.

The FCB-ES8230 offers 4K resolution at 30fps together with an integrated super resolution zoom up to 18x in 4K quality.  Additional 24x zoom in FHD resolution.

Capture high quality, crisp, clear 4K @30fps images
The high-performance 1-type Exmor R CMOS image sensor achieves superb 4K (QFHD) and FHD picture quality. Using the latest Sony sensor technology combined with the best optical zoom lens, the FCB-ES8230 produces high quality images in excellent detail and clarity.

Fast, bright lens with rapid 18x(4K), 24X(FHD) zoom range
The high-quality lens offers a bright F2.8 maximum aperture and 18x/24x zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close ups ensuring critical detail is not missed.

Get a steadier picture with optical image stabilization
In a first for FCB technology and inherited from our world leading professional camcorder technology; the FCB-ES8230 comes with a built-in optical image stabilization capability, countering the effects of blurred, shaky images caused by low-frequency vibration and movement.

Wide range of features for versatile operation
Versatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Black & White, Mirror Image, Color Enhancement, Black Level, Color Matrix, Gamma); Privacy Zone Masking; Picture freeze; Trace Memory, Shutter Priority; Iris Priority; Slow AE response etc.

True Tri-Output
Simultaneously output SDI, HDMI, and IP, which can be set to independent formats for different application use. (The image shows video format model specific)

Video Codec:  FAST HEVC Codec Built-in

• There is "FAST HEVC" logo on the camera body
• H.264/265 - AVC/HEVC
• Hardware FPGA based encoder built-in
• High Quality, Ultra Low Latency, Low Bandwidth
• Browser, hardware and software  decode-able
• Up to 4K60, Full HD
• Two IP video streaming
• Unicast, Multicast
• RTSP, RTMP, RTMPS., SRT, ONVIF
• IP control: Visca Over IP, Onvif
• Audio encode
• Open platform

FreeD Protocol Integrated for VR/AR Video Production
FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

PTZ Movement-Smooth, Accurate and Quiet

• PAN: 340° (-170° to +170°); Fully proportional, speed 0.08° to 60°/s
• TILT: 205° (-35° to +170°); Fully proportional, speed 0.08° to 60°/s
• Preset: 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
• Smooth and Accurate Movement

Various Control Methods

• IP Control
• Serial Control
• IR Remote Control
• Bolin API
• Control Protocol:
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D
• FreeD Supported

SPECIFICATION

IMAGE FHD/4K30, 48X/18X
Image Maker: Sony Image Block
Image Sensor: 1.0-type back-illuminated Exmor R CMOS sensor
Number of effective pixels: 14.2 MP
Picture elements: 3840x2160, 8.29 MP
Lens: Zeiss Vario-Sonnar T lens, Zoom Range 48X(FHD)/18X(4K)
Horizontal Angle of View: 64.6˚ (Wide) - 6.1˚ (Tele),
Vertical Angle of View: 39.2˚ (Wide) - 3.4˚ (Tele),
Focal Length: f=9.3 to 111.6mm, F2.8(Wide) ,F4.5(Tele)
Min. object distance: 80mm (Wide), 1000mm (Tele)
Aperture: F2.8 Constant (W)~F4.5(T), 16 Steps
Min. Illumination: 0.5 lx (1/30 sec, 50%, High Sensitivity On) 2.0 lx (1/30 sec, 50%, High Sensitivity Off)
Shutter Speed: 1/1 sec to 1/10000 sec (28 steps)
Focus: Spot Focus, Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit,
White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp（Fix/Auto/Outdoor Auto）
Exposure: Full Auto, Gain, Shutter Priority, Iris Priority, Manual, Bright
Features: High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
WDR: YES(130dB), Shown as VISIBILITY ENHANCER in OSD
ND Filter: Yes
Image Stabilizer: YES, Optical Image Stabilizer
Color Gain: Yes (15 step)
Color Hue: Yes (15 step)
Gamma: Standard/Straight/Pattern
Gamma Level: Yes (15 step)
Black Level: Yes (97 step)
Black Gamma: Yes (15 step)
Color Matrix: Off/Standard/High Saturation/FL light
Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 2D/3D
S/N Ratio: ≥50db
HLC: Yes
E-Flip: Yes
Defog: Yes, (off, low, mid, high)
High Sensitivity: Yes
Slow AE Response: Yes
Day/Night: Yes
Backlight Compensation: Yes

MECHANICAL
Pan Movement: 340° (-170° to +170°); Fully proportional; Standard Mode: 0.08° to 60°/s; Fast Mode: 0.08° to 120°/s
Tilt Movement: 205° (-35° to +170°); Fully proportional;Standard Mode: 0.08° to 60°/s; Fast Mode: 0.08° to 120°/s
Speed Proportional: Pan/Tilt Speed proportional to zoom range
Preset Position: 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless Preset: YES, ON/OFF
PTZ Trace Memory: YES, 4
Cruise: YES, 12
Quietness: NC55(45/35) or less when operating speed is 60°/30°/15°/sec or less
Home Position: Yes
FreeD: Yes, FreeD protocol for AR/VR camera tracking, via IP
Position Deviation Correction: Optical
Turning Radius: PAN: Φ 400 mm TILT: Φ 480 mm
Environmental: Outdoor, IP67 compliant for Waterproof and Dust Proof
Body Finishing: C5 Corrosion Resistant Power Coating
Wind Load Durability: 0-15m/s Operation Normal 15-30m/s Pan/Tilt Operational Non-Destructive and steady operation at 60m/s or less
Wiper: Yes
Heater: Yes
Defroster: Yes

INTERFACE
HDMI Video Output: HDMI 2.0 Type A
SDI Video Output: 6G-SDI, 75Ω BNC x 2，SDI Clean / SDI PM for output having OSD display
SDI Optical Fiber Output: Optical SDI SFP module support up to 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE), Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control, IP video output, IP audio output, System FW Upgrade
Synchronization System: Internal/External synchronization (BBS/Tri-level sync)
External Sync Input: Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
Audio Input: 2 channels, XLR balanced input (Mini XLR - Hirose Connector) with 48V Phantom power, Input signal level: 0 dBu, Volume variable range: –40 dB to +12 dB (can be changed in 1 dB steps in the menu)
Audio Output*: 2 channels, XLR balanced output (Mini XLR - Hirose Connector) (preserve); Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo, superimposed over SDI & HDMI output, Sampling frequency: 48 kHz (synchronized to video) • Quantization bit rate: 24-bit (LPCM) • Audio compression format (IP): AAC-LC (High quality)
Tally Light: Red, Green Color, Front
System Firmware Upgrade: Upgrade via IP for camera system MCU, FPGA and Encoder
Power Connector Type: INPUT: DC36V/AC24A,Pin connector, INPUT: RJ45, PoE++ (IEEE802.3bt), OUTPUT: 12VDC, Pin connector
Control Interface: RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
Control Protocol: Serial: VISCA, PELCO P/D, FreeD; IP: VISCA Over IP, ONVIF

HDMI VIDEO SIGNAL SYSTEM
HDMI Video Format: 3840x2160P 30/29.97/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 12bit(HDMI), YUV4:2:2
Color Space: YUV、RGB
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator; Image/Logo Insert Screen Display with IP Image Stream

SDI SIGNAL FORMAT
SDI Video Output: 6G-SDI
SDI Video Format: 3840x2160P 30/29.97/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 10bit(SDI), YUV 4:2:2
Color Space: YUV
Standard: SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A(3Gb/s) SMPTE 2081(6Gb/s), with SMPTE352 SDI Metadata Supported
True Dual Output: HDMI and SDI signal can be output with different format
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator

NETWORK
Video Compression: AVC-H.264/HEVC-H.265/MJPEG by FPGA
IP Resolution/Frame Rate: 3840x2160P 30/29.97/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
True Dual Output: IP, HDMI, and SDI signal can be set with different format
IP Protocols: TCP/IP, IGMP, ICMP, ARP, QoS, SNMP, UDP, HTTP, DNS, DHCP, FTP, NTP, UPNP, SRT
Application Protocols: RTMP(S), RTSP, RTSP Encryption, RTP Streaming (Unicast, Multicast), SRT, MPEG-TS over UDP, MPEG-TS over RTP
Color Format: YUV4:2:0 8bit、YUV4:2:2 8bit、YUV4:2:2 10bit
Multi-stream: 2 stream
Audio Compression: 32-128Kbps(AAC-LC) Selectable
OSD: Customized OSD
Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
Bandwidth ( results may vary depending on network configuration and management settings.): 128Kbps-60Mbps, 4kp60 12 bit 4:2:2, 10-20Mbps, 1080p60 12 bit 4:2:2
Latency (Overall latency may increase depending on network configurations): 2-3 frame (e.g. 1080p60 latency is < 120ms glass to glass
Browser Support: Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

GENERAL
Operating Temperature: –40 °C to 60 °C（-40°F to 140°F), (PoE is not suggested to be used and camera preheating automatically will be processed when is at environment -10°C (-14°F) or less)
Operating Humidity: 100% Suitable for Use (no condensation)
Power Input: DC 36V / AC24V, PoE++(Compatible with IEEE802.3bt, Type 4 Class8)
IP Protocols: Suggest that not to use POE when environment temperature is -0°C or lower
Power Consumption: Min: 35W(Static state with no movement); Max: 85W（Fully loaded operation with heater on, PoE power is not suggested）
Installation Method: Stand-alone (Upright) or suspended (Pendent), • To ensure safety, the unit must be secured using the mount bracket supplied.
Mount: Ceiling Mount, Wall Mount, Heavy duty tripod
Handle: Built-in for portable use application
Wiper: Yes, hidden type
Size of Tripod Screw Hole: 1 x 3/8”, 1 x 1/4” + secure lock point
Body Color: Dark Gray
Dimension-Camera: PAN: Φ 400 mm TILT: Φ 480 mm
Weight: 10kg（22lb)
Accessories Included: IR Controllerx1, Secure Chain Lock and screwx1, Power Adaptor x1, Seal ringx12, Quick install panel bolt x4, IP67 Tail Cover x1, Rainwater Cover x1
Certificate: CE, FCC, IC, UKCA, ROHS, WEEE
