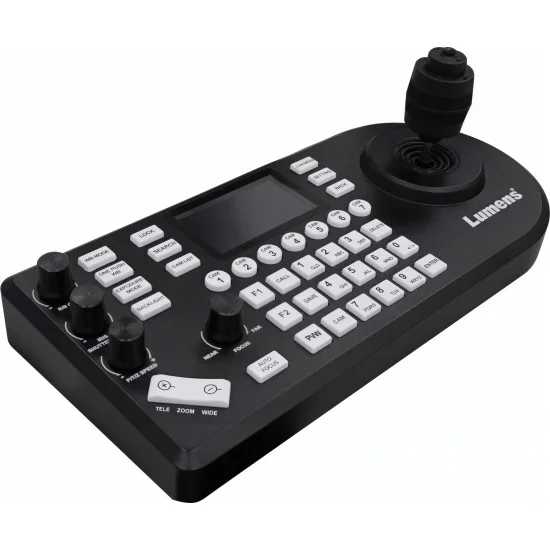

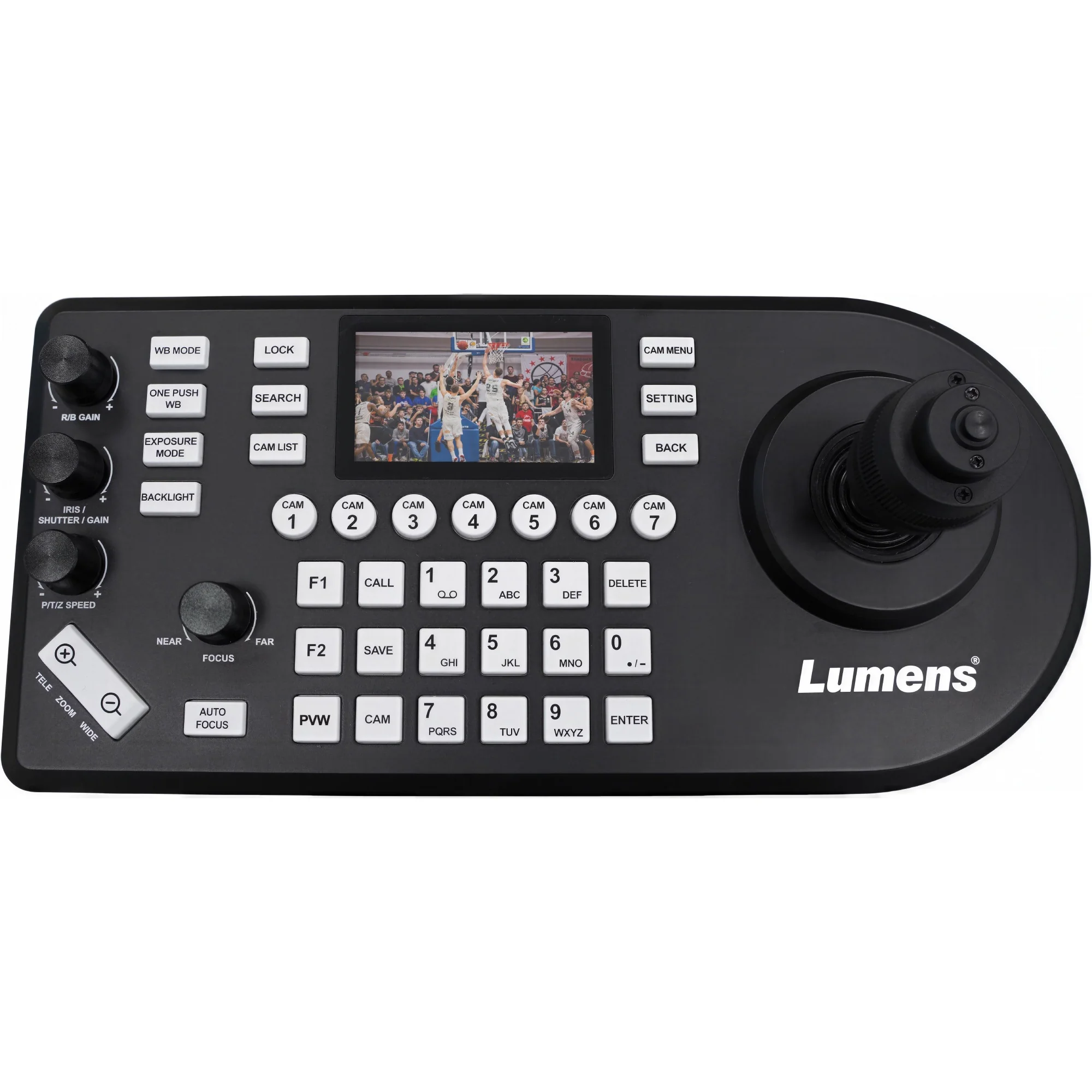

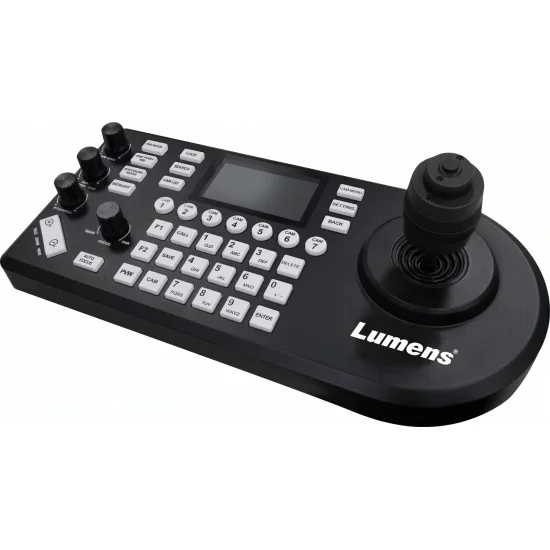

Lumens VS-KB21N PTZ Camera Controller

Running a multi-camera production usually comes down to how fast an operator can reach the right shot, and the Lumens VS-KB21N puts that reach into a single deck. This IP camera controller with NDI recognises NDI sources the moment they appear on the network, letting a director assume command of up to 255 IP- or NDI-connected cameras from one panel. Whether you are mixing a live worship service, a corporate town hall or a sports relay, the unit removes the guesswork of jumping between scattered remotes and keeps every angle a fingertip away.

Control feels immediate thanks to a 4-axis joystick that handles pan, tilt and zoom with one hand, while a dedicated speed knob and a zoom seesaw lever let an operator ease into a slow reveal or snap to a tight close-up. Seven hot keys bring instant camera selection, so switching between a presenter's PTZ and a wide box camera happens without breaking concentration. Two user-assignable keys hold the functions a particular show leans on, and the backlit keypad stays legible in a dim gallery or an outside-broadcast truck after dark.

The built-in 3" LCD screen is where the controller earns its place. It carries RTSP and NDI HX stream preview, monitoring many IP feeds at once or switching a single channel to full screen for precise framing before a cut goes live. Exposure data such as iris, shutter and gain sits in plain view, alongside quick access to white balance, focus and R/B gain, so matching the look of several cameras takes seconds rather than a trip to each device.

Connection options suit fixed installs and travelling rigs alike. The VS-KB21N speaks VISCA, VISCA over IP and NDI across Ethernet, RS-232 and RS-422, addressing cameras from 1 to 255 and storing up to 255 presets for repeatable scenes. A single network cable can carry both data and PoE power, or you can run it from DC, and a five-year manufacturer warranty backs the panel for the long broadcast days it was built around.
