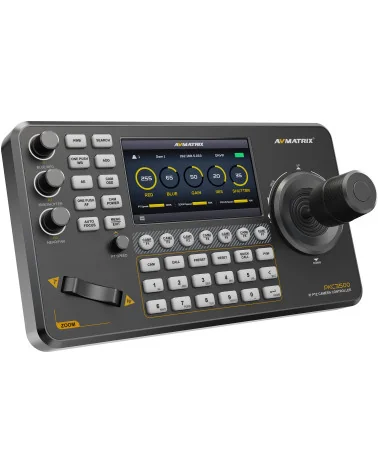

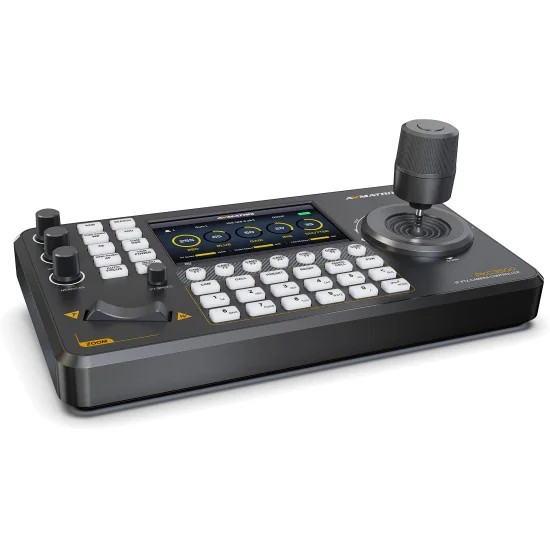

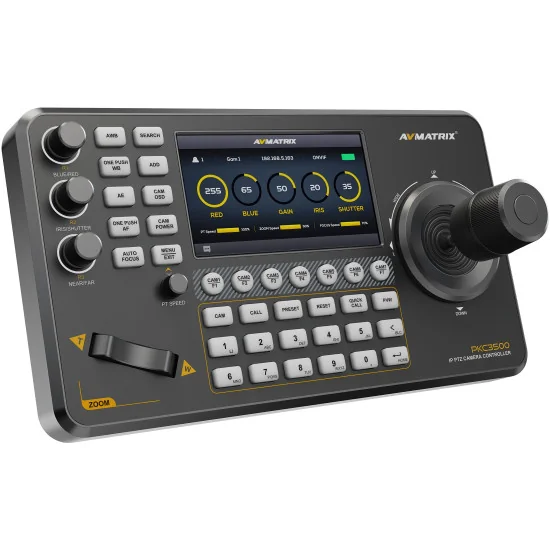

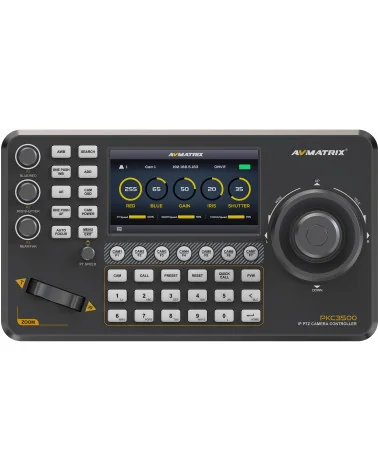

AVMATRIX PKC3500 PTZ Camera Controller
PKC3500
Price: €449.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
AVMATRIX PKC3500 is a compact PTZ camera controller for control rooms, OB vans and streaming studios where one operator must steer multiple cameras with repeatable results. The 5-inch colour touchscreen presents camera status and menu layers clearly, and supports on-panel monitoring through RTSP / ONVIF stream decoding—useful when the controller sits away from the multiviewer or the cameras live on a separate VLAN.
Camera handling centres on a 4D joystick (pan/tilt plus push/rotate functions) combined with a T-bar zoom for consistent zoom ramps. Dedicated rotary controls map directly to iris, shutter, gain, white balance, focus and exposure parameters, enabling fast shading changes during live worship, conferences, sports commentary, lecture capture or remote guest interviews. Seven user-assignable keys and illuminated buttons keep recalls and camera selection tactile in low-light environments.
Networking and serial control are available simultaneously. Over IP the PKC3500 manages up to 255 IP cameras, supports 255 camera addresses and stores up to 255 presets, with automatic IP address assignment and rapid discovery on the same subnet. Protocol support includes VISCA over IP and ONVIF via a Gigabit RJ45 interface with PoE/PoE+ (IEEE 802.3af/at). For legacy chains the unit provides RS-232 plus RS-422/RS-485 using VISCA, Pelco-D and Pelco-P, with selectable baud rates from 2400 to 115200 bps; a USB 2.0 port handles firmware maintenance.
For automation, track recording and playback captures a pan/tilt/zoom path and replays it as a loop—handy for product demos, house-of-worship wide shots or repeating audience cutaways. A dedicated Tally/GPIO port enables camera-follow and switcher synchronisation, simplifying tally-driven workflows. Power is available via PoE or 7–24 V DC, keeping consumption under 8 W and operating stability from -20°C to 60°C for fly-packs and rack builds.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop

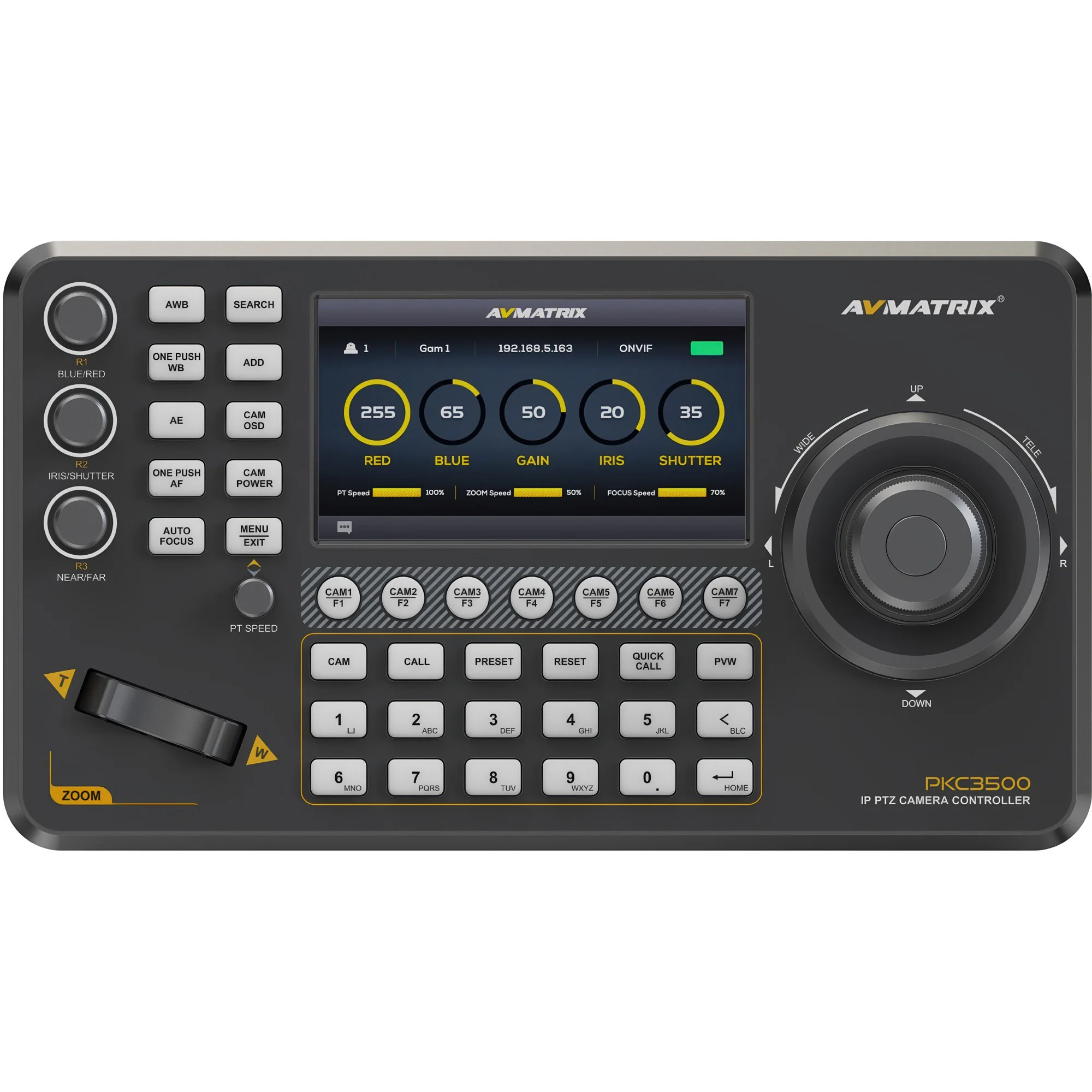

AVMatrix PKC3500 – Mini Professional PTZ Controller
5" HD Display for Intuitive PTZ Control
The PTZ camera controller features a 5-inch HD screen that clearly presents real-time status as well as intuitive and well-organized menu layout which ensures a more efficient and professional control experience, making every action is clear and easy, enhancing both convenience and precision.
Real-time Preview of Your Camera
The controller supports decoding under RTSP and ONVIF protocol which allows simultaneous real-time preview of the camera video streams on the 5-inch screen and adjust your control accordingly.
Track Recording and Playback
The PTZ camera controller supports track loop function which allows you to record camera path (pan, tilt, zoom) and replay it whenever required without having to manually control the camera.
Power-over-Ethernet (PoE)
Control up to total of 255 IP cameras on a single network with PoE support. You can use not only traditional DC power supply but also POE power supply to set up in various locations.
Sync Controller with Switcher Via GPIO
Equipped with GPIO, the controller can seamlessly integrate with switchers and tally system, enabling synchronized camera and video selection and simplifying your operations.
KEY FEATURES
- 5″ Touchscreen
- 4D Joystick + T-Bar – Precise, responsive pan/tilt/zoom/focus with professional feel
- 255 Camera Management – Auto IP discovery, multi-protocol support
- Track Record & Playback – Save and repeat complex camera movements
- 7 Assignable Keys – Instant access to presets, iris, WB, focus, etc.
- Connectivity – LAN (IP + PoE), RS-422/485/232, 12V DC
- GPIO Sync – Trigger or synchronize with external systems
SPECIFICATIONS
CONNECTIONS
Interfaces: IP(RJ45)×1, RS-232×1, RS-485/RS-422×1, TALLY×1, USB2.0 (For upgrade)
IP Protocol: ONVIF, VISCA
Serial Protocol: PELCO-D, PELCO-P, VISCA
Serial Baud Rate: 2400, 4800, 9600, 19200, 38400, 115200 bps
LAN Port: 1000M×1 (PoE/PoE+: IEEE802.3 af/at)
USER INTERFACES
Display: 5-inch Screen
Knob: Quickly control iris, shutter speed, gain, auto exposure, white balance, etc.
Joystick: Pan/Tilt/Zoom
Camera Address: Up to 255
Camera Preset: Up to 255
POWER
Power: PoE/ DC 7~24V
Power Consumption: PoE: <8W, DC: <8W
ENVIRONMENT
Working Temperature: -20°C~60°C
Storage Temperature: -20°C~70°C
DIMENSION
Dimension(LWD): 282×158×47mm/ 282×158×100.5mm(With joystick)
Weight: Net: 1089g
PKC3500
Data sheet
- Interface
- Ethernet
- Control protocol for PTZ cameras
- ONVIF
PELCO-D
PELCO-P
RS-232
RS-422
RS-485
VISCA
VISCA IP - Network Connection
- Ethernet
- Device type
- PTZ Camera Controller
- Tally Light
- Yes
Specific References
- ean13
- 684232406962
- mpn
- PKC3500
