Magewell Eco Capture AIO M.2 is a compact internal capture card for integrators and video teams that need dependable ingest in systems where a full-size PCIe slot is not available. Built in the M.2 2280 Type M format and connected over PCIe Gen2 x2, it brings professional video acquisition into miniature production PCs, mobile encoder platforms, flypack systems, embedded recorders and custom streaming appliances. The card accepts a single 2K HDMI or SDI source with embedded audio, which makes it practical for studio signal ingest, lecture capture, webcast encoding, confidence monitoring nodes and OEM video systems that must stay compact without giving up proper broadcast interfaces.
From the signal side, this model handles HDMI 1.4a and SD/HD/3G-SDI up to 2048 x 1080 at 60 fps. The HDMI path supports RGB and YCbCr input structures up to 12-bit, while the SDI side supports broadcast-standard transport including SMPTE ST 259, ST 292 and ST 424, with embedded audio and closed caption support through the SDK. Magewell also specifies custom EDID handling, automatic input format detection and support for SD composite compatibility on the SDI-side cabling architecture, which is useful when older signal sources still appear in production, training rooms or legacy AV installations.
For capture performance, Magewell Eco Capture AIO M.2 supports video processing up to 2048 x 1080p60 with scaling, de-interlacing, frame-rate conversion and colour-format conversion handled on the card. Supported capture formats include NV12, I420, YV12, YUY2, UYVY, BGR24 and BGR32, giving broad compatibility with ingest, streaming, vision-mixing and recording software. The board can also replicate the same input into multiple software destinations simultaneously, which is useful when one source must feed OBS, vMix, monitoring tools or a recording application at the same time. In multi-card systems, the onboard rotary switch simplifies identification, deployment and maintenance.
This model also makes sense where reliability matters more than cosmetic extras. It is rated for 24/7 operation, uses very low power, supports firmware updates without heavy service interruption in many cases, and works with Windows and Linux environments through common APIs. For broadcasters, streaming providers, medical imaging integrators, defence simulators, lecture-capture manufacturers and control-room builders, Magewell Eco Capture AIO M.2 is a practical choice when the goal is stable HDMI or SDI ingest inside a dense, low-profile hardware platform.

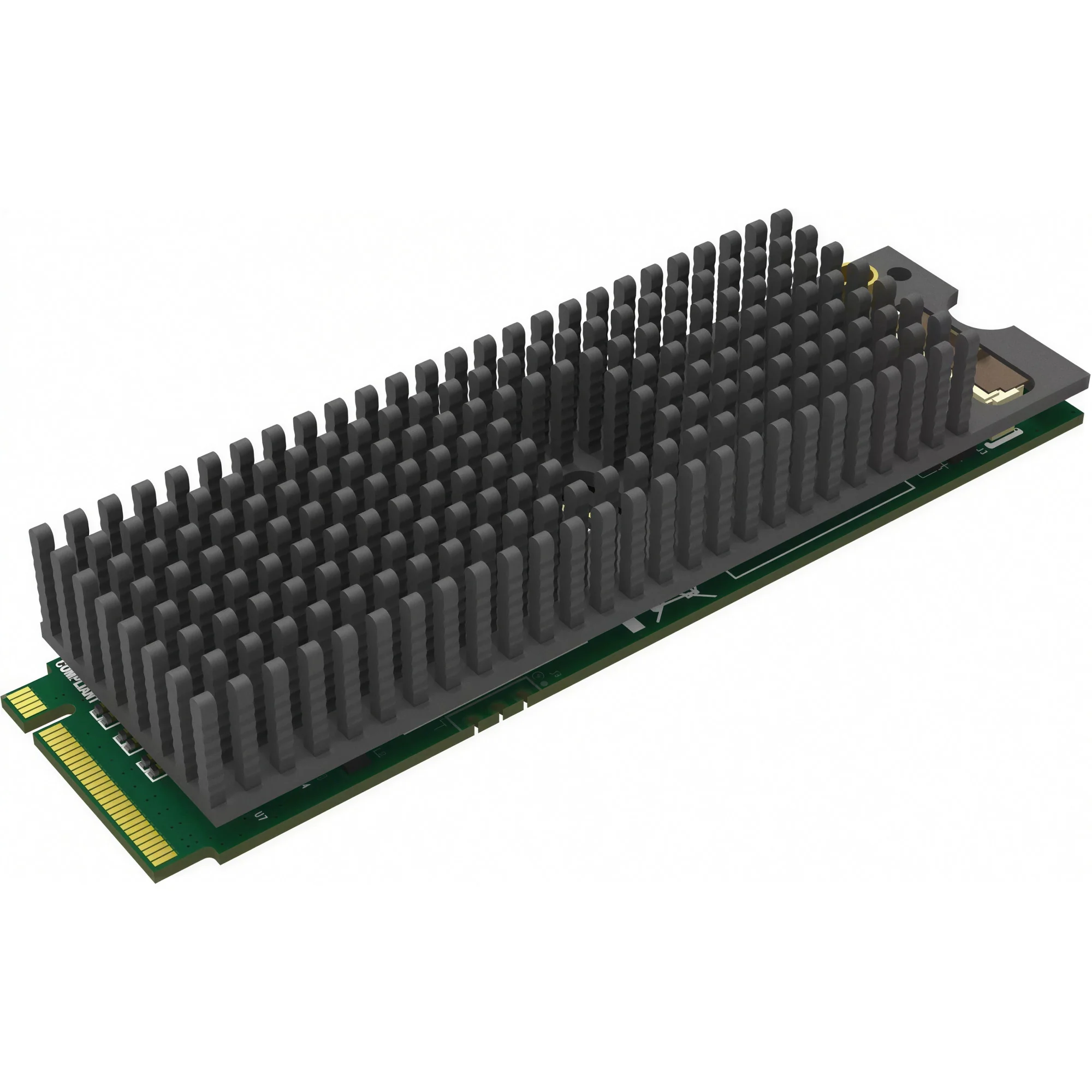

Magewell Eco Capture AIO M.2 (11600) Video capture card
116000000
Price: €349.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Magewell Eco Capture AIO M.2 is a compact internal capture card for integrators and video teams that need dependable ingest in systems where a full-size PCIe slot is not available. Built in the M.2 2280 Type M format and connected over PCIe Gen2 x2, it brings professional video acquisition into miniature production PCs, mobile encoder platforms, flypack systems, embedded recorders and custom streaming appliances. The card accepts a single 2K HDMI or SDI source with embedded audio, which makes it practical for studio signal ingest, lecture capture, webcast encoding, confidence monitoring nodes and OEM video systems that must stay compact without giving up proper broadcast interfaces.
From the signal side, this model handles HDMI 1.4a and SD/HD/3G-SDI up to 2048 x 1080 at 60 fps. The HDMI path supports RGB and YCbCr input structures up to 12-bit, while the SDI side supports broadcast-standard transport including SMPTE ST 259, ST 292 and ST 424, with embedded audio and closed caption support through the SDK. Magewell also specifies custom EDID handling, automatic input format detection and support for SD composite compatibility on the SDI-side cabling architecture, which is useful when older signal sources still appear in production, training rooms or legacy AV installations.
For capture performance, Magewell Eco Capture AIO M.2 supports video processing up to 2048 x 1080p60 with scaling, de-interlacing, frame-rate conversion and colour-format conversion handled on the card. Supported capture formats include NV12, I420, YV12, YUY2, UYVY, BGR24 and BGR32, giving broad compatibility with ingest, streaming, vision-mixing and recording software. The board can also replicate the same input into multiple software destinations simultaneously, which is useful when one source must feed OBS, vMix, monitoring tools or a recording application at the same time. In multi-card systems, the onboard rotary switch simplifies identification, deployment and maintenance.
This model also makes sense where reliability matters more than cosmetic extras. It is rated for 24/7 operation, uses very low power, supports firmware updates without heavy service interruption in many cases, and works with Windows and Linux environments through common APIs. For broadcasters, streaming providers, medical imaging integrators, defence simulators, lecture-capture manufacturers and control-room builders, Magewell Eco Capture AIO M.2 is a practical choice when the goal is stable HDMI or SDI ingest inside a dense, low-profile hardware platform.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The Magewell Eco Capture AIO M.2 is a versatile, all-in-one video capture solution designed for capturing a wide range of video signals, including HDMI, DisplayPort, VGA, and more. With support for resolutions up to 4K, it is perfect for a variety of professional applications such as live streaming, video production, and content creation. The Eco Capture AIO M.2 ensures seamless, high-quality video capture with low-latency performance and support for embedded audio.
Equipped with advanced processing capabilities like color adjustments, deinterlacing, and hardware timestamping, the Eco Capture AIO M.2 delivers exceptional video clarity and stability. It supports a variety of input formats, automatic format detection, and features such as timecode and closed captioning, making it ideal for demanding professional environments.
Compatible with major operating systems like Windows, Linux, and macOS, the Eco Capture AIO M.2 integrates easily into existing workflows and works with popular software like OBS Studio, vMix, and more. Its compact M.2 form factor ensures easy installation in a wide range of devices and setups, making it a convenient choice for portable or space-constrained environments.
The Eco Capture AIO M.2 is designed for reliable 24/7 operation, offering smooth and uninterrupted video capture for live broadcasts, recordings, and more. It comes with a 2-year warranty, ensuring peace of mind for users in high-demand professional environments.
Applications
Live Streaming & Broadcasting: Capture high-quality video from multiple sources for live streaming or broadcast production.
Video Conferencing: Perfect for professional video conferencing requiring support for various input sources.
Content Creation: Ideal for creators who need flexible capture solutions for streaming and video production.
Recording & Archiving: Capture and store high-quality video for future editing or storage.
What's in the Box:
Eco Capture AIO M.2 card
1 x FPC to HDMI type A adapter (Part number: 90092)
1 x FPC ribbon cable (20 cm) (Part number: ACC00093)
1 x MMCX to SDI breakout (Part number: ACC00052)
Installation guide
Warranty card
Specifications
Product Identification
Product Family: Eco Capture
Model Name: Eco Capture AIO M.2
Host Interface: PCIe 2.0 x2 up to 800 MB/s
Primary Selling Points: Small form factor; Low power consumption; All-in-one input
Video Input Interfaces
Interface Type: HDMI; SDI;
Number of Input Ports: 2(1 active at a time)
Input Standards: HDMI 1.4a; SD/HD/3G/2K SDI
Colnnector Type: SH 1.0 connectors (via breakout)
Loopthrough: Yes
Signal Types: Progressive; Interlaced
Video Input Features
Max Resolution / Frame Rate: 2048×1080 at 60fps
Color Format: RGB; YCbCr 4:4:4; YCbCr 4:2:2
Audio Input
Embedded Audio Support: Yes
Maximum Audio Channels: 8
Video Processing Features
Scaling: Yes
De-interlacing: Yes
Color Space Conversion: Yes
Frame Rate Conversion: Yes
Aspect Ratio Conversion: Yes
Image Adjustment: Yes
Software
Supported OS: Windows; macOS; Linux
Compatible Software: Zoom Rooms; Microsoft Teams; Skype for Business; Google Hangouts; GoToMeeting; Gstreamer; VLC; OBS Studio; XSplit; QuickTime Player; Any DirectShow/V4L2/AVCaptureSession based software
Operational
Power Consumption: ~ 2.94 W
Max current: Max current at 3.3V: ~ 0.89 A
Operating Temperature Range: 0 to 40 deg C
Form Factor
Length: 80mm
Width: 22mm
116000000
3 Items
Data sheet
- Video Input
- HDMI
SDI - Video Output
- M.2
- Audio Input
- HDMI Embedded
SDI Embedded - Audio Output
- M.2
- Interface
- M.2
- Max Output Resolution
- 2K (2048 x 1080) 50/60 fps
- For Operating System
- Linux
Windows - Output colour sampling
- RGB 4:4:4 8-bit
YUV/YCbCe/YPbPr 4:2:2 10-bit - Video input channels
- 1
Specific References
- ean13
- 6936572400969
- mpn
- 116000000
