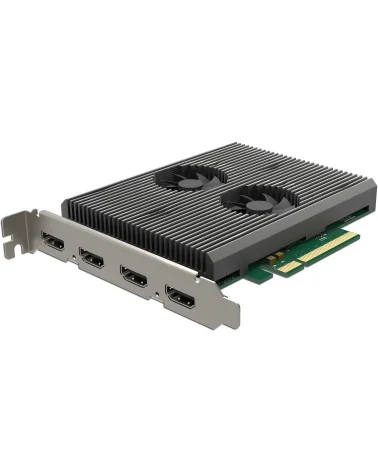

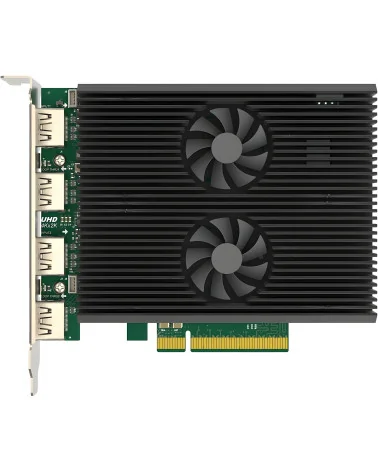

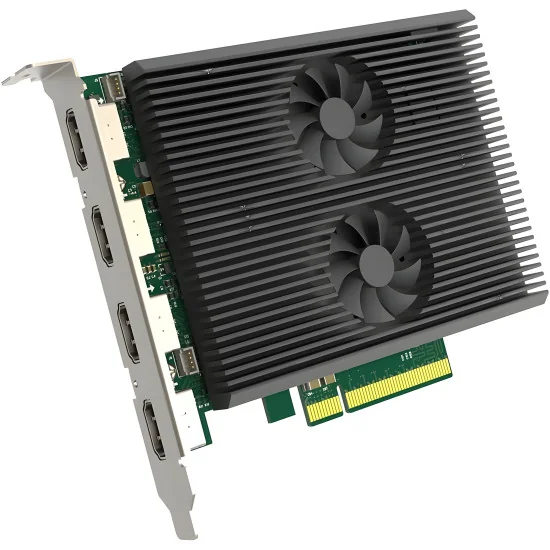

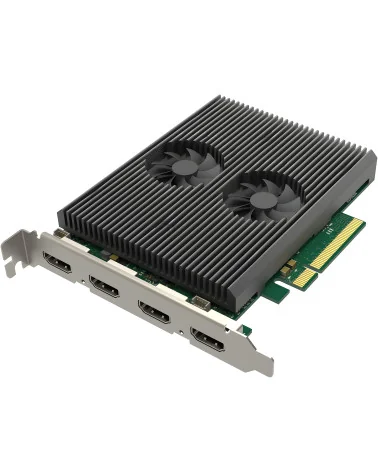

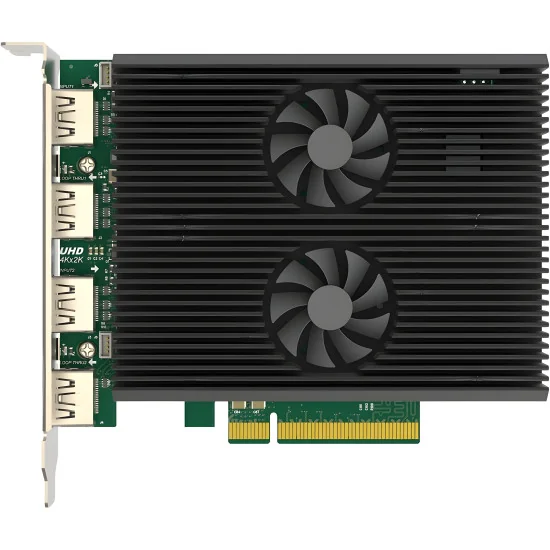

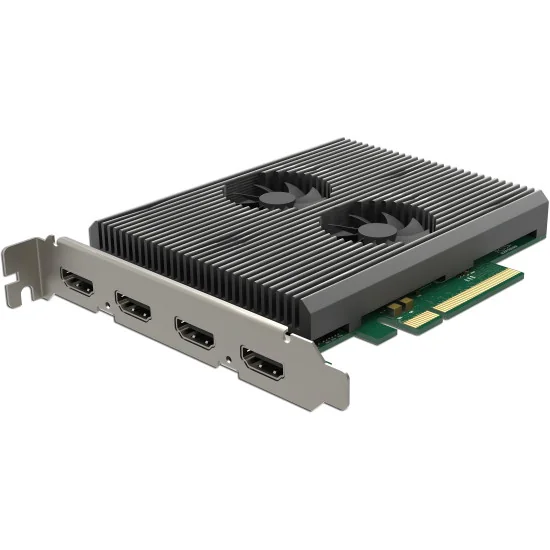

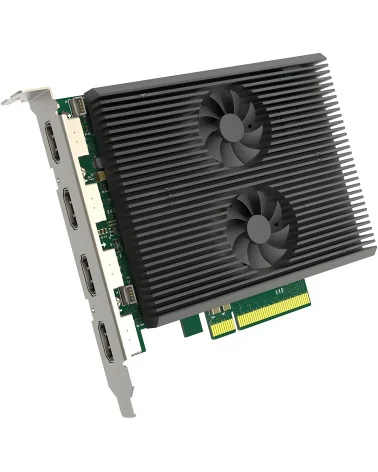

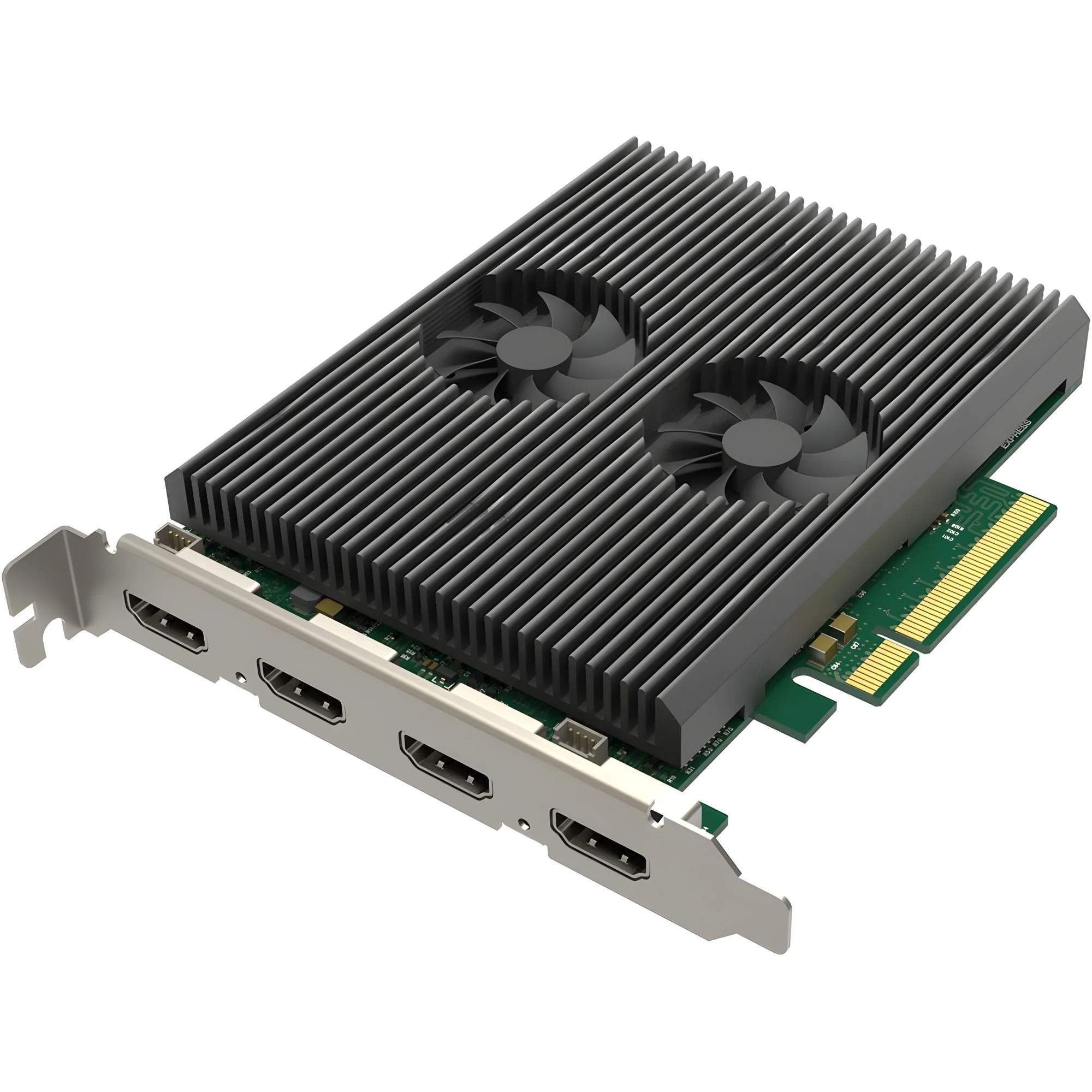

Magewell Pro Capture Dual HDMI 4K Plus LT (11260) Video capture card
112600000
Price: €1,719.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
The Magewell Pro Capture Dual HDMI 4K Plus LT is a two-channel PCIe Gen2 x8 video capture card that handles simultaneous 4K ingest from two independent HDMI sources — a real necessity in broadcast studios, live event production, and multi-stream setups. Each of the two HDMI 2.0 inputs accepts resolutions up to 4096×2160 at 60fps, with full 10-bit processing and support for 8-, 10-, and 12-bit color depths across RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 sampling. A 594 MHz HDMI receiver with adaptive equalizer locks reliably even on longer cable runs, while automatic signal detection covers 3D HDMI, time code extraction from Sony and Canon DSLRs, and HDR10 metadata pass-through.
What distinguishes the LT variant is its dedicated HDMI loop-through output on each channel, routing every incoming feed to a confidence monitor, projector, or downstream switcher without external splitters — a practical gain during multi-camera shoots or IMAG configurations at corporate events and houses of worship. On-board dual video engines, each rated at roughly 720 Mpixels/s, handle de-interlacing, scaling, cropping, and color space conversion directly on the card, noticeably lowering CPU load on the host workstation even when multiple streams run at different resolutions and frame rates.
Capture output formats span NV12, YUY2, and 10-bit V410, with frame rates up to 144 fps where PCIe bandwidth permits. The card works through DirectShow on Windows, V4L2 on Linux, and AVCaptureSession on macOS, pairing immediately with OBS Studio, vMix, Wirecast, and XSplit. An on-board rotary switch simplifies identification when stacking units in a single chassis, and firmware updates happen without powering down. The included Magewell Capture SDK opens SG-DMA transfer, GPU-direct rendering via AMD DirectGMA and NVIDIA GPUDirect, and hardware-timestamped A/V sync at 100 ns resolution. Whether you run a multi-input live streaming server, a sports replay station, or a medical imaging capture setup, this card delivers two fully independent 4K paths with latency as low as 64 video lines from input to buffer.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The Magewell Pro Capture Dual HDMI 4K Plus LT, is a High-performance, low-latency PCIe capture card with extra bandwidth features. This Two-channel 4K PCI card captures HDMI signals with embedded audio and supports input resolution up to 4096×2160 pixels. This card also allows you to Loop-through two HDMI + embedded audio signals to an external screen.
These models automatically detect the input signal format, delivering reliable, high-quality video and audio capture for video professionals, systems integrators and OEM developers. Moreover, All Pro Capture models feature Magewell’s FPGA-based, zero-CPU-usage video processing, providing high-quality up/down conversion and image adjustments without consuming valuable host system processing power.
Pro Capture devices support Windows, Linux and macOS operating systems – including x86, x64 & ARM architectures – and offer extensive compatibility with popular streaming, live production, web conferencing, lecture capture, collaboration, and medical imaging software. The Magewell MWCapture SDK provides both generic interfaces and custom APIs across OS platforms, helping developers leverage the full capabilities of Magewell capture hardware and achieve lower-latency, multi-stream capture and AV synchronization across multi-channel or even multiple capture cards.
- Capture 2x HDMI + embedded audio
- Loop-through 2x HDMI + embedded audio
- Extra bandwidth
Supported OS
Windows
Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
Linux (support x86, x64 & ARM architecture)
Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) and above
CentOS 6.5/7 (x86 & x64) and above
Fedora 25/26/27 (x86 & x64) and above
Red hat 6.5 (x86 & x64) and above
Other Linux OS with kernel version 2.6.35 and above
Mac
OS X 10.9/10.10/10.11 and above
macOS 10.12 and above
Recommended OS (tested)
Windows
Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2
DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
Ubuntu 12.04/14.04/16.04 (x86 & x64)
Ubuntu 17.04/17.10/18.04 (x64)
CentOS 6.5/7.2 (x86 & x64)
Fedora 25/26 (x64)
Red hat 6.5 (x86 & x64)
Mac
OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
macOS 10.12/10.13.2/10.13.3/10.14.3/10.15
Supported APIs
Windows DirectShow
DirectKS
Wave API/DirectSound/WASAPI
Linux
V4L2
ALSA
macOS
AVCaptureSession
AudioUnit
Supported Software
VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software
Input Interfaces
2x HDMI
DVI-D 1.0
HDMI 2.0
Host Interface
PCIe Gen2 x8
Loop-through Interface
2x HDMI
DVI-D 1.0
HDMI 2.0
Input Features
Support for input video resolutions up to 4096x2160 pixels
HDMI Specific Features
594MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut/HDR/VBI InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 8-channel IEC60958/IEC61937 audio streams via SDK Support for extraction of audio formation information & channel status data Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Support for HDR10
Video Capture Formats
Support for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Magewell Capture SDK
Video Processing Features
Two video processing pipelines with ~720Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect ratio conversion
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video OSD composition
Support for PNG OSD image (up to 4096x2160)
Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System
Support for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture Dual HDMI 4K+ LT” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture Streams
Unlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support
Latency of 64 video lines
Partial notification mode in SDK
Timestamp & A/V Synchronization
Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA
~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets
SDK
Magewell Capture SDK for easy integration, maximum flexibility and performance
Windows Driver Tweaks
All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.
LED Indicator
Status LEDs indicate the working state of each channel:
Pulsing slowly: idle
On: input signal locked
Off: input signal unlocked
Double blinks: memory failed or FPGA configuration failed
Form Factor
Normal profile PCIe x8 Add-on Card
127.89mm x 102.92mm (without PCI bracket)
Power Consumption
Max current at 12V: ~ 1.32 A
Max current at 3.3V: ~ 1.94 A
Max power consumption: ~ 22 W
Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
