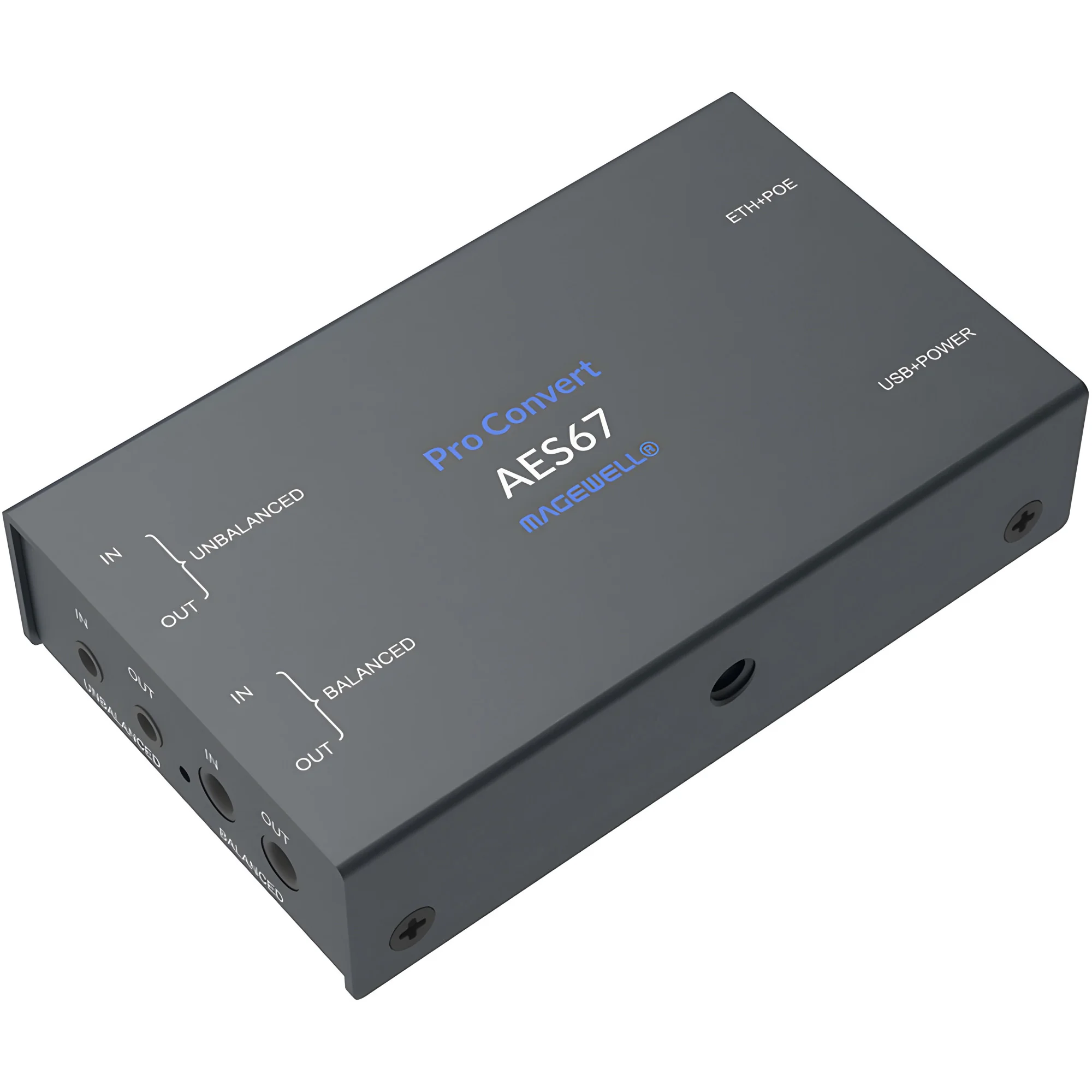

Magewell Pro Convert AES67 (64240) Audio Converter

Magewell Pro Convert AES67 (64240) Audio Converter

Name: Magewell Pro Convert AES67 (64240) Audio Converter
Brand: Magewell
SKU: 642400000
Price: 399.00 EUR
Availability: InStock

MPN: 642400000

Price: €399.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Not every audio installation needs a large rack unit to move analogue sources into an IP environment. Magewell Pro Convert AES67 addresses that transition in a compact format, giving broadcast teams, live event operators and streaming studios a practical bridge between classic audio connections and networked transport. The unit handles AES67 audio over IP with support for SMPTE ST 2110-30, while also accepting and transmitting audio through 3.5 mm unbalanced, 4.4 mm balanced and USB Audio Class connections. That combination is useful when a commentator position, mixer output, intercom feed, playback computer or outboard processor has to be inserted into a modern production network without replacing the existing audio hardware.

On the receive side, the converter can take in up to 46 audio channels, including 4 x 8-channel 24-bit AES67 streams in multicast or unicast mode, plus a 4-channel 24-bit/48 kHz UAC input and one 4-channel 16-bit network audio stream over NDI, SRT or Icecast. On the transmit side, it can send up to 8 x 8-channel 24-bit AES67 streams and simultaneously encode one 4-channel stream for network distribution. With support for 44.1, 48 and 96 kHz sampling, 16/24-bit depth, PTP master/slave synchronisation, frequency response of 20 Hz to 20 kHz, dynamic range above 100 dB and THD below 0.01% @ +4 dBu, it fits installations where timing discipline and audio integrity matter.

A major advantage in daily operation is the internal virtual audio matrix. Any analogue or IP-based input can be routed or mixed to analogue, IP or UAC outputs through the web-based interface, which makes the unit useful for remote contribution, confidence monitoring, overflow audio feeds, stream backup paths, lecture capture, podcast rooms, OB support positions and hybrid studio systems combining legacy analogue gear with AoIP transport. Remote control via Web UI and Control Hub, real-time status information and HTTP API support also make it easier to integrate into managed ProAV or broadcast environments.

For installation, Gigabit Ethernet with PoE reduces cabling at commentary desks, technical rooms and wall-box positions, while the included balanced XLR breakout cabling helps connect the converter directly to professional audio equipment. Used as an AES67 encoder, decoder and audio capture interface, Magewell Pro Convert AES67 gives production teams a precise method to move audio between analogue equipment, software systems and IP networks without forcing a redesign of the whole signal chain.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The Magewell Pro Convert AES67 is a flexible multi-format encoder, decoder, and capture device for IP audio. This device allows users to transmit analog and digital audio data over AES67, SRT, NDI® and more IP standards.

Due to the support for AES67, it possible to send and receive up to 8-channel unicast or multicast AES67 audio streams from third-party audio equipment. This device features driver-free installation and gets intantly reckognized by streaming, conferencing and production software. Users can also switch to the NDI protocol and transmit uncompressed audio over IP. The low-latency SRT protocol can be selected for Advanced Audio Coding (AAC).

The Pro Convert AES67 offers a wide variety of value-added features in an ultra-compact housing, making it ideal for portable field-use.

Live production is made easy with the included Magewell WebUI for remote control.

Main features:
- Offers a seamless bridge between analog audio, software and IP standards including AES67, NDI®, SRT and more
- Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
- Enables mixed-technology local and remote production workflows and ProAV installations
- Power source: POE, power adapter, or USB.

Key Features
Compatible with ST 2110-30
Input and output for 3.5mm unbalanced/4.4mm balanced/USB Audio Class/Icecast/AES67/NDI/SRT
Nanosecond accuracy timing synchronization is provided using IEEE 1588- 2008 Precision Time Protocol (PTP) Version 2 (PTPv2)
Integrated A/D and D/A audio converters
Remotely monitor and configure, working status, input signal status, and settings via Magewell Cloud and Web UI
Compatible with a wide variety of TCP/IP devices, including PC and audio processing software
Dual power input options, powered by Power over Ethernet (PoE) switch, a PoE injector (802.3 af) or DC 5V via MicroUSB connector
System Requirements Network Supported Web Browser for the Web UI PoE injector (802.3 af) or DC 5V via MicroUSB connector

Web UI Configuration
Remote streaming and production sessions with the pro convert AES67 are made easier thanks to the Magewell WebUI. Remotely monitor and configure, working status, input signal status, and settings via Magewell Cloud and Web UI
Check Device, Audio, Stream, Ethernet status and many more.
Global settings (set parameters)
PTP configuration
Stream (NDI, SRT, Icecast TX/RX sessions)
Audio matrix tab - Switching matrix for selectively connecting incoming signals to desired output paths.

Audio Routing Matrix
Output up to 22 channels, and input up to 46 channels.
It routes any of the inputs to any of the outputs. Each channel in these outputs is completely independent and isolated from each other.
The 46 x 22 crosspoint performance audio matrix offers routing, mixing and volume setting functionalities for the inputs and outputs.

Multiple IP based formats
AES67 is capable of serving IP based formats such as Native AES67, SMPTE ST 2110-30 and Dante AES67.

3.5mm Unbalanced IN/OUT
1 x 2 channel 3.5mm unbalanced in（3k Ohm）
1 x 2 channel 3.5mm unbalanced out（10 Ohm）
Both Mic and Line in are supported.

4.4mm Balanced IN/OUT
1 x 2 channel 4.4mm balanced in（20k Ohm
1 x 2 channel 4.4mm balanced out（150 Ohm）
A 4.4mm balanced to dual XLR male balanced adapter cable is provided.

Receiving/Input Features
Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth
1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
1 x 4-channel 24-bit/48k USB Audio Class in
Receiving 4 x 8-channel 24-bit AES67 (compatible with SMPTE ST 2110–30) streams both multicasted and unicasted
Receiving 1 x 4-channel 16-bit Network audio stream with Icecast, SRT, or NDI protocol, via Ethernet
Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
Dynamic range > 100dB
Signal to noise ratio > 100dB
Total harmonic distortion < 0.01% @ +4dBu
Support for PTP master/slave
Max signal level: unbalanced at 12dBu, balanced at 24dBu
Device buffer at 0.125 ~ 64 ms (controlled via WebUI, 1 to 16 packets with packet time at 0.125/0.25/0.333/1/4 ms)

Sending/Output Features
Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth
1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)
1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)
1 x 4-channel 24-bit/48k UAC out
Multicast (IGMPv2) and unicast up to 8 x 8-channel 24-bit AES67 (SMPTE ST 2110–30 compliant) streams
Encoding and transmitting 1 x 4-channel 16-bit audio stream with Icecast, SRT, and NDI protocol
Support for PTP master/slave
Total harmonic distortion < 0.01% @ +4dBu
Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
Dynamic range > 100dB
Signal to noise ratio > 100dB
Max signal level: unbalanced at 12dBu, balanced at 18dBu

Configuration Management
Registration with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provision of comprehensive information regarding the device and signals in real-time
Configuration of how an input is processed and encoded, including sampling, packets, PTPv2(IEEE 1588–2008), channel adjustment, audio mixing, buffer, as well as the network connection
Support for updating firmware
Support for USB RNDIS/ECM
Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provision of HTTP APIs

Interfaces
10/100/1000Mbps with PoE (IEEE 802.3af)
USB2.0 Type B
5V/2.1A power supply
USB NET
3.5mm TRS unbalanced IN/OUT
4.4mm TRRRS balanced IN/OUT

LED Indicators
Power LED indications:
on: power on
off: power off
PTP LED indications:
on: synced
off: not synced
blinking: syncing

Form Factor
100.9smm (L) x 60.2mm (W) x 23.3mm (H)

Accessories
4.4mm to Dual XLR Male Cable
4.4mm to Dual XLR Female Cable
USB 2.0 cable (Type A to Type B)
Universal power adapter
L bracket

On-board Control Buttons
16 Position Rotary DIP Switch: sets board-index from 0 to F

Screw Mounting Hole
1⁄4–20 threaded hole

Power Consumption
5V max current: ~ 1 A
Max power consumption: ~ 5 W

Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
