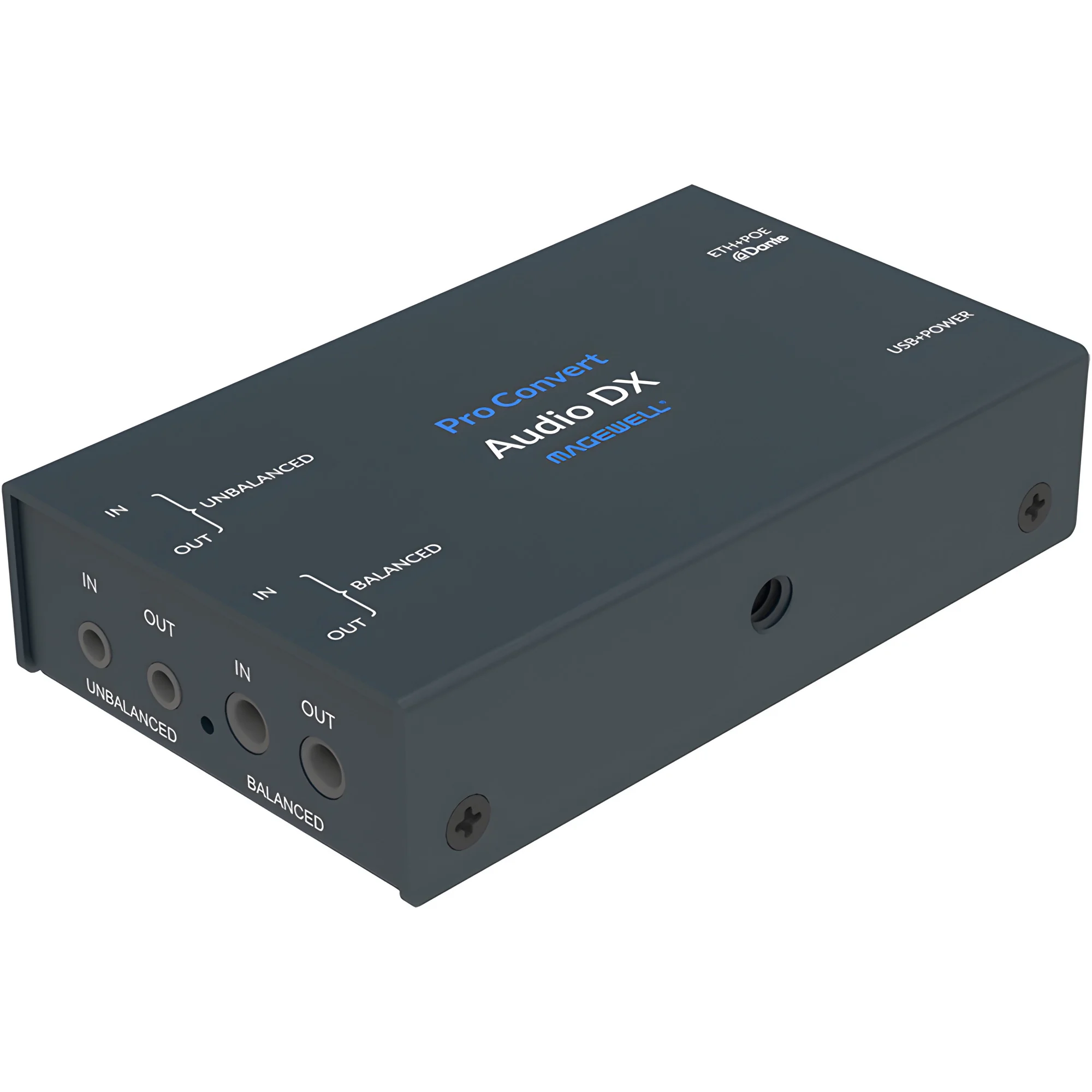

Magewell Pro Convert Audio DX (64260) Dante audio Converter

Magewell Pro Convert Audio DX (64260) Dante audio Converter

Name: Magewell Pro Convert Audio DX (64260) Dante audio Converter
Brand: Magewell
SKU: 642600000
Price: 499.00 EUR
Availability: InStock

MPN: 642600000

Price: €499.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Magewell Pro Convert Audio DX is the kind of interface that solves a very specific ProAV problem: how to move audio cleanly between analog sources, software and IP networks without adding a pile of separate boxes. In one compact unit it can take a feed from mixers, playback systems, intercom paths or outboard processors and translate it into Dante, NDI or SRT, while also working in reverse for monitoring, distribution or return audio. For studios, flypacks, streaming sets and broadcast control rooms, that means one device can sit between legacy audio gear and modern networked production infrastructure with far less friction.

Its connectivity is built for practical integration. The unit provides 3.5 mm TRS unbalanced and 4.4 mm balanced analog input and output, plus USB Audio Class for direct capture or playout from a computer. It supports sample rates up to 96 kHz with 16- and 24-bit audio, while Dante transmission and reception reaches 8 channels / 24-bit. On the network side, the current Magewell specification also lists simultaneous handling of two 4-channel streams across protocols such as NDI, SRT, RTSP, RTMP(S) and transport stream modes, giving technical teams more options when routing audio between local systems and remote contribution paths.

A major strength of Pro Convert Audio DX is the internal audio matrix. Any supported input can be routed, split or mixed to the required destination, which is useful when a production needs program audio on Dante, confidence monitoring on analog out, and a separate USB feed for conferencing, recording or streaming software at the same time. That makes it relevant for podcast rooms, event stages, commentary booths, courtrooms, education spaces, hybrid worship, corporate webcast systems and television facilities where analog sources still need to coexist with packet-based transport.

For installation and day-to-day operation, Magewell adds features that matter in real rooms: PoE for simple deployment, PTP synchronization for Dante timing, remote control through WebUI and Control Hub, HTTP APIs for system integration, and a 1/4"-20 mounting point for rigging in carts or portable kits. The result is not just an audio converter, but a practical bridge for engineers who need to connect mixers, DSPs, laptops and IP production systems with predictable behaviour and broadcast-minded control.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The Magewell Pro Convert Audio DX is a highly flexible IP audio conversion and capture device, allowing you to easily convert audio between Dante®, NDI®, and SRT in multiple directions. It is the ideal device for bridging software, audio and IP networks.

• Encode analog audio into Dante®, NDI®, and SRT.
• Decode IP audio streams into Dante®, NDI®, and SRT (analog output).
• Capture audio on your PC or Laptop via USB.

Encode, Decode, and Capture Audio in many ways
The Magewell Pro Convert Audio DX is capable of encoding analog audio into multiple formats and streaming protocols such as Dante®, NDI®, or SRT. Decode your IP audio streams into all of these formats and protocols for analog output.

Capture and save audio streams with the Pro Convert Audio DX by connecting the device to your PC or laptop via USB. The UAC compatibility provides immediate recognition by popular video conferencing, streaming, and production software.

3.5mm In&Out
1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)

4.4mm In&Out
1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)

USB-B In&Out
1 x 4-channel 24-bit/48k USB Audio in and out

ETH In&Out
Receive and encode 24-bit 8 channels Dante® streams
Receive and encode 1 x 4-channel 16-bit NDI® audio stream
Receive and encode 1 x 4-channel 16-bit SRT audio stream

Mix and Route Audio
The Magewell Virtual Audio Matrix makes it very easy for users to route and mix any analog or IP-based input channel to any IP, analog, or UAC output. The Matrix can be accessed through the Web GUI and does not require software installation.

Receiving/Input Features
Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth
1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
1 x 4-channel 24-bit/48k USB Audio Class in
Receiving 8-channel 24-bit Dante® flows in unicast or multicast
Receiving 1 x 4-channel 16-bit SRT network audio stream
Receiving 1 x 4-channel 16-bit NDI® network audio stream
Support for PTP master/slave
Total harmonic distortion < 0.01% @ +4dBu
Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
Signal to noise ratio > 100dB
Dynamic range > 100dB
Max signal level: unbalanced at 12dBu, balanced at 24dBu

Transmitting/Output Features
Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth
1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)
1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)
1 x 4-channel 24-bit/48k UAC out
Encoding 8-channel 24-bit Dante® flows in unicast or multicast
Encoding 1 x 4-channel 16-bit SRT network audio stream
Encoding 1 x 4-channel 16-bit NDI® network audio stream
Encoding 1 x 4-channel 16-bit RTSP network audio stream
Support for PTP master/slave
Total harmonic distortion < 0.01% @ +4dBu
Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
Dynamic range > 100dB
Signal to noise ratio > 100dB
Max signal level: unbalanced at 12dBu, balanced at 18dBu

Configuration Management
Support for Dante Controller, providing signal routing and configuration
Registration with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provision of comprehensive information regarding the device and signals in real-time
Configuration of how an input is processed and encoded, including sampling, packets, PTPv2 (IEEE 1588–2008), volume setting, audio matrix, buffer, as well as the network connection
Support for updating firmware
Support for USB NET
Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provision of HTTP APIs

Interfaces
10/100/1000Mbps with PoE (IEEE 802.3af)
USB2.0 Type B
5V/2.1A power supply
USB NET
3.5mm TRS unbanlanced IN/OUT
4.4mm TRRRS banlanced IN/OUT

LED Indicators
Power LED indications:
on: power on
off: power off
PTP LED indications:
on: synced
off: not synced
blinking: syncing

Form Factor
100.9mm (L) x 60.2mm (W)x 23.3mm (H)

Accessories
4.4mm to Dual XLR Male Cable
4.4mm to Dual XLR Female Cable
USB 2.0 cable (Type A to Type B)
Universal power adapter
L bracket

On-board Control Buttons
16 Position Rotary DIP Switch: set board-index from 0 to F

Screw Mounting Hole
1⁄4–20 threaded hole

Power Consumption
5V max current: ~ 1 A
Max power consumption: ~ 5 W

Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
