Magewell Pro Convert HDMI 4K Plus (64012) HDMI to NDI converter
€955.00
Magewell Pro Convert HDMI 4K Plus turns one HDMI source into a Full NDI stream for IP production. It accepts up to 4096 × 2160 60 fps with...
Where many decoders simply output a picture, Magewell Pro Convert for NDI to HDMI 4K solves a more practical task: it takes an NDI to HDMI 4K feed from an IP production environment and places it on a monitor, projector, multiview screen or confidence display in a format the destination device can actually accept. It decodes Full NDI as well as NDI|HX, NDI|HX2 and NDI|HX3, then delivers up to 4096x2160 at 60 fps over HDMI with embedded multichannel audio. For control rooms, event stages, hybrid lecture spaces and broadcast racks, that means fewer format surprises when the signal leaves the network and returns to a baseband display chain.
The unit automatically follows the EDID of the connected screen, which is especially useful when one decoder may be moved between UHD displays, production monitors and presentation systems. HDMI output supports up to 4K60 4:4:4 8-bit, while audio can be carried as 8-channel, 96 kHz, 16-bit. Magewell also adds decoding support beyond NDI, including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP, SRT or RTP. This widens its role from pure NDI monitoring to IP video decoder duties in streaming, digital signage, contribution links and fixed AV installations.
From an operational standpoint, the decoder fits well into professional environments that need remote access and predictable setup. It can be managed through WebUI, Control Hub and HTTP API, with live device status, decoding parameters, deinterlacing, OSD behaviour, alpha blending, audio gain, sample rate and channel mapping available for adjustment. Gigabit Ethernet with PoE reduces local power dependency, while USB connectivity supports power and network access via USB RNDIS/ECM. A tally indicator for preview/program status is also valuable when the box is used near studio monitors or on set.
In real installations, Magewell Pro Convert for NDI to HDMI 4K is a strong fit for video villages, LED processor feeds, corporate presentation rooms, auditoriums, esports stages, houses of worship and OB support positions where a network source must appear instantly on HDMI. It is equally useful for sending a routed NDI feed to a director’s reference monitor, turning an SRT or RTMP stream into a local display output, or feeding a projector in a live venue without placing a full production computer at the screen end. That combination of 4K HDMI decoder, multi-protocol support and broadcast-oriented control makes it a practical tool for television, streaming and ProAV signal distribution.

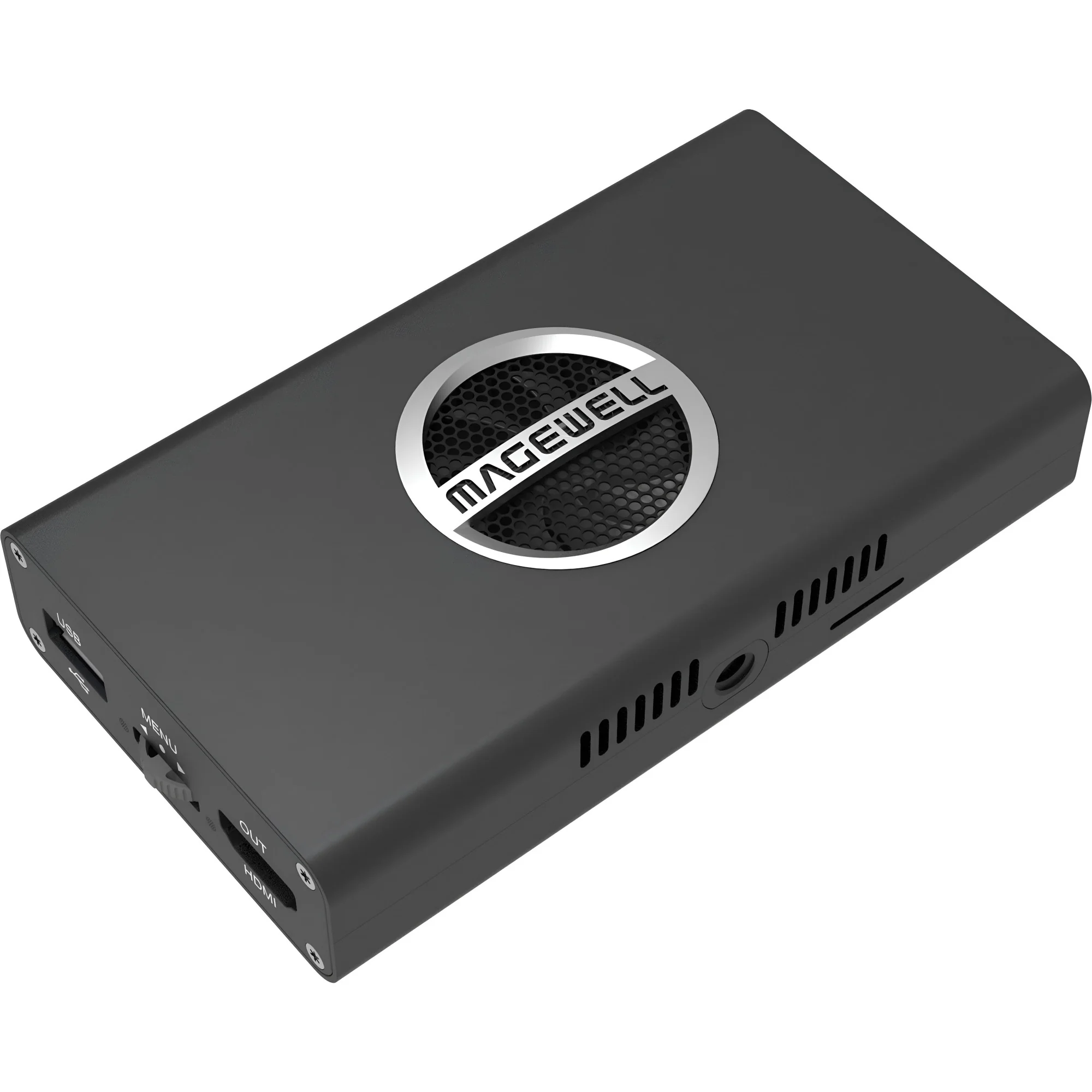

Magewell Pro Convert for NDI® to HDMI 4K (64110) Decoder
641100000
Price: €949.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Where many decoders simply output a picture, Magewell Pro Convert for NDI to HDMI 4K solves a more practical task: it takes an NDI to HDMI 4K feed from an IP production environment and places it on a monitor, projector, multiview screen or confidence display in a format the destination device can actually accept. It decodes Full NDI as well as NDI|HX, NDI|HX2 and NDI|HX3, then delivers up to 4096x2160 at 60 fps over HDMI with embedded multichannel audio. For control rooms, event stages, hybrid lecture spaces and broadcast racks, that means fewer format surprises when the signal leaves the network and returns to a baseband display chain.
The unit automatically follows the EDID of the connected screen, which is especially useful when one decoder may be moved between UHD displays, production monitors and presentation systems. HDMI output supports up to 4K60 4:4:4 8-bit, while audio can be carried as 8-channel, 96 kHz, 16-bit. Magewell also adds decoding support beyond NDI, including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP, SRT or RTP. This widens its role from pure NDI monitoring to IP video decoder duties in streaming, digital signage, contribution links and fixed AV installations.
From an operational standpoint, the decoder fits well into professional environments that need remote access and predictable setup. It can be managed through WebUI, Control Hub and HTTP API, with live device status, decoding parameters, deinterlacing, OSD behaviour, alpha blending, audio gain, sample rate and channel mapping available for adjustment. Gigabit Ethernet with PoE reduces local power dependency, while USB connectivity supports power and network access via USB RNDIS/ECM. A tally indicator for preview/program status is also valuable when the box is used near studio monitors or on set.
In real installations, Magewell Pro Convert for NDI to HDMI 4K is a strong fit for video villages, LED processor feeds, corporate presentation rooms, auditoriums, esports stages, houses of worship and OB support positions where a network source must appear instantly on HDMI. It is equally useful for sending a routed NDI feed to a director’s reference monitor, turning an SRT or RTMP stream into a local display output, or feeding a projector in a live venue without placing a full production computer at the screen end. That combination of 4K HDMI decoder, multi-protocol support and broadcast-oriented control makes it a practical tool for television, streaming and ProAV signal distribution.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The Magewell Pro Convert for NDI® to HDMI 4K converts a live NDI® stream with embedded audio into 4K HDMI signal. Decode NDI streams up to 4K 60fps into HDMI output up to 4096x2160 60fps at ultra low latency.
Pro Convert decoders support both dedicated video-over-IP and universal streaming protocols including NDI®, SRT (Secure Reliable Transport), RTMP, RTSP, RTP, UDP, HTTP and HLS, enabling high-quality conversion of full NDI, NDI|HX, H.264 (AVC) or H.265 (HEVC) streams into high-quality HDMI or SDI outputs.
Compatible with a wide variety of hardware and software encoders, Pro Convert decoders transform input streams up to 4096x2160 at 60fps for output to baseband monitors, projectors, hardware switchers and more.
They are perfect for multi-site video distribution, video walls, image magnification (IMAG), digital signage, remote production and video surveillance.
- Converts a live NDI® stream into 4K HDMI signal
- Connects baseband presentation or distribution equipment into IP-based media networks
- Decodes Full NDI or NDI|HX into 4K HDMI at a super-low latency
- Automatically optimizes output based on EDID characteristics of connected display
Output Features
Max output: 4096x2160 60fps 4:4:4 8-bit
Delivering video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60
2560x1440p 60/100/120/144
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
1920x1080i 50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p50
720x576i50
720x480p59.94/60
720x480i59.94/60
Support 48KHz 8-channel audio output HDMI interface: HDMI 1.4/2.0
Decoding Features
Decoding up to 4Kp60 streams of Full NDI, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols
H.264/H.265 video decoders
AAC/MP3 audio decoders
Support NDI 5.x
Configuration Management
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, alpha blending, audio gain, sample rate, and channel mapping, as well as the network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs
On-board Control Buttons
MENU: press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options
16 Position Rotary DIP Switch: set board-index from 0 to F
Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interfaces
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
USB3.0 Type A
Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings
LED Indicators
Power LED status indicator
On: power connected
Off: power unconnected
Decode LED status indicator
On: decoding
Blinks: decoding error
Off: source unselected
Tally: preview/program
Form Factor
117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
L-bracket
Screw Mounting Hole
1⁄4–20 threaded hole
Power Consumption
5V max current: ~1.6A
Max power consumption: ~7.2W
Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
641100000
13 Items
Data sheet
- Video Input
- NDI
- Video Output
- HDMI
- Audio Input
- NDI Embedded
- Audio Output
- HDMI Embedded
- Max Output Resolution
- 4K (4096 x 2160) 50/60 fps
- Output colour sampling
- RGB 4:4:4 8-bit
YUV/YCbCe/YPbPr 4:4:4 8-bit - Built-in scaler
- Yes
- Network Connection
- Ethernet
Specific References
- ean13
- 6936572401294
- mpn
- 641100000
