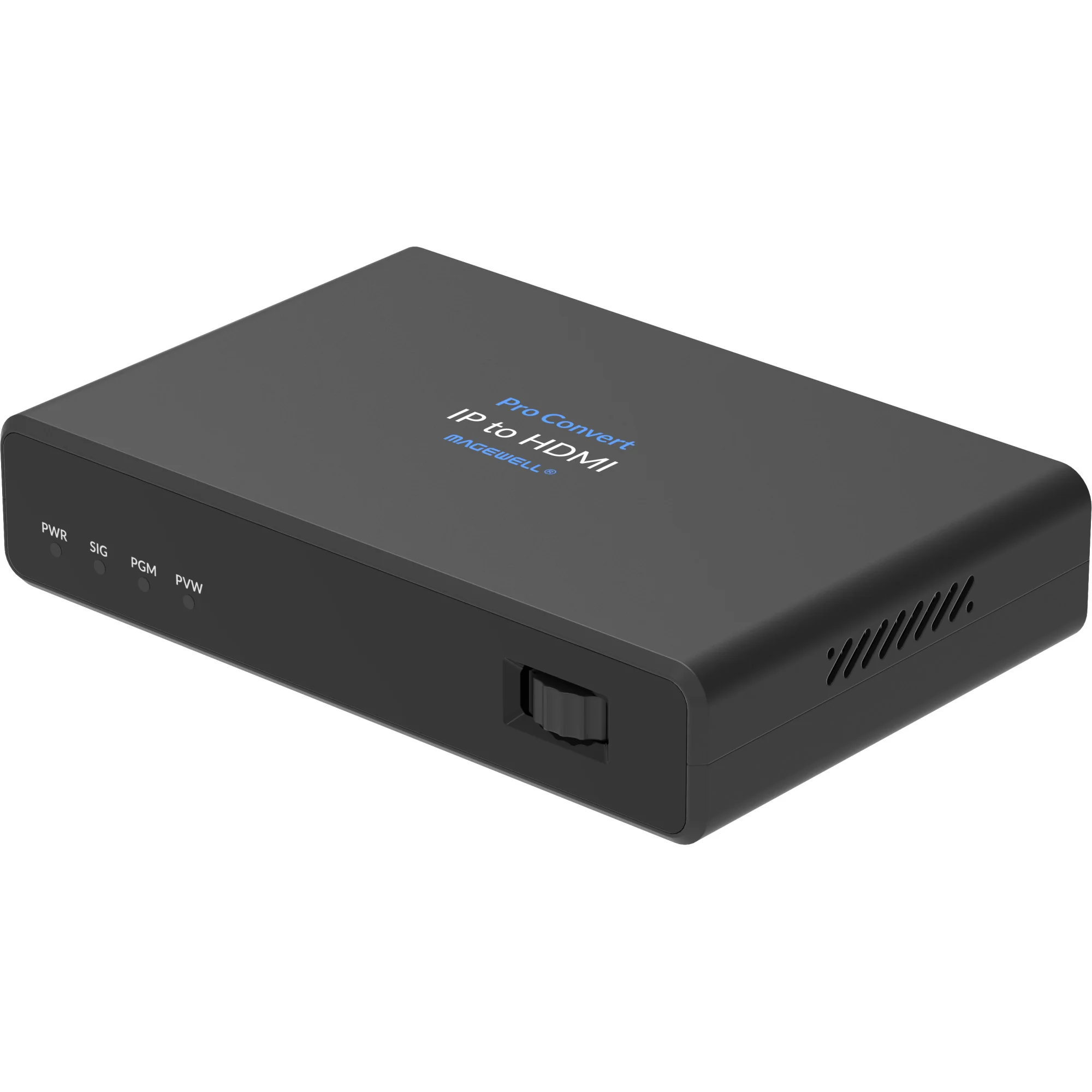

Magewell Pro Convert IP to HDMI (64430) Video Decoder

Magewell Pro Convert IP to HDMI (64430) Video Decoder

Name: Magewell Pro Convert IP to HDMI (64430) Video Decoder
Brand: Magewell
SKU: 644300000
Price: 569.00 EUR
Availability: InStock

MPN: 644300000

Price: €569.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Magewell Pro Convert IP to HDMI bridges AV-over-IP and internet streams into an HDMI presentation chain, turning network video into a clean QHD HDMI 2.0 output for monitors, projectors, LED processors or switcher inputs. It can decode up to four IP sources and place them in a preset multiview layout: full-screen, picture-in-picture or quad—useful for confidence monitoring, digital signage, classrooms and overflow rooms.

In single-screen mode it decodes one stream up to 2560×1440p60 (H.264/H.265, SpeedHQ or MPEG-2). For PiP it handles two streams up to 1920×1080p60 (one may be NDI High Bandwidth or MPEG-2), and for quad it decodes four H.264/H.265 sources up to 1080p60 simultaneously. Protocol coverage fits mixed infrastructures: NDI (including HX/HX2/HX3, NDI 6.2), SRT, RTSP, RTMP, HLS, ZIXI and MPEG-TS over RTP/UDP—one box can take a studio NDI feed, an RTSP camera, or an SRT contribution from the field.

HDMI output reaches 10-bit 4:4:4 with HDR10 support and automatic negotiation of the preferred format via the connected display, with color spaces up to BT.2020. Embedded audio delivers up to 8-channel audio at 48/96 kHz, while the unit accepts AAC, MP3, AC-3, Opus and G.711—handy when streams carry stereo playback or multichannel program audio.

Configuration stays practical on a busy network: the Web UI provides real-time preview (live stream or MJPEG), OSD, deinterlacing, audio gain and sample-rate selection, ping testing, security settings and config import/export; a rotary encoder on the chassis and USB keyboard/mouse support speed up local setup. Status LEDs plus program/preview tally indicators make it easy to see which source is live, and built-in PTZ control keeps NDI camera adjustment within reach. For integrators, Control Hub registration and HTTP APIs enable fleet management, while PoE/PoE+ over Gigabit Ethernet or USB-C power simplifies installation; a standard 1/4"-20 (6.35 mm) thread keeps it easy to mount.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Converts up to four IP streams into one QHD HDMI signal
Up to 4 IP streams can be decoded and output in a preset layout, including a single main window, the picture-in-picture or quad-screen mode
Connects baseband presentation or distribution equipment into IP-based media networks
Video preview, in real-time stream or MJPEG picture is available on the web GUI

Pro Convert IP to HDMI Specifications

Decoding Features
Supports multiple output modes for decoding of different protocol signals.

Single Screen
Decoding Channels: 1
Supported Protocols: NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, SRT, TS over RTP/UDP, RTMP, RTSP, HLS and ZIXI
Formats: H.264, H.265, SpeedHQ, MPEG2
Resolution: Up to 2560x1440p60

Picture-in-Picture
Decoding Channels: 2
Supported Protocols: NDI High Bandwidth*, NDI HX, NDI HX2, NDI HX3, SRT, TS over RTP/UDP, RTMP, RTSP, HLS and ZIXI
Formats: H.264, H.265, SpeedHQ, MPEG2*
Resolution: Up to 1920x1080p60
*Note: Only one channel of either NDI High Bandwidth or MPEG2 format video is supported for decoding.

Quad Screen
Decoding Channels: 4
Supported Protocols: NDI HX, NDI HX2, NDI HX3, SRT, TS over RTP/UDP, RTMP, RTSP, HLS and ZIXI
Formats: H.264, H.265
Resolution: Up to 1920x1080p60

Supports decoding of audio formats including AAC, MP3, AC3, Opus and G.711.
Supports NDI 6.2.

Output Features
Max output: 2560x1440 60fps 4:4:4 10-bit
Delivering video at the preferred video format according to the capabilities of the connected monitor. Supported output formats include:
2560x1440p60
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080i 50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p50
720x576i50
720x480p59.94/60
720x480i59.94/60
Support color space: BT.601/BT.709/BT.2020
Support HDR10
Support 48/96KHz 8-channel audio output
HDMI interface: HDMI 2.0

Configuration Management
Support registration with Control Hub for remote centralized management
Provide WebUI tools
Provide comprehensive information regarding the device and decoded signals in real-time
Support preview of output images and PTZ control
Configure audio and video signal decoding and output parameters, including OSD, deinterlacing, video format, audio gain, sample rate, Ping test, security settings, configuration files import and export, and network connections
Support firmware upgrade
Support USB NET
Support Edge/Firefox/Chrome/Safari/Opera web browsers
Support HTTP APIs

On-board Control Buttons
Rotary encoder button:
Rotate: toggle options
Press: bring up menu, enter current option, or confirm the selection

Network Interfaces
10/100/1000Mbps Ethernet
Support IEEE 802.3af PoE and 802.3at PoE+

USB Interfaces
USB3.0 Type C: 5V/12V 10W power supply, USB NET
USB3.0 Type A: Connecting peripherals (keyboard and/or mouse) to customize device settings

LED Indicators
Power Indicator (PWR):
On: Power connected
Off: Power disconnected
Decoding status Indicator (SIG):
Blue: All selected sources in single/multi-channel decoding are working normally
Red: All selected sources in single/multi-channel decoding are abnormal
Green: Both normal and abnormal decoding exist simultaneously in multi-channel decoding
Off: No sources selected in single/multi-channel decoding
Tally lights:
Program Tally (PGM): The connected NDI source is live when illuminating red
Preview Tally (PVW): The connected NDI source is in preview when illuminating green

Form Factor: 4.72“ (L) x 3.12” (W) x 0.96" (H) (as is 120 mm (L) x 79.3 mm (W) x 24.5 mm (H))
Screw Mounting Holes: ¼–20 threaded hole
Power Consumption:
5V maximum current: ~1.324A
12V maximum current: ~0.555A
Max power consumption: ~6.62W
Working Environment:
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
