The AVMATRIX FE1121 solves a very specific signal-transport problem: taking a 3G-SDI camera feed far beyond normal coax runs without giving up embedded audio, metadata, or dependable signal lock. This transmitter/receiver kit carries SD, HD and 3G-SDI over single-mode LC simplex fiber to distances up to 20 km, with support for resolutions up to 1080p. For venues with camera positions far from the control room, fixed links between stage and gallery, or routed feeds across large campuses, it replaces long copper paths with a fiber link built for stable point-to-point delivery.
On the transmitter, the unit provides one SDI input plus a loop output, so a local monitor, shader station or confidence display can stay in circuit while the same signal travels down fiber. At the receive side, dual SDI outputs make it easy to feed a switcher and a recorder, a router and a monitor wall, or a main destination and a backup path at the same time. The FE1121 also supports Level A and Level B formats, automatic SD/HD/3G-SDI detection, and re-clocking / equalization, which matters in installations where clean recovery of the SDI stream is more important than headline marketing language.
The optical section uses a hot-pluggable SFP module with LC connectivity, giving service teams a practical way to replace the transceiver module without changing the whole extender pair. The signal path handles YUV and RGB colour spaces and passes up to 16 channels of embedded audio, so the same link can carry camera pictures, program feeds, replay outputs or studio sources without separating sound from picture. USB-powered operation and included mounting hardware also help in racks, flypacks and wall-mounted technical areas where space is tight. In day-to-day use, that makes the AVMATRIX FE1121 a strong fit for live production flypacks, event halls, houses of worship, studio infrastructure and broadcast positions that need long fiber transport in a compact format.
AVMATRIX FE1121 SDI Fiber Optic Extender
FE1121
Price: €449.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

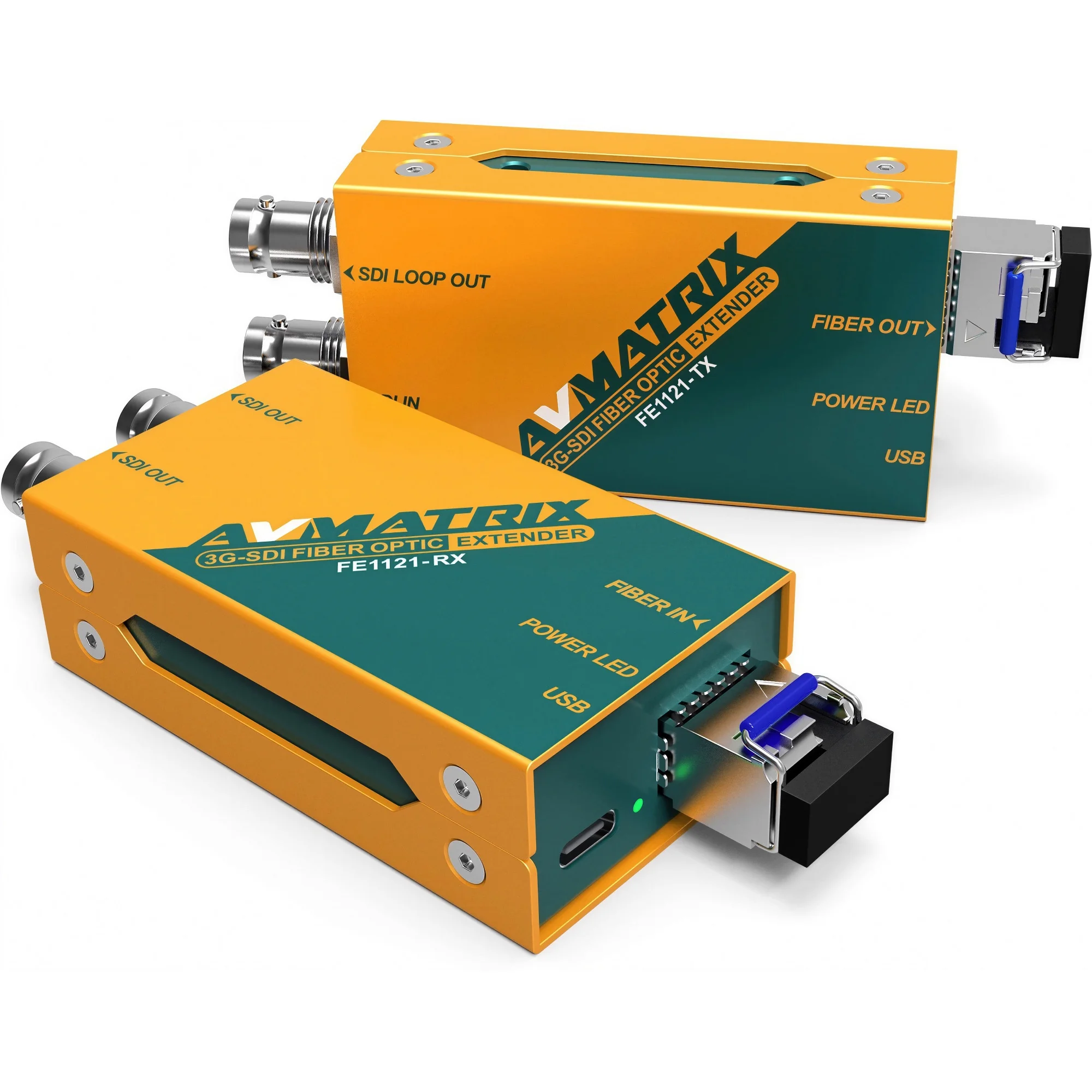

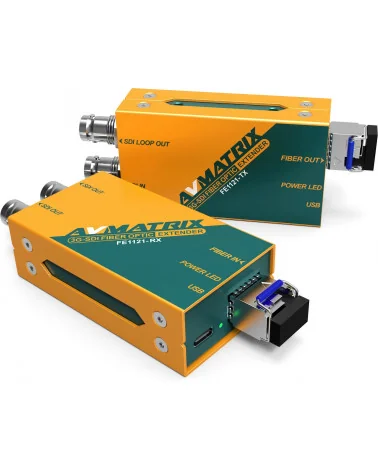

The AVMATRIX FE1121 solves a very specific signal-transport problem: taking a 3G-SDI camera feed far beyond normal coax runs without giving up embedded audio, metadata, or dependable signal lock. This transmitter/receiver kit carries SD, HD and 3G-SDI over single-mode LC simplex fiber to distances up to 20 km, with support for resolutions up to 1080p. For venues with camera positions far from the control room, fixed links between stage and gallery, or routed feeds across large campuses, it replaces long copper paths with a fiber link built for stable point-to-point delivery.
On the transmitter, the unit provides one SDI input plus a loop output, so a local monitor, shader station or confidence display can stay in circuit while the same signal travels down fiber. At the receive side, dual SDI outputs make it easy to feed a switcher and a recorder, a router and a monitor wall, or a main destination and a backup path at the same time. The FE1121 also supports Level A and Level B formats, automatic SD/HD/3G-SDI detection, and re-clocking / equalization, which matters in installations where clean recovery of the SDI stream is more important than headline marketing language.
The optical section uses a hot-pluggable SFP module with LC connectivity, giving service teams a practical way to replace the transceiver module without changing the whole extender pair. The signal path handles YUV and RGB colour spaces and passes up to 16 channels of embedded audio, so the same link can carry camera pictures, program feeds, replay outputs or studio sources without separating sound from picture. USB-powered operation and included mounting hardware also help in racks, flypacks and wall-mounted technical areas where space is tight. In day-to-day use, that makes the AVMATRIX FE1121 a strong fit for live production flypacks, event halls, houses of worship, studio infrastructure and broadcast positions that need long fiber transport in a compact format.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop

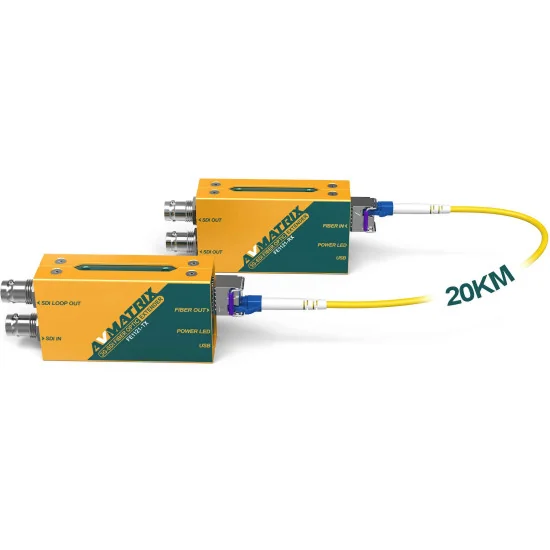

The FE1121 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p with audio and metadata, also supports level A and level B. It features a local SDI loop out and dual SDI outputs and supports 3G/HD/SD SDI signals. Multimode fiber can also be used but at shorter distances.
3G-SDI FIBER OPTIC EXTENDER
- 20km transmission distance
- Support 3Gbit Level A and Level B (all formats)
- SFP/ LC Fiber transmitter & receiver
- SDI equalization and re-clocking

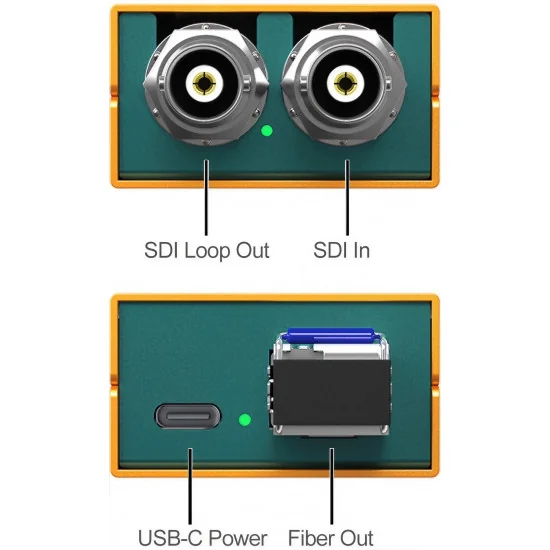

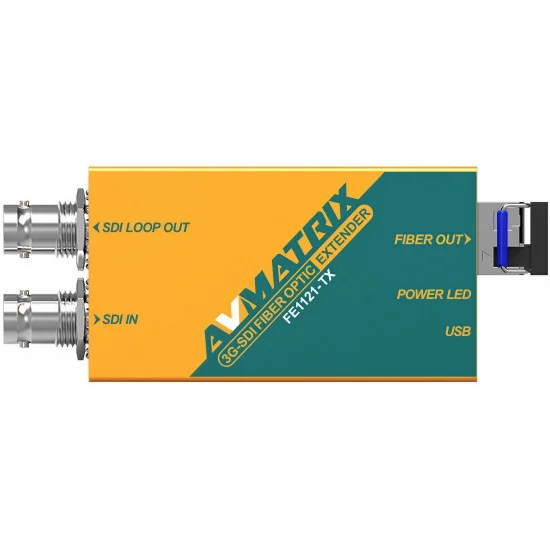

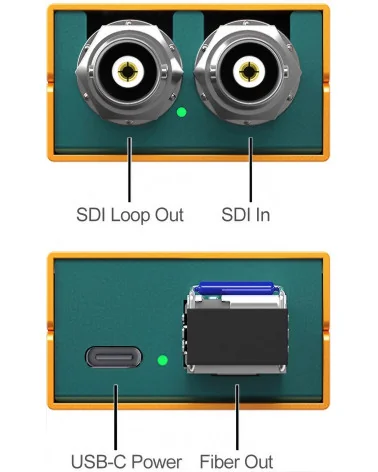

- 3G-SDI input & loopout on transmitter

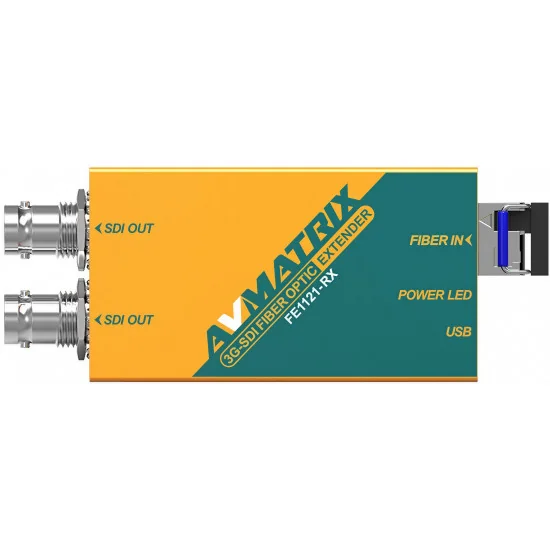

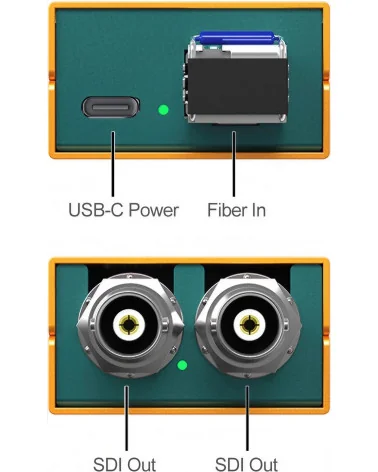

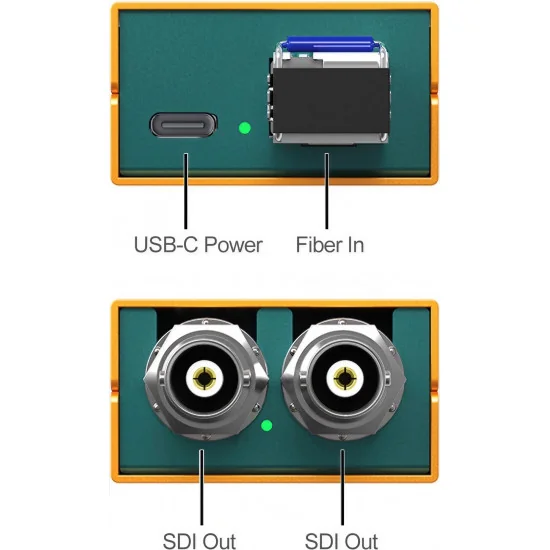

- Dual 3G-SDI outputs on receiver
- SDI input automatic switching SD, HD & 3G
- USB Type-C power supply
SFP module with LC connector
The fiber extender uses hot-pluggable SFP design with LC connector. You can replace the module anytime and anywhere. It is designed to transmit data rates from 50Mbps to 3Gbps, compliant with SFF-8472 and SMPTE 297M-2006.
Technical specification
CONNECTIONS
Transmitter SDI Video Input: SD/HD/3G-SDI(7522)×1
Transmitter SDI Loop Output: SD/HD/3G-SDI(75)x1
Transmitter Fiber Optical Output: SFP module(LC)x1
Receiver Fiber Optical Input: SFP module(LC)x1
Receiver SDI Video Output: SD/HD/3G-SDI(752)×2
STANDARDS
Optical Fiber Module: SFP module: Hot-pluggable
Connector style: LC
Fiber type: single-mode
Optical wavelength: 1310nm
Max. bandwidth: 3Gbps
Optical transmit power: -6~0dBm
Receiver sensitivity: -22dBm
Single-mode Max. Distance: 20 km (12.5 miles) for 3G (1080P)
Optical Fiber Compliance: SMPTE 297M 2006
SDI Compliance: 3Gbit Level A & level B (all formats) SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 296M, SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
SDI Auto Switching: Auto selects SD/HD/3G-SDI on input
SDI Video Rate: SD/HD/3G-SDI
SDI Color Space: YUV, RGB
SDI Equalization and Re-clocking: Yes, SDI input and output support up to 120m for 3G-SDI
SDI Audio: Supports 16 channels embedded
SIZE
Dimension(LWD): 71×41×23mm
Weight: 200+200g
POWER
Power: USB Type-C
Power Consumption: 1.5W
Voltage Range: 3.3V~5V
ENVIRONMENT
Operating Temperature: -20°C~60°C
Storage Temperature: -30°C~70°C
Relative Humidity: 0%~90% non-condensing
FE1121
4 Items
Data sheet
- Video Input
- Fiber Optic
SDI - Video Output
- Fiber Optic
SDI - Audio Input
- Fiber Optic Embedded
SDI Embedded - Audio Output
- Fiber Optic Embedded
SDI Embedded - Max Output Resolution
- 1080p 50/60 fps
- Built-in scaler
- No
Specific References
- ean13
- 6971118000050
- mpn
- FE1121
